Sediment is the quietest problem on a private well. It never announces itself with a taste or a smell, so most homeowners do not notice it until the faucets start running brown, the toilet stops clearing properly, or the first-stage carbon block behind the softener looks like it was pulled out of a storm drain.
By then the damage is already done. Grit eats the impellers in a pump, rust flakes scale a tankless water heater from the inside, and suspended silt destroys a reverse osmosis membrane that cost more than most people expect. A whole house sediment filter is the cheapest insurance in the house, and picking the right one comes down to a single number: how much sediment is actually in the water.
That is what we set out to answer with this roundup of the best sediment filters for well water. We compared ten picks across every filter category that matters on a private well, including spin-down and self-cleaning housings, string-wound and melt-blown cartridges, and pleated surface filters, in 10 inch x 2.5 inch, 10 inch x 4.5 inch and 20 inch x 4.5 inch housings. The details below matter more than the brand names, because on well water the filter media type and the micron rating decide whether you are solving the problem or just delaying the next service call.
What Is the Best Sediment Filter for Well Water? A Spin-Down for Sand, a 5 Micron Cartridge for Silt
The best sediment filter for well water depends entirely on your sediment load. Heavy sand and grit call for a flushable spin-down housing that cleans in seconds, while fine silt, rust and iron particles call for a 5 micron string-wound or pleated cartridge in a 4.5 inch housing.
Think of it as a two-stage decision. A 50 micron spin-down screen is built to catch the coarse stuff first and hand a longer-lived, cleaner stream of water to the cartridge behind it. A 5 micron cartridge is built to catch what the spin-down missed, and it works best when the coarse grit has already been pulled out of the stream upstream.
Owners on the [r/WaterTreatment forum](https://www.reddit.com/r/WaterTreatment/comments/143w5v8/best_water_filtration_system_from_well_water/) thread asking for a single filter to handle iron, manganese, sediment and high dissolved solids at once usually get the same answer back: one filter rarely handles all four. Treat sediment as its own job and deal with iron separately, as we cover in our [iron filter guide](https://webcomicsweekend.com/best-iron-filters/).
Top 3 Picks for Well Water Sediment Filters for September 2026
Membrane Solutions WPP-F10-5
- 5 micron string wound
- 10 inch x 2.5 inch
- 6 pack
- 15000-20000 gallon rating
iSpring WSP-50 Spin Down
- 50 micron stainless screen
- Flushable and reusable
- Brass head with clear bowl
- 1 inch and 3/4 inch dual threads
Best Sediment Filters for Well Water in September 2026
| Product | Specs | Action |
|---|---|---|
| Membrane Solutions WPP-F10-5 String Wound 5 Micron |
|
Check Latest Price |
| iSpring WSP-50 Spin Down 50 Micron |
|
Check Latest Price |
| PUREPLUS PPW10BB-05 String Wound 5 Micron |
|
Check Latest Price |
 Aquaboon ABC-2S20BB5M Melt Blown 20 x 4.5 |
|
Check Latest Price |
 iSpring 2XFP25B Whole House 20 x 4.5 |
|
Check Latest Price |
 ICEPURE PPL10BB-05 Pleated 5 Micron |
|
Check Latest Price |
 Pentair Pentek DGD-5005 Big Blue |
|
Check Latest Price |
 Culligan WH-S200-C Housing and Bypass |
|
Check Latest Price |
 Membrane Solutions PE-F10B-20 Pleated 20 Micron |
|
Check Latest Price |
 Waterdrop WD-RPFK Spin Down 50 Micron |
|
Check Latest Price |
Two things in that table drive every other decision. The first is housing diameter: a 4.5 inch housing holds several times the media volume of the slim 2.5 inch shell, and on well water that difference shows up as fewer change-outs and less pressure drop. The second is whether the media is depth filtration, where water flows from the outside of the cartridge inward, or surface filtration, where water crosses a pleated sheet. Depth filters trap more total dirt. Surface filters hold less but keep a steadier flow rate as they load.
Do You Even Need a Sediment Filter? Most Sandy and Silty Wells Do
A sediment filter is not optional on most private wells, and the reason is sequencing rather than taste. Whatever you install downstream of the sediment filter lasts longer, and a softener resin bed, a UV lamp or a reverse osmosis membrane all fail early when sand scours the media. One clear housing ahead of those components buys you years of service life for a cartridge you can swap in a minute.
Still, before you buy anything, run a two-minute glass test. Fill a clear drinking glass with your well water, hold it up to a light, and look through it. If you can see light clearly, you have a very clean supply and a 20 micron cartridge is plenty. If the water turns the glass faintly milky, you have suspended silt and you need 5 micron. If you can see grit settling to the bottom within ten minutes, you have sand, and that is a spin-down job rather than a cartridge job.
The second test uses the toilet tank. Let the tap run for a few minutes, then fill a clear glass from a cold tap. That sample is post-pressure-tank and represents what the rest of the house sees. Anything that settles out of that glass in an hour is sediment your whole plumbing system is ingesting every time a faucet opens.
If you want a number rather than a visual judgment, a turbidity reading from your annual well test tells you the same story in one value. Anything measurable above a few nephelometric units means the well is producing particulate, and the question is only how fine it is.
Our broader [well water filtration system guide](https://webcomicsweekend.com/best-well-water-filtration-systems/) covers the full treatment train if you are planning the whole system rather than one housing.

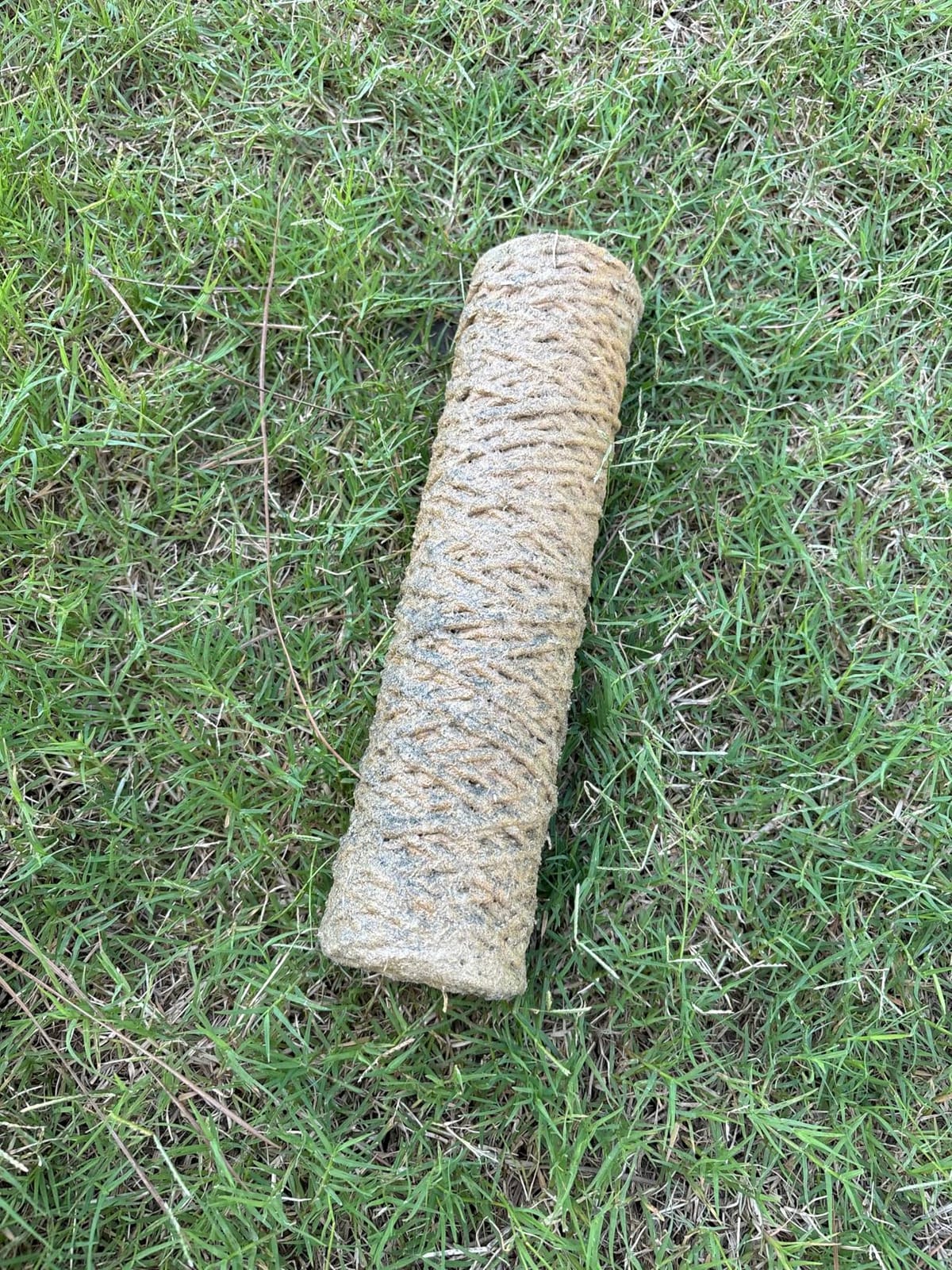

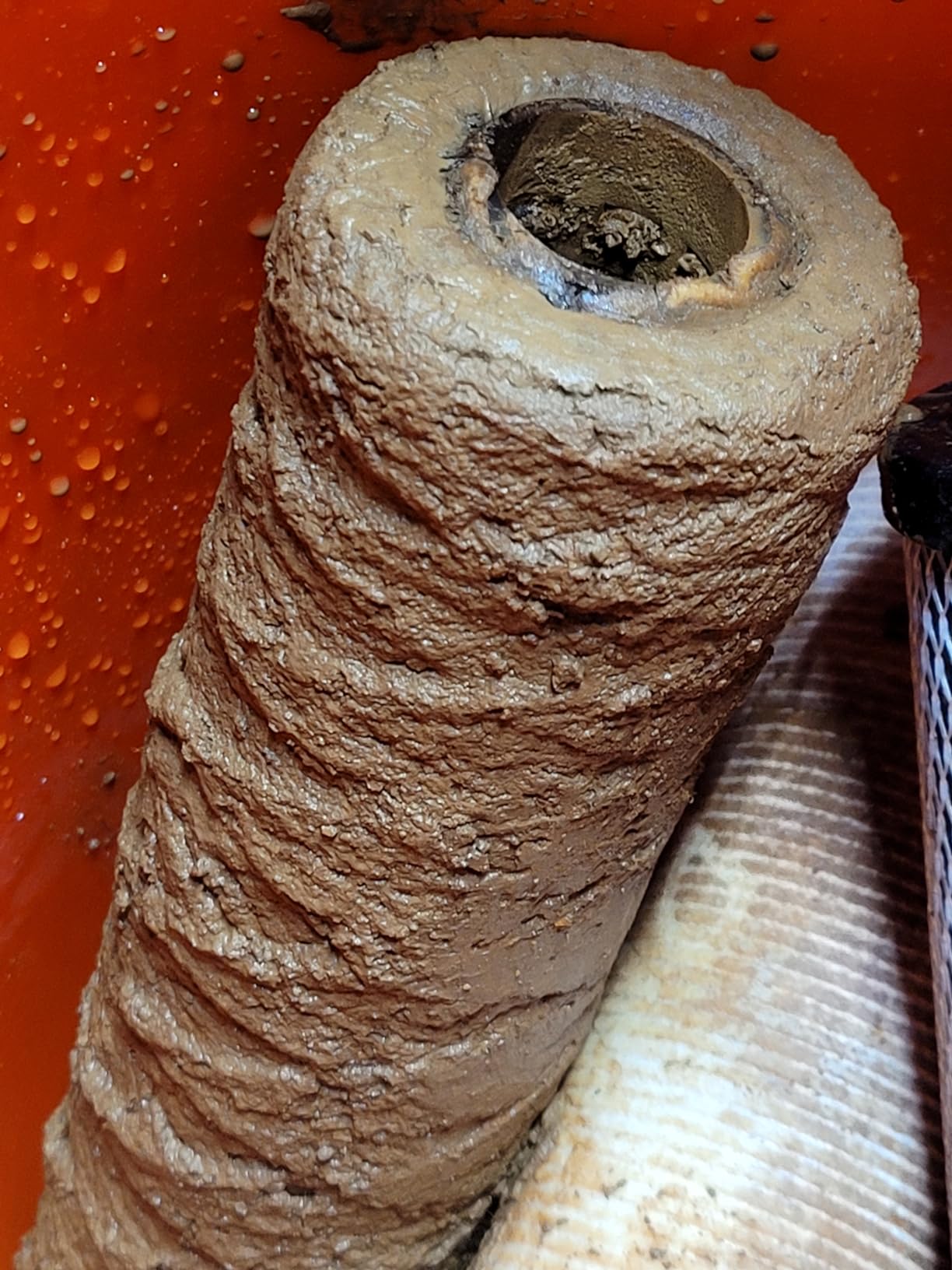

1. Membrane Solutions WPP-F10-5 String Wound 5 Micron, the Best All-Round Pick
Membrane Solutions 5 Micron 10″x2.5″ String Wound Whole House Water Filter Replacement Cartridge Universal Sediment Filters for Well Water – 6 Pack
5 micron string wound
10 inch x 2.5 inch
Polypropylene core
6 pack
Pros
- Deep graded honeycomb catches rust silt and sand
- Seals cleanly in standard 10 inch housings
- Reviewers report no measurable flow loss
- Washable reusable string wound design
- 6 pack costs less than singles at volume
Cons
- 2.5 inch diameter limits flow on high demand wells
- Can need monthly changes on silt heavy wells
- 20000 gallon rating assumes clean inlet water
This is the cartridge we kept reaching for while working through the list, and it does one specific thing extremely well. The media is a deep graded honeycomb structure, dense at the core and open at the outer edge, which means the largest particles bury themselves near the surface and the finer ones get caught closer to the center. That grading is the reason the cartridge keeps flowing after the outside has already loaded up with rust and sand.
It is a 10 inch x 2.5 inch fit, so it drops into the slim housings that most people already have installed or sitting in a garage from an earlier project. The 6-pack format is the real practical win. Reviewers report running these on rural and high-iron wells, watching fixture staining drop, and buying in bulk because a single cartridge at a plumbing supply counter costs more than one of these by a wide margin.
Specs worth knowing before you buy: it is rated for up to 15000-20000 gallons depending on inlet water quality, and the manufacturer recommends a change-out at least every six months. The polypropylene is food grade, lead free and BPA free, and the cartridge carries NSF material requirements certification.
We like that it is washable. String-wound media can be rinsed, backflushed and put back into service when the water is only lightly loaded, which stretches a six-month interval into something longer on a clean well.
Why It Stands Out Among String-Wound Cartridges
Most string-wound cartridges use a uniform winding, which means the outside surface loads up like a wall and the inside half of the cartridge never gets used. This one is graded, so capacity is spread across the full depth of the media.
The 2.5 inch diameter is the trade-off you are accepting by choosing the slim format. That shell simply cannot carry as much media as a 4.5 inch housing, and it will show up as a shorter interval between changes on a heavily loaded well.
Who Should Skip This Cartridge
Skip it if your household runs high flow appliances on a well that dumps sand. A 2.5 inch housing feeding a whole house is a pressure drop waiting to happen, and the better answer is a 20 inch x 4.5 inch housing with far more media volume.
Skip it if you have no idea what your sediment load is and you are buying blind for a first install. Pair it with a spin-down upstream, or start with a coarser first-stage cartridge, and this becomes the polishing stage rather than your only defense.

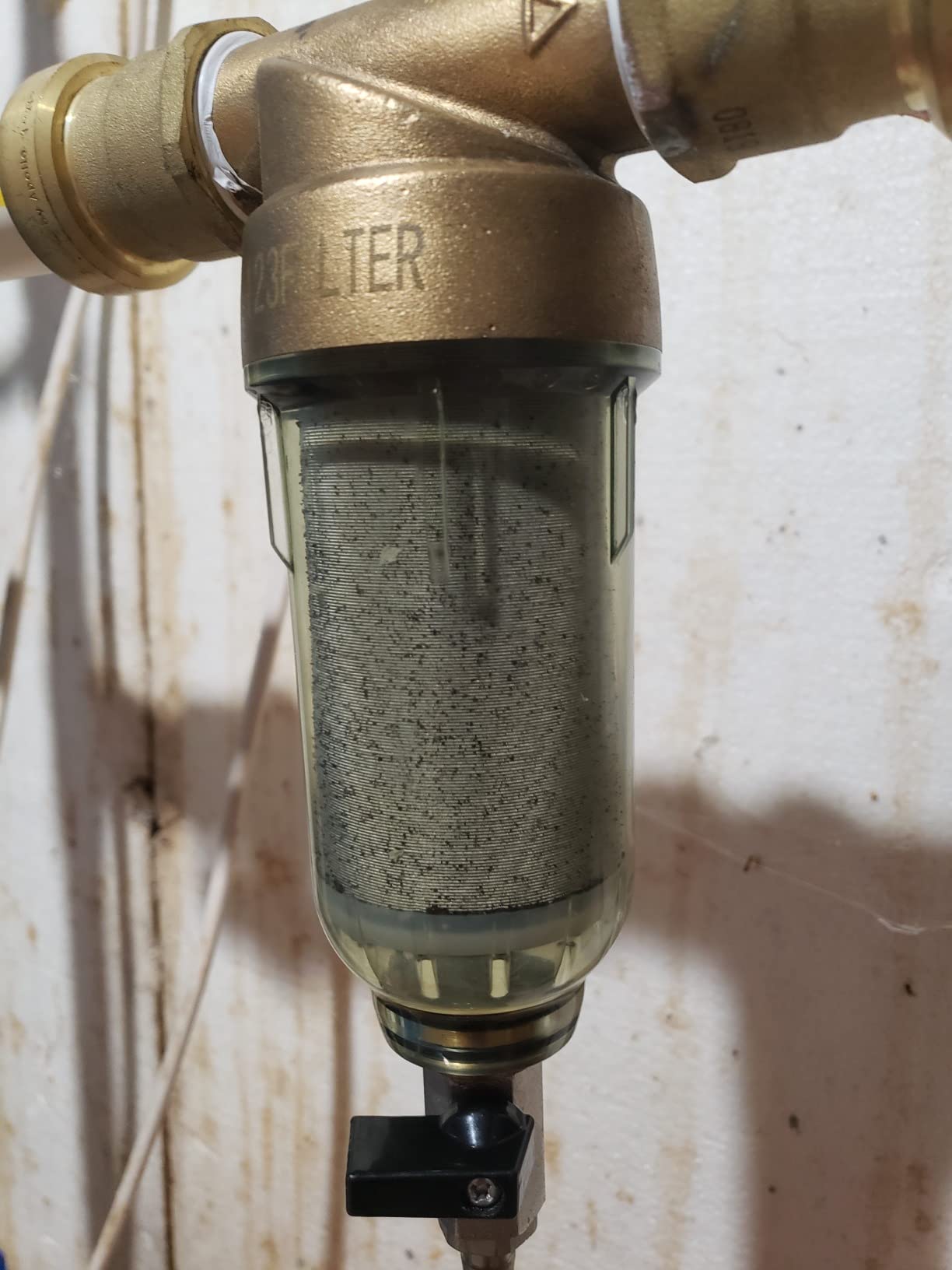

2. iSpring WSP-50 Spin Down 50 Micron, Best for Sandy Wells
iSpring WSP-50 Spin Down Sediment Filter, Whole House Prefilter, 50 Micron
50 micron spin down
Flushable stainless screen
Brass head with clear bowl
3.5 x 3.5 x 9 inch
Pros
- Flushable reusable screen rated one to two years
- Sheds heavy grit before the fine cartridge
- Clear housing shows loading at a glance
- Bottom valve doubles as a bleed down port
- US support supplies replacement screens
Cons
- 50 micron clogs fast on silty water
- Needs manual flushing weekly on hard wells
- Short housing loads faster than jumbo models
- Indoor use only up to 100F
Every filter on this list is trying to catch the same particles, but this one attacks the problem from a different direction. Water enters the housing and the centrifugal action throws the heavy grit outward and downward into a clear bowl at the bottom. You open the flush valve, the grit goes down the drain, and the screen stays in service. Nothing gets thrown away in the process.
The construction is what separates it from the plastic spin-downs. The head is lead-free brass rather than injection-molded plastic, the screen is stainless steel mesh, and the housing is transparent so you can watch the sediment column build without guessing.
Owners use it as a first stage ahead of carbon blocks and softeners, and they consistently point out one thing: it extends the life of everything downstream by catching the coarse fraction that would otherwise blind a cartridge in weeks. iSpring customer support is singled out repeatedly, and several owners report receiving coarser replacement screens at no charge when 50 microns proved too fine for their water.
It handles both 1 inch MNPT and 3/4 inch FNPT threads on each end, which means it will adapt to most well pump outlets without an adapter. The included fitting set is not just 3/4 inch garden hose, so check what your pump actually terminates in before you commit.
Operating range is 40F to 100F at 15-115 psi, and it is an indoor-rated unit. On a pump line in an unheated garage or a crawlspace in a northern climate, that temperature ceiling is a real constraint.
Why It Stands Out Among Spin-Down Filters
Metal against plastic is the headline. Brass heads survive years of wrench-tightening and thread reseating that crack plastic fittings, and the stainless screen can be flushed, cleaned and returned to service rather than discarded.

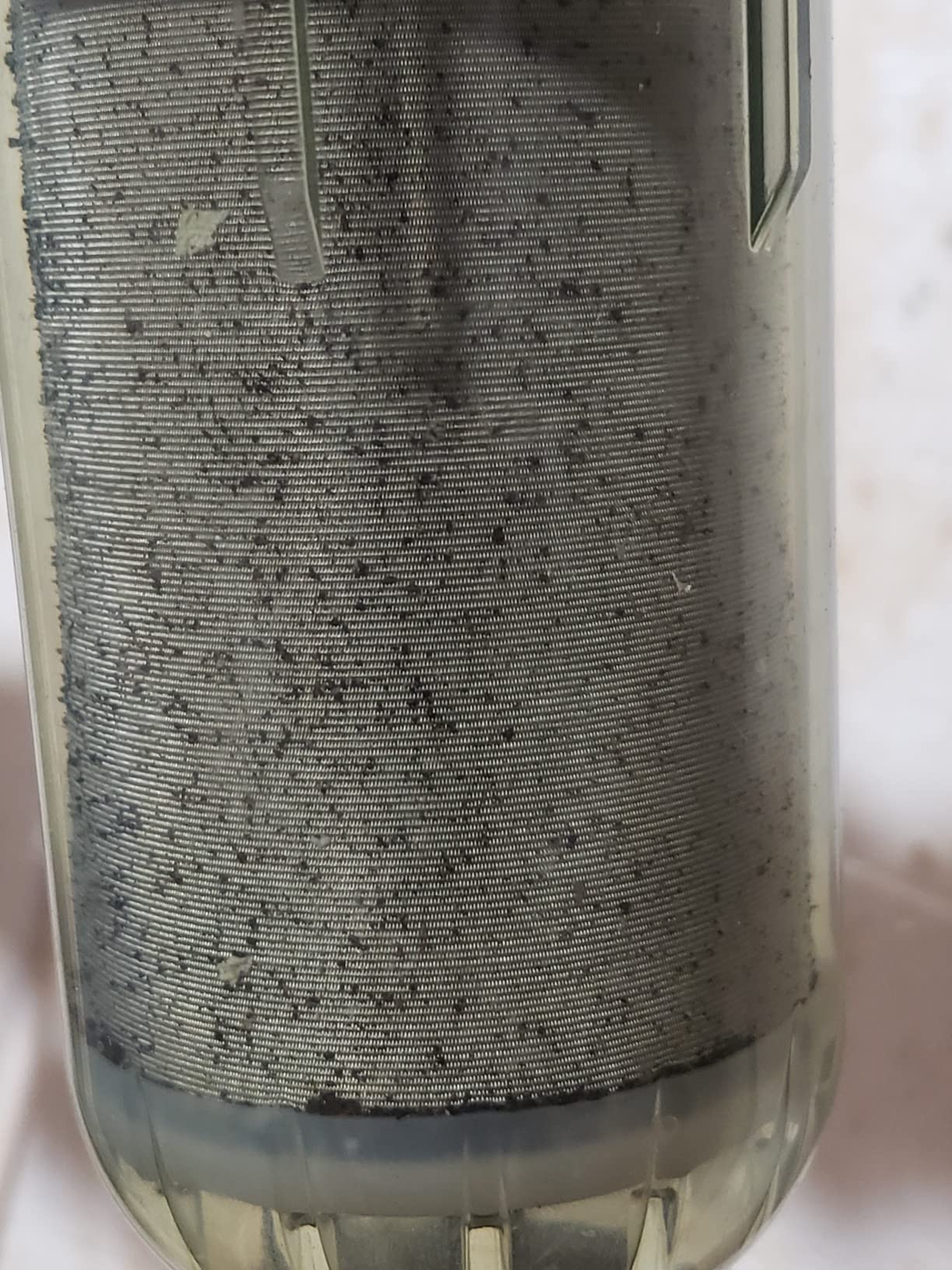

The visual clarity of the bowl is the second advantage, and it is a bigger deal than it sounds. You can see the sediment height through the housing and flush at the right moment instead of following a calendar.
Where It Falls Short
Fifty microns is fine enough that silt will load the screen quickly. If your well produces cloudy water rather than grainy water, this is the wrong tool, and the weekly flushing habit turns into a chore that owners report struggling with.
It is also not a terminal filter. Anything finer than 50 microns sails straight through, so a second stage behind it is required if you want clear water at the tap.

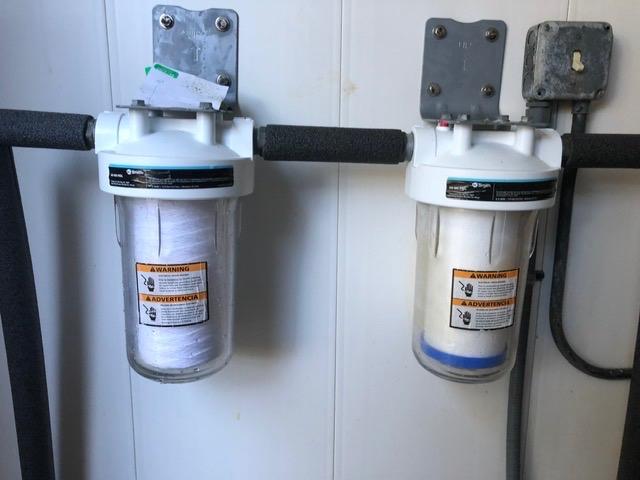

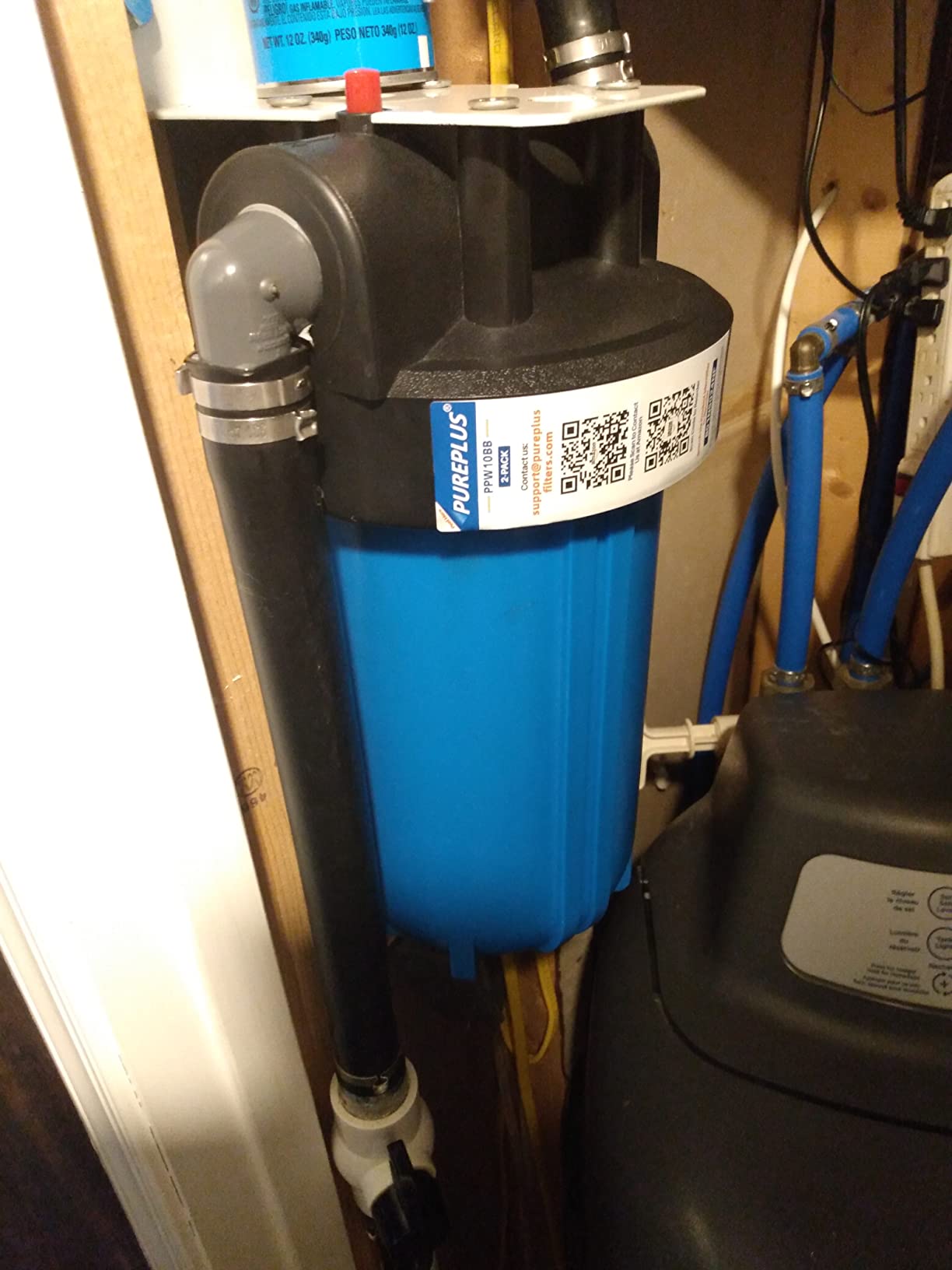

3. PUREPLUS PPW10BB-05, Best Rated Cartridge in the Lineup
PUREPLUS 5 Micron 10 x 4.5 Whole House Water Filter for Well Water 2 Pack
5 micron string wound
10 inch x 4.5 inch
30000 gallon capacity
2 pack
Pros
- Highest average rating in the lineup
- Deep bed honeycomb catches fine silt
- Maintains flow through full service life
- Fits standard Big Blue and GE housings
- 2 pack keeps a spare on hand
Cons
- Winding is coarser than premium cartridges
- Can seat slightly off center in the housing
- Might still clog in a month on very dirty water
This is the pick with the highest average rating in the group, and the reason is not subtle. It is a 5 micron string-wound cartridge in a 10 inch x 4.5 inch housing, which is the configuration most whole house sediment filters are sold in, so it fits what the majority of people already have bolted to their plumbing.
Buyers on sediment-heavy and iron-bearing wells report that the water clears without a measurable pressure penalty, and several compared it favorably to more expensive pleated and carbon alternatives. Reviewers on this cartridge consistently mention the same two things: the value, and how long it lasts before the pressure starts to move.
Manufacturer capacity is listed at up to 30000 gallons depending on water quality, with a replacement interval of three to six months. That figure is optimistic on a dirty well, and the reviewers who report monthly changes-outs are the ones drawing from siltier water. Treat the gallon number as a ceiling, not a schedule.
The housing compatibility list is long and covers the common GE, Culligan and Pentek models, which is why we kept running into installs where this dropped straight in without an adapter. It is pressure tested to 400 psi and water-hammer tested before shipping, which matters on a pump line where pressure spikes are routine.
One thing it deliberately does not do is reduce total dissolved solids. That is a feature for most well owners, because you keep the beneficial minerals in the water rather than stripping everything out of it.
Why It Stands Out for Typical Well Installations
It solves the two variables that cause most cartridge failures at once. The 4.5 inch diameter holds substantially more media than a slim housing, and the string-wound construction tolerates a heavier load than a pleated sheet of the same size.
Buying a two-pack also means the second cartridge is already on the shelf. On a well that needs changing every four months, that is the difference between noticing a drop in pressure and running a dishwasher with grit in it.
Where It Falls Short
The winding on this cartridge is coarser than what you would find on a premium brand, and a few owners report it can sit slightly off center in the housing until the seal takes the gap up. It is a minor issue, but it is the most common complaint in the reviews.
On very dirty well water, the practical interval can compress to about a month regardless of the stated capacity. If you know your well is dirty, plan on pairing this with an upstream stage.

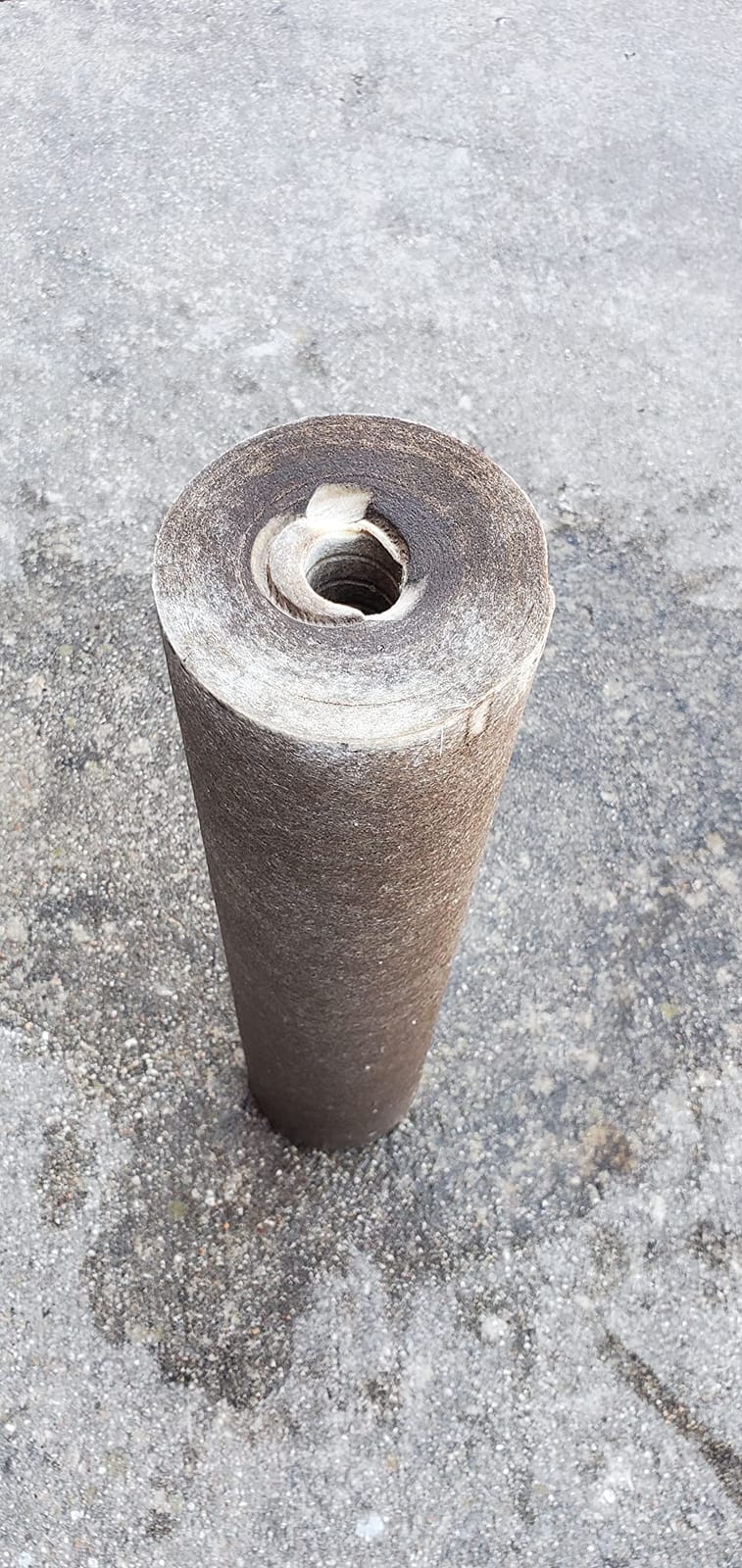

4. Aquaboon ABC-2S20BB5M, Best for Long 20 Inch Cartridges
Aquaboon 5 Micron 20 x 4.5 Sediment Water Filter Replacement Cartridge
5 micron melt blown
20 inch x 4.5 inch
4-6 month service life
2 pack
Pros
- Traps 99 percent of sand rust and sediment
- Steady flow with minimal pressure loss
- Long 20 inch body holds a lot of media
- Graded pores suit high flow
- Corrosion resistant polypropylene
Cons
- Melt blown media tolerates less than string wound
- Needs plenum clearance above and below
Doubling the cartridge length from 10 inches to 20 inches roughly doubles the media volume inside the same 4.5 inch diameter, and that is the entire argument for this one. If you have the vertical space, a 20 inch housing holds far more sediment before it needs a change.
The media is layered melt-blown polypropylene, graded so outer layers catch the larger debris and inner layers polish what gets past them. Owners report a smooth, steady flow rate and a service life of roughly four to six months depending on water quality, which lines up with the manufacturer interval.
This is a cartridge rather than a housing, so you need a 20 inch x 4.5 inch shell already in place or on the way. It fits common models including the DGD-5005-20 and FP25B, which are among the most widely installed 20 inch housings in the country.
Reviews center on reliable sediment and rust removal, steady flow, and a longer interval than cheaper generic cartridges. The reported drawbacks are mostly mechanical rather than filtration related, which is a good sign for a part whose job is holding back grit.

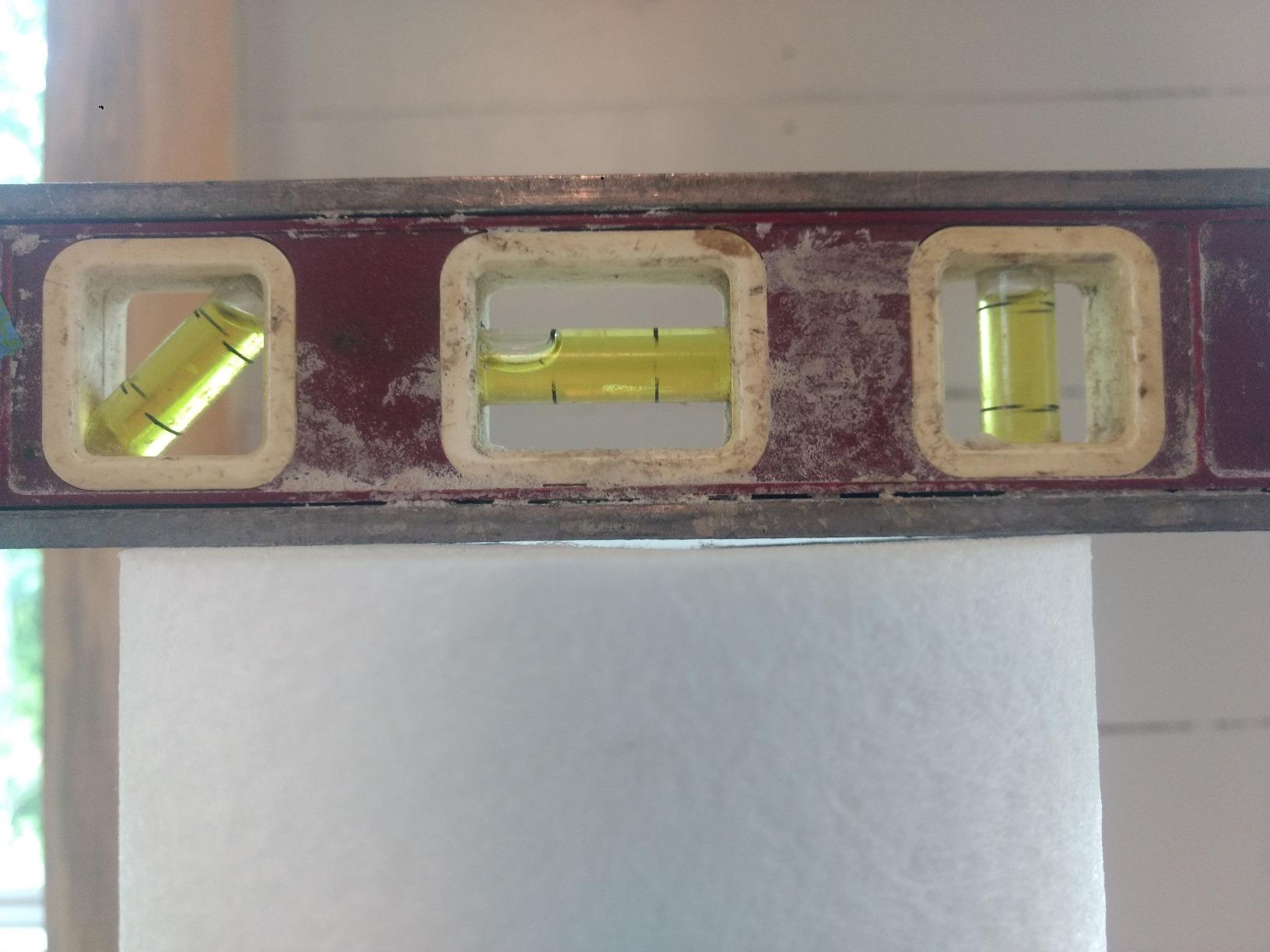

One practical note before you plan the install. A 20 inch cartridge is long enough that you need real clearance above and below the housing to shut it off and swap it without fighting your ceiling or your wall.
Why It Stands Out on Low Pressure Wells
Graded melt-blown media is engineered for high flow with minimal pressure loss, and owners on long piping runs report that the flow rate holds up as the cartridge loads. That stability is the reason we would choose it on a house where two fixtures running at once used to cause a noticeable drop.
The 20 inch length is the other half. More media means a longer interval, and fewer change-outs means fewer opportunities for a cartridge to be reinstalled badly and put a leak downstream of everything you own.
Where It Falls Short
Melt-bound media is more sensitive to very high sediment loads than a string-wound cartridge. On a genuinely dirty well, the outer layers fill fast and you end up on a shorter schedule than the four-to-six-month figure suggests.
It also does not solve iron. If the water is orange before the filter and merely less orange after, that is iron staining rather than sediment, and the cartridge is doing work a dedicated stage should be doing.

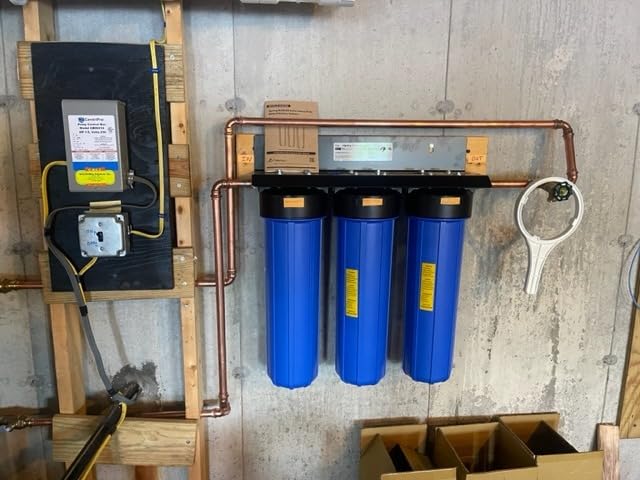

5. iSpring 2XFP25B, Best for High-Capacity Whole House Duty
iSpring 5-Micron 20″ x 4.5″ Whole House Water Filter Sediment Removal
5 micron polypropylene
20 inch x 4.5 inch
Up to 100000 gallons
15 GPM max flow
Pros
- Very high stated gallon capacity
- Minimal flow restriction at 15 GPM
- Collects visible sediment on well water
- Fits standard 20 inch housings
- Strong US lifetime tech support
Cons
- Paired system fittings can leak on DIY installs
- Heavy housing when full needs two wrenches
- Capacity figure assumes favorable water
This is the pick for a house where water needs move, and the flow rating is the headline. Fifteen gallons per minute covers a large household running multiple fixtures, a dishwasher and a laundry cycle at once, which is well beyond what a slim housing will support before pressure starts to sag.
Owners on well water report dramatic visible sediment collection in the first-stage cartridge and a clear improvement in water clarity, with the filter typically changed about every six months under heavy use. The stated capacity is up to 100000 gallons, which is a manufacturer ceiling and should be read as a best case on clean water rather than a promise.
It fits the standard 20 inch x 4.5 inch housings, including the iSpring WGB32B and WHO32B series, so it is a straightforward fit if you are already running Big Blue style hardware. Like the rest of this list, it leaves dissolved solids alone and keeps the beneficial minerals in the water.
The most common criticism in the reviews is not about filtration at all. On paired whole house systems, the plastic manifold threads are reported as a leak point during do-it-yourself installs, and a full housing is heavy enough that two wrenches are needed to open it.
That is manageable if you plan for it. Budget your shutoff and drain-down procedure before the housing is full of water, because trying to crack a loaded 20 inch housing loose on a live plumbing line is how people crack fittings.
Why It Stands Out for Whole House Volume
Flow rate and media volume together. A 20 inch x 4.5 inch housing at 15 GPM is the configuration you want when the whole house shares one filter, because it means the cartridge can be large enough to do real work without becoming the reason your shower pressure drops.
Manufacturer support is also worth noting. Owners repeatedly mention troubleshooting and free replacement parts from iSpring, which matters when a component fails on a system that is plumbed into your basement wall.
Where It Falls Short
The 100000 gallon capacity figure is the most over-read number in this roundup. Gallons per cartridge depend almost entirely on how much sediment is in the water, and on a well with visible grit the real interval is measured in months, not in that headline number.
It is also a cartridge only. If you do not already have a 20 inch housing, budget for one separately, and add a bypass valve so you are not shutting the water off to the entire house to change a filter.

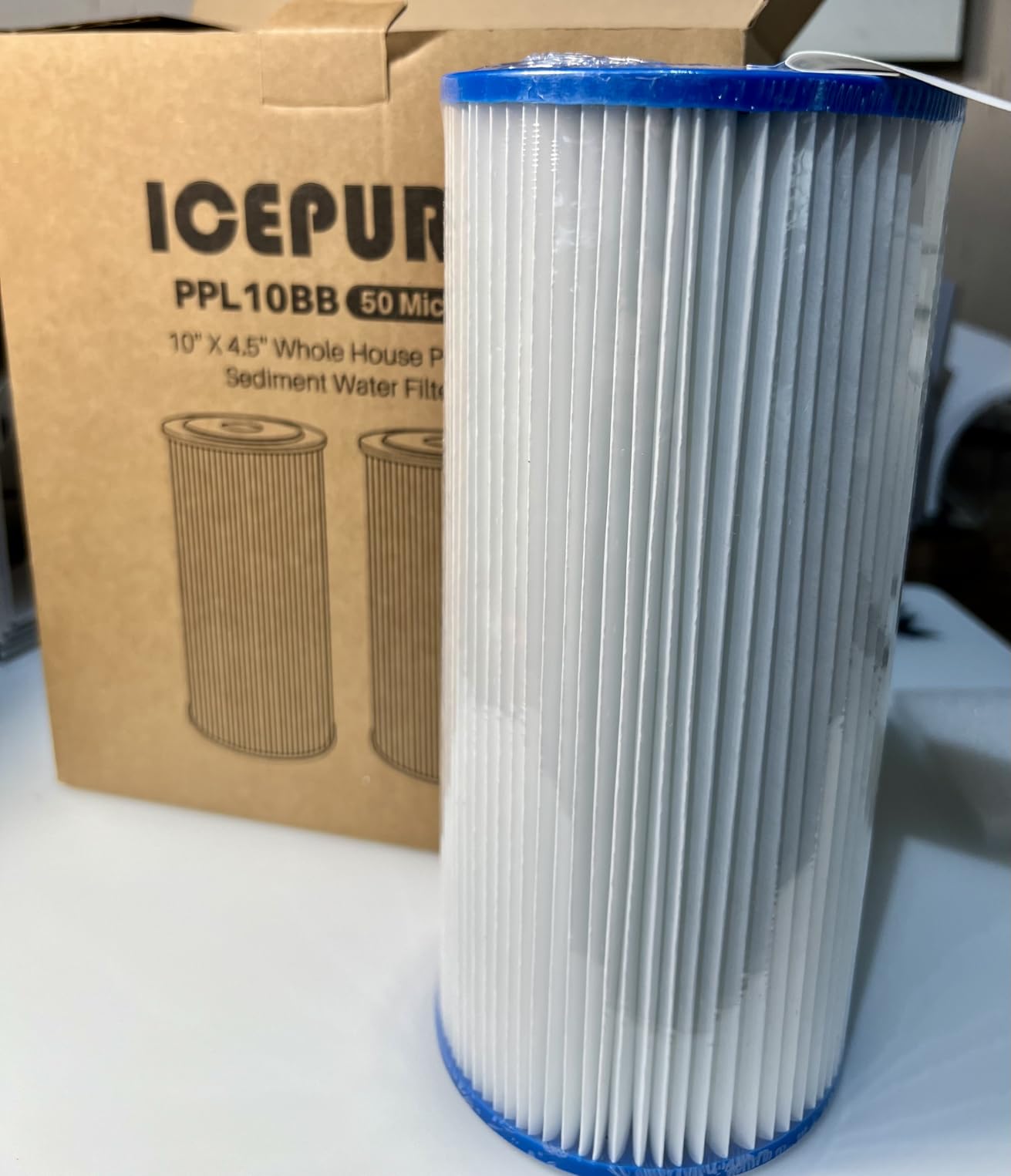

6. ICEPURE PPL10BB-05 Pleated, Best Budget Pleated Cartridge
ICEPURE 5 Micron 10″ x 4.5″ Whole House Sediment Pleated Water Filter 2Pack
5 micron pleated
10 inch x 4.5 inch
PET and co-PET media
2 pack
Pros
- Strong flow rate even as it loads
- Costs less than service company cartridges
- End caps resist discoloration
- No tools needed to fit
- Works on well and rainwater
Cons
- Slight pressure decline between changes
- Cartridge can feel loose until the seal seats
Everything up to this point has been depth filtration, where water flows inward through a thick mass of wound media. This one works the opposite way, sending water through a pleated sheet stretched across the whole face of the cartridge. That construction gives you far more filter area in the same housing, which translates into steadier flow as the element loads.
The media is a two-component PET and co-PET blend that resists fluffing, and the trilobal fabrication gives each fiber three lobes instead of one. More lobes means more surface area per unit of material, which is the engineering reason a pleated cartridge out-performs a spun one of the same nominal rating.
Reviewers highlight value and performance parity with pricier service-company filters, along with improved water clarity and durable end caps. Several describe pairing a 5 micron ICEPURE with a finer whole house filter to make drinking water palatable, which is a reasonable two-stage arrangement.
Certification is a genuine differentiator here. The cartridge carries NSF/ANSI 42 and IAPMO material safety certification, is BPA free and lead free, and each unit passes five inspection and testing stages before it ships. Suggested replacement is every three to six months or 30000 gallons.
It fits the standard 10 inch x 4.5 inch heavy duty housings and a broad range of OEM models, and it handles well, spring, lake and rainwater supply alike.
Why It Stands Out Among Pleated Filters
Flow rate stability is the honest reason to choose pleated media. When water hits a pleat, it travels through a thin layer of fibers, so the element keeps passing water as the pores fill instead of blinding the way a deep bed can.
That is why it is a better fit when you are pairing stages. As a first stage ahead of a finer carbon or membrane filter, it can load up without choking the flow to the stage behind it.
Where It Falls Short
Users do notice a modest pressure decline between changes, and they largely accept it as the trade for passing less debris into the house. If you are sensitive to that, a string-wound cartridge holds more total dirt before you feel it.
The cartridge can feel loose in the housing at first until the seal takes up the gap. If the gasket is seated correctly, the housing gasket does the work and this stops mattering.

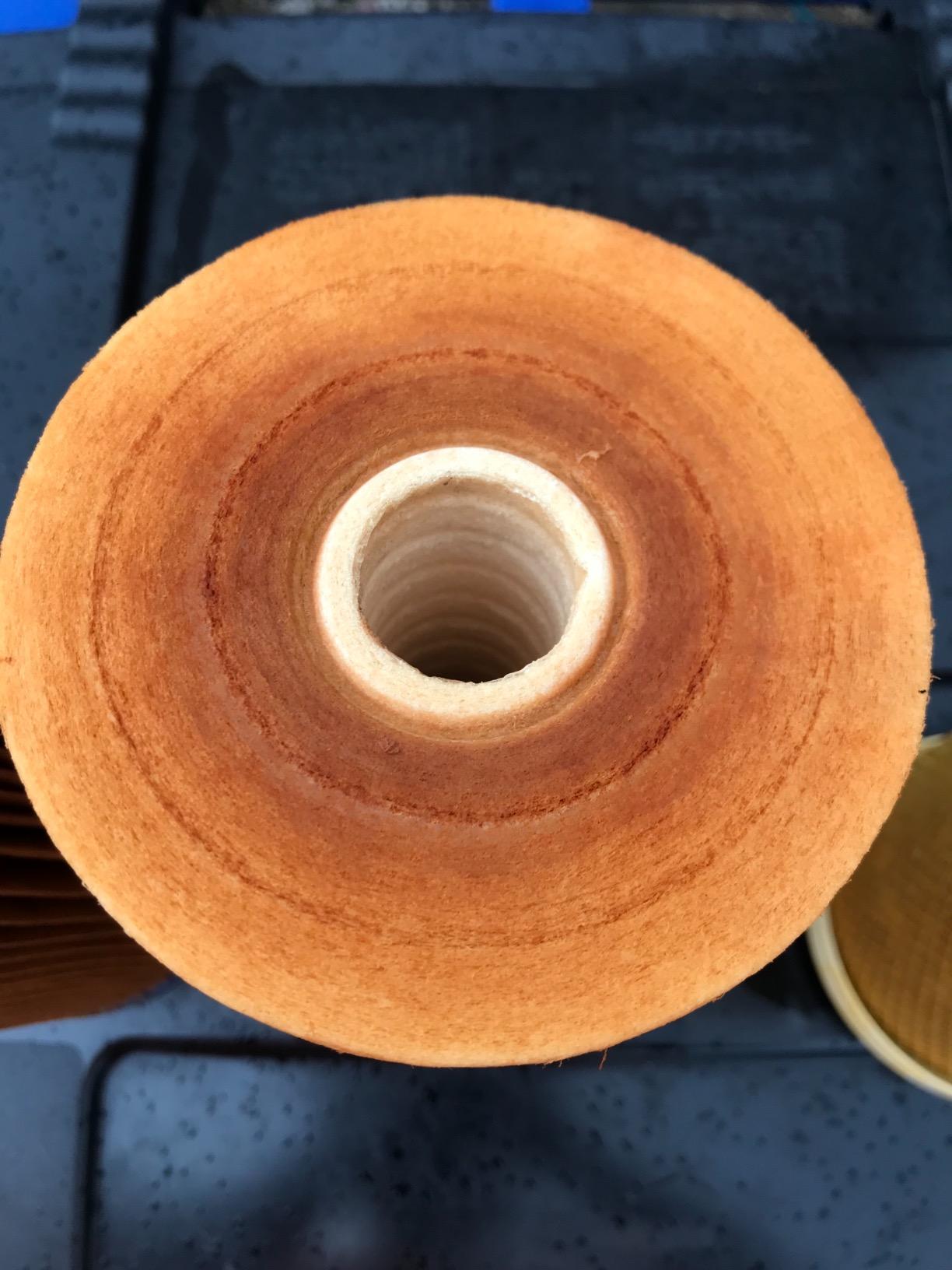

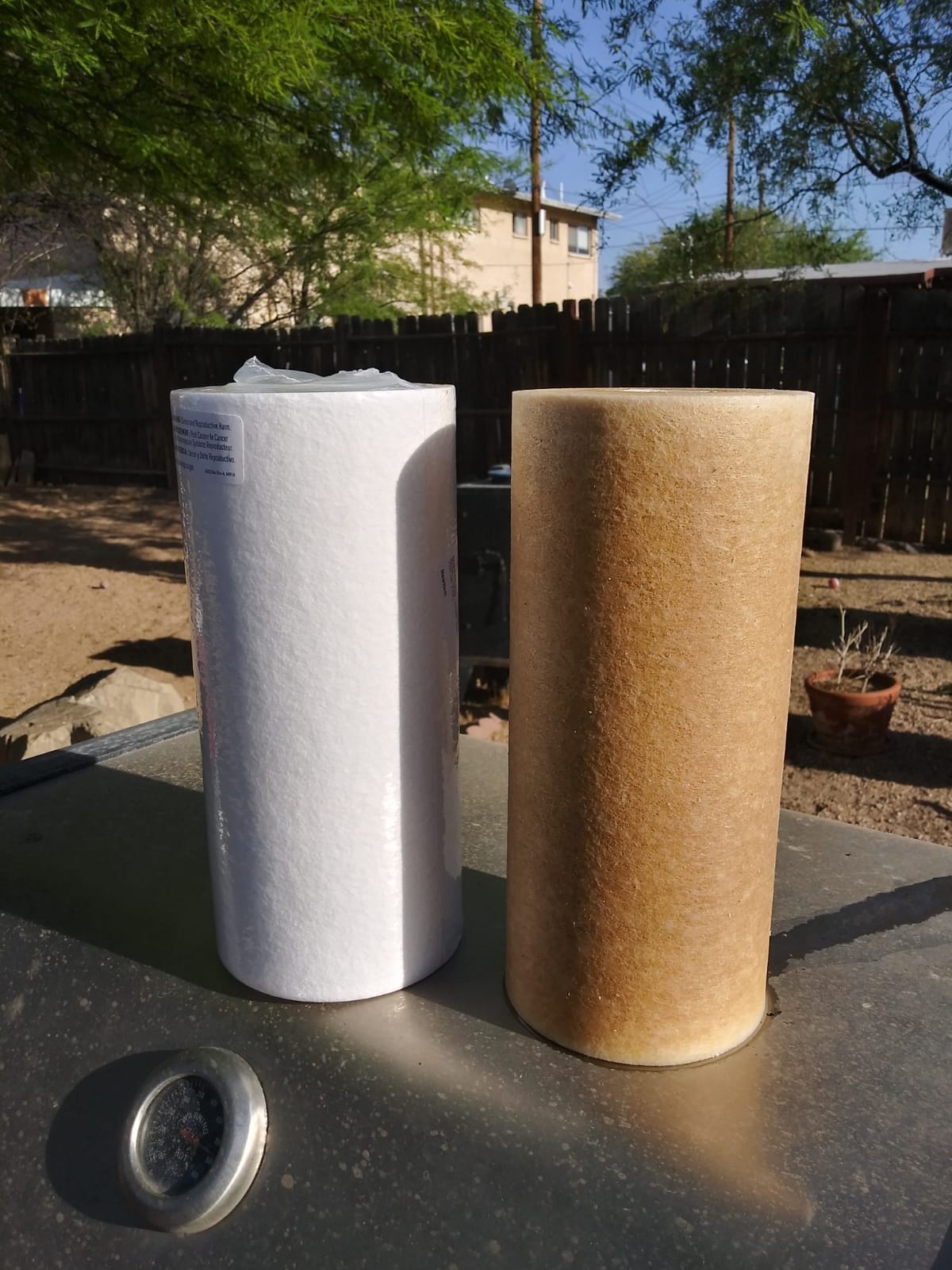

7. Pentair Pentek DGD-5005, Best Known Big Blue Cartridge
Pentair Pentek DGD-5005 Big Blue Whole House Sediment Filter
5 micron dual gradient
10 inch x 4.5 inch
Under 1 psi at 10 gpm
2 pack
Pros
- Widely available and serviceable everywhere
- Fits all 10 inch Big Blue housings
- No plastic leaching or off taste
- Works as a prefilter for softeners
- Pressure drop stays under 1 psi
Cons
- Costs more than generic cartridges
- Heavy sediment can mean 4-6 month changes
Ask any plumber which sediment cartridge they keep on the truck and this is usually the answer. The Pentair name is the most recognizable in residential filtration, which matters for a part that you will replace every few months and may need in a hurry.
The engineering story is the dual-gradient density construction. Density increases from the outer surface toward the core, so coarse particles are trapped outside where they are easy to see, and the finest particles are caught deeper in the cartridge where the graded structure can still let water through. Pentair lists up to three times the dirt-holding capacity of similar-size sediment cartridges.
Long-term owners report consistent performance with no leaks, no imparted taste or odor, and easy installation in Big Blue housings. Users commonly pair it ahead of softeners and reverse osmosis systems to keep sediment out of the expensive components downstream.
Pressure drop is specified at under 1 psi at 10 gpm, which is a concrete number you can hold a seller to. Recommended change interval is about six months, or sooner if you see a visible drop in pressure or water quality.
It carries NSF/ANSI 42 certification for material requirements, and it fits all 10 inch Big Blue and other heavy-duty housings. The two-pack means one is already in your hand when the first one loads up.
Why It Stands Out for Serviceability
Availability is the underrated advantage. A proprietary cartridge from a regional brand means a trip across town when you need one, while this one is on the shelf at nearly any supply house or delivered next day.
The 233 percent greater effective filter depth and low pressure drop also make it a safer default when you are not certain how dirty the well is, because it holds more before you have to think about it.
Where It Falls Short
The recurring complaint is price relative to generic cartridges of the same size. You are paying for the brand name, the certified material and the consistency, and a purely price-driven buyer can get a comparable spin cartridge for noticeably less.
On very sediment-heavy well water, even this cartridge can need changing every four to six months. If your water looks like it has grit in it, a spin-down first stage is worth the extra plumbing.

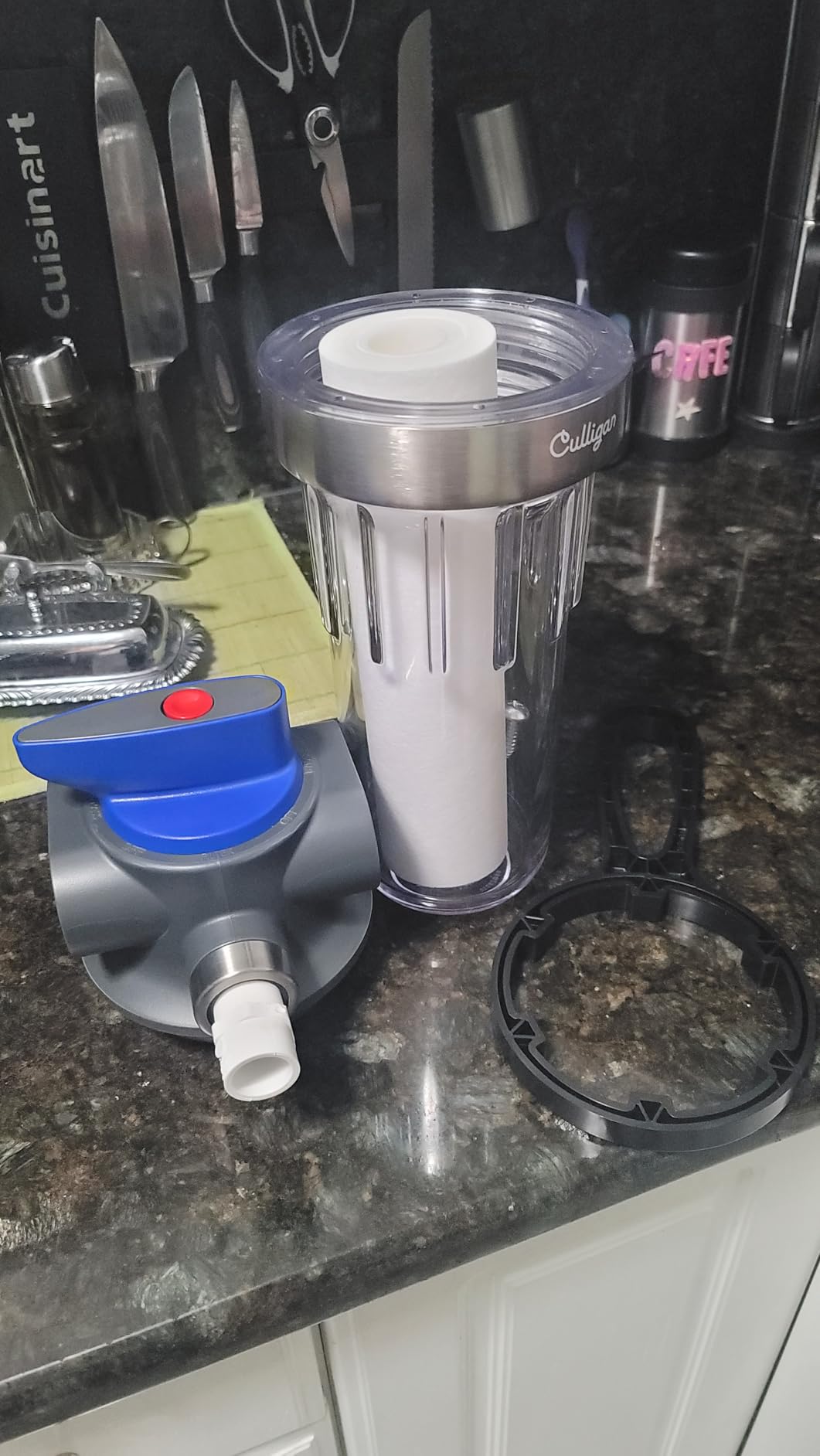

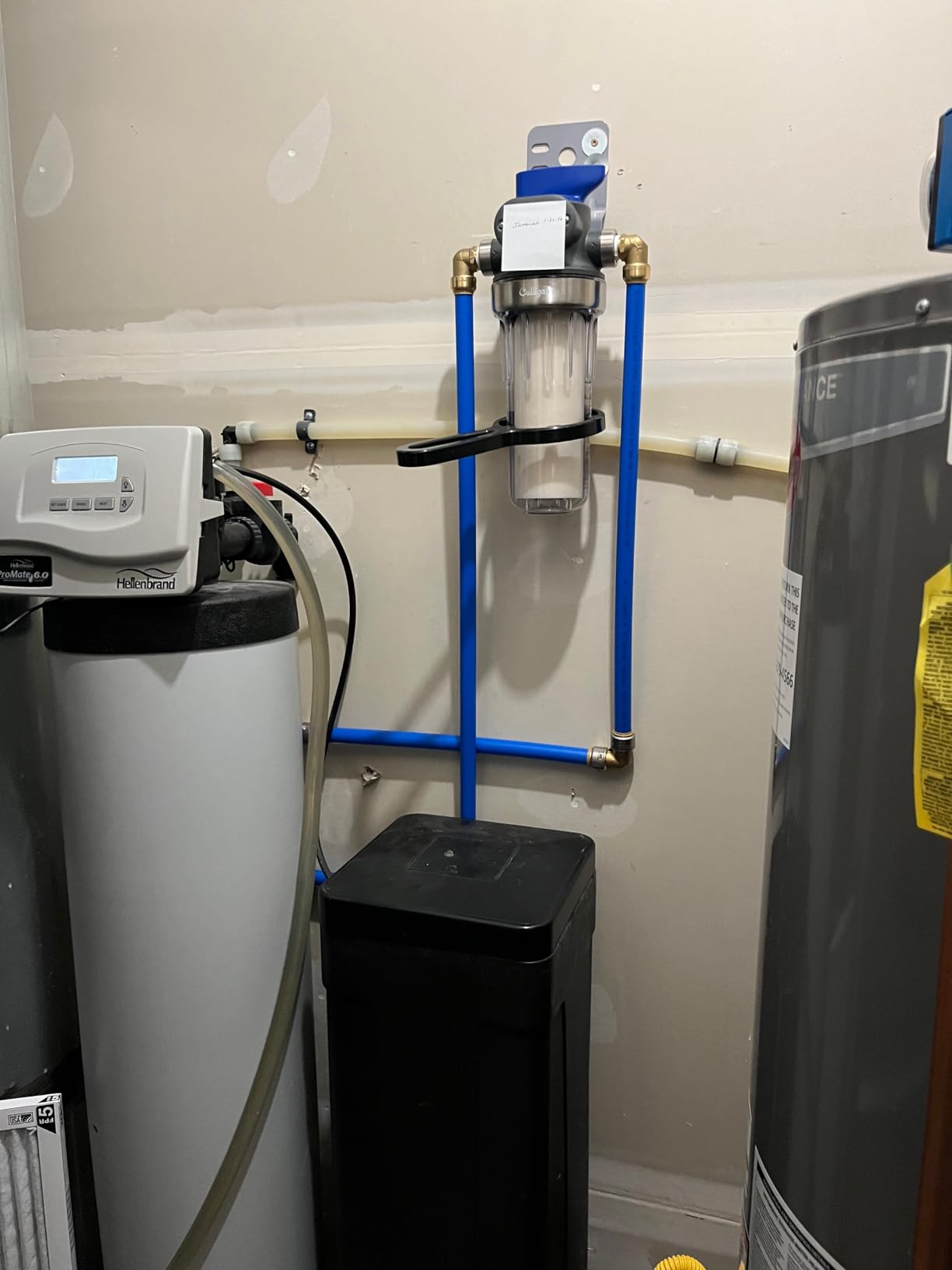

8. Culligan WH-S200-C, Best Complete Housing With a Bypass
Culligan WH-S200-C Whole House Water Filter Housing – 3/4″ Inlet/Outlet, Standard Duty, Sediment Filtration System, Clear Housing, Pressure Relief Valve, NSF Certified
Valve in head bypass
Clear filter housing
4 gpm rated
3/4 inch connections
Pros
- Integrated bypass simplifies cartridge changes
- Clear housing shows cartridge life
- Sturdy build from a known brand
- Accepts several manufacturers cartridges
- Handles mineral heavy well water
Cons
- Bypass valve is stiff and may weep
- Outlet adapter can thread in crooked
- Wall bracket not included
- Occasional cracked housings on arrival
Every other cartridge on this list assumes you already have a housing. This is the housing, and it is the only pick here that solves the part of the problem people forget: how you actually change a filter without shutting off the water to the entire house.
The valve-in-head design puts a full port ball valve directly on the housing inlet. Close it, and the water flow is interrupted before it reaches the bowl, so you can open the housing and swap the cartridge with the rest of the house still in service. On a well with no pressure tank backup, that is the difference between a five-minute job and a dry morning.
Buyers use it as a prefilter ahead of softeners, reverse osmosis units and ice makers, reporting clear improvement in water clarity and reduced iron staining. The clear housing and the integrated bypass are the two features that get singled out most often in reviews.
It accepts Culligan P5, CW-F, CW-MF and S1A-D cartridges, and in practice standard 10 inch cartridges from several manufacturers fit it as well. Rated flow is 4 gpm at 30-100 psi, with a 40-100F operating range, which makes it a good fit on a standard residential well pump.
There is a built-in pressure relief button, which is a small safety feature you only appreciate the day it matters. The housing itself is stainless steel with a clear bowl, and it weighs about 3 pounds empty.
Why It Stands Out as a First Install
For anyone building a sediment stage from scratch, a housing with an integrated bypass removes the single most common DIY mistake, which is omitting a bypass and then discovering mid-change that the whole house has no water.
The clear bowl also makes cartridge life visible, so you are changing on condition rather than on a calendar that a manufacturer picked for a water supply nothing like yours.
Where It Falls Short
The most cited complaints concern the hardware rather than the filtration. The bypass valve can be hard to turn and may weep at the top if it is not set exactly right, and the outlet adapter can thread in at an angle when you are mating 3/4 inch to 1/2 inch.
Also note the wall mounting bracket is not included and has to be sourced separately. A few buyers also report cracked housings arriving in the box, so inspect it before you plumb it in.

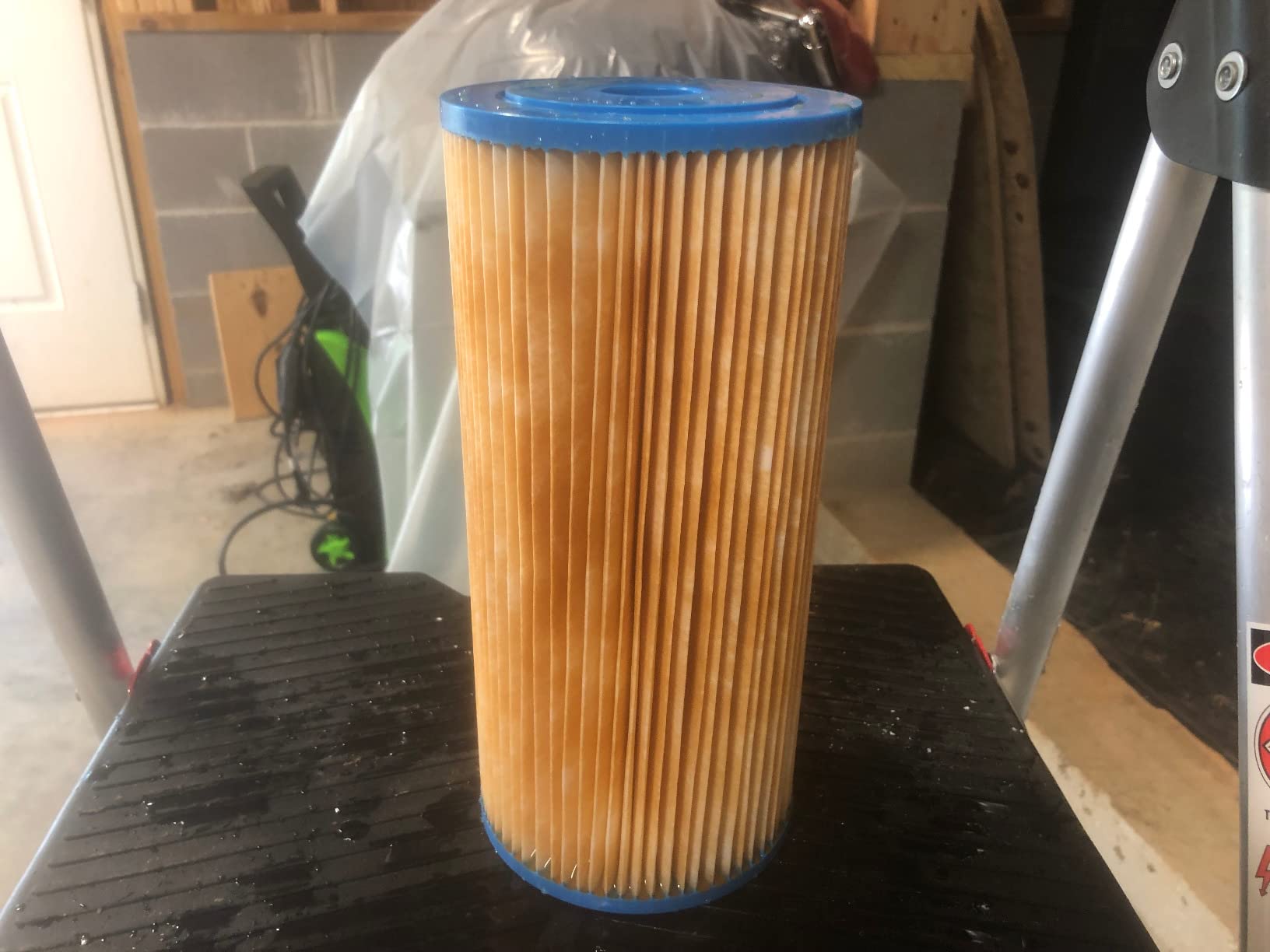

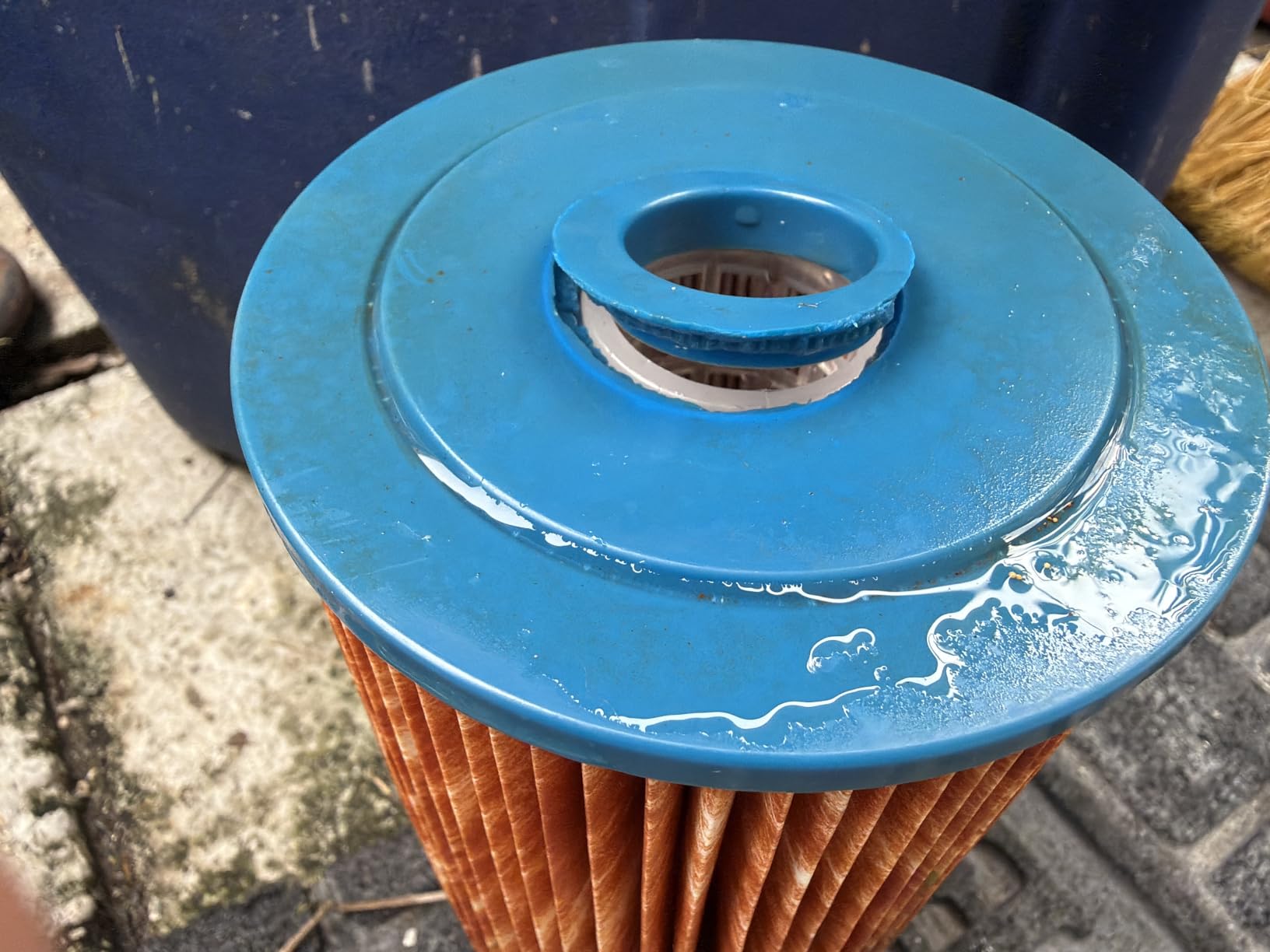

9. Membrane Solutions PE-F10B-20, Best First-Stage Pleated Prefilter
Membrane Solutions 20 Micron Pleated Water Filter Home 10″x4.5″ Whole House Heavy Duty Sediment Replacement Cartridge Compatible with ECP10-1,ECP20-BB,R50-BBSA,FXHSC,CB1-SED10-BB (4 Pack)
20 micron polyester
10 inch x 4.5 inch
Up to 30000 gallons
4 pack
Pros
- Strips most sediment before a fine filter
- Large pleated surface area holds dirt
- Universally sized for Big Blue housings
- Washable and reusable
- Suitable for well and prefilter duty
Cons
- 20 micron is too coarse to polish water
- Cannot remove chlorine or improve taste
A 20 micron filter is not trying to give you clear water at the tap. It is trying to protect the filter you put behind it, and in that narrower job it is very good. The polyester pleated media gives it a large specific surface area relative to a depth cartridge of the same size, so it holds a meaningful amount of dirt without choking the flow.
Repeat buyers report using these as the first stage on well water, cutting most of the sediment so the more expensive secondary filters last longer. That is the correct way to run a two-stage sediment setup: coarse protection first, fine polish second, with the fine cartridge protected from the workload that is choking it.
Measured at 9-7/8 inches long with a 4-1/2 inch outer diameter and a 1-1/10 inch inner diameter, it fits the common 10 inch x 4.5 inch whole house sump-style housings and a long list of OEM models, including ECP10-1, ECP20-BB, R50-BBSA, FXHSC and CB1-SED10-BB.
Rated capacity is up to 30000 gallons depending on inlet water quality, with a typical service life of three to six months. It is washable and reusable until the cartridge itself is dirty or reaches its change-out cycle, which makes it a lower recurring cost item than a disposable depth cartridge.
The four-pack format is a practical choice if you are running a seasonal property or want a year of prefilter cartridges on the shelf without thinking about it.
Why It Stands Out as a First Stage
The 20 micron rating is the entire design. It is coarse enough that a real dirt load will not blind it in a week, which is exactly what happens when a fine cartridge is asked to do a prefilter job.
Reusability is the second advantage. Because the media is a washable pleated sheet rather than a bonded melt-blown block, you can rinse it and put it back until the change-out cycle says otherwise.
Where It Falls Short
It does not polish water. Anything between 20 microns and the visible range passes through, so on its own this cartridge will not make tap water look clear, and owners should not expect taste improvement from it.
It also does not remove chlorine or improve taste, both of which reviewers flag directly. If your goal is drinking water quality, pair it with a carbon stage, and our [countertop filter roundup](https://webcomicsweekend.com/best-countertop-water-filters/) covers the drinking water end separately.

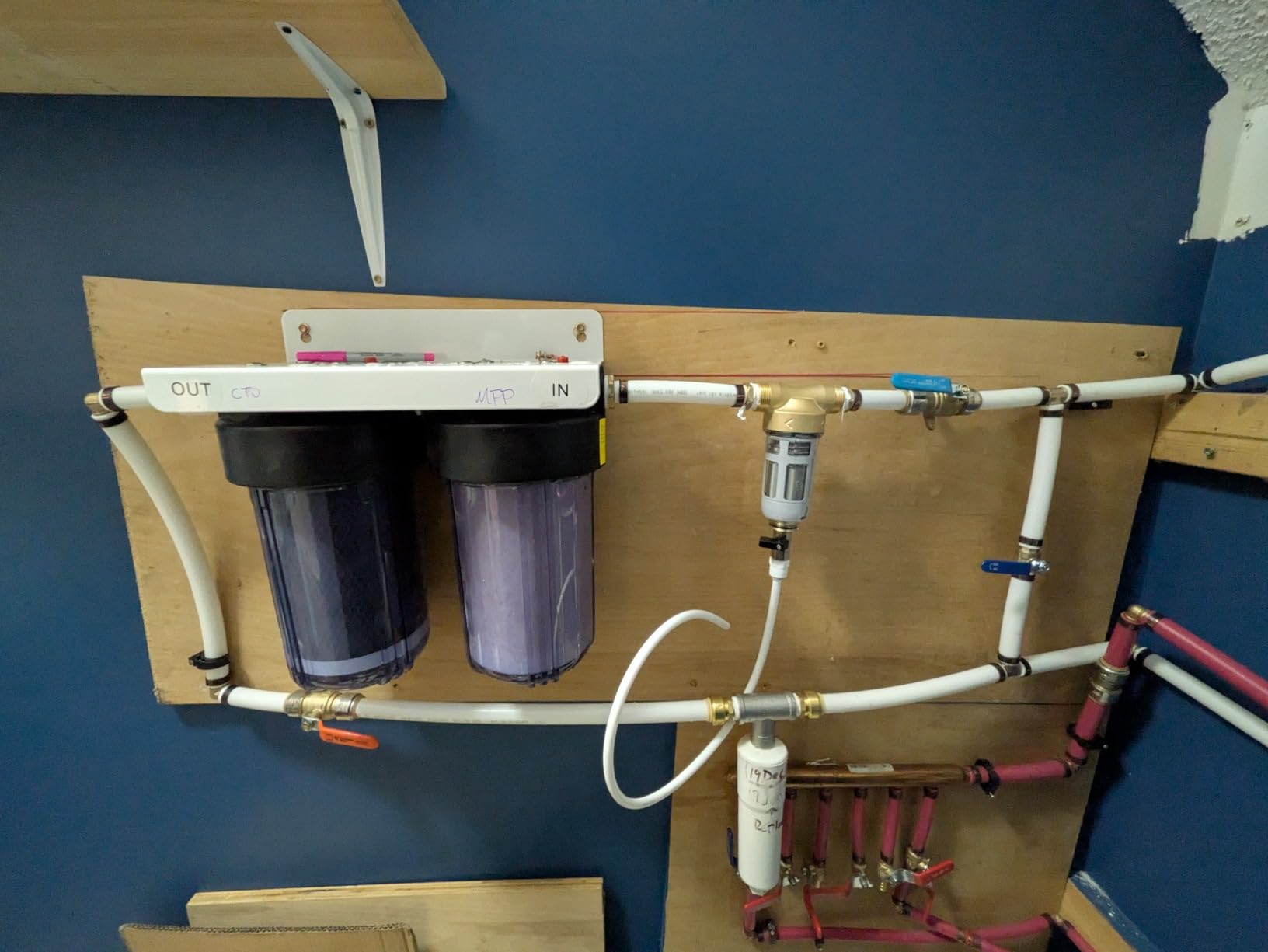

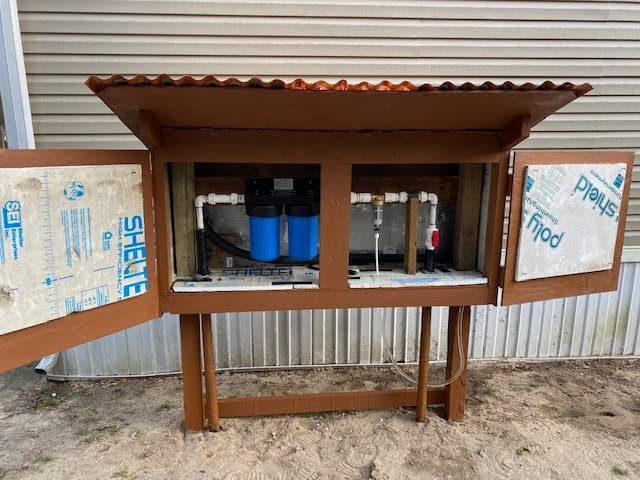

10. Waterdrop WD-RPFK Spin Down, Best for 20 GPM Wells
Waterdrop RPFK Spin Down Sediment Filter, 40-50 Micron, BPA Free
50 micron 316L stainless screen
Backwash flush valve
20 GPM rated
BPA free housing
Pros
- Reusable first line of defense for other filters
- Backwash makes routine cleaning quick
- NSF/ANSI 372 certified lead free
- BPA free PA12 housing shell
- Four fitting types included
Cons
- Lowest average rating in the lineup
- Restricts flow on silty wells
- No garden hose connection option
The second spin-down in this roundup handles more water than the first. It is rated to 20 GPM, which puts it in a different class from most residential spin-downs and makes it the one to look at if you have a large home, an irrigation tie-in, or a well pump that can push serious volume.
The screen is 316L food grade stainless steel at 50 microns, and the housing is BPA-free PA12 with NSF/ANSI 372 certified lead-free materials. Burst pressure is listed above 600 psi, and it operates in a 14.5-72 psi range up to 100F.
Users find it effective as an inline prefilter that keeps sediment out of downstream equipment and straightforward to backwash clean. The material safety certification and BPA-free housing are a genuine draw for households focused on what touches their water.
The blue nano-coated copper fittings are meant to resist corrosion and metal release, and the backwash flush valve handles routine sediment removal without taking the unit apart. Four fitting types are included: 1 inch MNPT, 3/4 inch MNPT, 3/4 inch FNPT and 3/4 inch push-fit.
What is not included is a 3/4 inch garden hose connection, and that trips people up. Check what your plumbing terminates in before ordering, because the connection style rather than the filter rating is the usual reason an install stalls.
Why It Stands Out for High Flow Wells
Twenty GPM is the number that matters here. On a well that can deliver a real surge of water, a spin-down rated well below your pump capacity becomes the bottleneck, and this one is not.
The stainless element and PA12 body also hold up better than an all-plastic spin-down when the unit is plumbed near a pump with high water hammer, which is common on deep wells with long drop pipes.
Where It Falls Short
It has the lowest average rating of the ten products here, and the reason is consistent across reviews. A 50 micron screen restricts flow on silty wells, and owners on dirty water report frequent backwashing to keep it usable.
For a clean or lightly sedimented well, the trade is worth it. For a silty one, a 100 or 200 micron screen is the more sensible starting point, and a spin-down alone is not going to clear your water.
How to Choose the Right Micron Rating: Match the Number to the Particle
Pick the micron tier first, then pick the media. Most buyer confusion comes from treating the micron number as a quality grade when it is a size threshold, and a smaller number is not automatically better.
40-100 microns, spin-down territory. Catches sand, grit, scale chips and anything with real mass to it. These are washable screens, not cartridges, and they exist to protect the fine filter behind them. Choosing a 5 micron cartridge for this job is the single most common expensive mistake on well water.
5-20 microns, standard well cartridge. This is where most whole house sediment filters live. Five microns handles fine silt and rust particles, twenty microns is a first-stage prefilter duty. Ten microns sits between them and is a reasonable middle ground when you are not certain what you have.
1-5 microns, polish only. This is drinking water and membrane protection, not whole house sediment control. A one micron cartridge on well water will clog in days unless an iron, manganese and sediment reduction stage is doing its job upstream.
There is also a second distinction worth understanding. A nominal rating means a percentage of particles at that size are removed, and the rest go through. An absolute rating means everything at or above that size is removed, which is a harder specification and usually costs more. Most cartridges you will buy for a well, including most of the ones in this roundup, are nominal.
That is not a defect, it is a trade. A nominal 5 micron cartridge typically captures the large majority of 5 micron particles plus most of the much larger ones, which is exactly what you want on a well. It is why two nominal 5 micron cartridges from different brands can behave very differently on the same water.
Filter Types Explained: Spin-Down vs Melt-Blown vs Pleated vs String-Wound
There are four filter constructions in this roundup and each one solves a different problem. Knowing which you have in hand tells you what to expect from it and what it will never do.
Spin-down and self-cleaning. Centrifugal separation throws heavy particles into a clear bowl you flush. Nothing is consumed, nothing is thrown away, and the screen can be cleaned and reused for a year or more. The limit is the micron rating, typically 50 to 200.
String-wound depth filters. Polypropylene or cellulose fiber wound around a core, graded dense at the inside. They hold the most total dirt of any disposable option and tolerate heavy loads, but they can restrict flow as they load and they are not washable in the way a screen is.
Melt-blown depth filters. The same depth-filtration idea with thermally bonded polypropylene instead of wound fiber. Cheaper per cartridge, consistent, and well suited to longer 20 inch housings, though melt-bound media is less forgiving of very high sediment loads.
Pleated surface filters. Polyester or PET fiber folded into a sheet, so water passes across a large area rather than through a deep bed. They keep a steadier flow rate as they load and clean easily by rinsing, but they hold less total dirt than a depth cartridge of the same size.
The one genuinely new idea in this section is the head-to-head comparison between spin-down and cartridge, because no competitor covers it in text. The rule is simple: if your well produces particles you can see in a glass, start with a spin-down. If your well produces water that is clear but cloudy, go straight to a 5 micron cartridge, because spin-down centrifugal separation is ineffective on particles that small.
Housing Size: 10 x 2.5 vs 10 x 4.5 vs 20 x 4.5 Big Blue
Housing diameter matters more than most buyers expect, because surface area is what determines how much dirt the filter holds before the flow rate drops and how long you can go between changes.
10 inch x 2.5 inch slim. The smallest option, and the most common under-sink and budget housing. It fits everywhere, costs the least, and holds the least media. Fine for a low-flow application or a secondary prefilter, a poor choice as the only whole house sediment stage.
10 inch x 4.5 inch. The standard whole house configuration, sold as Big Blue by most manufacturers. The 4.5 inch diameter roughly quadruples the filter area of a slim housing, which is where most of the pressure-drop and change-interval improvement comes from. If you are building a new install, this is the floor you should be shopping at.
20 inch x 4.5 inch. Same diameter, twice the length, roughly double the media volume again. This is the choice for high sediment loads, high flow houses, and anyone who would rather change a cartridge twice a year than four times.
Flow rate is the practical limit on all of it. A 2.5 inch housing feeding a whole house is the configuration where owners most often notice a pressure drop between changes, and it is also the configuration most likely to have someone wondering whether their pump is failing when the pump is fine.
Where to Install: After the Well Tank and Before the Softener
Placement decides what the filter protects. Install the sediment stage on the cold water line leaving the pressure tank and before anything else, so the softener, the carbon stage, the UV unit and the reverse osmosis membrane all sit downstream of it.
After the well pump and pressure tank. This is the correct spot. A spin-down belongs here so it intercepts grit before the pressure tank and everything downstream.
Before the water softener. A softener resin bed is easily damaged by suspended sediment, and grit reaching the resin bed reduces capacity permanently. A sediment filter upstream is the cheapest way to extend softener life.
After any iron removal stage. If you have an iron filter, the sediment filter goes after it, because iron particles will overwhelm a fine cartridge within weeks.
Before reverse osmosis. A prefilter protects the membrane from the sediment that would otherwise foul it, and RO membrane replacement is one of the most expensive repairs on a well system.
Always add a three-way bypass. Even on a filter with a valve-in-head, a full bypass lets you isolate the unit for service without shutting off water to the house.
Iron and Manganese Clog Fine Cartridges No Matter the Brand
If your well has iron or manganese, a 5 micron cartridge is the wrong first purchase, and this is the advice that turns up again and again in the water treatment forums. Ferric iron arrives as visible orange flecks that are large enough to see. Dissolved iron, once it oxidizes in the air, forms rust particles that are a few microns across.
Either way the result is the same. The fine cartridge, which was designed to catch sand and silt, now has to catch iron as well. It loads to a pressure drop in weeks, and the owner concludes the filter is defective when in reality the filter is being asked to do a job it was not sized for.
On an iron-bearing well, the right sequence is iron removal first, then sediment filtration at 5 microns behind it. Our [iron filter roundup](https://webcomicsweekend.com/best-iron-filters/) covers the treatment options for that stage, and a complete [well water filtration system](https://webcomicsweekend.com/best-well-water-filtration-systems/) is the right frame for the whole train.
A test result is worth the money here. A single sediment filter cannot treat iron, manganese, sediment and dissolved solids simultaneously, and buying one cartridge expecting it to do all four is the most common reason people end up replacing equipment.
Maintenance and Annual Cost: What a Sediment Filter Really Costs Per Year
Nobody sells you the operating cost, so here it is in terms you can act on. The two numbers that matter are the replacement interval and the cartridge count, and the honest version of a well with moderate sediment looks like this.
Cartridge life on a clean well. Six to twelve months is realistic for a 5 micron cartridge in a 4.5 inch housing, and closer to three to six months on a 20 inch unit with the same water because the media is more likely to be pushed to its limit.
Cartridge life on a silty or iron-bearing well. Monthly changes are not unusual, and that is a signal your well needs iron treatment upstream rather than a bigger cartridge budget.
Spin-down running cost. Effectively zero after the initial purchase. The screen is flushed and reused rather than discarded, and both spin-downs on this list are rated in years rather than months.
Annual cartridge count. Two changes a year per housing is the realistic planning figure for moderate sediment, and four if your well is dirty. Multiply by the number of filter stages you run.
Bypass valve cost. A three-way valve on every housing is a small purchase that prevents you from shutting off the house water during a change. It pays for itself the first time you need it.
One maintenance habit is worth more than any cartridge upgrade. Replace the element on pressure drop, not on the calendar. Most housings are clear, and once you can see the sediment column building you will stop replacing cartridges that still have useful capacity left in them.
Frequently Asked Questions
What is the best in-line sediment filter for well water?
The best in-line filter depends on sediment load. A 50 micron spin-down such as the iSpring WSP-50 is the right choice for sand and grit because it flushes clean in seconds and never needs replacing. For fine silt, rust and iron particles, a 5 micron string-wound or pleated cartridge in a 10 inch x 4.5 inch housing is the better answer, because spin-down separation does not work on particles that small.
What are the best filters to use for well water?
A complete well water setup usually layers several types of treatment. A spin-down or coarse cartridge handles sand and grit first, a 5 micron sediment filter catches fine silt and rust, an iron filter handles iron and manganese if a test shows them, a softener handles hardness, and a carbon or UV stage addresses taste, odor and disinfection. Sediment goes first because everything downstream depends on it.
Do I need a sediment filter for well water?
On most private wells, yes. Sediment does not change the taste of the water, so it goes unnoticed until it has worn the pump, scaled a tankless water heater, blinded a softener resin bed or destroyed a reverse osmosis membrane. A sediment filter ahead of those components is inexpensive protection. Test your water in a clear glass first, and if nothing settles out within an hour you may be fine with a coarse 20 micron prefilter.
How do I know what micron sediment filter I need?
Look at the sediment rather than the number. If grit settles in a glass within ten minutes, you have coarse sand and want a spin-down or a 40-100 micron screen. If the water looks clear but cloudy, you have fine silt and want 5 microns. If you only want to protect a downstream filter from wear, 20 microns is the right first stage. A 1 micron cartridge is for drinking water polish after other treatment, not for whole house sediment.
Where do I install a whole house sediment filter?
Install it on the cold water line leaving the well pump and pressure tank, before the softener, the carbon stage, the UV unit and any reverse osmosis system. A spin-down belongs at the very front to catch grit before the pressure tank. If you have an iron filter, the sediment filter goes after it, because dissolved iron oxidizes into rust particles that will clog a fine cartridge within weeks. Add a three-way bypass valve so you can service the unit without shutting off the house.
Can I reuse a sediment filter cartridge?
Washable and reusable models can be rinsed or backflushed and returned to service, most reliably the stainless mesh screens in spin-down housings, which are rated in years rather than months. Pleated polyester and polysaccharide cartridges can be rinsed in a sink, but only until the media is visibly degraded. Melt-blown and thermally bonded polypropylene cartridges are disposable, because washing them collapses the fibers and destroys the depth structure that makes them work.
Bottom Line: Which Sediment Filter Should You Buy in 2026?
If you take one recommendation from this roundup of the best sediment filters for well water, make it the Membrane Solutions WPP-F10-5. It is the best all-round choice because the graded string-wound construction holds dirt across the full depth of the media, the 5 micron rating handles the fine silt and rust that spin-downs let through, and the six-pack format removes the replacement schedule from your calendar.
Match it to your water with two adjustments. Sand and grit in a glass test means adding a spin-down like the iSpring WSP-50 ahead of it, and iron or manganese on a test report means treating that first, because no 5 micron cartridge survives long on an iron-bearing well.
Start with a glass of your own water, decide whether you are dealing with coarse grit or fine silt, and you can pick from this list with confidence. Check the latest price on any of these before you order, since cartridge pricing moves often.
