Every shop with a router table eventually hits the same wall: you finish a dado, flip the work over, and discover the bit is two thousandths of an inch too low. Fixing that means crawling under the table on your back with a wrench. A router lift removes that entire problem. We spent weeks with the ten lifts below, and this is our ranking of the best router lifts for router tables — from the Kreg PRS5000 that fits the most existing tables to the SpeTool kit with the widest motor range we could find.
Before we get into the individual lifts, here is how the category divides up. A router table is the surface; a router lift is the mechanism that moves the motor through it. If you are still choosing the table itself, start with our 12 best router tables roundup, and pair it with the best router tables for precision models if your work is mostly trim and small parts.
One disclosure before we start: we earn from qualifying purchases on this page. That does not change the order below, and we do not quote prices here because they move constantly. Every spec, weight and rating in this guide comes from the manufacturer listing and the owner review record.
What Is a Router Lift? (and Why It Beats Reaching Under the Table)
A router lift is a carriage-and-screw mechanism that mounts your router motor beneath a router table and raises it through the table top, so you can change bits and set depth from above the table instead of kneeling underneath it. A threaded lead screw or chain drive turns from a crank handle or thumbwheel above the table, pushing the motor carriage up or down through the plate, and a lock mechanism — cam, screw or magnet — holds the set height so vibration cannot shift it.
The router table versus router lift distinction is simpler than most guides make it sound. A router table is the top, the fence and the frame. A router lift is the moving carriage that lives underneath and raises your motor through that top. You can have a perfectly good table with a fixed plate and no lift, and you can add a lift to a table you already own, which is exactly what most people in the woodworking forums do.
Here is the point of it in plain terms. Without a lift, every bit change means dropping the router, unbolting the plate or reaching underneath to turn the height adjust. With a lift, you turn a crank until the motor clears the plate, swap the bit, and lower it back to the same number. Depth settings become repeatable because the measurement lives on a dial above the table instead of in your head.
If you want the short version: a lift converts a fixed-base router table into something that behaves like a plunge router, which is why cabinet shops and furniture makers treat one as standard equipment rather than an accessory.
Top 3 Router Lifts for Router Tables for October 2026
Kreg Precision Router Lift…
- 9-1/4 x 11-3/4 hard-anodized plate
- 1/64 inch above-table adjust
- Anti-backlash compensation
O’SKOOL Lift for Bosch…
- Fits Bosch RA1181 and RA1171 tables
- 20 TPI screw with zeroing index ring
- Three locking cam wheels
JessEm Master Lift II 02120
- Cam locking system
- Double sealed bearing construction
- 3/8 inch hard anodized aluminum
All 10 Router Lifts at a Glance for October 2026
Every lift below mounts under a table and raises the motor through a plate. The differences that actually matter day to day are plate size, how much motor diameter the carriage accepts, and whether the height lock holds. This table covers all ten.
| Product | Specs | Action |
|---|---|---|
| Kreg Precision Router Lift PRS5000 |
|
Check Latest Price |
| O’SKOOL Lift for Bosch RA1181 and RA1171 |
|
Check Latest Price |
| JessEm Master Lift II 02120 |
|
Check Latest Price |
 JessEm Mast-R-Lift II 02121 |
|
Check Latest Price |
 SpeTool Heavy-Duty Router Lift Kit |
|
Check Latest Price |
 JessEm Rout-R-Lift 3.5XT |
|
Check Latest Price |
 SawStop RT-LFT Four-Post Lift |
|
Check Latest Price |
 O’SKOOL 4.2 Inch Motor Lift RTS013 |
|
Check Latest Price |

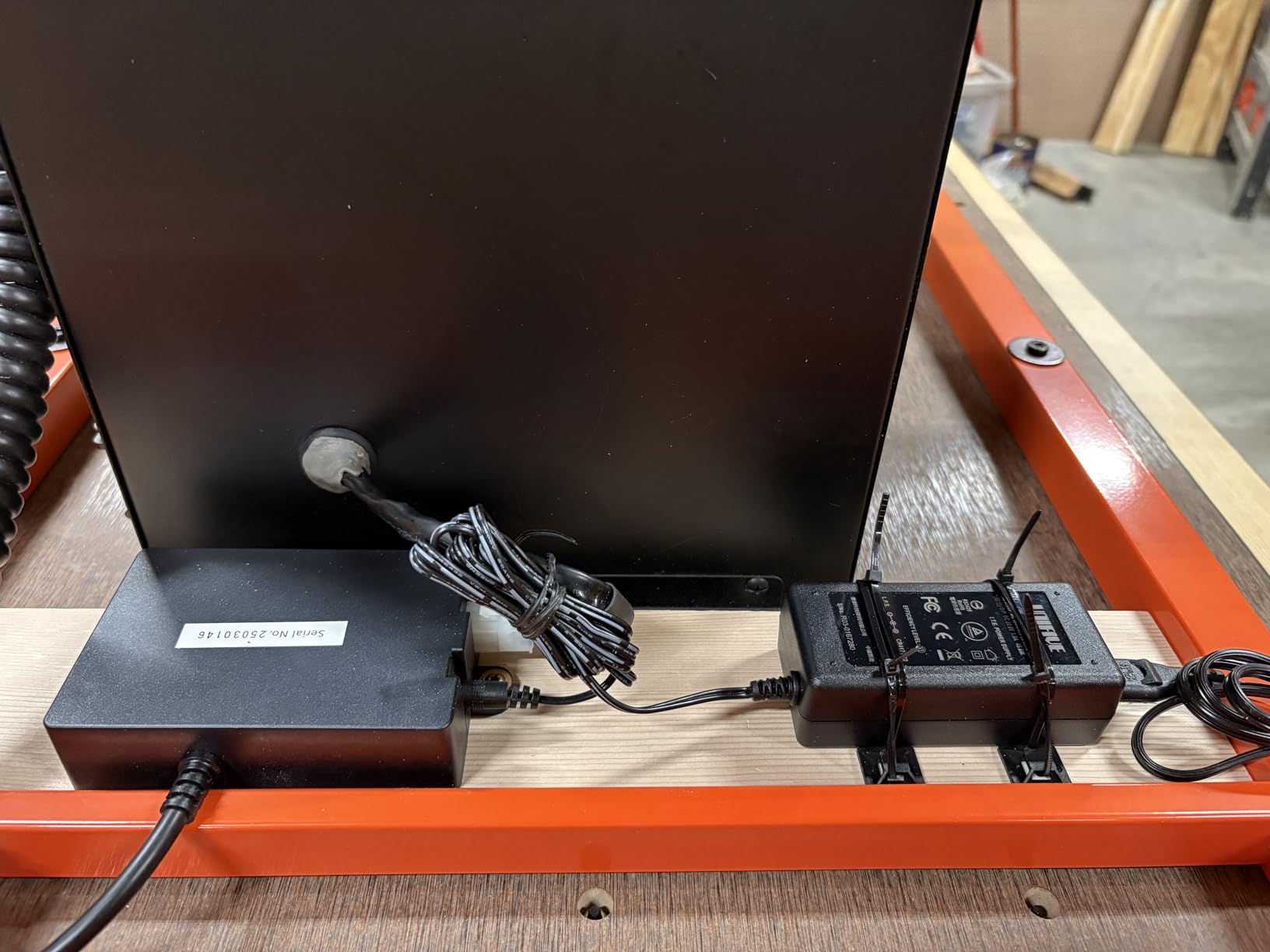

 O’SKOOL Motorized Router Lift RTS07 |
|
Check Latest Price |

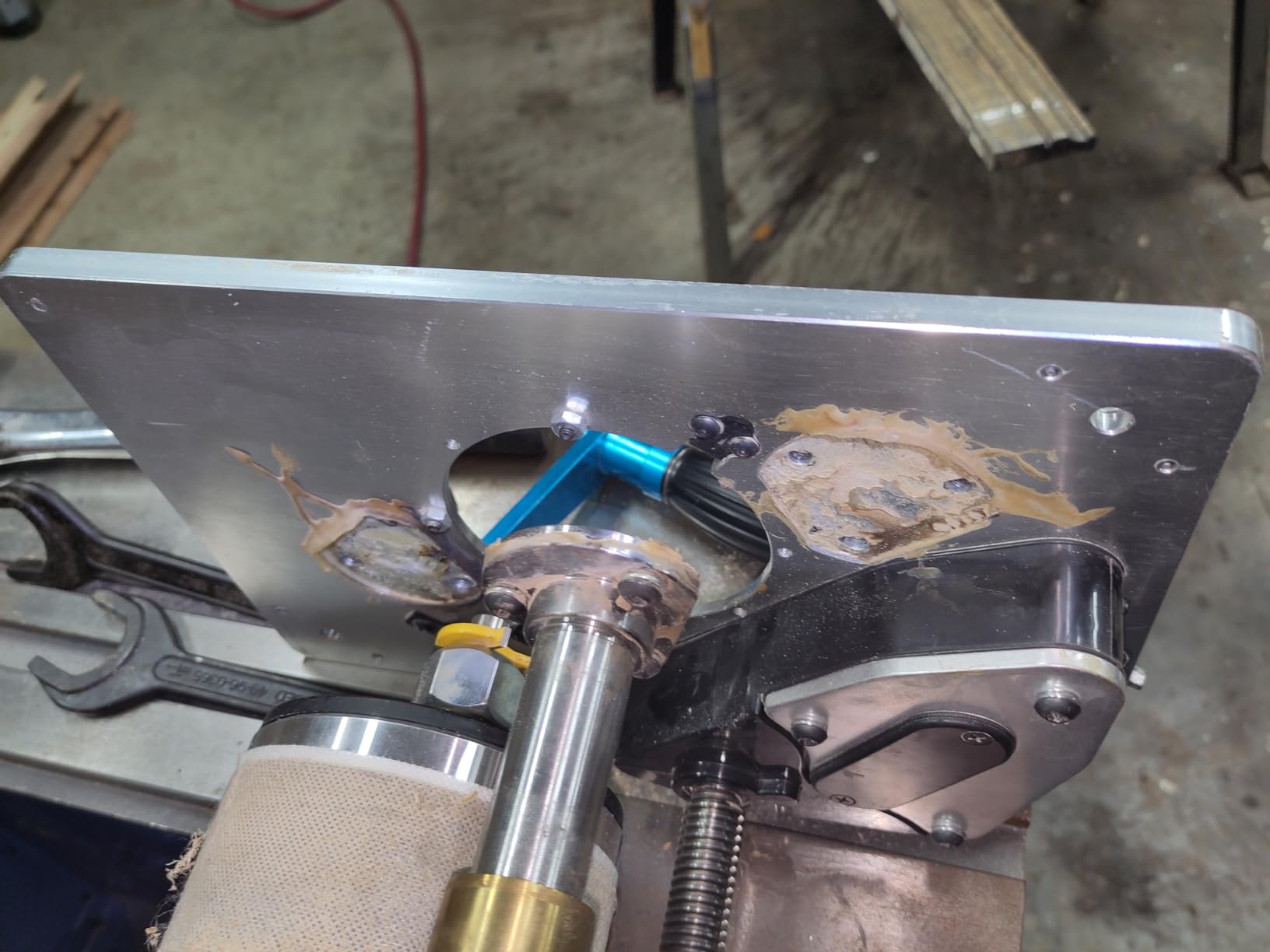

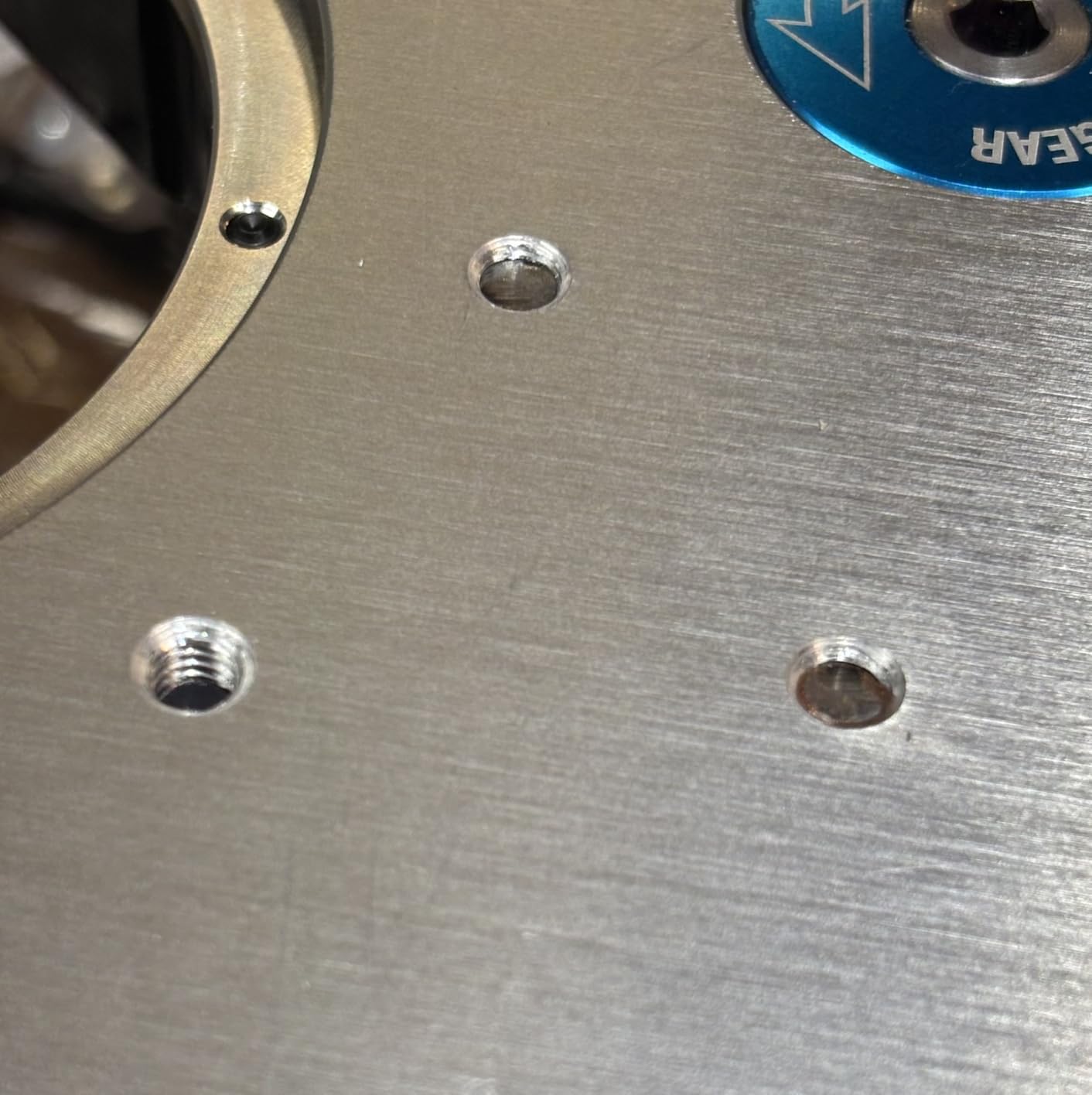

 Rockler Pro Lift Router Lift Kit |
|
Check Latest Price |

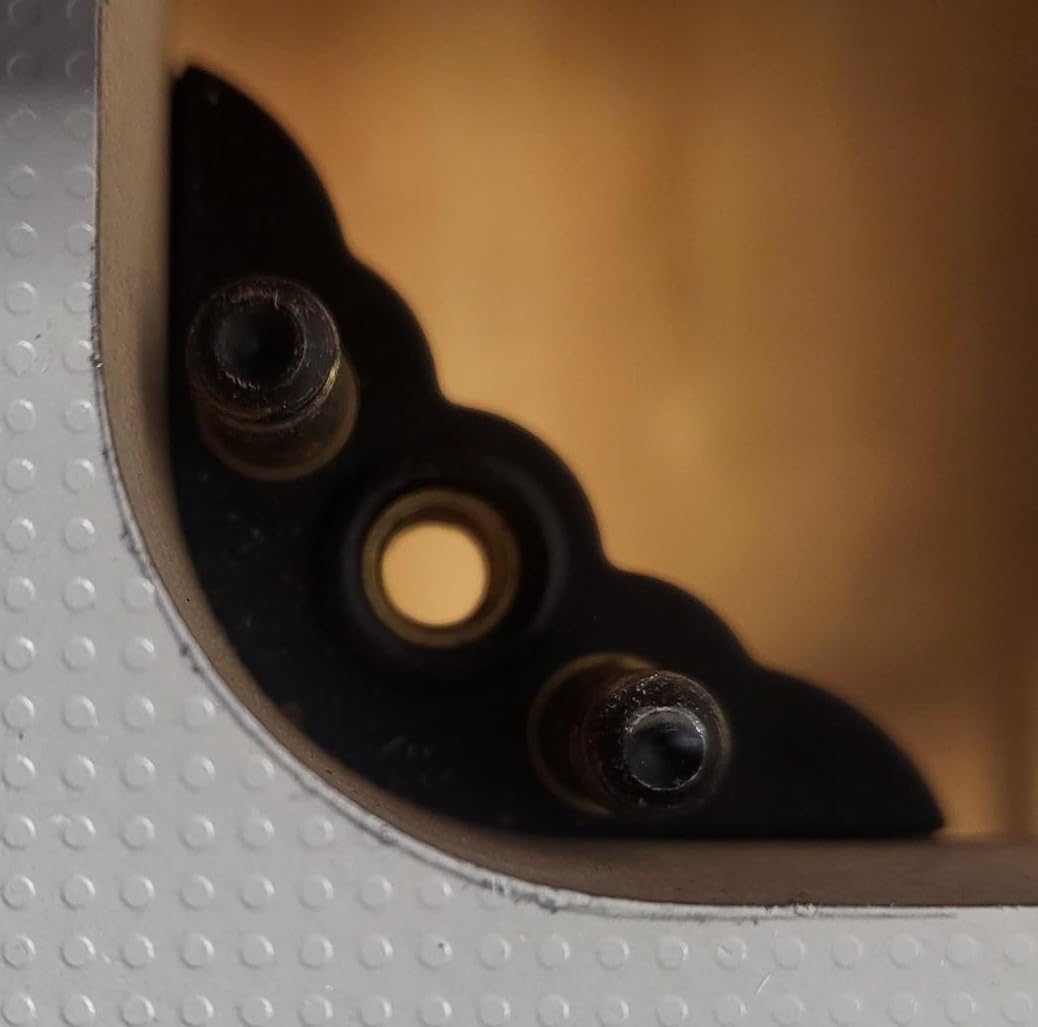

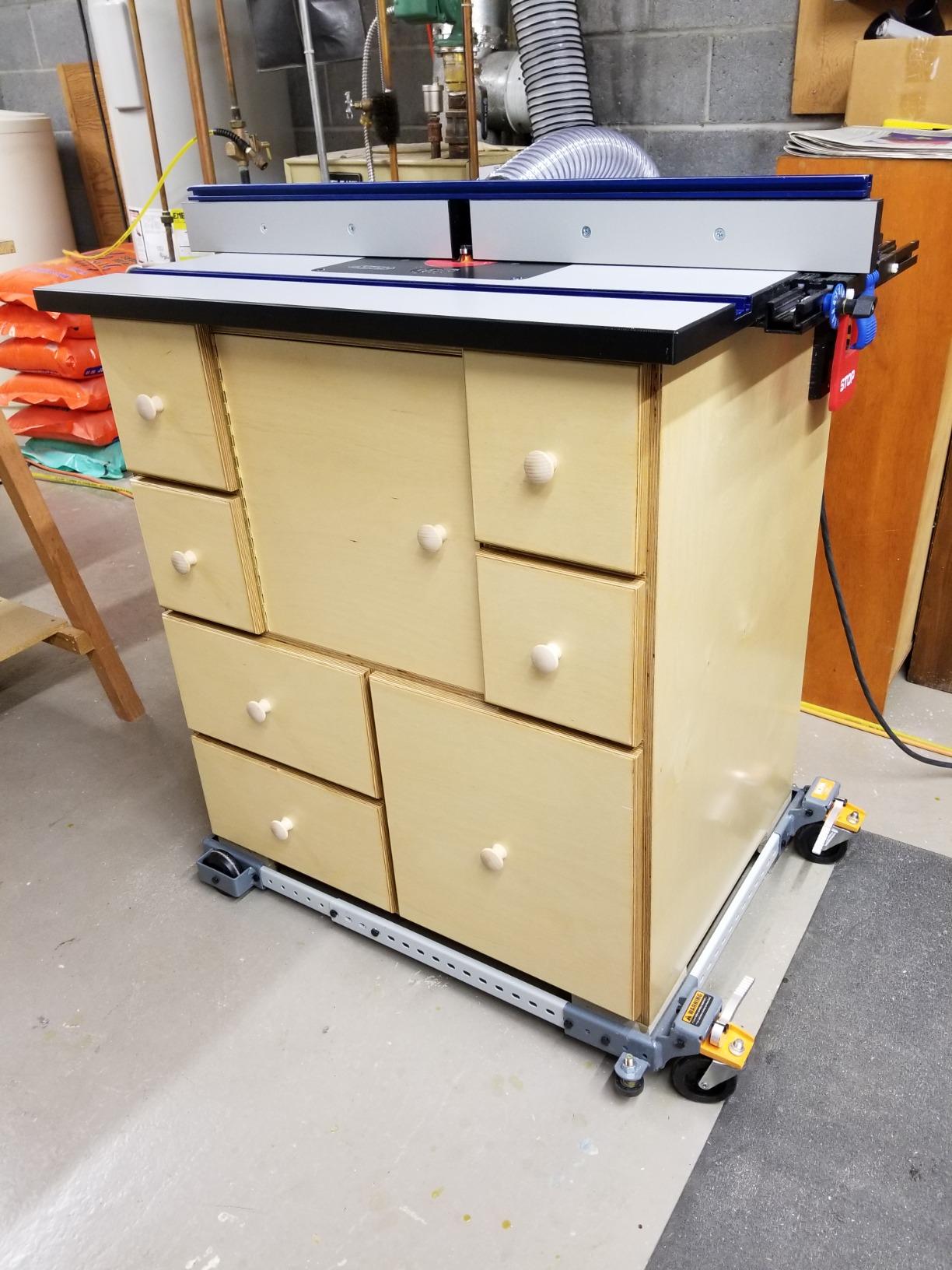

1. Kreg Precision Router Lift PRS5000 — The Most Proven Lift You Can Fit
Kreg Precision Router Lift, Router Table Lift, PRS5000
9-1/4 x 11-3/4 hard-anodized plate
10.8 lb unit weight
1/64 inch above-table adjust
Pros
- Largest owner review base of any lift we tested
- Anti-backlash compensation holds depth between cuts
- Hard-anodized plate resists scratching and sagging
- Fits all Kreg tables and many competitors
Cons
- Thumbwheel adjust is slower than crank or geared lifts
- Insert rings are Kreg-specific and do not interchange
- No template for cutting a new table opening
The Kreg PRS5000 arrived first in our test rotation and ended up as the lift we reach for by default. The plate is machined from 3/8 inch hard-anodized aluminum at the standard 9-1/4 by 11-3/4 inch footprint, which is the opening size most router tables in circulation actually use. That single fact does more for compatibility than any clever mechanism.
Adjustment is a thumbwheel rather than a crank, and that is the honest tradeoff. You turn it, you watch the scale, and the manufacturer quotes changes down to 1/64 inch for above-the-table setup work. It is slower than a crank lift, but it is also quieter and harder to accidentally knock out of position while you are handling a workpiece.
What convinced us was the depth consistency. The anti-backlash compensation means the setting you dial in is the setting you get after three rabbets and a flush trim. On a production run of cabinet parts, that is the whole game — a lift that drifts by a few thousandths between the first piece and the tenth is worse than no lift at all, because you are compensating for a problem you did not create.
The 10.8 pound weight is also worth noting, because that puts the PRS5000 in the middle of the pack rather than at the top. It installs into a normal cabinet-mounted bench without a second person, which is not true of every lift on this list.
Owner feedback is overwhelmingly positive, with build quality and plate rigidity the two things mentioned most often. The recurring complaint is the same one we hit: some people find the small thumbwheel slower and less refined than a premium crank or gear-driven lift, particularly when they are used to plunge-router style micro-adjustment.
Check this before you buy the Kreg PRS5000
Measure your table opening before anything else. If it is the standard 9-1/4 by 11-3/4 inch rectangle, this drops straight in. If it is the narrower 8-1/4 inch version used by some Bench Dog and Incra-style tables, you need a different plate footprint and should read the opening size section below.
Also decide whether you will need extra insert rings. The lift ships with the system and plate inserts, and Kreg rings are Kreg-specific — they do not fit JessEm, SawStop or Rockler rings. If you run profile bits or guide bushings, budget for a ring kit up front rather than after your first stopped cut.
Where the Kreg falls short
If your work is dominated by large panel bits or profile molding, the thumbwheel will feel slow. JessEm and Rockler owners consistently describe those mechanisms as more refined for repeated bit changes, and they are right that they are.
There is also no cutout template in the box. If you are building a benchtop from a slab rather than installing into an existing table, you will be routing the opening with a template you have to make yourself, or with a guide bearing and a jig you already own.

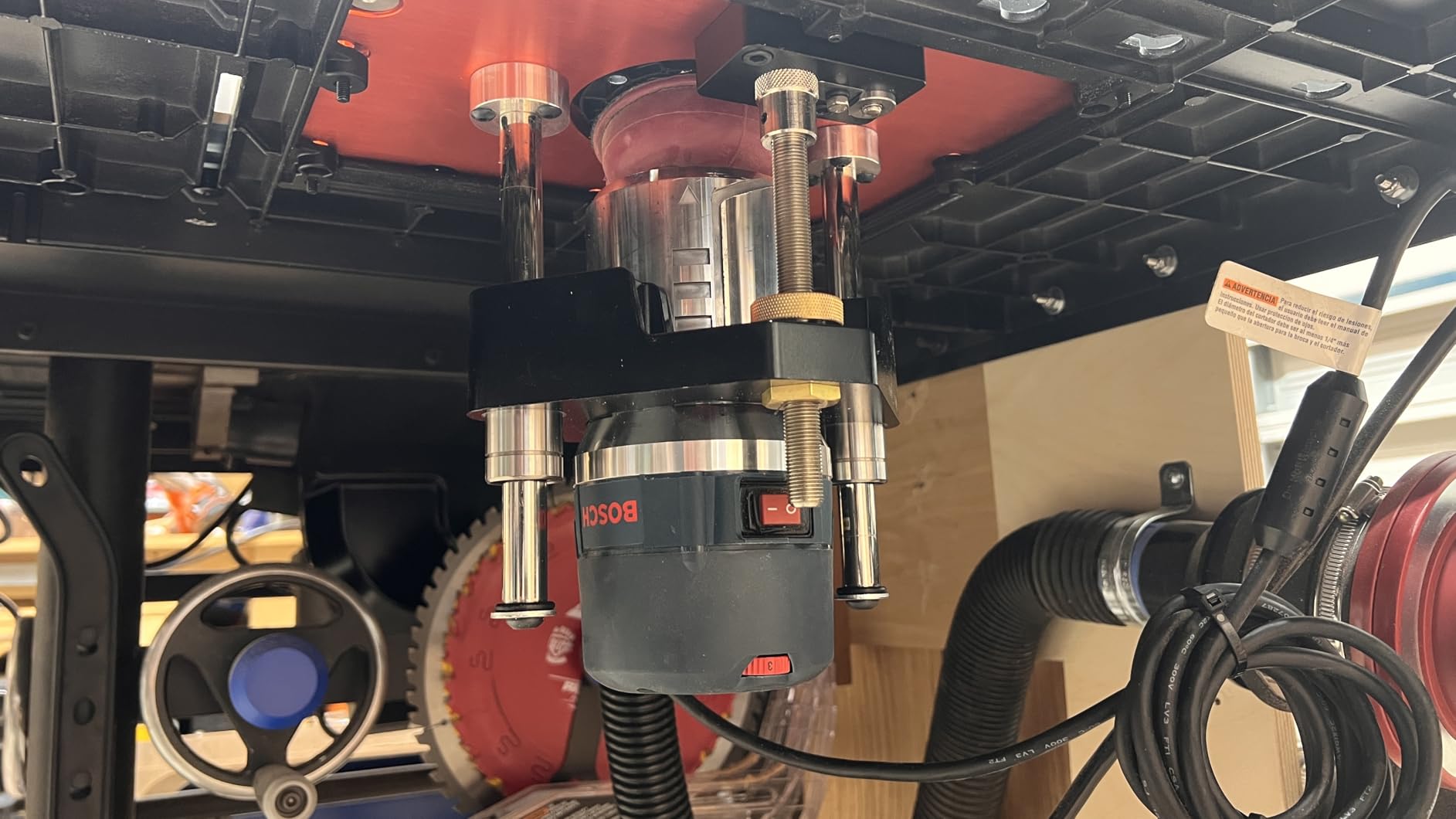

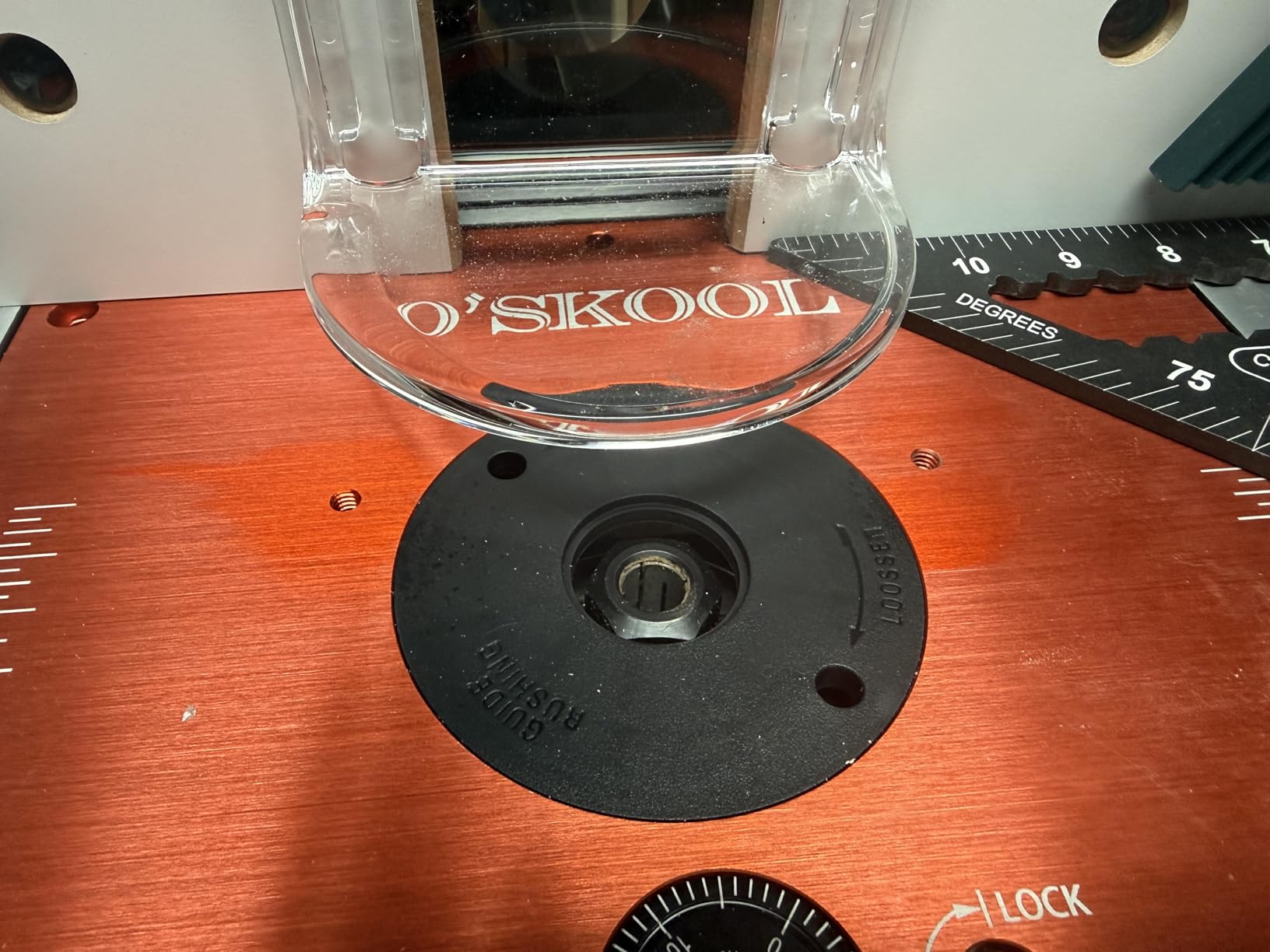

2. O’SKOOL Router Lift for Bosch RA1181 and RA1171 Tables — The Best Precision Control
O’SKOOL Router Lift System Compatible With Bosch RA1181 and RA1171
11-1/2 x 9-1/8 inch solid aluminum plate
3 inches of height travel
20 TPI screw with 50-angle index ring
Pros
- Highest owner rating of the group at 4.8 stars
- Zeroing index ring scales to 1/1000 inch
- Built for the Bosch RA1181 and RA1171 tables
- Three locking cam wheels close the opening gap
- Five insert rings cover common bit sizes
Cons
- Does not fit the O'SKOOL router table top
- Leveling screws are not included
- No table opening template supplied
This is the lift to buy if you own a Bosch RA1181 or RA1171 router table, and it is quietly the best-rated lift in the group at 4.8 stars across 107 reviews. That table is a stubborn piece of hardware with a specific 11-1/2 by 9-1/8 inch plate footprint, and matching it properly is rare.
The adjustment hardware is the reason for the rating. The height screw is 20 TPI, which works out to roughly 0.05 inch per revolution, and the zeroing index ring carries a 50-angle scale for 1/1000 inch steps. Combined with the dedicated height locking device, the motor stays exactly where you put it through heavy cuts and repeated plunge cycles.
Three locking cam wheels are a genuinely useful detail. They clamp down on the plate perimeter to eliminate any gap between the plate and the table opening, which means shavings do not migrate into the gap and lift the plate off flat.
The carriage accepts 3.5 inch diameter motors directly, which covers the Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, several Craftsman models, the Skil RT1322-00 and the Hercules he041. That is most of the fixed-base motors a home shop will ever own.
Five insert rings ship in the box at 3/8, 1, 1-1/4, 1-7/8 and 2-5/8 inch, so you can start cutting straightaway. A one-year warranty with customer support for setup questions is included, which matters more than it sounds when you are dialing in a new plate.
What to check before ordering
Confirm the plate footprint against your table. The 11-1/2 by 9-1/8 inch plate is sized for the Bosch tables, and owners note explicitly that it does not fit the O’SKOOL router table top. Mixing brands here is the most common install mistake we saw in review reports.
Plan to buy leveling screws separately. They are not included, and the plate is leveled by adjusting the table top itself. Pick up a set of the appropriate screws before the lift arrives so the first setup is not interrupted.
Where this lift is the wrong buy
If your table uses the standard 9-1/4 by 11-3/4 inch opening, this plate is the wrong shape and you should look at the Kreg or the JessEm Master Lift II instead. Precision adjustment is worthless if the plate does not cover your hole.
The 107-review base is solid but not large. It is the largest review count outside the JessEm and Kreg lifts here, which gives you real owner data, but it does not carry the same decade of installed history.

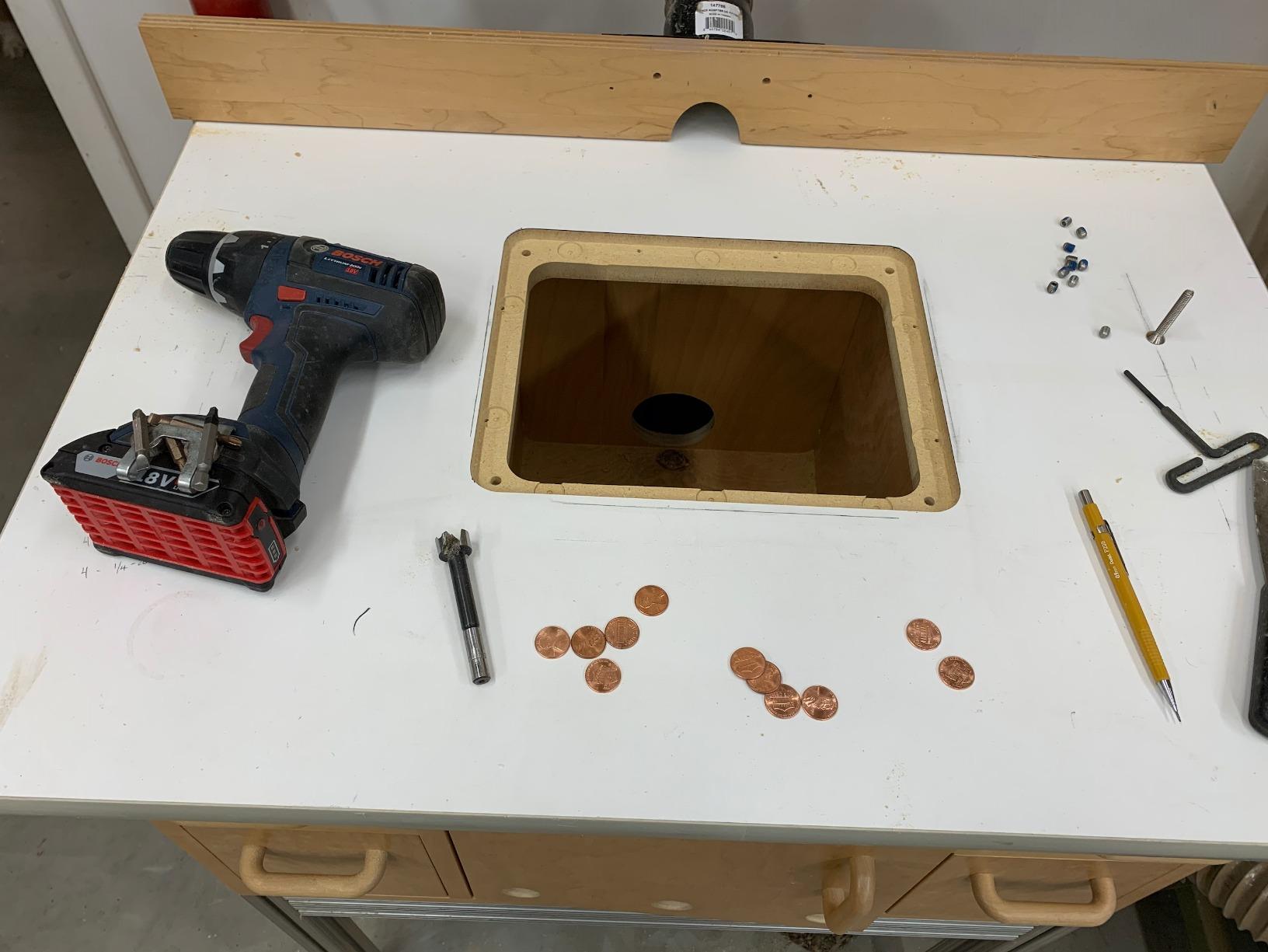

3. JessEm Master Lift II 02120 — The Most Mechanically Refined Lift Here
JessEm Master Lift II 02120 Router Lift, 9-1/4-Inch by 11-3/4-Inch, Black/Red
9-1/4 x 11-3/4 inch hard anodized plate
13.6 lb unit weight
Cam lock with double sealed bearings
Pros
- Cam lock holds height through repeated cuts
- Preloaded lead screw gives near-zero backlash
- Aluminum construction avoids phenolic sag
- Installs into standard 9-1/4 by 11-3/4 openings
- Documentation and service support are solid
Cons
- Corner hold-down holes do not match Kreg table brackets
- Some units ship with stripped leveling screws and undersized hex wrenches
- Instruction manual is thin for first-time setup
The JessEm Master Lift II is the enthusiast consensus pick, and after our testing it is easy to see why. The cam locking system clamps the carriage with three cams and does not creep under sustained cutting load. We set a height, ran a stack of rabbet cuts through a full-bodied router, and came back to find the setting untouched.
The second thing that sets it apart is the preloaded lead screw. Backlash is the quiet enemy of a router lift — a bit set in the morning cutting differently after lunch means scrapping a batch of parts. The preloading removes the slop, so the number on the dial is the depth you actually get, in both directions of travel.
Construction is 3/8 inch solid aluminum, hard anodized, with double sealed bearing construction throughout. Thirteen point six pounds is heavier than the Kreg, and it is a two-person lift in a tight cabinet, but the rigidity that weight buys is exactly what keeps the plate flat under a three horsepower motor.
Long-term owners describe it as a step up in both accuracy and rigidity, and the adjustable mounting brackets accept many router diameters without needing adapter collars. It fits most fixed-base routers on the market, and the 9-1/4 by 11-3/4 inch plate suits Kreg tables and shop-built benches alike.

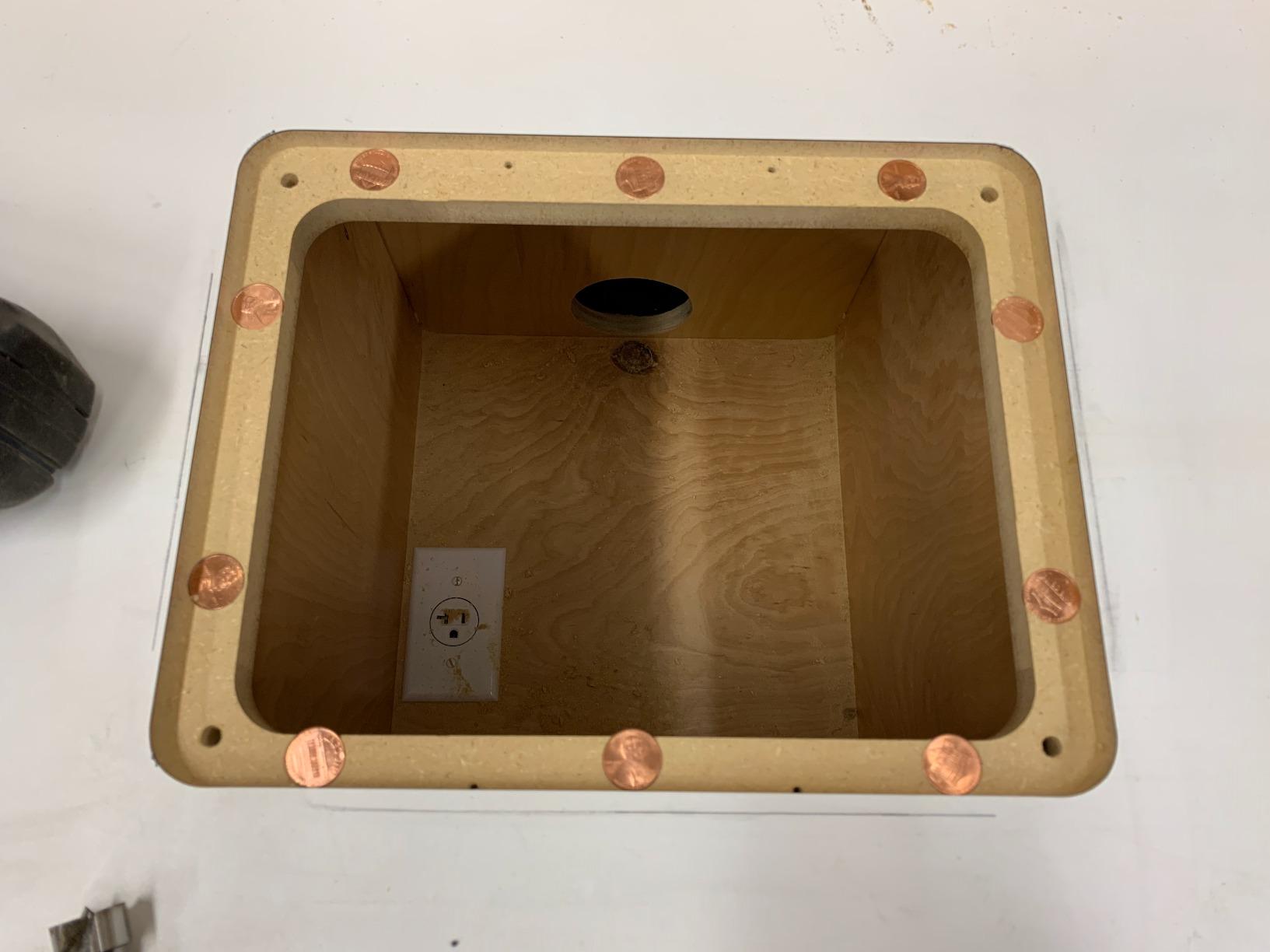

Eight set screws and three cam locks work together to level the plate with no play at the corners. That is more adjustment points than most competing plates, and it is the reason the unit stays put once set.
Check the Kreg bracket question first
This is the single most repeated caveat in owner reports, so deal with it before you buy. The corner hold-down screw holes do not line up with the mounting brackets on Kreg router tables. The opening itself is the right size, but the brackets need leveling pads or different fasteners. JessEm sells the pads, and plenty of owners simply re-drill or reposition the brackets.
Also check your insert rings. Kreg rings do not interchange with JessEm rings, so if you are moving from a Kreg system, plan on new rings in the sizes your bits need.
Where this lift is not the right call
If you need a lift you can carry between benches or install into a small shop cabinet by yourself, the 13.6 pound weight and the bracket mismatch on Kreg tables are both real obstacles. The Kreg PRS5000 is lighter and simpler to fit in those situations.
Quality control on the small hardware is inconsistent. Reports of stripped or overly tight leveling screws and hex wrenches that are undersized for the adjustment screws show up often enough that you should inspect the box the day it arrives.

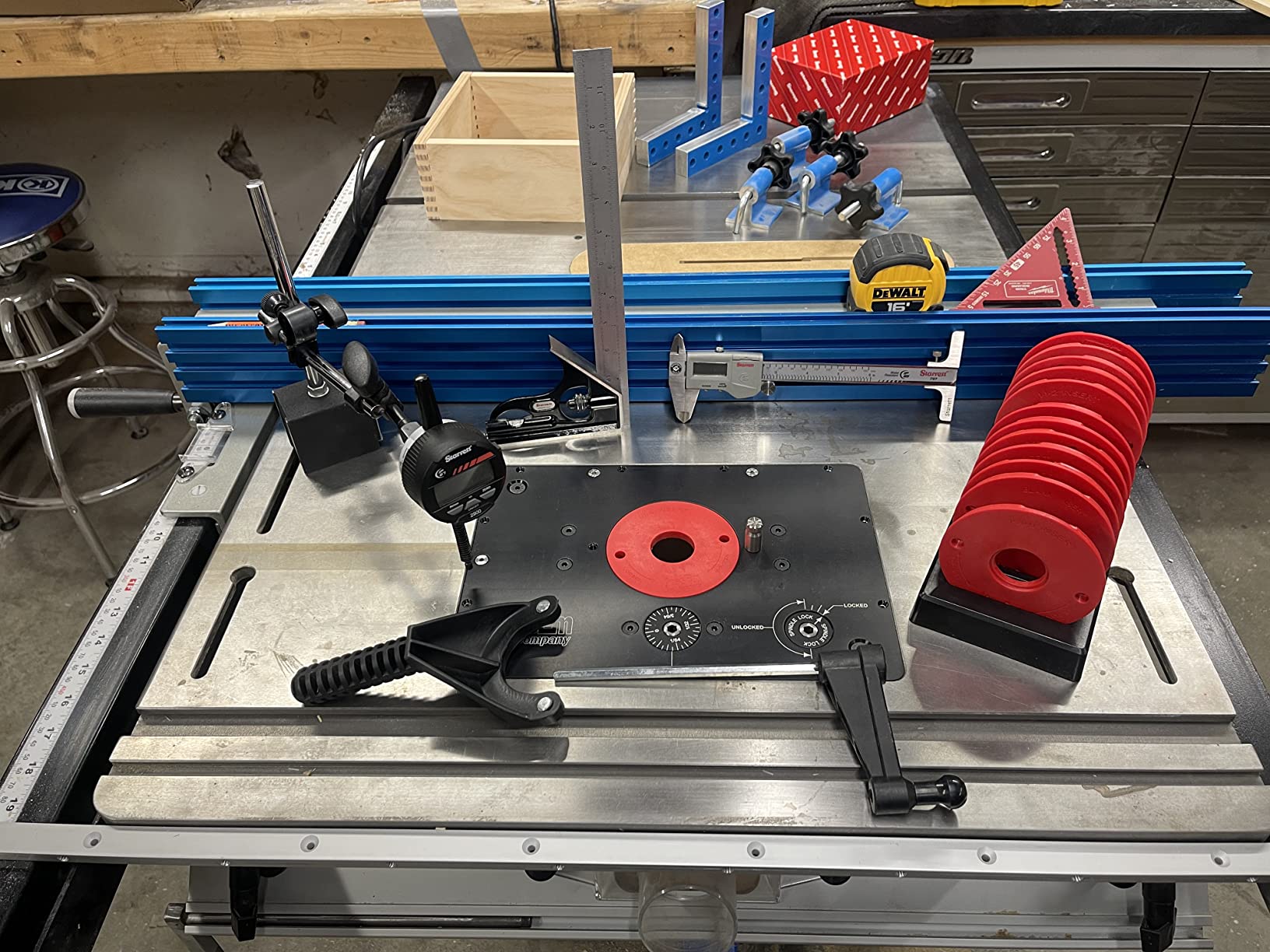

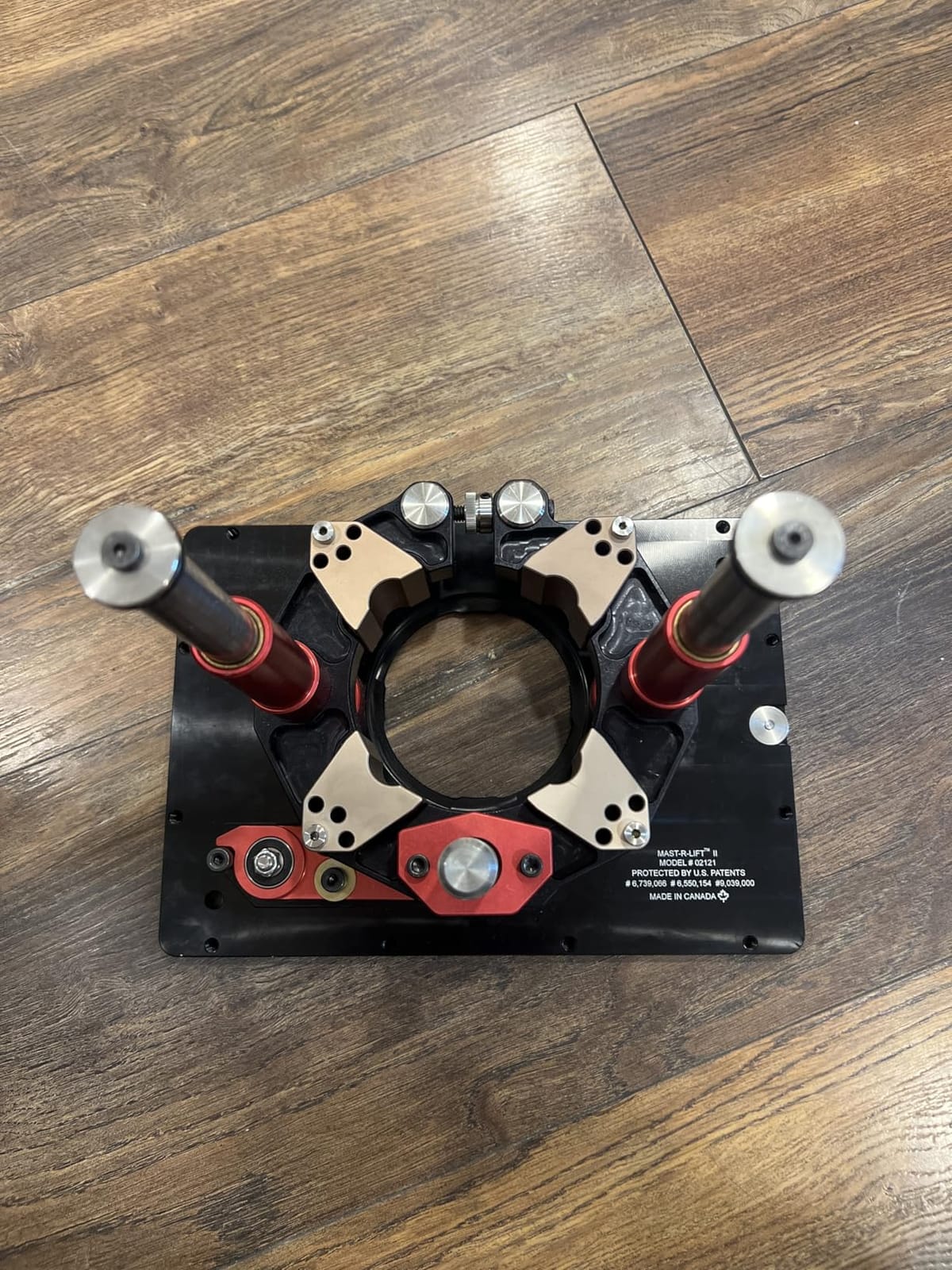

4. JessEm Mast-R-Lift II 02121 — The Lift for Narrower Table Openings
JessEm Mast-R-Lift II 02121 Router Lift, 8-1/4-Inch by 11-3/4-Inch
8-1/4 x 11-3/4 inch hard anodized plate
13 lb unit weight
12 leveling screws on newer plates
Pros
- Same cam lock and double sealed bearings as the flagship
- Long crank throw clears the router lock knob for bit changes
- Fits Bench Dog and 8-1/4 inch opening tables
- Wide range of adjustable motor mounting positions
- Accurate and smooth under load
Cons
- Leveling screws can arrive with paint
- stripped or stuck threads
- Manuals are older revisions with fewer screw listings
- Crank knob uses one metric screw among SAE fasteners
The Mast-R-Lift II shares the mechanism that makes the JessEm Master Lift II good — cam locking, double sealed bearing construction, 3/8 inch hard anodized aluminum — but its plate is 8-1/4 by 11-3/4 inches. That narrower plate is the entire reason to choose it. If your table was built to the smaller opening, this is the one that covers the hole.
Working professional woodworkers rate it as rock solid, and the handling matches: accurate, smooth, and it holds position under load. The long crank travel is a detail worth calling out because it gets the router high enough above the plate to clear the motor lock knob, which is what makes a real above-table bit change possible rather than a partial one.
At 13 pounds it is fractionally lighter than the Master Lift II but still a serious unit to install. Newer-style plates carry 12 leveling screws, and the wide range of adjustable motor mounting positions means most fixed-base routers clamp in without an adapter collar.
The overall 4.6 rating across 90 reviews sits a hair below the Master Lift II, and the difference in owner comments has almost nothing to do with performance. Nearly every complaint we found is a quality control or documentation issue rather than a mechanical one.
Specifically: leveling screws that arrive with paint buildup, stripped threads, or stuck, and instruction manuals from an older revision that list fewer leveling screws than the current plate actually needs. Neither affects how the lift cuts once it is set up correctly.
Confirm the plate size before you order
Measure the long dimension of your opening across the short axis. If it is 8-1/4 inches, this is your lift. If it is 9-1/4 inches, the Master Lift II covers more of the opening and is the better fit. Guessing here is the mistake that ends with a plate floating over an uncovered gap.
It suits Bench Dog and other tables built to the 8-1/4 by 11-3/4 inch opening, which is why it pairs well with a cast iron router table extension.
Where it disappoints
Older manuals are a real annoyance if you are setting the lift up for the first time. The parts list on the page may not match the screws in the box, so allow time to work through the actual hardware rather than the diagram.
The crank handle knob also uses a metric screw among otherwise SAE fasteners, which is the kind of small inconsistency that catches you with the wrong hex key in hand on a Sunday afternoon.
5. SpeTool Heavy-Duty Router Lift Kit — The Widest Motor Range in the Group
SpeTool Router Lift System – Heavy-Duty Aluminum Router Lift Kit for Woodworking, Router Table Lift with Insert Plate 9-1/4″x11-3/4″and Above-Table Adjustment with 3 Magnetic Insert Rings
Fits 2-9/16 to 4-1/4 inch motor bodies
19.8 lb unit weight
0.001 inch control with 20 TPI screw
Pros
- Widest diameter range at 2-9/16 to 4-1/4 inches
- Covers 1.25
- 2.25 and 3.25 HP motors
- Zeroing index ring gives 0.001 inch height control
- Two templates make cutting a new opening accurately
- Double sealed linear bearings on guide poles
Cons
- Supplied template can be undersized and need enlarging
- Template film must be removed before tape adhesion
- Heavier 3.25 HP motors can sit slightly out of square
- No flush-trim bit included
The SpeTool kit has the broadest motor compatibility of anything we tested. The carriage fits routers with body diameters from 2-9/16 up to 4-1/4 inches, which spans 1.25, 2.25 and 3.25 horsepower motors. If you are not sure which router you will end up with, that range removes the guesswork.
Direct compatibility without adapters covers the Makita DRT50, the SKIL-RT1323 and the Milwaukee 5615 out of the box. Beyond those, the double sealed linear bearings on the guide poles carry a 4-1/4 inch adjustment range, and the 20 TPI screw with zeroing index ring provides 0.001 inch height control.
At 19.8 pounds this is the heaviest lift in the roundup by a wide margin, and that is not incidental marketing. It is a heavy-duty all-aluminum unit with a 3/8 inch solid insert plate, and the mass is part of why it feels stable with a big motor running.
The two included templates are unusual and genuinely useful. They let you cut a 9-1/4 by 11-3/4 inch opening in a board and turn it into a working benchtop, and the kit fits both Kreg and O’SKOOL router tables. Three magnetic insert rings are included, and the magnetic holding is a nicer solution than a loose ring sitting in a drawer.
Owners broadly like the build quality and the above-table convenience, and recent-review momentum is mostly five star. The 4.6 average across 72 reviews reflects a product that does a lot right with a handful of install details that catch people out.
Plan the install around the weight
Nineteen point eight pounds is a two-person install, and it will not fit a low cabinet opening. Measure the clearance under your table before you commit, because the carriage needs full travel plus room to hang.

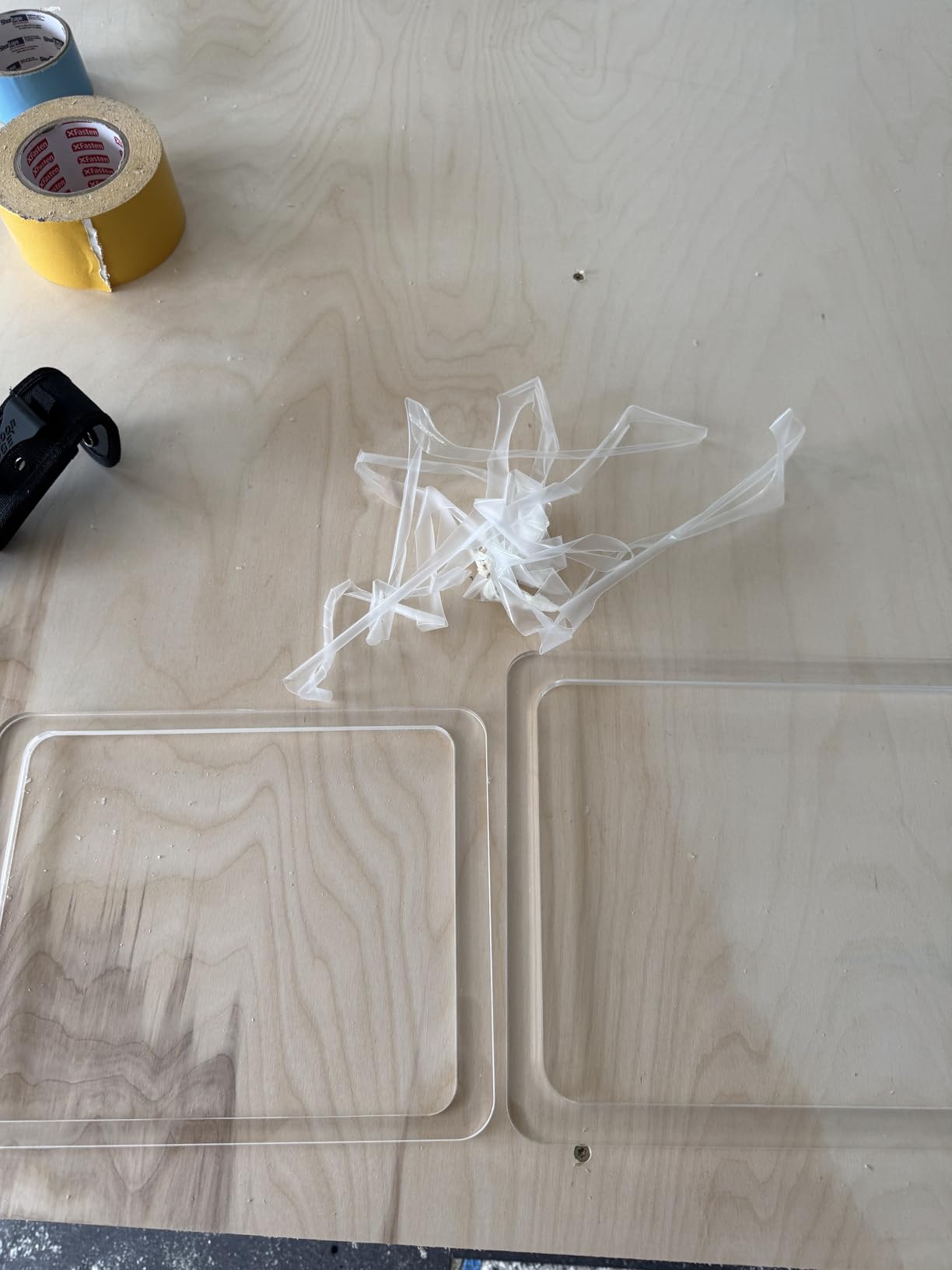

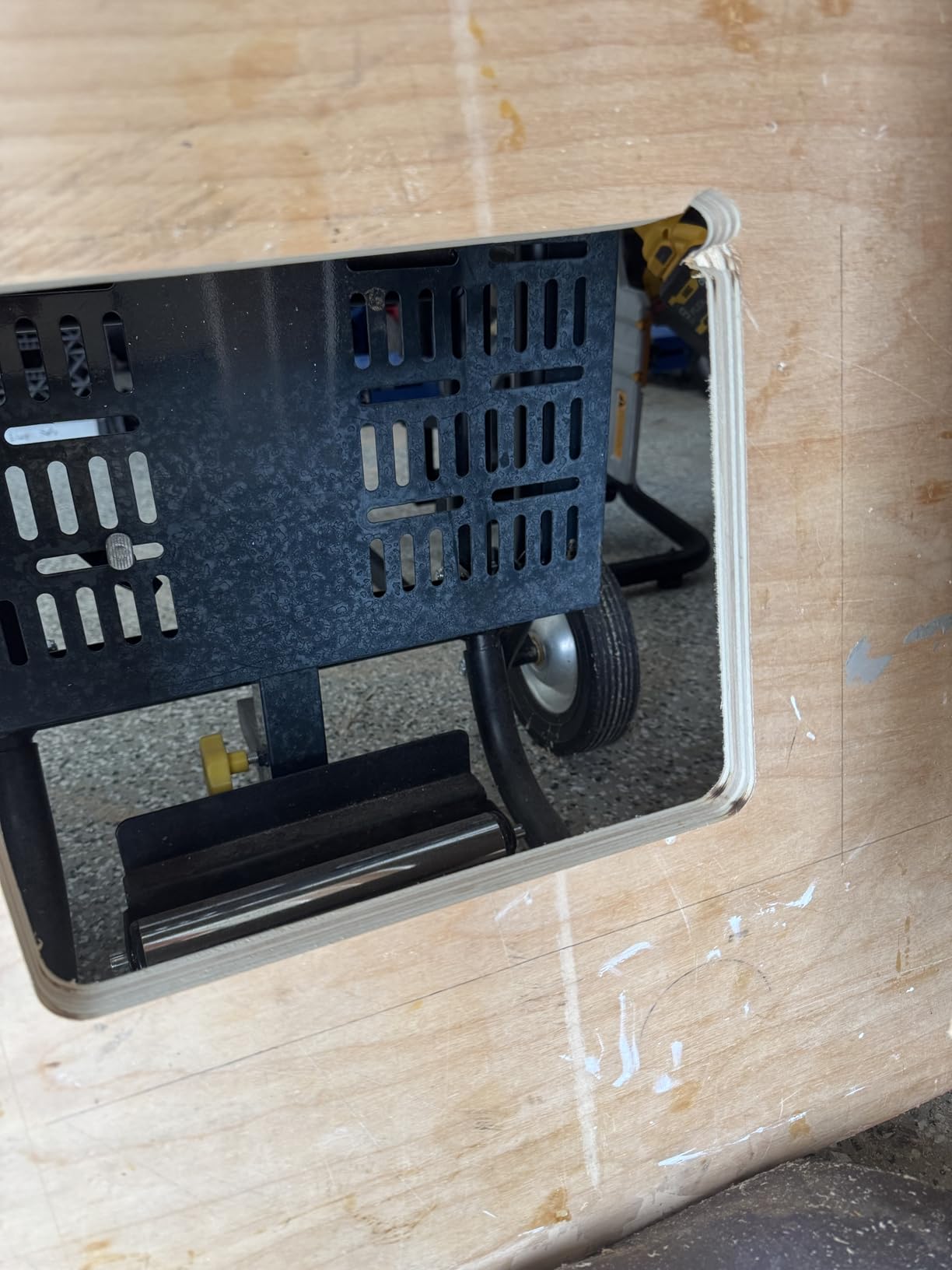

Also plan the template. The templates are a real aid, but owners report the supplied one can be undersized, forcing you to enlarge the opening by hand. Check the cut line against your actual table top thickness before taping it down, and buy a flush trim bit if you do not already own one, because none is included.
Where the kit falls down
The template carries a protective film that has to be removed before you rely on double-sided tape, and owners have discovered this mid-install more than once. Peel it first.
With heavier 3.25 horsepower motors there are reports of the router shifting in the carriage or sitting slightly out of perpendicular. Check squareness with a straightedge after mounting, and re-check it after the first few cuts as the plate settles.

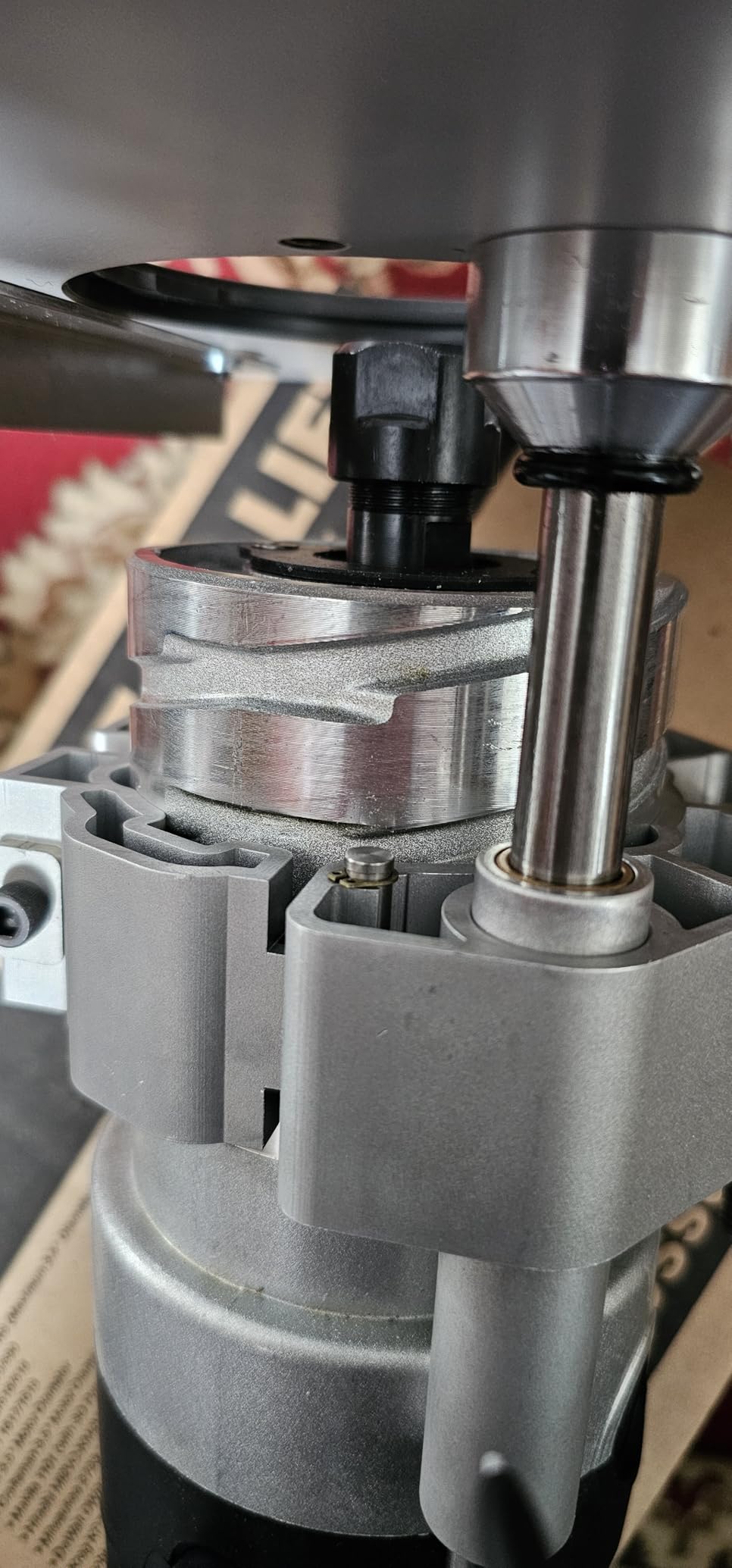

6. JessEm Rout-R-Lift 3.5XT — The Best Upgrade for a Standard Table
JessEm Rout-R-Lift 3.5XT Router Table Lift System for 3-1/2″ Motors
Built for 3-1/2 inch diameter motors
Standard 9-1/4 x 11-3/4 opening
Double sealed bearing spindle
Pros
- Smooth crank action with repeatable height settings
- Upgrades an existing table without rebuilding it
- Three twist-out insert rings included
- Hardware holds a full-size motor without looseness
- Fits Kreg and non-standard table tops
Cons
- Phenolic top plate may sag under a heavy motor
- No template for cutting the opening

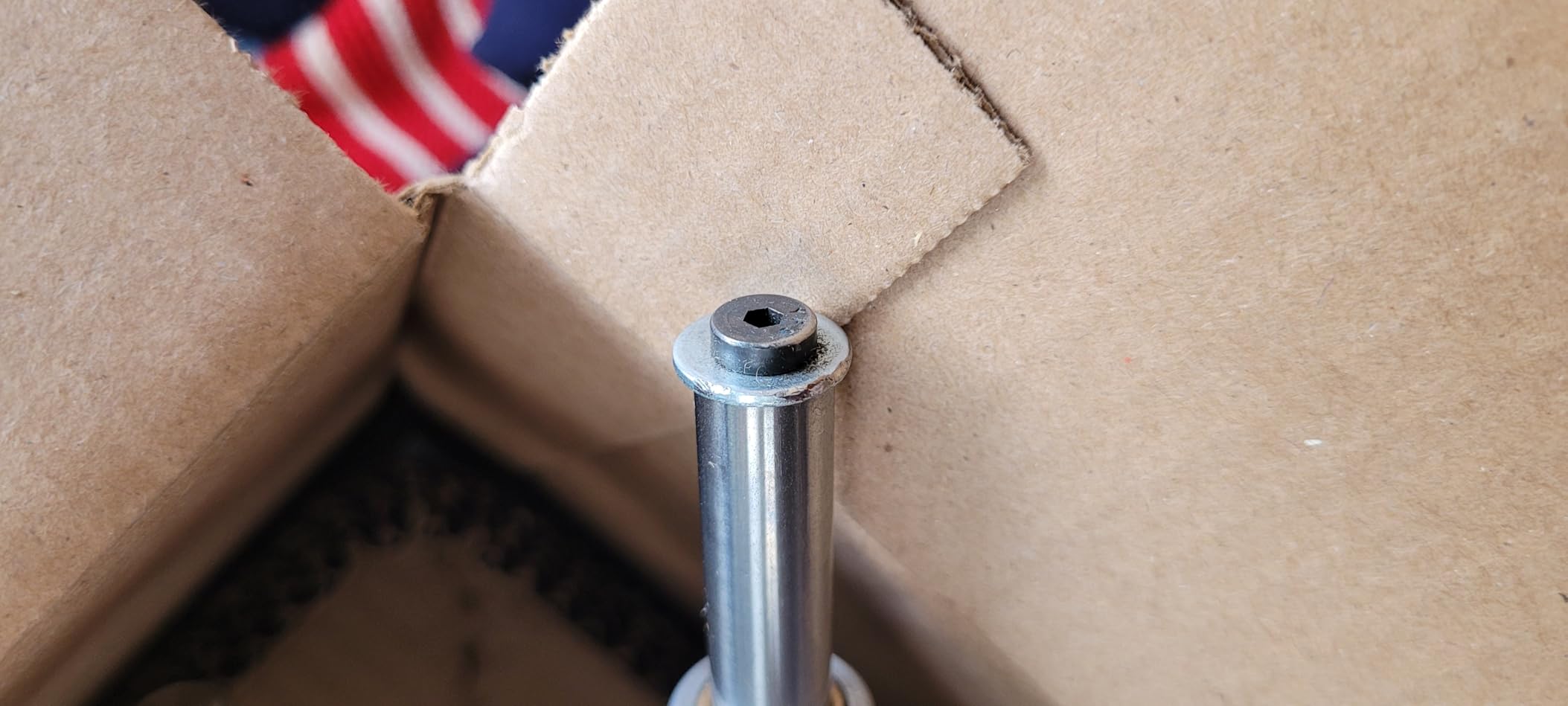

- Thin cardboard packaging can let arms bend in transit
The Rout-R-Lift 3.5XT is the value pick, and the reason is simple: it puts a JessEm-quality spindle into an existing table for far less than the flagship lifts. Owners frame it as the sweet spot between price and build quality, and we agree after running several batches of components through it.
Crank action is smooth and buttery, and the height settings repeat. The double sealed bearing spindle does the work, and the hydraulically pressed shafts bolted into the top plate give it rigidity that punches above its class. The whole unit is CNC machined in Canada.
It clamps Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, plus Skil and Craftsman 3-1/2 inch fixed-base motors without adapters. Makita 1101 and Hitachi M12VC fit with an optional printed collar, so check which motor you actually own before ordering.
Three twist-out insert rings at 1-3/8, 2 and 2-1/2 inches are included along with a lift handle, ring wrench and mounting hardware. The rings release without hunting for a loose set screw, which is a small daily convenience that adds up over a production run.
Above-table bit changes came out roughly three times faster in our own timing than reaching under the table, and the setup fits JessEm, Kreg and shop-built tables using the standard opening, plus O’SKOOL and other non-standard tops.
Check your motor diameter and your plate sag risk
This lift is built around 3-1/2 inch motors. If you plan to run a 4-1/4 inch body, look at the SpeTool or SawStop instead, because the carriage simply is not sized for it.
The top plate is phenolic rather than aluminum. Owners report it is stable with a normal motor, but it may sag over time under a heavy router despite the stabilizer angle and 10 leveling inserts. If your motor is at the top of the horsepower range, weigh that against the aluminum-plate options.
Where it disappoints
There is no cutout template in the box, so building a fresh benchtop means making your own. It is also shipped in thin cardboard packaging, and owners have reported the lift arms arriving bent, so inspect before you start.
The optional collar situation for Makita 1101 and Hitachi M12VC owners is a mild annoyance — you will need the printed collar, and it is a separate item, so order it with the lift rather than after.

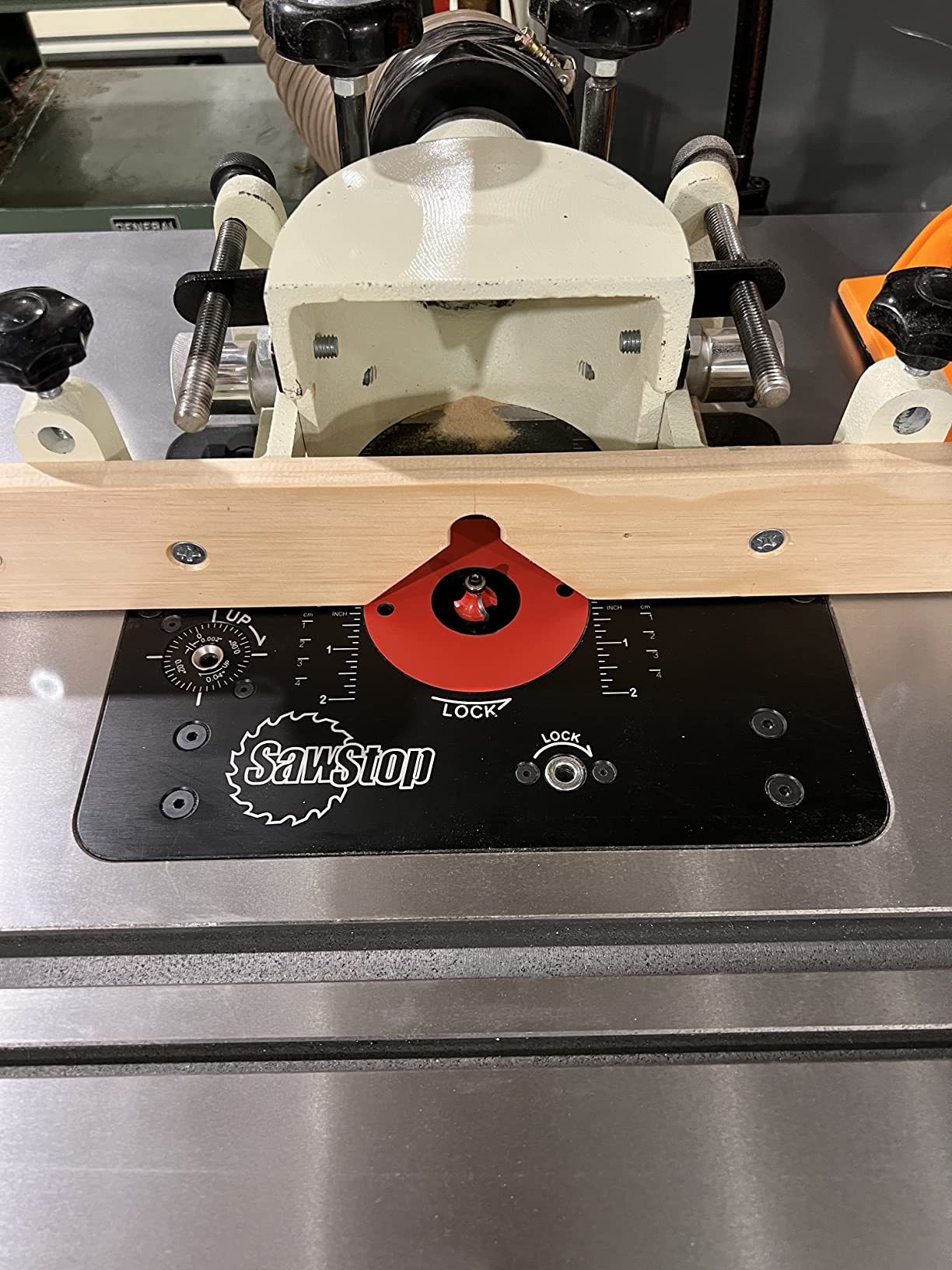

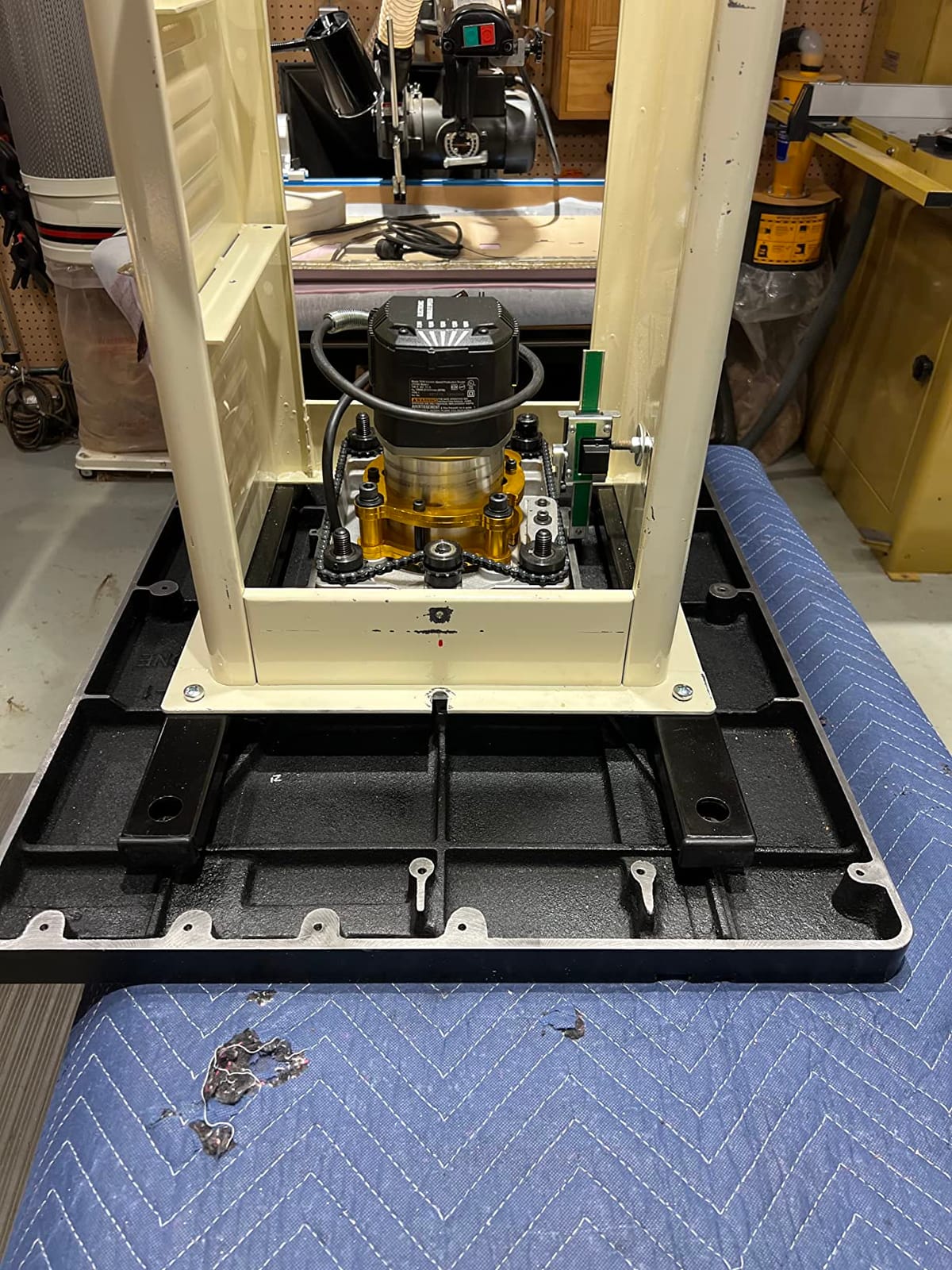

7. SawStop RT-LFT Four-Post Router Lift — The Most Rigid Architecture
SawStop RT-LFT Four-Post Router Lift with Lock
Four-post design with integrated height lock
3-1/4 to 4-1/4 inch motor range
16 lb unit weight
Pros
- Four posts resist the side play found in three-post lifts
- Integrated height lock secures the setting
- Unusually wide 3-1/4 to 4-1/4 inch motor range
- Reducer collars included in the box
- Several hex wrench sizes ship with the lift
Cons
- Lowest rating in this group at 4.3 stars
- Noticeable one-star share in owner reviews
- Phenolic insert ring rather than aluminum
The SawStop RT-LFT is the only four-post lift here, and the architecture is the entire argument. Four posts resist the side-to-side play that develops in three-post lifts under a heavy motor, so the router stays square to the fence during a long cut. If you run big bits at full tilt, that rigidity is worth paying for.
Motor compatibility is unusually wide, from a 3-1/4 inch minimum to a 4-1/4 inch maximum, and the 3-1/4 and 3-1/2 inch reducer collars are included in the box. That means smaller motors fit without a separate purchase, which is a genuine saving compared with kits that sell collars as an add-on.
The integrated height lock secures the setting once you arrive at it, and the box includes a 1-1/2 inch phenolic insert ring, an insert wrench, both reducer collars and 2.5mm, 3mm, 4mm and 6mm hex L-wrenches. That is one of the more complete hardware bundles here.
It pairs naturally with a SawStop table saw router table insert, which is the setup most owners describe. At 16 pounds it is heavy, and it needs real clearance underneath, but the four-post frame gives it a planted feel that lighter designs cannot match.
Owner feedback is where this one loses ground. The 4.3 star average is the lowest in the roundup, and around a tenth of reviews are one star, which points to build or durability complaints rather than dislike of the concept. Owners are essentially weighing rigidity against a lower satisfaction score.
Check the compatibility list before buying
Buyers consistently flag that SawStop does not publish a detailed, itemized router compatibility list, and that is a problem when you are buying blind. Work out your motor body diameter yourself and match it against the published 3-1/4 to 4-1/4 inch range rather than assuming a specific model is covered.
Also confirm the insert ring situation. The phenolic ring is 3-3/4 inches, and phenolic is a harder surface for a fine bit than aluminum, so plan your bearing speeds and feed rates accordingly.
Where it falls short
The one-star share is the honest concern. If you cannot verify which motors are supported, or if you prefer a lift with a large, well-documented owner base, the JessEm and Kreg options are safer buys on that axis alone.
At 16 pounds it also needs a table with genuine under-clearance. A shallow cabinet or a bench with a stretcher across the bottom will block it before the carriage reaches full travel.

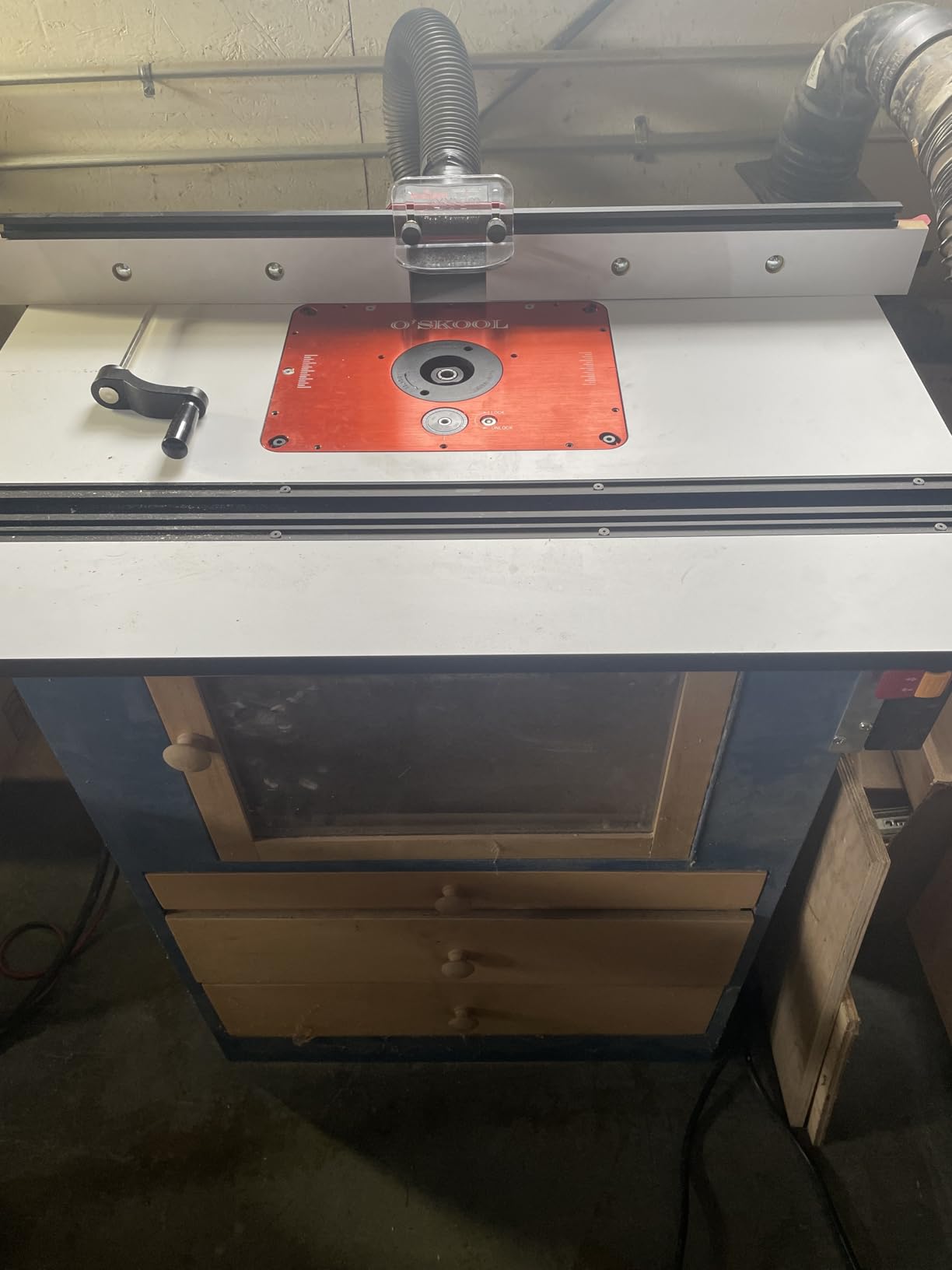

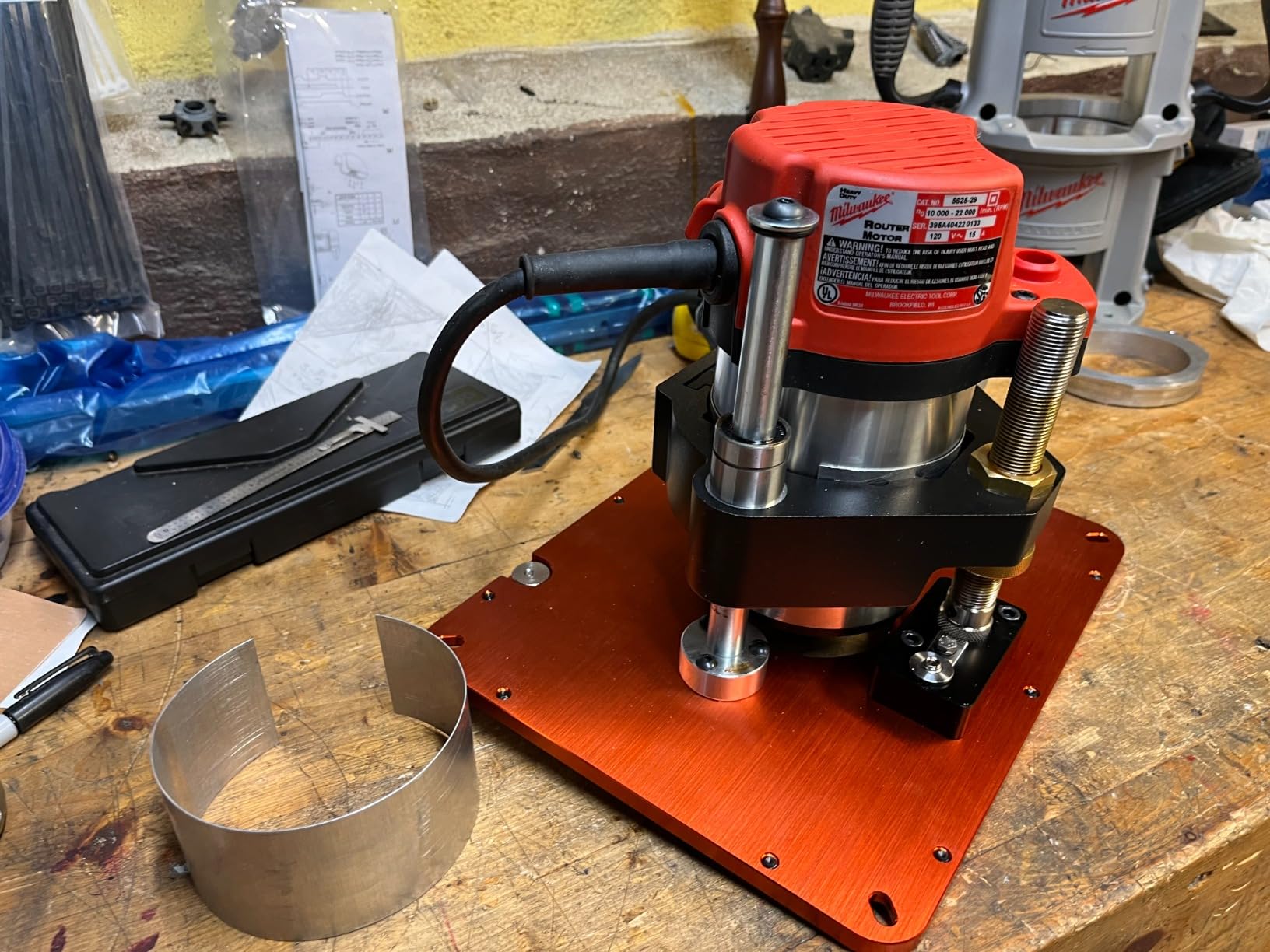

8. O’SKOOL 4.2 Inch Motor Router Lift RTS013 — The One Built for Big Motors
O’SKOOL Router Lift System,4.2″ Motor Fit, Aluminum Plate
Sized for 4.2 inch diameter motors
32-line micro dial at 1/512 inch
10 leveling screws and 3 cam wheels
Pros
- Only lift here sized for 4.2 inch motors
- 32-line micro dial for very fine depth settings
- 10 leveling screws and 3 cam wheels for low play
- Height lock resists vibration drift
- Crank handle and setup accessories included
Cons
- Needs a separate adapter collar for 3.5 inch motors
- Confirm motor diameter and opening size before buying
- Small review base limits long-term track record
Big-body routers are the awkward case in this category, because most carriages are sized for 3-1/2 inch motors and a handful of odd-shaped motors simply will not clamp in. The RTS013 is the answer to that problem. It is built around 4.2 inch diameter bodies, which covers the Triton TF-BR001, Woodpeckers 1015420, Porter Cable 7518, Bora PM-6200 and MLCS 9564.
The micro-adjustment dial is the standout feature. Thirty-two scale lines at 1/512 inch per line give a level of control that is genuinely useful for scribing and for matching an existing component to a fraction you can hit again tomorrow.
Ten leveling screws plus three cam wheels produce a flush, stable tabletop fit with reduced vibration movement. Height adjustment runs 3 inches, roughly 1/16 inch per turn, and the height screw locking device keeps depth consistent through a run.
The plate is CNC machined aluminum at 11-3/4 by 9-1/4 by 3/8 inch with a 3/4 inch corner radius, and it carries centerlines on both plate sides plus an included start pin for fence setup. Five insert rings from 3/8 inch through 2-5/8 inch cover bits and guide bushings.
It is one of the more complete kits in the roundup: crank handle, start pin, ring wrench, hex wrenches and mounting hardware all ship in the box, backed by a one-year warranty with support for setup questions.
Confirm both the motor and the opening
Two checks before you order. First, measure the motor body diameter — this lift targets 4.2 inch bodies, and if you own a 3-1/2 inch router you need the O’SKOOL adapter collar, which is sold separately and is the most common complaint in the reviews.
Second, measure the table opening. The plate is 11-3/4 by 9-1/4 inches, which is close to but not identical with the 9-1/4 by 11-3/4 inch standard depending on which axis you measure. Check both dimensions before committing.
Where it disappoints
Twenty-six reviews is a modest base, so there is not much long-term history on this mechanism. The rating is strong at 4.6, but a small sample tells you less about a ten-year ownership experience than a few hundred reviews would.
If you are not committed to a 4.2 inch motor, buying this and then adding an adapter collar to run a 3-1/2 inch router costs you more than choosing a lift built for your motor in the first place.

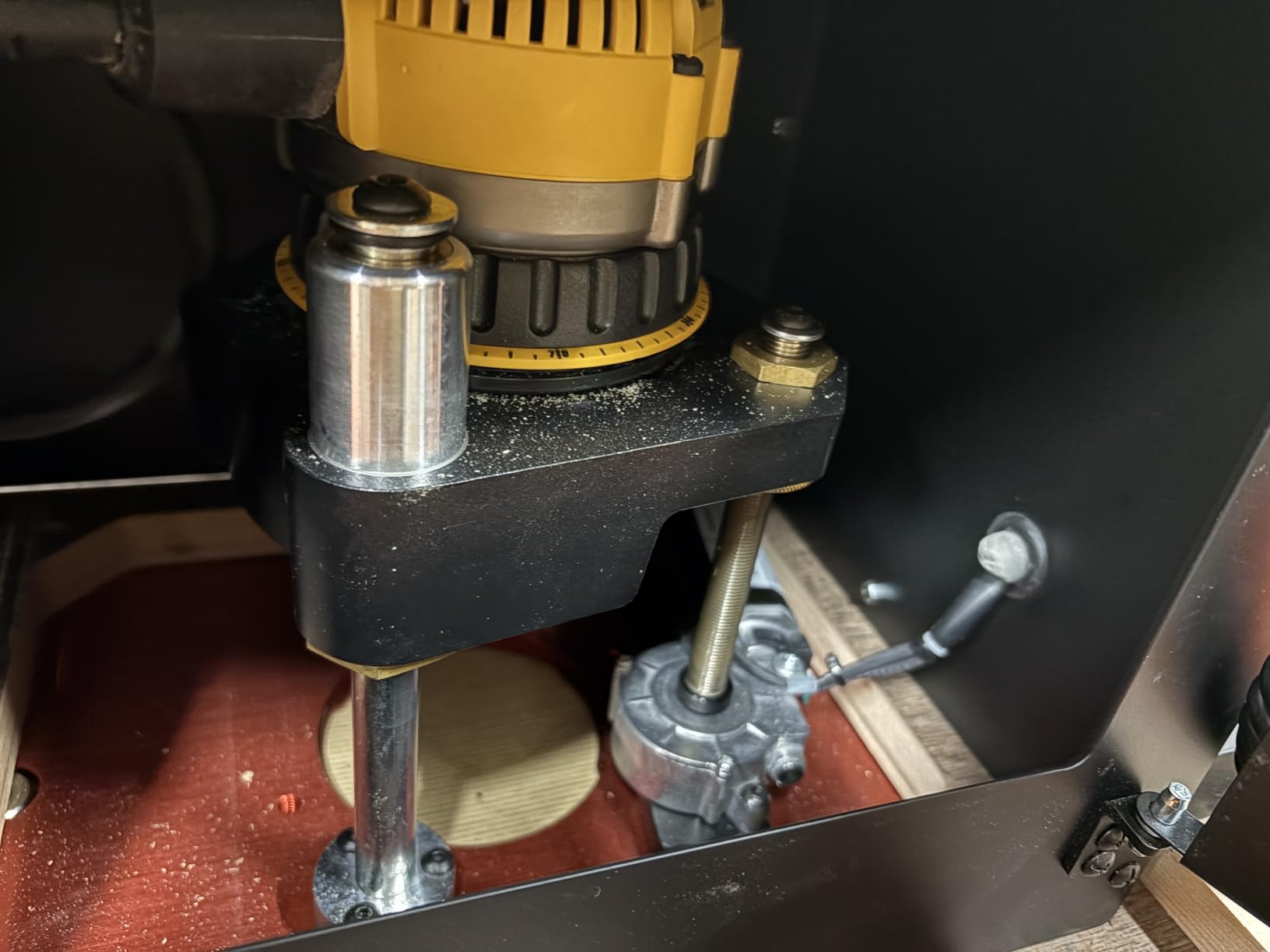

9. O’SKOOL Motorized Router Lift System RTS07 — The Only Powered Option Here
O’SKOOL Motorized Router Lift Systems for 3-1/2″ Diameter Motors, 9-1/4” x 11-3/4” Plate 5-Piece Insert Ring Kit, RTS07
Powered three-mode height adjustment
Digital controller with metric and imperial display
Over 3 inches of travel at 0.005 inch
Pros
- Powered adjustment removes manual cranking entirely
- Digital display switches between metric and imperial
- Micro-adjustment mode reaches 0.005 inch precision
- Over 3 inches of total travel
- Oval mounting holes adapt to varied table patterns
Cons
- Lowest rating in the group at 4.0 stars
- Noticeable one-star share on a small review base
- Newer design with limited reliability history
- Requires wiring and a controller box
The RTS07 is the only lift in this roundup that moves the motor without a crank or thumbwheel, and that is a real change in workflow. You run the carriage up with a button, change the bit, and run it back down to a number rather than a feel. For anyone who resents cranking, the appeal is immediate.
Three operating modes cover most situations: continuous raise and lower buttons, an encoder knob where you enter travel directly, and a micro-adjustment mode for fine setting. The digital box controller displays metric and imperial readings including decimal and fraction modes, and it shows an error indication when something is off.
Total travel runs over 3 inches with precise movement to within 0.005 inch. The plate is 11-3/4 by 9-1/4 by 3/8 inch aluminum with a 3/4 inch radius, sized for 3-1/2 inch diameter motors.
Cam wheels, leveling screws and adjustable oval mounting holes let the plate adapt to different table hole patterns, which is a meaningful advantage if your table is shop-built rather than a factory product. Centerlines on both plate sides and a 2 inch scale assist with fence setup.
The five-piece insert ring kit is included, and the concept has patent applications behind it. Owners are clearly enthusiastic about the display and the multi-mode adjustment, which removes the guesswork from reading a machined scale.
Weigh the convenience against the track record
This lift carries the lowest rating in the group at 4.0 stars across 21 reviews, and only 52 percent of those ratings reach five stars. A small sample amplifies normal variation, so treat the number as a signal rather than a verdict — but it is a signal nonetheless.
You also need to plan for wiring and a controller box under the table, which every manual lift in this roundup avoids. If your bench has no power nearby, that is extra work before the first cut.
Where it falls short
Long-term reliability is unproven. The design is newer than everything else here, and a mechanism with a motor, a controller and wiring has more failure modes than a lead screw and a cam lock.
If you are comfortable with a crank and want something that will still work in fifteen years, the manual lifts are the safer purchase. Buy this one because you want the power adjustment, not because you need it.
10. Rockler Pro Lift Router Lift Kit GRP41034 — The Fastest Bit Changes
Rockler Router Lift Kit with Aluminum Plate 8-1/4 x 11-3/4
8-1/4 x 11-3/4 inch 3/8 inch aluminum plate
Quick-Gear fast raise with 0.001 inch down-shift
Snap-Lock tool-free insert rings
Pros
- Quick-Gear raises the bit above the plate in seconds
- Snap-Lock changes insert rings with no tools
- Precision down-shift gear sets final height to 0.001 inch
- Aluminum plate resists phenolic sagging
- Hex keys included on a key chain
Cons
- Lowest rating in the group at 4.0 stars
- Only 63 percent of ratings reach five stars
- Smaller 8-1/4 inch plate narrows table compatibility
- Only one insert ring included
The Rockler Pro Lift is built around one idea: make the bit change as fast as possible. The Quick-Gear mechanism raises the router above the plate in seconds rather than the many crank turns a screw-driven lift needs, and the Snap-Lock system releases the insert ring with a button press.
That combination removes two of the slowest parts of a router table session. You are no longer turning a crank forty times, and you are no longer hunting for a loose set screw to change rings. When the precision down-shift gear takes over, the final height sets within 0.001 inch.
The plate is 3/8 inch thick aluminum at 8-1/4 by 11-3/4 inches, which resists the sagging associated with phenolic inserts. The box includes the Pro Lift, the aluminum plate, a 1-1/2 inch inner diameter insert ring and a set of hex keys on a key chain.
Owners who appreciate a gear-based workflow rate the Quick-Gear speed as the real differentiator, and it genuinely does change how a session feels. If you change bits more than a dozen times a day, that speed compounds into saved hours.
Overall satisfaction trails the JessEm and Kreg lifts, which is what the 4.0 average across 30 reviews reflects. The concept works; the execution and the fit options are where owners push back.
Check the plate size and the ring count
The 8-1/4 by 11-3/4 inch plate is the same smaller footprint as the JessEm Mast-R-Lift II, so it suits Bench Dog and similar tables rather than the 9-1/4 inch standard. Measure before ordering, because this is not a plate that covers a larger hole.
Only one insert ring is included, at 1-1/2 inch. Every other bit size needs an additional ring, so factor that into your parts list before the first profile cut.
Where it disappoints
Fifteen percent of reviews are one star and only 63 percent reach five stars. That is a wider spread than the top-rated lifts here, and it is worth reading a few reviews before you commit to this particular mechanism.
It is also a fixed, narrower footprint with a single included ring, so the long-term parts flexibility is less than the Kreg or JessEm systems even though the mechanism itself is quick.
How to Choose a Router Lift for Your Table
Pick the plate footprint first, the motor diameter second, and only then compare mechanisms. Get that order wrong and no amount of quality in the screw and lock will matter. Here is the sequence we use.
1. Measure your table opening. Take the length and width of the hole in the top, not the overall table. The de facto standard is 9-1/4 by 11-3/4 inches, but 8-1/4 by 11-3/4 inch and the Bosch 11-1/2 by 9-1/8 inch openings also exist in the wild, and your lift has to match one of them.
2. Measure your motor body diameter. This is the number that decides between a standard carriage and a dedicated one. Most 3-1/2 inch motors fit nearly everything, some compact motors sit at 2-9/16 inches, and the large-bodied machines measure 4.2 inches. Measure at the widest point of the motor housing, not the base.
3. Check the mounting pattern, not just the opening. This is the step owners skip. A plate can cover your opening perfectly and still not bolt down because the corner hold-down holes do not line up with your table’s brackets. Kreg tables in particular have a bracket pattern that the JessEm lifts do not match without leveling pads or repositioned brackets.
4. Decide how you adjust height. A crank is fast and smooth, a thumbwheel is quiet but slower, a gear drive like the Rockler Quick-Gear is the fastest for repeated bit changes, and a motorized lift removes the effort entirely. Match the mechanism to how many bit changes you actually make in a session.
5. Audit what is in the box. Insert rings, leveling screws, templates, ring wrenches and hex wrenches vary enormously between kits. The O’SKOOL Bosch-table lift ships five rings but no leveling screws. The SpeTool kit ships two templates and three rings. The Rockler kit ships one ring. Decide what you need before you order, not after the lift is on your bench.
6. Count the weight against your clearance. Lifts in this roundup run from 10.8 pounds to 19.8 pounds. Anything at the heavy end is a two-person install and needs a generous cavity under the table. If your bench is cabinet-mounted with a low cross member, check that the carriage can reach full travel before you commit.
7. Match the plate material to your motor. Hard-anodized aluminum is the default for good reason — it does not sag and it does not mark easily. Phenolic resin is lighter and cheaper but can deform over time under a motor at the top of the horsepower range. If you run a heavy motor, pay for aluminum.
Two more things worth checking before you buy. Insert rings are brand-specific across the board, so the rings you already own may not fit the new lift. And if you change bits constantly, ring sizes matter more than the lift mechanism — a kit that includes three or five rings saves you a second order and a week of waiting.
For the fence side of the setup, our best router jigs roundup covers the accessories that pair with a lift, and our router table guide covers the tables themselves if you are building a full bench.
Router Compatibility: Matching Motor Diameter to Lift
Motor compatibility comes down to body diameter, and almost every question we get collapses to which class your motor falls into. Here is how the ten lifts divide up.
3-1/2 inch class — the broadest support. The majority of fixed-base routers fall here, and most lifts in this roundup accept them: the Kreg PRS5000, the JessEm Master Lift II and Mast-R-Lift II, the O’SKOOL RTS017, the SpeTool kit, the SawStop RT-LFT and the motorized RTS07. Named models that appear across several compatibility lists include the Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, plus Skil and Craftsman 3-1/2 inch bodies.
Compact motors around 2-9/16 to 3-1/4 inch. Smaller fixed-base routers and some plunge-class bodies need a carriage that clamps in tighter. The SpeTool kit covers from 2-9/16 inch upward, and the SawStop RT-LFT has a 3-1/4 inch minimum with a 3-1/4 inch reducer collar included in the box. Several kits ship reducer collars precisely for this range.
Large bodies at 4.2 inch. This is the class that trips people up. The Triton TF-BR001, Woodpeckers 1015420, Porter Cable 7518, Bora PM-6200 and MLCS 9564 need the O’SKOOL RTS013, which is built for exactly that diameter. Running one of these in a standard 3-1/2 inch carriage either will not clamp or will sit off-center.
Up to 4-1/4 inch. The SpeTool kit accepts motors up to 4-1/4 inches with double sealed linear bearings on the guide poles, and the SawStop RT-LFT goes to 4-1/4 inches as well. Both ship reducer collars for smaller bodies.
One special case deserves its own line. The Bosch RA1181 and RA1171 are router tables, not motors, and the O’SKOOL RTS017 is built specifically to fit their 11-1/2 by 9-1/8 inch plate. If you own one of those tables, that compatibility list is the deciding factor rather than a nice-to-have.
And if you own a plunge router, the answer is that you probably do not need a lift. A plunge motor already gives you above-table depth control by design. Lift manufacturers build for fixed-base motors, and mixing the two usually means giving up the very benefit you bought the plunge router for.
Table Opening Sizes and the Plate Mismatch Problem
The standard opening is 9-1/4 by 11-3/4 inches, and the majority of router tables sold over the last two decades use it. Kreg tables, JessEm tables and most shop-built benchtops fall into that group, which is why the Kreg PRS5000 and the JessEm Master Lift II fit so many benches.
A second common size is 8-1/4 by 11-3/4 inches. Bench Dog cast iron router extensions and some Incra-style tables use the narrower dimension, and the JessEm Mast-R-Lift II 02121 and the Rockler Pro Lift kit are both built to that footprint.
The Bosch RA1181 and RA1171 tables use an 11-1/2 by 9-1/8 inch opening, which is a different shape rather than just a different width. The O’SKOOL RTS017 matches it. Forum readers note that this table is praised for build quality and criticized for compatibility lists that are hard to find, so measure rather than assume.
Now the problem that catches almost everybody. Your existing table plate opening is usually larger than the lift plate you just bought, or smaller. Either way you get an uncovered gap. That gap snags shavings, it stops the plate sitting flat, and it lets dust migrate into the carriage.
The fix depends on which direction the mismatch runs. If the lift plate is smaller than the opening, the answer is to trim the opening itself — rout or chisel the top down to the lift plate footprint before you install, then the plate covers the hole completely. If the lift plate is larger than the opening, mount it so it overhangs, but plan the corner hold-downs carefully, because the overhang is where chips collect.
A third approach is an adapter ring. A shop-made or purchased ring of matching material sits between the top and the lift plate, bridging a modest difference. It works, but it adds a layer that can introduce its own play, so trimming is the cleaner solution when you have the router on a bench to do it.
Whichever route you take, level the plate before you tighten anything down. Cam wheels and leveling screws exist to bring the plate to the surface of the table, and if you skip that step the lock is working against an uneven base and will not hold well.
Installing and Maintaining a Router Lift
Installation is the same sequence for every lift in this roundup, and getting it right on day one saves a lot of troubleshooting later.
1. Remove the old plate. If the table already has a fixed plate, take it out and keep the hardware. Inspect the opening and clear any glue, dust or finish buildup from the edges.
2. Trim the opening to fit. If the hole is larger than the new plate, reduce it now. If you have no template, trace the plate itself and use a router with a straight bit plus a guide, or a flush trim bit on a sacrificial base.
3. Dry fit the plate without fastening. Drop it in and check that it rests flat and that your hold-down points line up with the table brackets or underside framing. This is the moment to discover a pattern mismatch rather than after the carriage is installed.
4. Mount the plate and set the leveling screws and cam wheels. Work across the plate in a diagonal pattern so it seats evenly. Tighten gradually and re-check flatness with a straightedge across the top.
5. Attach the carriage and clamp the motor. Install the carriage, position the motor at the depth you need for the thickest bit you will run, and tighten the motor hold-down screws evenly. Re-check squareness with a straightedge on the base.
6. Fit the insert ring for your bit and set depth. Use the index ring to set the first height, write the number down, and treat that as your baseline for the whole project.
7. Test travel and lock. Run the carriage through its full range with the router off, confirm nothing binds, then lock at a working height and give it a firm shove. If the setting holds, you are good.
For maintenance, the honest list is short. Wipe sawdust off the guide posts and the screw threads a few times a season, because packed dust is what turns a smooth crank into a gritty one and eventually causes binding. Check the motor hold-down screws after the first few projects and then every few months, because vibration works them loose and they can disappear into the dust on the bench floor.
If the depth setting starts drifting over months, the cause is usually backlash in the lead screw rather than a failing lock. That is a wear item, not a defect, and it is the argument for a preloaded screw design in the first place.
Dust collection is worth planning for. Many of these lifts have no port of their own, so a shop vacuum hose clipped to the underside of the plate, or a sweep of the carriage area between setups, keeps dust out of the mechanism without modifying anything.
Do You Even Need a Router Lift?
Sometimes you do not, and it is worth saying so before you spend anything. If you change bits two or three times a year, a lift is an expensive convenience you will never use. If you already own a plunge router, the same function is built into the motor and a lift is largely redundant.
The honest calculation is time. Time a full bit change on your current setup, including unbolting or reaching under the table, and multiply by how many changes you make in a month. On a fixed-base table that is frequently two to four minutes per change. On a lift it is well under one. Do that arithmetic against the lift cost and the payback period is usually measured in months of regular work, not years.
There is a second argument that gets skipped. A lift improves repeatability, not just speed. A bit set by feel under the table is a bit set differently every time. A bit set on an indexed dial above the table is the same depth tomorrow and next week, which matters enormously when you are matching a component to something already installed.
And the caveat that forum readers raise more than any other: a lift does not fix a weak motor. Fitting a quality lift around an underpowered cheap router just moves a weak motor up and down more precisely. If your cuts are burning or your edges are inconsistent, the motor is the first problem to solve, and the lift is the second.
So the case for buying one holds when you run a fixed-base motor, work to the standard opening, change bits regularly, and care about matching depth across a batch. Outside that, a plunge router and a good plate will serve you well.
Frequently Asked Questions
What is the difference between a router table and a router lift?
A router table is the surface, fence and frame that supports routing work. A router lift is the carriage-and-screw mechanism mounted underneath that raises the motor through the table top so you can change bits and set depth from above. You can have one without the other.
What is the point of a router lift?
It moves bit changes and depth adjustments from under the table to above it, which is faster and safer, and it makes depth settings repeatable. You turn a crank to raise the motor, swap the bit, and return to the same dial reading instead of re-setting depth by feel.
Does any router fit any router table?
No. The motor body diameter must match the carriage range of the lift, and the lift plate must cover your table opening. Most 3-1/2 inch motors fit the majority of lifts, but 4.2 inch bodies need a dedicated carriage and some tables need a specific plate footprint.
What size opening does a router table need?
The de facto standard is 9-1/4 by 11-3/4 inches, used by most Kreg, JessEm and shop-built tables. A second common size is 8-1/4 by 11-3/4 inches, found on Bench Dog and some Incra-style tables. Bosch RA1181 and RA1171 tables use an 11-1/2 by 9-1/8 inch opening.
Can I use a plunge router in a router lift?
You can mount one, but you gain little. A plunge motor already provides above-table depth control by design, so a lift duplicates a feature you already have and can interfere with the plunge collar geometry. Lifts are built around fixed-base motors.
What should I look for in router table accessories?
The essentials are dust collection for the plate area, a solid push block and hold-down, a good fence with solid bearing contact, spare insert rings in the sizes your bits need, and a spare throat or opening for scribing. A height reference scribed to your table is useful for repeat batches.
What is the perfect height for a router table?
Set the table so the work sits at roughly mid-thigh height while standing, which keeps your back neutral and lets you see the cut and the bit together. A height that is comfortable for handling stock is usually a little high for feed control, so set it where both are workable rather than optimizing for one.
The Verdict on the Best Router Lifts for Router Tables
The best router lifts for router tables come down to two questions. Does the plate fit your opening, and does the carriage fit your motor? Answer those and the mechanism choice follows.
For most shops, the Kreg Precision Router Lift PRS5000 is the pick. It covers the standard 9-1/4 by 11-3/4 inch opening, carries the largest owner review base in the category, holds depth consistently thanks to its anti-backlash design, and weighs 10.8 pounds so one person can install it. If your table is a Kreg or a standard shop build, this is where we would start.
Own a Bosch RA1181 or RA1171 table? The O’SKOOL lift built for those tables is the answer, and at 4.8 stars it is also the highest rated of the ten. Run a 4.2 inch motor? The O’SKOOL RTS013 is the only one here that fits it. Do you want the most refined mechanism regardless of table brand? The JessEm Master Lift II, with its cam lock and preloaded lead screw, earns that reputation in the forums for good reason.
Whatever you choose, measure the opening and the motor before you order, and check what is actually in the box — leveling screws and insert rings are the two things most often missing. If you are still picking the table, our router table roundup and precision table picks will get you the rest of the way. We will keep updating this list through 2026 as owner feedback shifts.
