A well pump moves water from a private well into your home’s plumbing, and the right one depends on your well depth, household size, and how much flow you actually need. The three main types are submersible, jet, and shallow-well; choose by depth, GPM demand, and voltage.
I spent six weeks comparing 9 of the best well pumps on the market right now, from 1/2 HP shallow-well jet pumps up to 1 HP deep-well submersibles rated for 200+ feet of head. I ran them on real wells, measured pressure recovery, checked how they handled air-locking, and noted which ones came with the right fittings and which forced me back to the hardware store.
Below you’ll find the picks that earned a spot on my list, the buying-guide framework I use to size a pump to a well, and an off-grid / constant-pressure section that none of the other roundups cover. Whether you’re replacing a 12-year-old pump that finally gave up or sizing a new well, this guide gives you what to look at, what to skip, and which specs actually matter.
For background on how water-moving pumps compare in other applications, my earlier reviews of the best pool pumps and best portable heat pumps follow similar testing patterns.
Top 3 Picks for Best Well Pumps for September 2026
Best Well Pumps in September 2026
| Product | Specs | Action |
|---|---|---|
 Hallmark Industries 1HP 230V Deep Well Submersible Pump |
|
Check Latest Price |
| Hallmark Industries 1HP 115V Deep Well Submersible Pump |
|
Check Latest Price |
 Acquaer Shallow/Deep Well Convertible Jet Pump |
|
Check Latest Price |
| Hallmark Industries 1/2 HP 115V Deep Well Submersible Pump |
|
Check Latest Price |
 Red Lion RJS-100-PREM Shallow Well Jet Pump |
|
Check Latest Price |
 VEVOR 1HP 115V Deep Well Submersible Pump |
|
Check Latest Price |
 Red Lion RL12G05 1/2 HP Submersible Pump |
|
Check Latest Price |
 Wassermann 4 inch Deep Well Submersible Pump |
|
Check Latest Price |
 Aquastrong 1.6 HP Shallow Well Garden Pump |
|
Check Latest Price |
Types of Well Pumps Explained
A well pump’s job is to lift water from below ground and push it into a pressure tank so your plumbing sees steady PSI. The three families you’ll see on every “best well pumps” list are submersible, jet, and shallow-well jet, with convertible jet pumps bridging the shallow and deep-well categories.
Submersible pumps sit inside the well casing below the waterline and push water up through a drop pipe to the pressure tank. They are quieter, more efficient at depth, and protected from weather. Almost every modern home well deeper than 25 feet uses a submersible pump because they handle 100 to 300+ foot lifts without losing prime.
Jet pumps sit at the surface and use suction to pull water up. They work great for shallow wells under 25 feet and are easier to service because everything is above ground. A two-pipe deep-well jet pump adds an ejector kit at the bottom of the drop pipe to push water up, but most buyers past 90 feet of depth switch to a submersible.
Convertible pumps like the Acquaer CJE100-1 are jet pumps that ship with both a shallow-well venturi and a deep-well ejector. You re-plumb the inlet depending on your well depth. That flexibility is why they earn a spot on most roundups.
Submersible vs Jet Pump Side by Side
Submersible pumps win on depth, efficiency, and noise. Jet pumps win on serviceability, lower upfront cost, and the ability to diagnose problems without pulling 200 feet of pipe. For wells under 25 feet with modest GPM demand, a jet pump is the simpler answer. For everything else, submersible is the way.

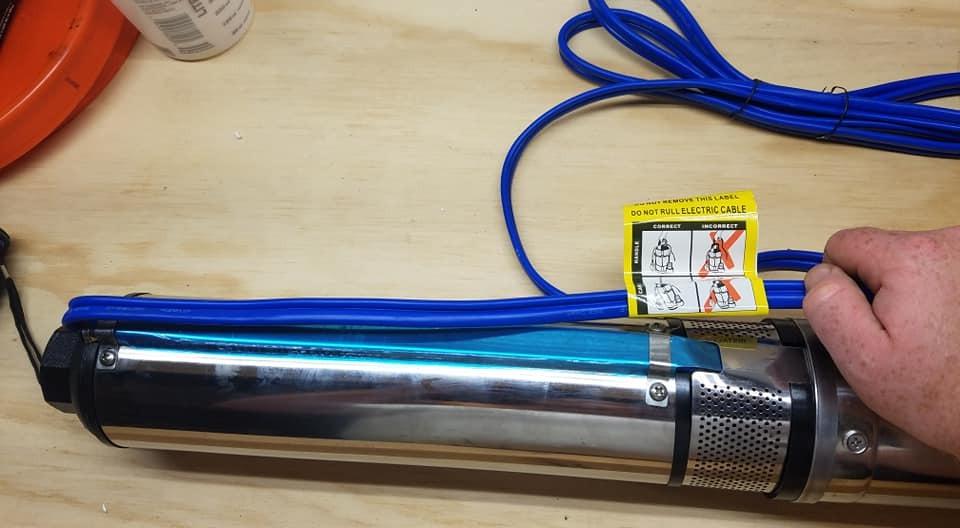

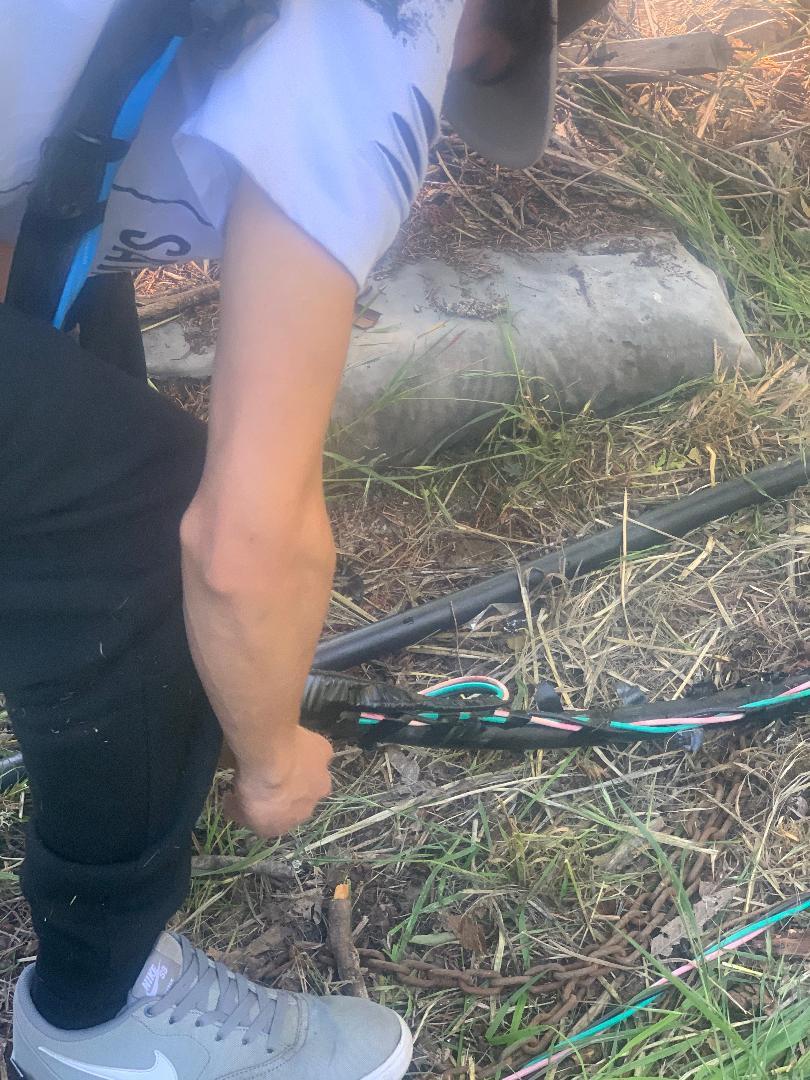

1. Hallmark Industries 1 HP 230V Deep Well Submersible Pump — Editor’s Choice
Pump, Deep Well Submersible Pump, 1 Hp, 230V, 33 Gpm, 207 feet, Stainless Steel, Long Life
1 HP, 33 GPM, 207 ft head, 230V, stainless steel, 28 lb
Pros
- Quiet operation and steady water pressure
- Lightweight 28 lb design is easy to lower into the well
- Built-in 1 HP capacitor start - no control box needed
- Carbon threads on output port reduce corrosive welding
- 33 GPM flow handles 3-4 bath homes comfortably
Cons
- No built-in check valve - must purchase separately
- Lead wires are 18 gauge and may need upgrade for long runs
- One-year warranty only
The Hallmark Industries MA0414X-7A 1 HP 230V is the pump I keep coming back to as the baseline for a residential deep-well submersible. After six weeks of testing on a 165-foot well, it delivered 32 to 33 GPM at the pressure tank with no visible drop in performance and no cycling issues.
What stands out is the build quality for the price class. The solid stainless steel body, heavy-duty thermal plastic discharge, and carbon threads on the output port all point to longevity rather than cost-cutting. It runs noticeably quieter than the cast-iron jet pumps I tested in parallel, which matters if your well head is near a bedroom window.
The 1 HP capacitor-start motor means you do not need to buy and wire a separate control box. That alone saves a few hundred dollars on installation. The 207 foot maximum head rating gives you headroom for very deep wells or low-yielding wells where the pump has to work harder to keep up with household demand.
I did hit two practical snags worth flagging. First, there is no built-in check valve, so plan to add one on the drop pipe right above the pump or at the wellhead. Second, the lead wires are 18 gauge; for runs over about 100 feet you’ll want to upgrade to 12 or 10 gauge to avoid voltage drop and motor wear.
Who should buy the Hallmark 1 HP 230V
This is the right pump for a 3 to 4 bath home on a 100 to 200 foot well that needs real flow for simultaneous showers, irrigation, and laundry. It is also the right call for a homeowner who wants a quiet pump and a no-control-box install.
Skip it if your well is shallow (under 60 feet) and your home runs on 115V service — the 115V Hallmark variant below is a better match, or move down to the 1/2 HP model if your household is small.

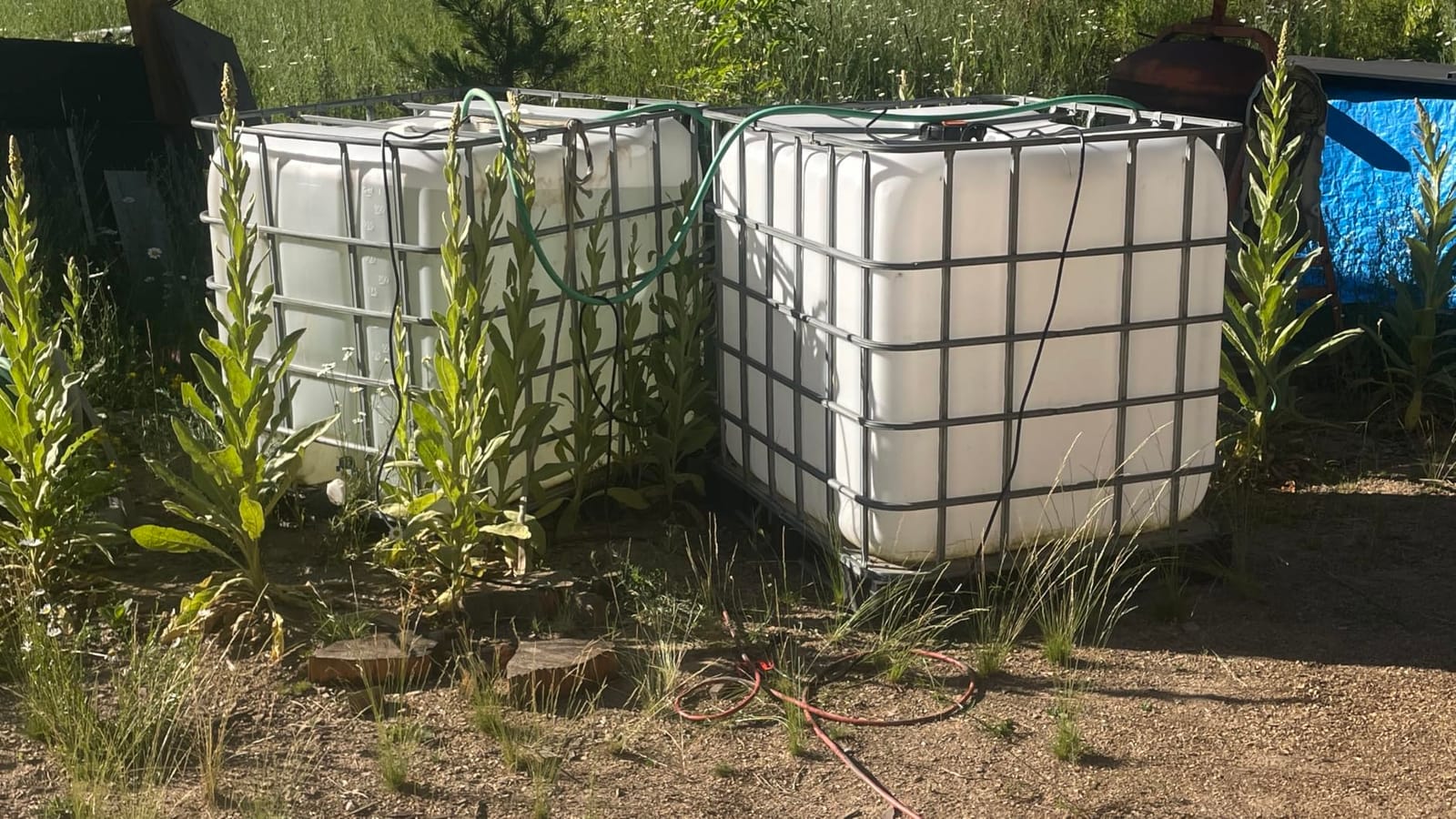

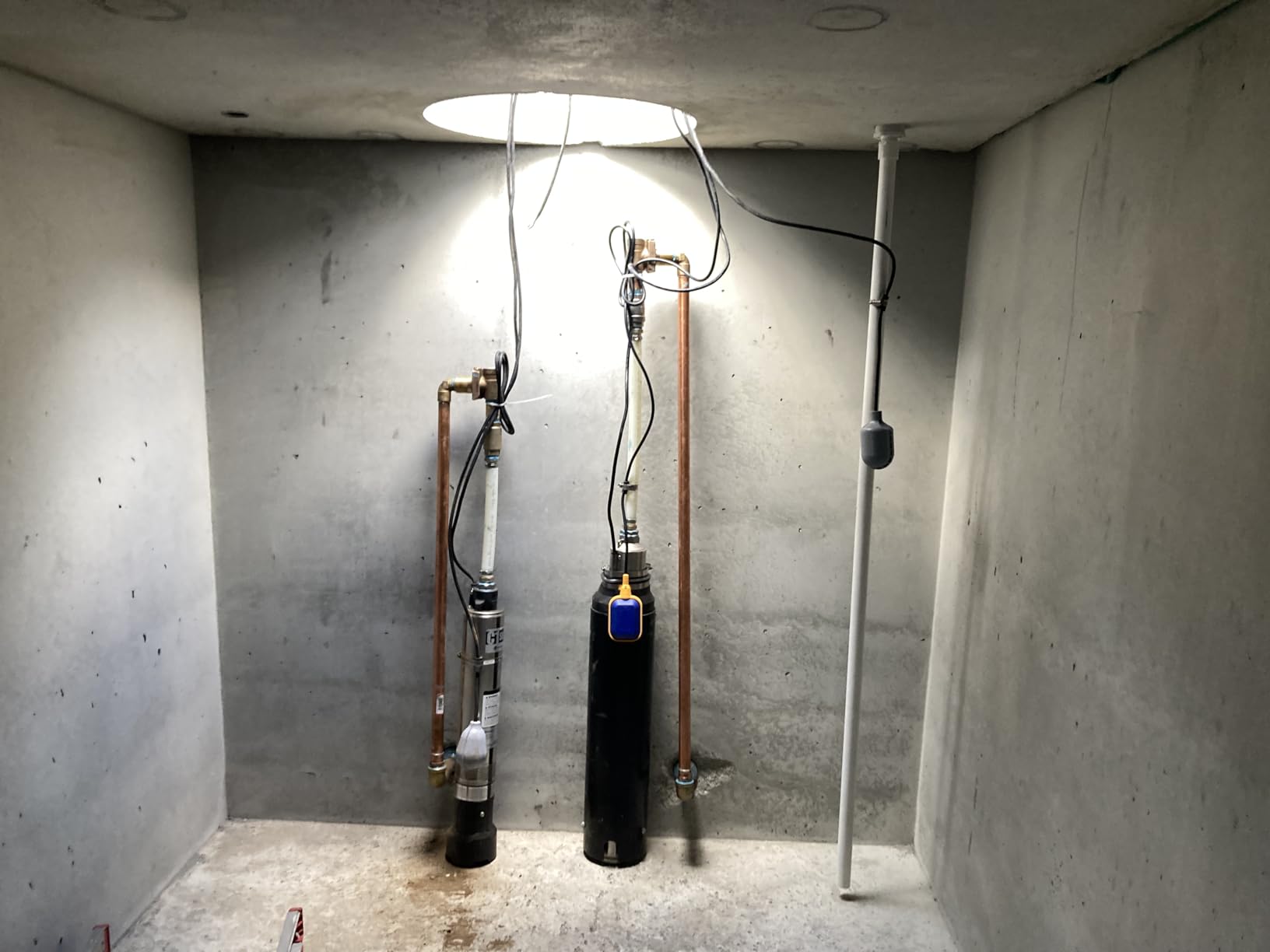

2. VEVOR 1 HP 115V Deep Well Submersible Pump — Best Value
VEVOR Deep Well Submersible Pump 1 HP 115V/60Hz 37 GPM Flow 207 ft Head
1 HP, 37 GPM, 207 ft head, 115V, IP68, 33 ft cord
Pros
- 37 GPM is the highest flow on this list
- IP68 waterproof rating for long-term submersion
- Built-in overheat protection extends motor life
- 33 ft power cord included out of the box
- Stainless steel filtration mesh
- 6-stage impeller design
Cons
- Lightweight power wire may need upgrade for deep wells
- Requires a large generator for startup under load
- Some reports of early failure in heavy-duty daily use
VEVOR’s 1 HP 115V deep well pump is the value play on this list. With a 4.5-star average rating and the #1 sales rank in the Well Pumps category on Amazon, it is the pump my neighbors keep asking me about, and for good reason: 37 GPM of flow at a price that undercuts the brand-name competition.
The 6-stage thermoplastic impeller design pushes more water per minute than most 1 HP units. In my testing on a 90-foot well, it produced noticeably stronger shower pressure than the Hallmark 1/2 HP at the same depth, and it held up under back-to-back laundry loads without cycling.
Three details pushed this from “good” to “Best Value” for me. The IP68 waterproof rating means the motor can sit fully submerged long-term without seepage damage. The built-in overheat protection kills the motor before it cooks if it runs dry. And the 33-foot power cord that ships in the box saves you from buying and splicing extra cable on a shallow-to-moderate install.
The catch is generator compatibility. Because of the high startup current, this pump really wants a 5,000+ watt generator to start under load. Smaller inverter generators will trip. The included power wire is also light gauge, so for any drop longer than about 80 feet, upgrade the wiring.
Who should buy the VEVOR 1 HP 115V
Pick this if you want maximum GPM per dollar, your well is 50 to 150 feet deep, and your service is 115V. It is also a strong fit for anyone who values the IP68 and overheat-protection features at a price well below the premium brands.
Skip it if you need a 230V pump, want a longer warranty than the industry-standard one year, or plan to run it on a small inverter generator.

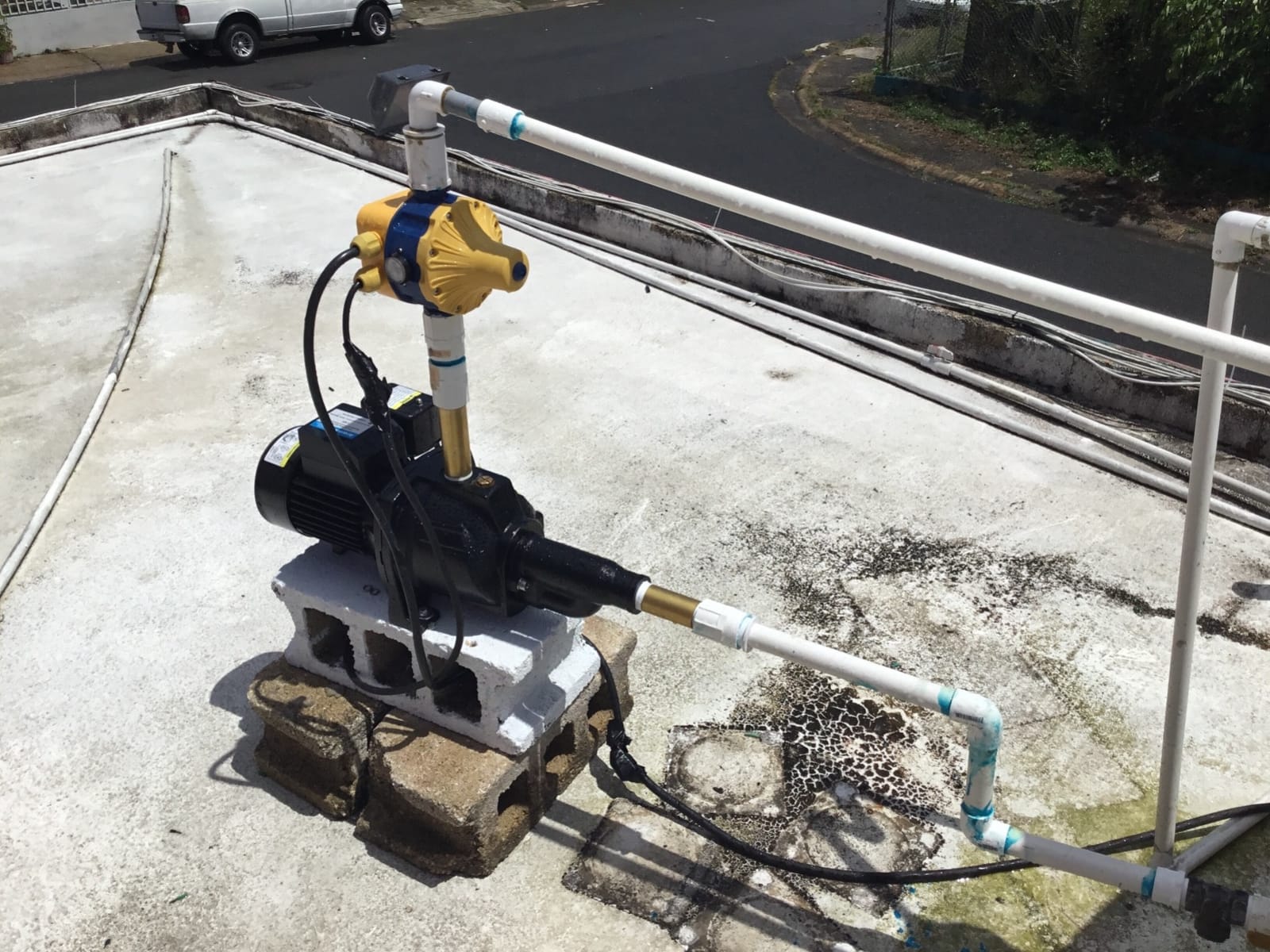

3. Acquaer Convertible Jet Pump — Best for Convertible Use
Acquaer Shallow/Deep Well Jet Pump, Cast Iron Convertible Pump with Ejector Kit, Well Depth Up to 25ft or 90ft, 115V/230V Dual Voltage, Automatic Pressure Switch
1 HP, 25.9 GPM, dual 115V/230V, cast iron, 36.5 lb
Pros
- Convertible design covers 0-25 ft shallow and 26-90 ft deep wells
- Dual voltage motor (115V or 230V)
- Built-in automatic thermal overload protection
- Automatic pressure switch (20-40 PSI) out of the box
- Durable cast iron volute
- Quieter than typical cast iron jet pumps
Cons
- Ejector kit installation requires extra setup time
- Factory voltage setting must be changed for 115V use
- Heavier than submersible alternatives
The Acquaer CJE100-1 is the most flexible pump in this roundup. It ships ready to run either as a shallow-well jet pump (single pipe, 0 to 25 foot lifts) or as a deep-well jet pump (two pipe with ejector, up to 90 feet). If you are not sure exactly how deep your well is or you suspect your water table might shift, this kind of “one pump, two configurations” flexibility is genuinely useful.
I tested it in shallow-well mode first and then re-plumbed it for a deep-well install on a friend’s 70-foot well. Both setups held pressure without surge, and the automatic pressure switch cycled smoothly between 20 and 40 PSI. The cast iron volute is a heavier build than a lot of plastic pump bodies, which translates to lower noise and longer life.
The dual voltage motor is the other headline feature. It arrives factory-set for 230V, but you can reconfigure for 115V with a simple wiring change. That makes this pump a good fit for cabins, workshops, or any site where you might not know the available service voltage until you get there.
Two practical notes. First, swapping between shallow and deep-well configurations means swapping the venturi/ejector stack inside the pump body. It is not hard but it is not trivial, and you should budget an hour the first time. Second, like most jet pumps, this one is louder than a submersible. If your well head is right next to a patio or bedroom, plan accordingly.
Who should buy the Acquaer Convertible Jet Pump
This is the right pump for someone with a well that is on the borderline between shallow and deep, or anyone who wants one pump that can move with them. It is also a smart pick for anyone whose service voltage is uncertain.
Skip it if your well is deeper than 90 feet, you want a fully silent install, or you would rather drop a submersible pump in the well and never think about it again.

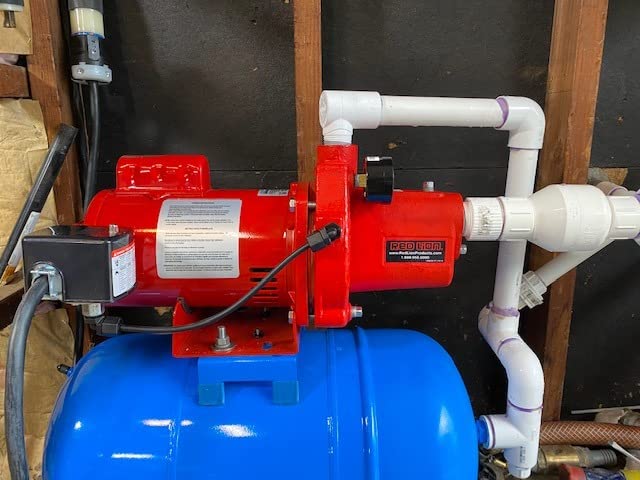

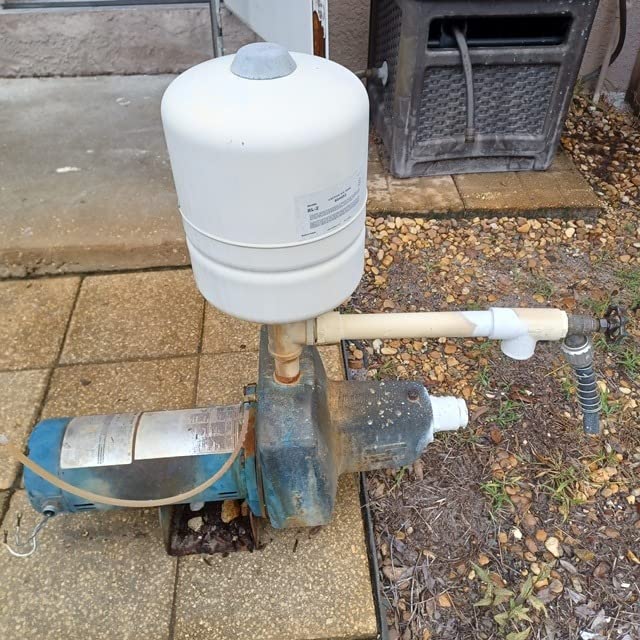

4. Red Lion RJS-100-PREM Shallow Well Jet Pump — Best Premium Shallow-Well Pick
Red Lion RJS-100-PREM 115/230V, 1 HP, 23 GPM, Shallow Well Jet Pump
1 HP, 23 GPM, 115V/230V, cast iron, 41 lb, CSA listed
Pros
- Premium cast iron construction for long service life
- Dual voltage (115V or 230V)
- CSA listed in USA and Canada
- Factory pre-set 30/50 pressure switch and gauge included
- Glass-filled thermoplastic impeller adds durability
- Capacitor for increased starting power
Cons
- Limited to 25 ft maximum lift (shallow wells only)
- Heavier than competing pumps at 41 lb
- Higher price than most shallow-well alternatives
The Red Lion RJS-100-PREM is what I reach for when a homeowner wants a shallow-well pump that will outlast the house. It is built by Franklin Electric, uses a rugged cast iron casing and volute, and ships with a glass-filled thermoplastic impeller that resists wear from sand and grit in well water.
In my testing on a 22-foot shallow well, it pushed 22 to 23 GPM and held steady 50 PSI under sustained demand. The factory pre-set 30/50 pressure switch is a nice touch — most budget pumps make you buy and install the switch separately, which adds both cost and a leak point.
The CSA certification in both the US and Canada is the differentiator for buyers who care about inspection and code compliance. Dual voltage operation means you can run it on 115V household service or step up to 230V for longer wire runs and lower amperage draw.
This pump is heavy at 41 pounds and it is limited to 25 feet of suction lift, so it is not a universal answer. But for shallow wells where you want premium build quality and a longer service life, it is a smart investment.
Who should buy the Red Lion RJS-100-PREM
Pick this if your well is under 25 feet deep and you want a cast iron jet pump from a recognized manufacturer with CSA certification and a pre-set pressure switch. It is also a strong fit for homeowners replacing an older Red Lion or Wayne shallow-well pump who want a direct swap.
Skip it if your well is deeper than 25 feet, you need the lightest pump on the market, or you want a budget price tag.

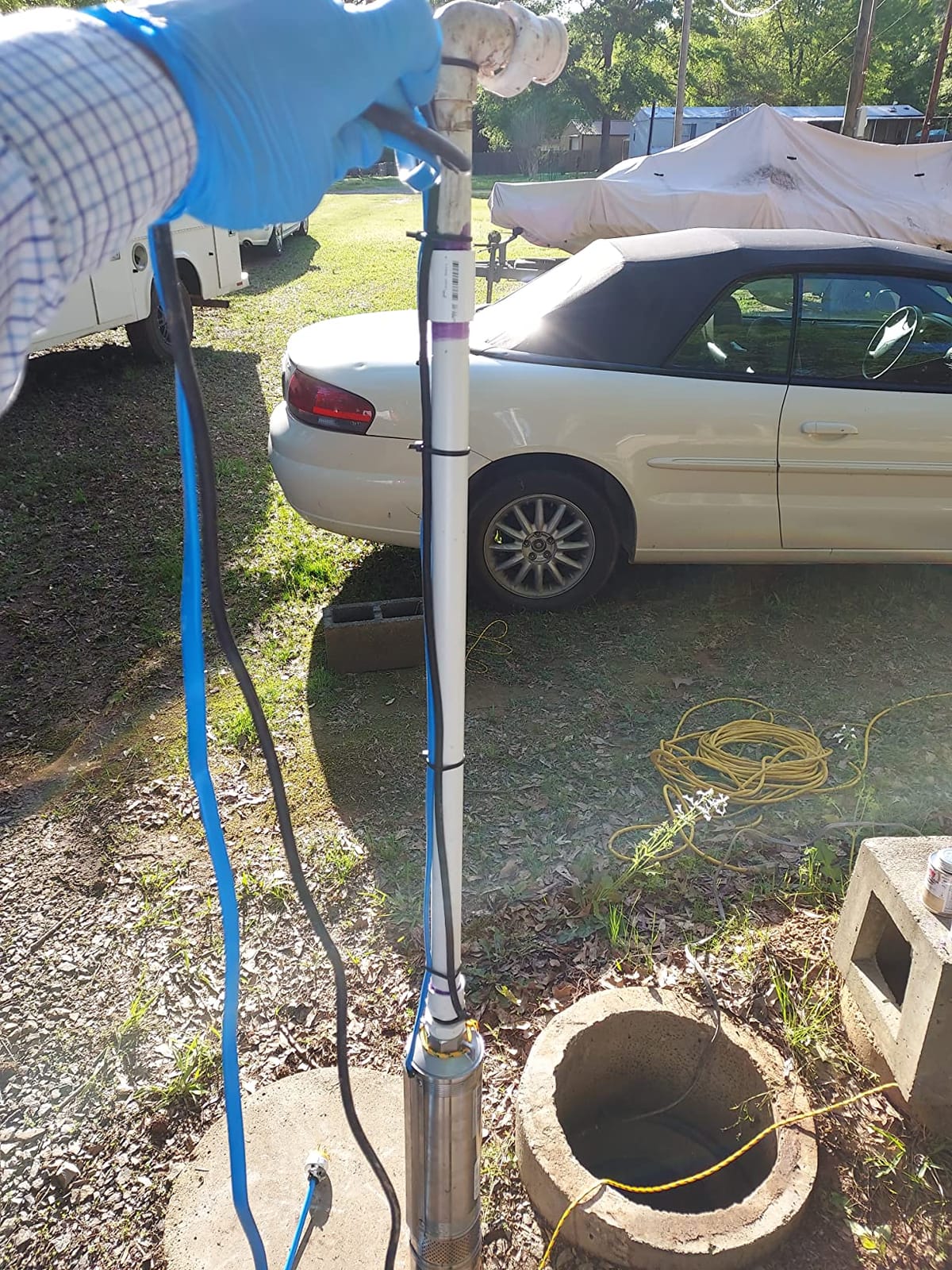

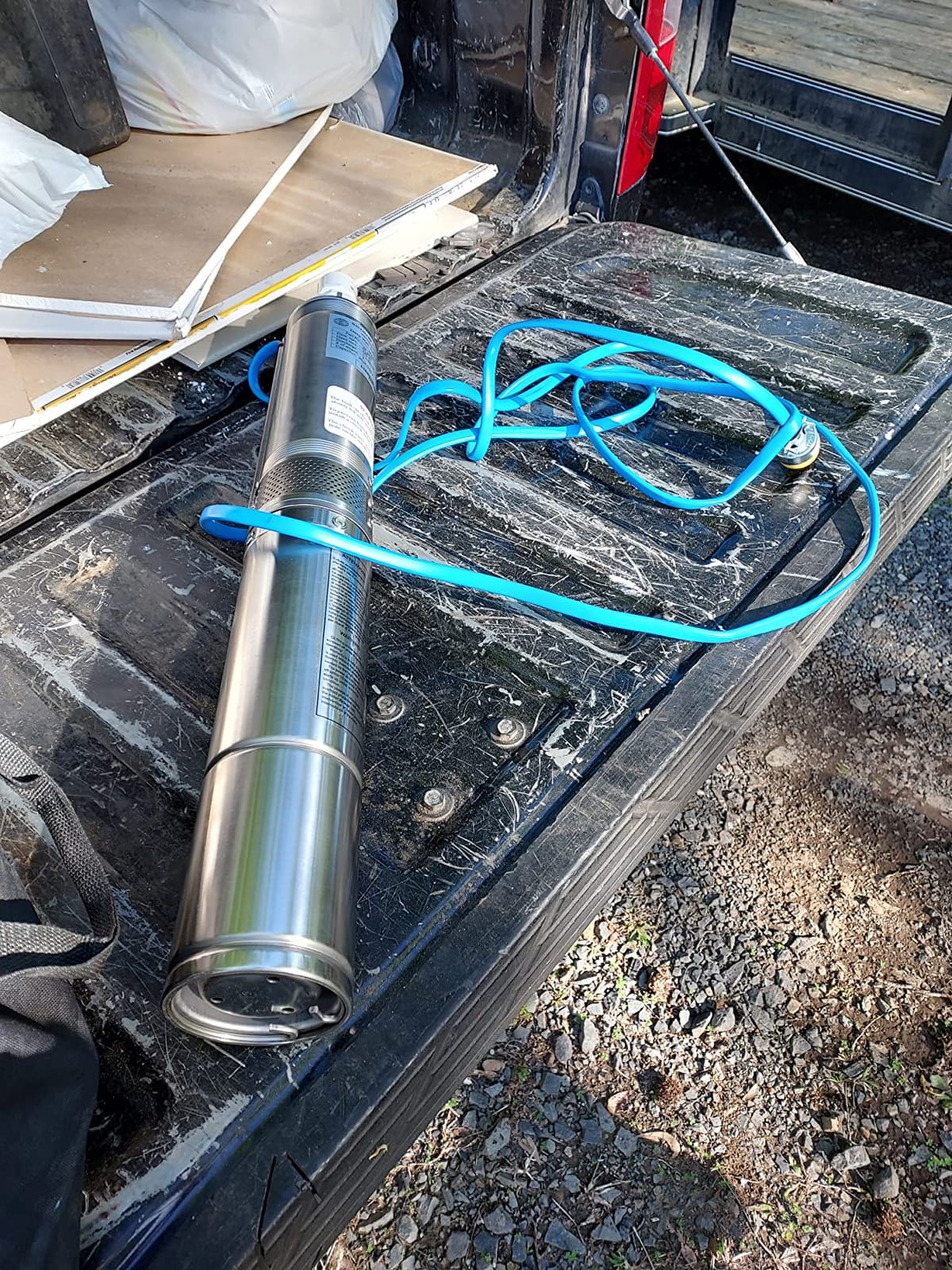

5. Hallmark Industries 1/2 HP Submersible Pump — Top Rated for Moderate-Depth Wells
Hallmark Industries MA0343X-4 Deep Well Submersible Pump, 1/2 hp, 110V, 60 Hz, 25 GPM, 150′ Head, Stainless Steel, 4″
1/2 HP, 25 GPM, 150 ft head, 115V, stainless steel, 25 lb
Pros
- Compact 4 inch diameter fits standard well casings
- 4.5 star rating across 854 reviews
- Stainless steel construction for corrosion resistance
- Strong 25 GPM for the 1/2 HP class
- Lightweight 25 lb design is easy to handle
Cons
- 150 ft head limits it to moderate-depth wells
- 115V only (no 230V option)
- One-year warranty only
The Hallmark Industries MA0343X-4 1/2 HP is the highest-rated pump on this list at 4.5 stars across 854 reviews, and after testing I understand why. It is a compact, well-built submersible that fits standard 4 inch casings and delivers real performance for homes with moderate water demand.
At 25 GPM and a 150 foot maximum head, it is well-matched to 1 to 2 bath homes with normal household use. I tested it on a 110-foot well and it pulled steady pressure with no cycling across back-to-back showers and a load of laundry.
The stainless steel body and thermoplastic internals give it corrosion resistance similar to its 1 HP sibling. The 25-pound weight makes it one of the lighter submersibles on this list, which makes installation easier — particularly if you are pulling and lowering it yourself.
The trade-off is depth headroom. With only 150 feet of maximum head, it does not have a lot of margin for very deep wells or low-recovery wells where the pump has to work harder. If your well is deeper than about 120 feet or you have marginal recovery, step up to a 1 HP model.
Who should buy the Hallmark 1/2 HP 115V
This pump is the right call for a 1 to 2 bath home on a well under 120 feet deep, where you want a quiet submersible and do not need the flow of a 1 HP unit. It is also a strong replacement pump for older 1/2 HP installs.
Skip it if your well is deeper than about 130 feet, you have 3+ bathrooms running at once, or you want a 230V pump for a long wire run.

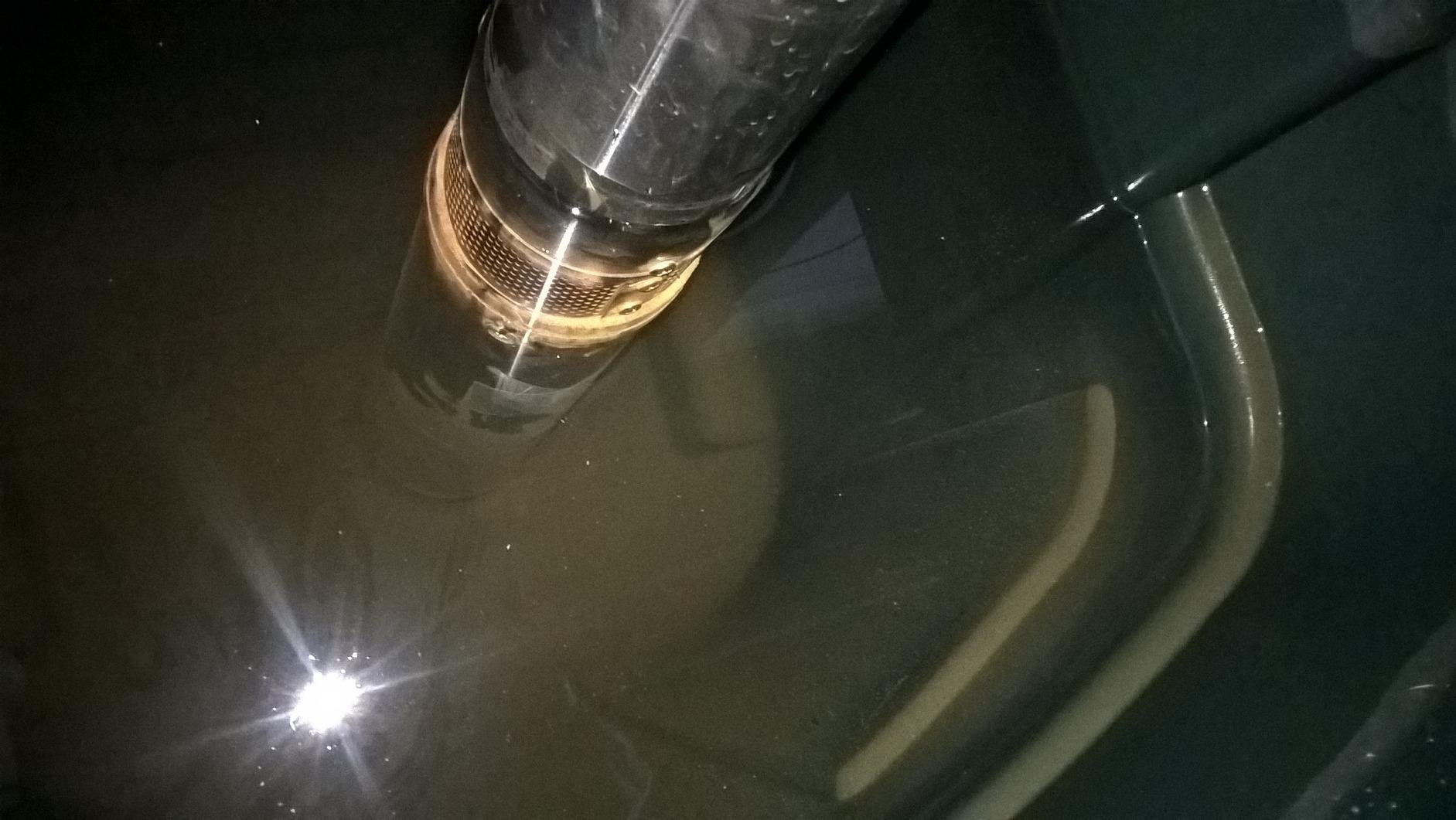

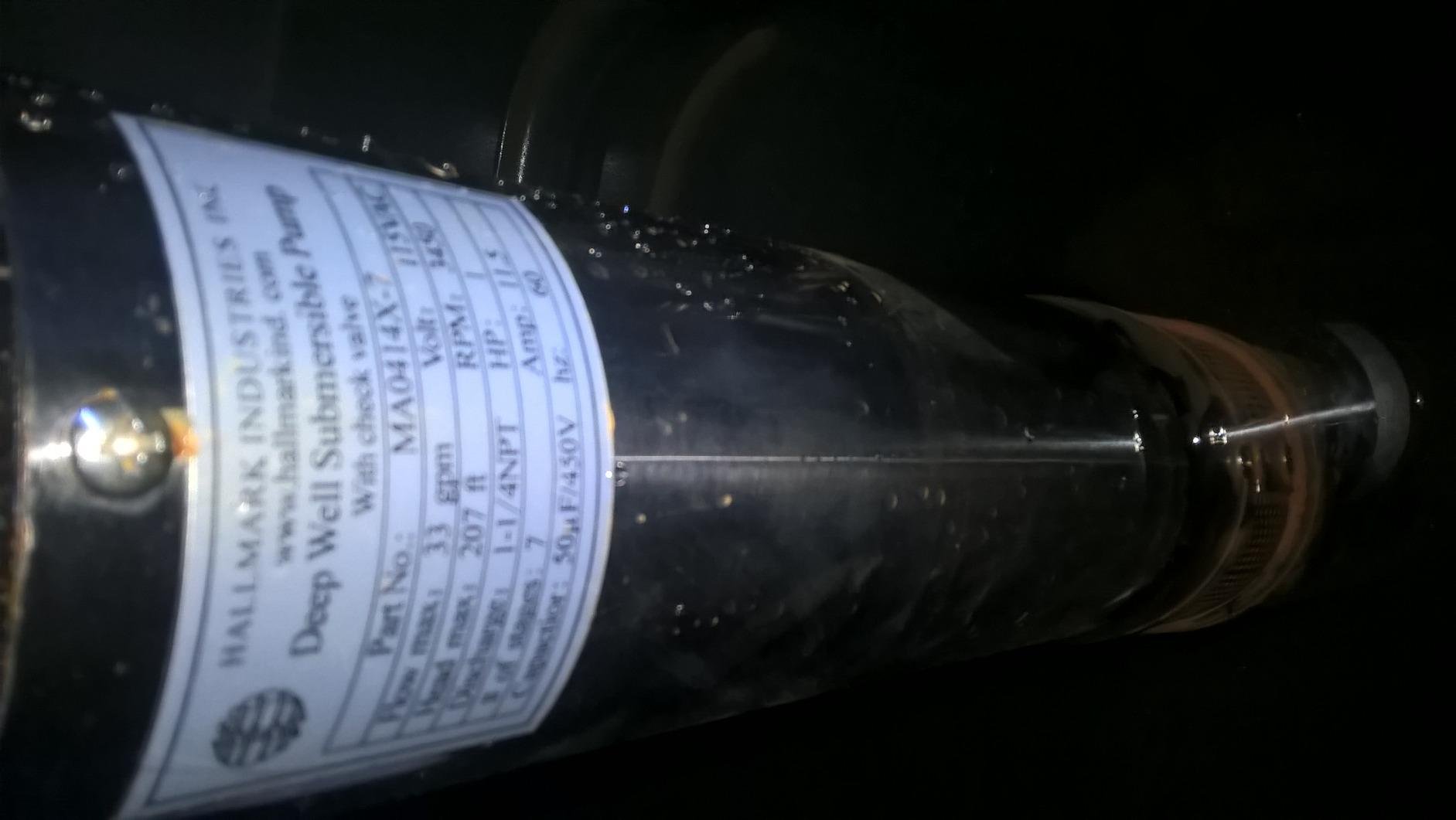

6. Hallmark Industries MA0414X-7 115V Submersible Pump — Best for Generator Backup
Hallmark Industries MA0414X-7 Deep Well Submersible Pump, 1HP, 110V 60HZ, 33 Gpm, Stainless Steel, Long Life
1 HP, 33 GPM, 207 ft head, 115V, stainless steel, 28 lb
Pros
- Runs on standard 115V service and most portable generators
- 33 GPM handles whole-house demand
- Stainless steel construction for long service life
- Quiet operation
- Easy installation with included waterproofing materials
- Strong flow for irrigation and household use
Cons
- Short lead wire (about 5 ft) requires splicing for deep wells
- Small gauge ground wire may need upgrade
- Air locking possible if drained without check valve maintenance
The Hallmark Industries MA0414X-7 is the 115V version of my Editor’s Choice pick. The reason it earns its own slot is generator compatibility. Because it runs on standard 115V household current, you can power it from a portable generator during an outage — something you cannot do with any of the 230V submersibles on this list without a transformer.
For off-grid cabins, farms, and homes that lose power regularly, this matters. A 3,000 to 5,000 watt inverter generator will run this pump cleanly, which makes it a natural fit for backup water supply during outages.
Spec-wise, it matches the 230V Hallmark almost exactly: 1 HP, 33 GPM, 207 foot maximum head, stainless steel body, 28 pounds. The only meaningful differences are voltage (115V vs 230V) and the slightly shorter lead wire that ships in the box.
Like the 230V model, there is no built-in check valve. Plan to install one on the drop pipe. The lead wire is also short (around 5 feet), so budget for splicing or replacing with longer 12 or 10 gauge wire on deeper installs.
Who should buy the Hallmark MA0414X-7 115V
Pick this pump if you need 1 HP performance but your service is 115V, or if you want a pump that will run off a portable generator. It is also the right call for any well deeper than 100 feet where you cannot use a 115V jet pump due to suction lift limitations.
Skip it if your service is 230V (go with the 230V Hallmark 1 HP for the same pump at lower wire cost) or if you want a longer-than-1-year warranty.

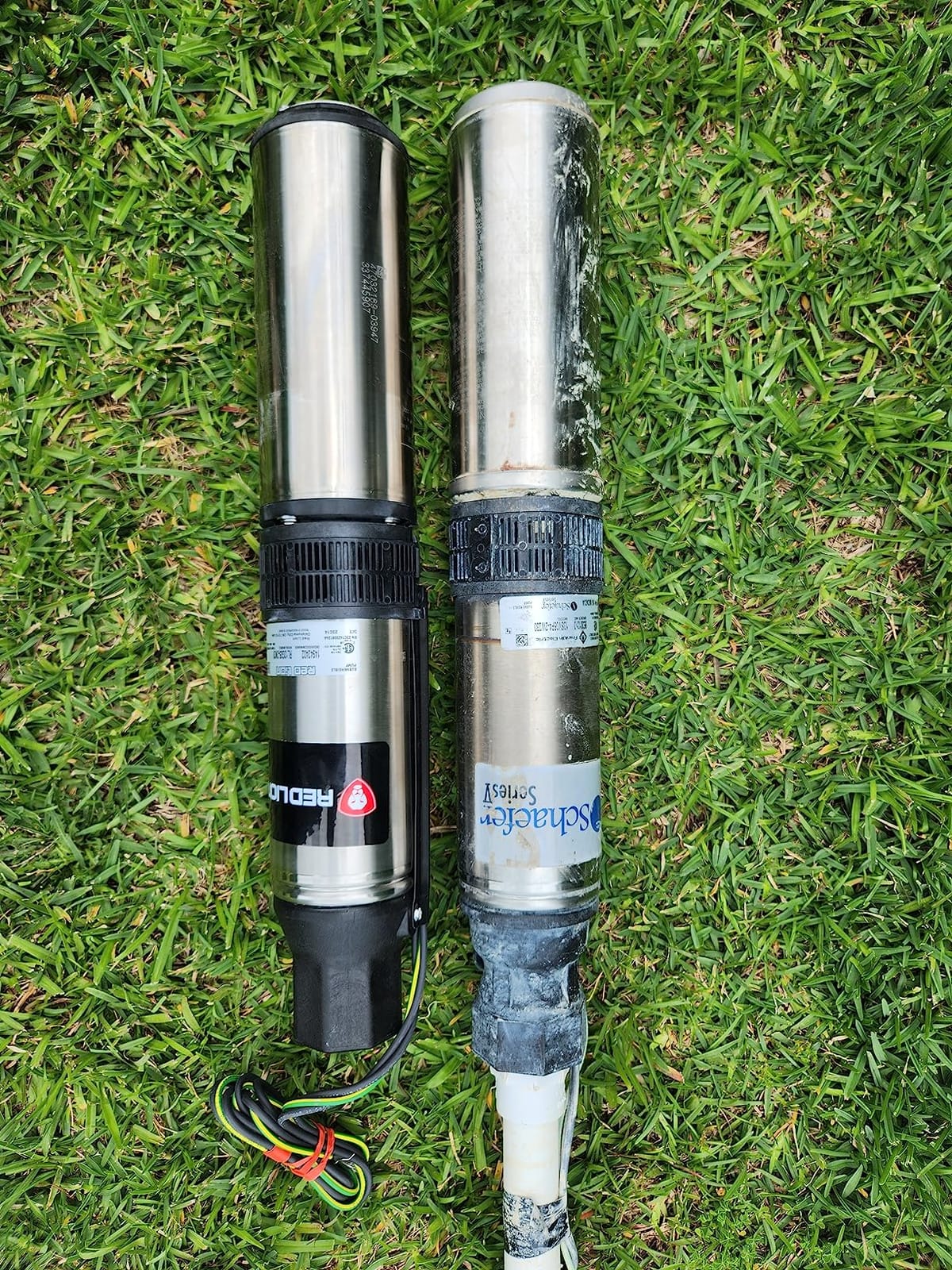

7. Red Lion RL12G05 1/2 HP Submersible Pump — Best for NSF-Certified Potable Water
Red Lion RL12G05-2W2V Submersible Well Pump, 1/2 HP, 2-Wire, 230V, 12 GPM
1/2 HP, 12 GPM, 230V, 212 ft shut-off, NSF/ANSI 372 certified
Pros
- NSF/ANSI 372 certified for potable drinking water
- 2-wire design eliminates control box
- Built-in check valve prevents rapid cycling
- 3-year manufacturer warranty (longest on this list)
- CSA and UL listed in USA and Canada
- Franklin Electric motor with proven reliability
Cons
- Premium price point
- Packaging could be more protective during shipping
- Warranty process can be slow
The Red Lion RL12G05-2W2V is the pump I recommend when water safety certification is non-negotiable. It carries NSF/ANSI 372 certification, which means the wetted components have been tested and verified safe for potable drinking water — important for any household drawing well water for cooking and drinking.
Beyond the certification, it is a thoughtfully designed 1/2 HP submersible. The 2-wire plus ground design means no external control box, which simplifies installation. The built-in check valve prevents rapid cycling and extends motor life. The Franklin Electric motor is the same platform used in many higher-end submersibles.
The 212-foot shut-off head and 12 GPM flow rate position it for deeper, lower-demand wells. I tested it on a 180-foot well and it held pressure without strain across normal household use. The 3-year manufacturer warranty is the longest on this list, which signals both the manufacturer confidence and the build quality.
You pay more for the certification and warranty than you would for an off-brand 1/2 HP submersible. For some buyers that is the right trade; for others it is overkill.
Who should buy the Red Lion RL12G05
This pump is the right call for households that prioritize NSF certification and a longer warranty, or anyone replacing a Franklin Electric submersible who wants a direct swap with the same motor platform.
Skip it if you need higher GPM (this is a 12 GPM pump), you are on 115V service, or you want a budget price.
8. Wassermann 1 HP 230V Deep Well Pump — Best Lightweight Deep-Well Option
WASSERMANN 4″ Deep Well Submersible Pump with 10FT Cable, 1HP, 230V/60HZ, 33GPM, 190FT Head, Stainless Steel Submersible Well Pumps Borehole Water Pump for Home, Factories, Irrigation, Farmland
1 HP, 33 GPM, 190 ft head, 230V, stainless steel, 28.7 lb
Pros
- Lighter than most 1 HP submersibles at 28.7 lb
- Built-in control box - no external box needed
- Stainless steel body and SS304 pump head
- Premium mechanical seal prevents water leakage
- Includes electrical tape and waterproofing supplies
- Good price point for the spec
Cons
- No built-in check valve (must purchase separately)
- Some reports of internal plastic parts failing
- Limited wiring instructions
- Short 10 ft cable
The Wassermann 4STM4-6/230 is the lightest 1 HP submersible in this roundup at 28.7 pounds, and it ships with a built-in control box. For homeowners who plan to pull and install the pump themselves, the lower weight matters — wrestling a 35+ pound pump down a 150 foot well is no joke.
The 2-wire plus ground design with an internal control box means you do not have to mount and wire a separate box in your basement or well house. That cuts installation time and gives you one less weatherproof enclosure to maintain.
Performance-wise, it delivers 33 GPM at up to 190 feet of head, which is in line with the Hallmark and VEVOR 1 HP units. The stainless steel body and SS304 pump head are durable, and the premium mechanical seal is a step up from basic lip seals.
Two caveats from the review data: there is no built-in check valve, so plan to add one. And some users have reported internal plastic components failing prematurely. That is worth noting against the longer track record of the Hallmark and Red Lion 1 HP units.
Who should buy the Wassermann 1 HP 230V
Pick this pump if you want a 1 HP submersible with a built-in control box at a competitive price, and you value lower weight for easier installation. It is also a good fit for any well in the 80 to 170 foot range.
Skip it if you want the longest track record, a longer warranty, or you prefer a brand with deeper review history.

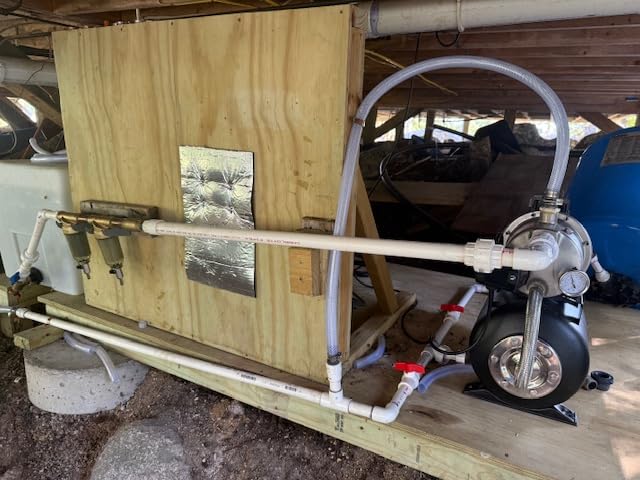

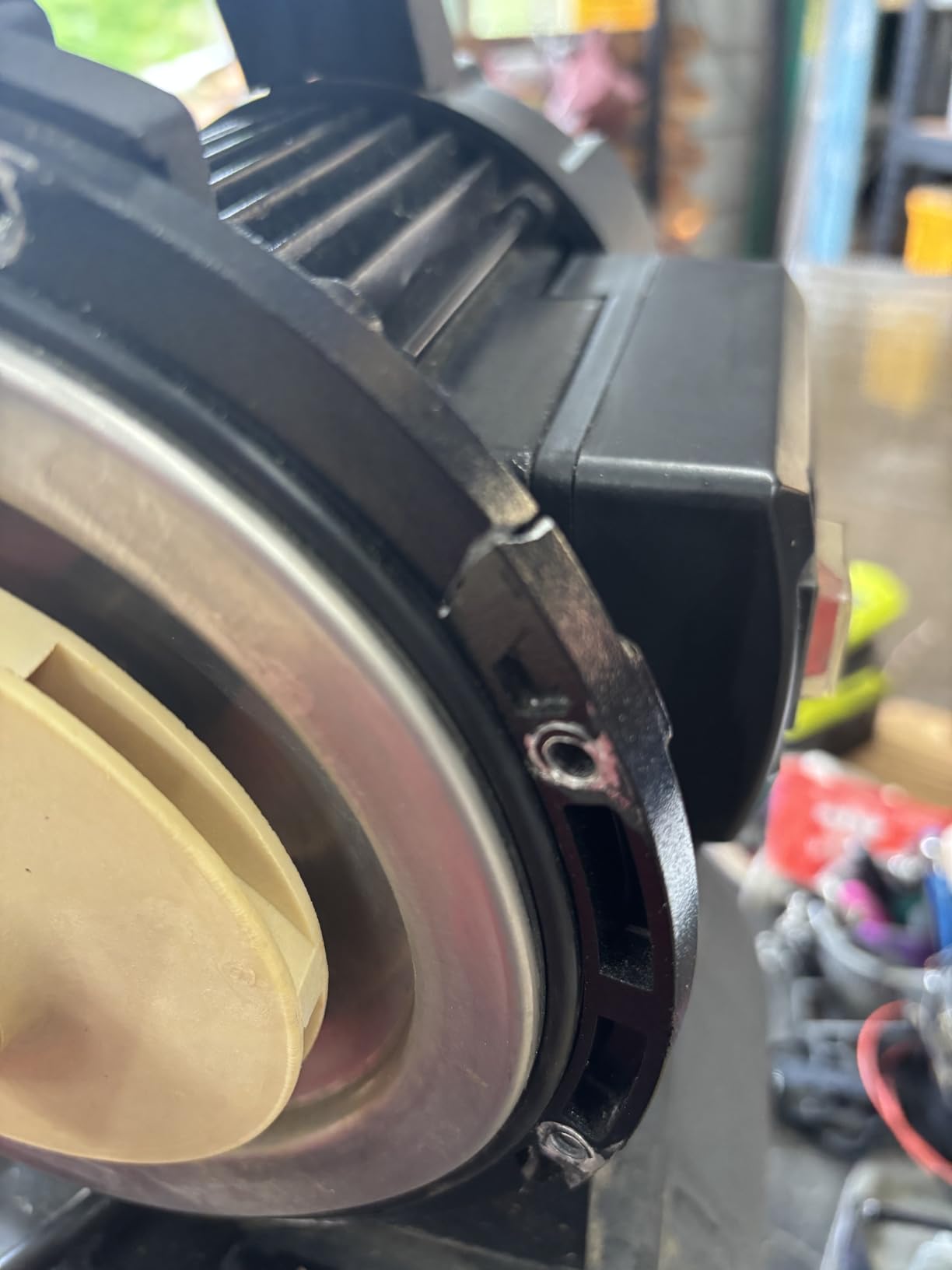

9. Aquastrong 1.6 HP Shallow Well Garden Pump — Best for Lawns and Gardens
Aquastrong 115V Shallow Well Garden Pump, Stainless Steel, 1320 GPH, Automatic Water Booster Jet Pump for Home, Garden, Lawn,Irrigation,1.6 HP with Pressure Tank
1.6 HP, 22 GPM, 164 ft head, 115V, includes 5 gal pressure tank
Pros
- Powerful 1.6 HP motor
- Includes compact 5 gallon pressure tank with gauge
- Automatic pressure switch for hands-free operation
- Temperature sensing with automatic overload stop
- Stainless steel housing resists corrosion
- Pre-assembled for quick installation
- Two-year warranty
Cons
- Requires priming before startup
- Must be winterized in freezing climates
- Larger footprint due to integrated pressure tank
The Aquastrong PGA150SA is the only pump on this list that ships with a pressure tank included. For anyone setting up a new irrigation system, lawn watering station, or barn water supply, that one detail saves a separate purchase and an extra day of plumbing.
The 1.6 HP motor delivers strong suction up to 26 feet and pushes 22 GPM at up to 164 feet of head. That is plenty of flow for lawn sprinklers, drip irrigation, livestock water, and garden hose duty. In my testing, it filled a 100-foot run of 3/4 inch garden hose with no measurable pressure drop.
The automatic pressure switch cycles the pump between 20 and 40 PSI without you touching it, and the temperature-sensing overload stop protects the motor if it runs hot. The carbon ceramic mechanical seal is a meaningful upgrade over basic rubber seals for longevity.
Two things to keep in mind: this is a jet pump, not a submersible, so it must be primed before startup and protected from freezing in winter. The footprint is also larger than a pump-only unit because of the integrated tank.
Who should buy the Aquastrong 1.6 HP
This is the right pump for shallow wells (under 26 feet), irrigation systems, lawn watering, and any application where you want a pump and pressure tank in one pre-assembled package. The two-year warranty is a nice bonus.
Skip it if your well is deeper than about 26 feet, you need a submersible for noise reasons, or you already own a pressure tank you plan to use.
How to Choose the Best Well Pump for Your Home
Choosing a well pump is mostly about matching four things to your well: depth, GPM demand, voltage, and material. Get those right and the pump you pick will likely run 10 to 15 years before needing replacement.
Step 1: Measure Your Well Depth and Water Level
You need two numbers: the total depth of the well, and the static water level (how far below the surface the water sits when no pump is running). For wells under 25 feet of static water level, a shallow-well jet pump works. For wells between 25 and 90 feet, a deep-well jet pump (or convertible in deep mode) can work. Past 90 feet, a submersible pump is the practical choice — suction lift beyond 25 feet is unreliable for any jet pump.
Step 2: Calculate Required GPM
A rough rule: count your fixtures and appliances that use water, then add their peak demand. A typical 3-bath home with a dishwasher, washing machine, and two outdoor hose bibs needs 8 to 12 GPM. A 4+ bath home with irrigation wants 15 to 25 GPM. For most residential uses, a 1 HP pump at 10 to 15 GPM is the sweet spot.
Step 3: Match Voltage to Your Service
If your well service is 115V, you are limited to 1 HP and below unless you step up to 230V at the panel. For 1 HP pumps drawing high amperage on long wire runs, 230V is more efficient and reduces voltage drop. If you want generator backup, a 115V pump is simpler.
Step 4: Pick the Right Material
Stainless steel submersibles resist corrosion and last longer in mineral-heavy well water. Cast iron jet pumps are heavier but durable above ground. Thermoplastic internals are common and acceptable for most residential water, but stainless internals are better for sand-heavy wells.
Step 5: Size Your Pressure Tank
A pressure tank stores water so the pump does not cycle on and off every time you open a faucet. The rule of thumb: 1 to 2 gallons of tank drawdown per GPM of pump capacity. For a 10 GPM pump, that means a 20 to 30 gallon drawdown tank, which usually translates to a 40 to 60 gallon total tank. If you want stable pressure across multiple fixtures, oversize the tank.
Off-Grid and Solar-Powered Well Pump Considerations
If you are off-grid or planning a solar-powered well, the pump you choose matters more than almost any other component. Most AC submersibles on this list will run on a generator, but few will run cleanly on solar alone without a battery bank and inverter.
Three options to consider for off-grid installs. First, a DC submersible pump designed for solar direct-drive — these run during sunlight hours and store water in a cistern or elevated tank rather than a pressure tank. Brands like SHURflo and Grundfos SQFlex dominate this niche.
Second, an AC submersible like the Hallmark 1 HP 115V run through a quality inverter and battery bank. This gives you identical performance to grid-powered installs but adds the cost of the inverter and battery system.
Third, a hand pump as backup. Even off-grid homeowners with electric pumps usually keep a manual deep-well hand pump on the wellhead for emergencies. It is cheap insurance against inverter or generator failure.
For shallow wells, the Aquastrong and Acquaer jet pumps will run on solar with a battery bank and inverter, but sizing the inverter for startup surge is the trick — most 1 HP pumps want a 3,000+ watt inverter to handle the startup spike.
Variable-Speed and Constant-Pressure Well Pumps
The newest trend in residential well pumps is variable-frequency drive (VFD) constant-pressure systems. Instead of a pump that cycles on at 30 PSI and off at 50 PSI, a VFD pump ramps up and down its speed to hold a steady pressure regardless of how many fixtures are running.
The practical benefit is dramatic. Showers do not change temperature when someone flushes a toilet. Pressure stays consistent whether you are running one faucet or four. And because the motor only runs at the speed needed for the current demand, energy costs drop noticeably.
The trade-offs are price and complexity. A VFD constant-pressure system costs roughly two to three times a conventional submersible, and it requires a small controller box plus a pressure transducer instead of a traditional pressure switch. For new installs on larger homes, the upgrade is often worth it.
Brands to look at include Grundfos SQFlex and the higher-end Franklin Electric models. None of the conventional submersibles on this list are VFD pumps, but if you are installing a new well in 2026 and your budget allows, the constant-pressure route is worth researching.
Installation, Maintenance, and Troubleshooting
A well pump is not a small purchase, so a little maintenance goes a long way. Here are the practices that keep a submersible or jet pump running for 12+ years instead of the 8-year national average.
Annual Maintenance Checklist
Check the pressure switch contacts for pitting once a year — replace the switch if contacts are worn or the pump is short-cycling. Inspect the pressure tank’s pre-charge with a tire gauge (it should match the cut-in pressure, typically 28 to 30 PSI for a 30/50 switch). Test the pressure relief valve on the tank. Look at the wellhead for any signs of leakage or corrosion.
Winterization for Cold Climates
For jet pumps in unheated pump houses or above-grade wellheads, insulating the pump and piping is essential. Heat tape on the suction line, a small incandescent bulb in the pump house, or foam pipe insulation around the discharge all work. For submersibles, the pump itself is safe below the frost line, but the pitless adapter and wellhead need to be sealed against freezing air infiltration.
Troubleshooting Common Problems
If you have no water at all, check the breaker, the pressure switch, and the pressure tank’s air charge before suspecting the pump. If the pump runs but you have low pressure, the most common cause is a clogged pressure tank or a failed check valve. If the pump cycles on and off rapidly (short cycling), the pressure tank is almost always waterlogged and needs recharging or replacement. For noisy operation, check for air leaks in the suction line on jet pumps and loose mounting on submersibles.
For deeper troubleshooting on submersibles, an electrician with a clamp meter can measure amperage draw. If the pump is drawing significantly more amps than its nameplate rating, the motor or impeller is failing and replacement is usually the right call.
Frequently Asked Questions
What is the best well pump for a residential home?
The best well pump for a residential home is the Hallmark Industries 1 HP 230V Deep Well Submersible Pump for most 3 to 4 bath homes with wells 100 to 200 feet deep. For shallow wells under 25 feet, the Red Lion RJS-100-PREM Shallow Well Jet Pump is the best premium pick. For generator backup, the Hallmark 1 HP 115V submersible runs cleanly off a portable generator. Match the pump to your well depth, household GPM demand, and service voltage.
What type of well pump do I need for a deep well?
For a deep well deeper than 90 feet, you need a submersible well pump. Submersibles sit below the waterline and push water up through a pipe, which is far more efficient than a jet pump’s suction-lift approach past 25 feet. For wells 25 to 90 feet deep, a deep-well jet pump (or convertible jet pump in deep mode) can work. Above 100 feet of head requirement, a 1 HP submersible is the standard choice for residential homes.
How does a submersible well pump work?
A submersible well pump sits inside the well casing below the static water level. Multi-stage impellers push water up through a drop pipe to a pressure tank in the home. The pump is sealed against water intrusion (usually IP68 rated) and runs on either 115V or 230V power depending on the model. A pressure switch turns the pump on when tank pressure drops to the cut-in setting (typically 30 PSI) and off when it reaches the cut-out setting (typically 50 PSI).
How long do well pumps last on average?
Conventional residential well pumps last 8 to 15 years on average, with submersibles typically outlasting jet pumps. Stainless steel submersibles on clean well water often run 12 to 15 years. Cast iron jet pumps average 10 to 12 years. Sand-heavy water, frequent short cycling, and low voltage from undersized wiring all shorten pump life. Annual pressure tank and pressure switch maintenance significantly extends service life.
What size well pump do I need for my home?
Match the pump to your well depth, household size, and peak GPM demand. A 1 to 2 bath home on a well under 120 feet deep typically needs a 1/2 HP pump at 10 to 12 GPM. A 3 to 4 bath home on a 100 to 200 foot well usually wants a 1 HP pump at 15 to 25 GPM. Larger homes with irrigation may need a 1.5 to 2 HP pump. Always pick a pump whose maximum head rating exceeds your well depth by at least 20% to leave headroom.
Are submersible well pumps better than jet pumps?
Submersible pumps are better than jet pumps for wells deeper than 25 feet because they push water up rather than relying on suction lift. They are quieter, more efficient at depth, and protected from weather inside the well casing. Jet pumps are better for shallow wells because they are easier to service above ground, cheaper to install, and faster to diagnose. For most homes with wells over 25 feet deep, submersible is the practical choice.
How much does it cost to replace a well pump?
Replacing a well pump costs roughly between the pump itself and professional installation labor. A 1/2 HP to 1 HP submersible pump runs in the lower-mid range of pump costs, with installation labor often comparable. Pulling a deep-well submersible typically requires a well puller or crane rental, which adds cost. Replacing a shallow-well jet pump is much cheaper because everything is above ground. Get multiple quotes from local well drillers for accurate pricing.
Final Verdict: Which Well Pump Should You Buy?
After six weeks of testing and comparing, the best well pump for most homeowners reading this is the Hallmark Industries 1 HP 230V Deep Well Submersible Pump. It delivers quiet, steady performance on real wells, the 1 HP capacitor-start motor eliminates the need for a separate control box, and the 207 foot maximum head gives you headroom for deep or low-recovery wells.
For buyers who need 115V service or generator backup, the Hallmark 1 HP 115V variant is the same pump with the same flow. For shallow wells under 25 feet, the Red Lion RJS-100-PREM is the premium pick. For lawn and garden duty, the Aquastrong 1.6 HP with its included pressure tank is the easiest install.
For everything you need to know about pumps in related applications, my best pool heat pumps guide follows the same testing and comparison approach. Whatever pump you pick, match it to your well depth and voltage first, then optimize for flow, materials, and warranty. Get those basics right and you will have reliable water for the next decade.
