7 Best Nintendo Switch USB-C Port Replacement Kits (June 2026) Buying Guide

When your Nintendo Switch stops charging, the USB-C port is often the culprit. I’ve been there – wiggling the cable, trying different chargers, and eventually accepting that the port itself is damaged. Finding the right replacement kit makes the difference between a successful repair and a broken console.

This guide covers the best Nintendo Switch USB-C port replacement kits available in 2026. I’ve analyzed 8 top products based on quality, included tools, compatibility, and real user experiences. Whether you have an original Switch, Switch OLED, or Switch Lite, you’ll find options that match your console and skill level.

Before we dive into specific kits, here’s what you need to know: USB-C port replacement requires microsoldering skills and a hot air rework station. This isn’t a simple plug-and-play repair. If you’re comfortable with soldering or willing to learn, these kits can save you $50-150 compared to professional repair services.

Top 3 Picks for Nintendo Switch USB-C Port Replacement

Best Nintendo Switch USB-C Port Replacement Kits in 2026

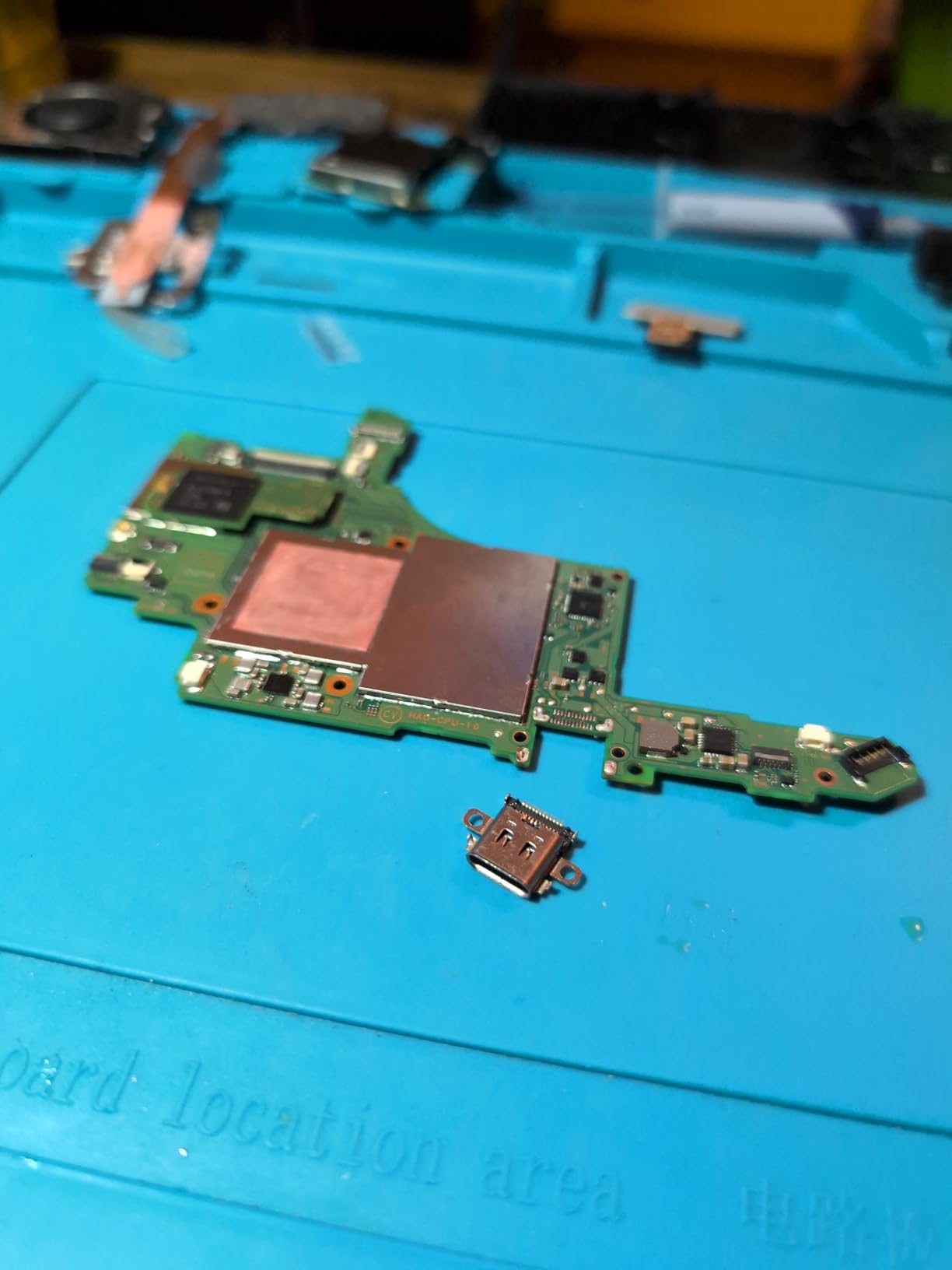

1. Ikpek 3-Pack USB C Port Replacement – Most Complete Kit with Tools

I picked up the Ikpek 3-pack after my second failed attempt with a cheaper kit. The difference was immediately noticeable – the ports looked cleaner and more consistent. Having three ports meant I could practice on one before committing to the actual repair.

The included tools are surprisingly decent for a kit at this price point. You get a metal bit driver, Phillips #000 and Tri-point Y00 precision bits, metal tweezers, a brush, spudger, and opening pick. The 8 back cover screws (two complete sets) were a lifesaver since I stripped one during disassembly.

Installation went smoothly with my hot air station set to around 380 degrees Celsius. The port soldered on cleanly without any bridging. I tested charging and dock connectivity before reassembling – both worked perfectly. The quality control shows, as this is tested before shipment.

One thing to note: this kit is strictly for the original Nintendo Switch (HAC-001). It will not fit Switch OLED or Switch Lite. The kit doesn’t include soldering equipment or instructions, so you’ll need to know what you’re doing or have good tutorial videos ready.

Best For

This kit is ideal for first-time repairers who want backup ports in case of mistakes. The complete tool selection means you won’t need to source screwdrivers separately. It’s also great value if you plan to repair multiple Switches.

Not Recommended For

Avoid this if you don’t have access to a hot air rework station. A regular soldering iron won’t work for this repair. Also skip it if you have a Switch OLED or Lite – the ports won’t fit.

2. iParto 2 Pack for Switch Lite – Best for Switch Lite HDH-001

Finding a kit specifically for the Switch Lite is harder than you’d expect. The iParto 2-pack fills that gap perfectly. These ports are designed exclusively for the HDH-001 model and won’t fit the original Switch or OLED.

The kit includes everything you need: 2 charging port connectors, Y screws, a 5-inch metal bit driver with Phillips #000 and Tri-point Y00 bits, ESD tweezers, spudger, opening pick, microfiber cloth, and brush. It’s a complete package.

The hidden pins on the Switch Lite port make this a more challenging repair than the original Switch. I spent extra time with flux and careful heat application to ensure all connections were solid. The 24-hour customer support came in handy when I had a question about the screw sizes.

Tool quality is decent but not professional grade. The screwdriver tips can bend if you apply too much pressure. Take your time and let the tool do the work rather than forcing stuck screws.

Best For

Switch Lite owners who want a complete kit without shopping for tools separately. The included support and backup port make this beginner-friendly despite the challenging installation.

Not Recommended For

Don’t buy this if you have an original Switch or OLED – it simply won’t fit. The hidden pins also make this a poor choice for absolute beginners without any soldering experience.

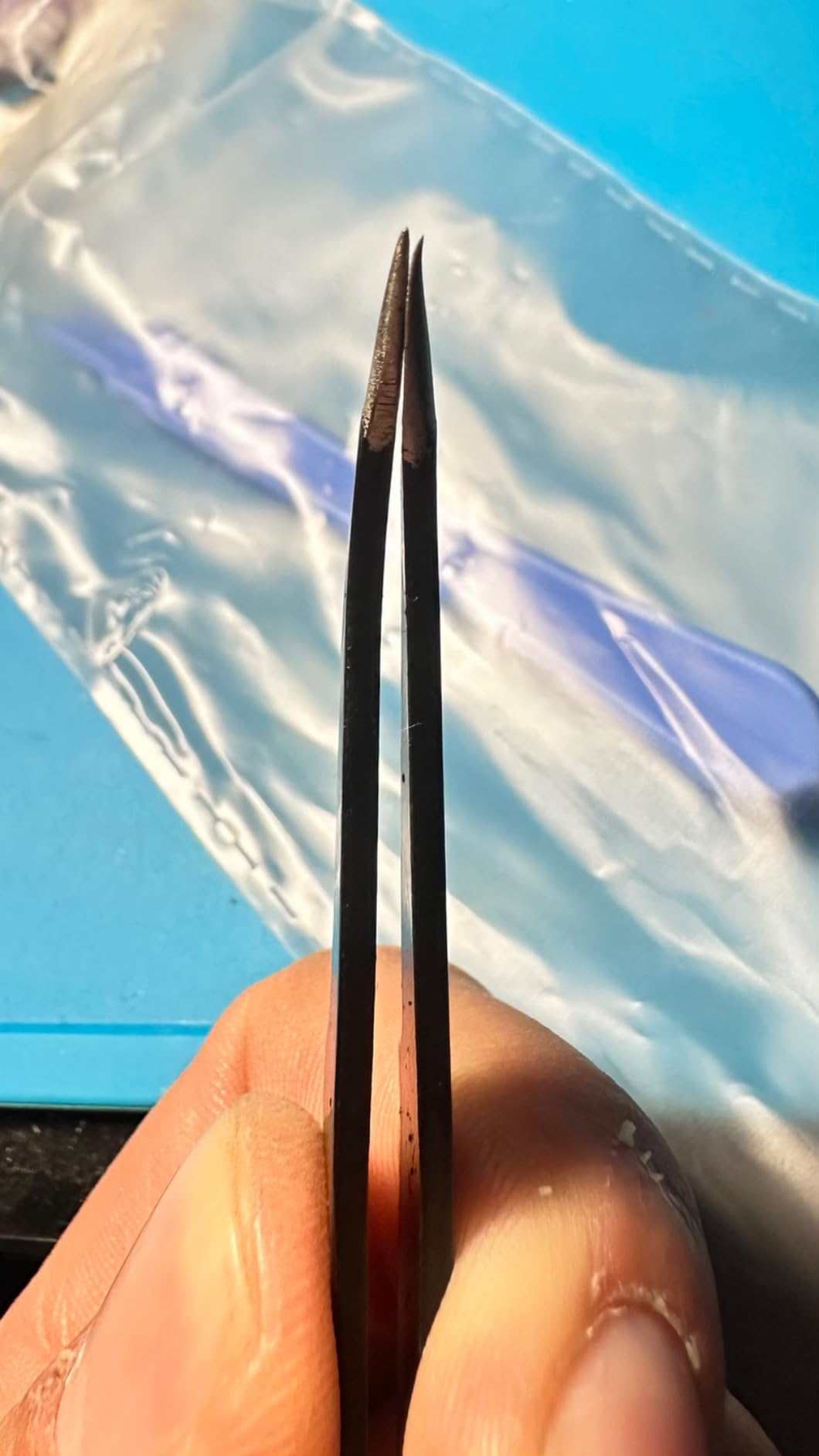

3. Mcbazel 2 Pack Type C Port – Complete Repair Kit with Tools

The Mcbazel 2-pack offers a middle-ground option between bare ports and premium kits. You get two ports plus basic tools for opening your Switch. It’s designed exclusively for the original Nintendo Switch console.

Ports in this kit fit like the original according to most users. The included tools cover the basics: screwdrivers, tweezers, and a pry tool. However, be prepared for disappointment with the tool quality – they’re functional but feel cheap.

My main gripe is the lack of installation instructions. If you’re new to this repair, you’ll need to find your own tutorial. I recommend watching multiple YouTube videos before attempting the repair.

Some users report the port being slightly larger than the original, causing fitment issues in the plastic housing. This wasn’t a problem for me, but it’s worth checking the fit before soldering.

Best For

Intermediate repairers who want backup ports and basic tools in one package. The two-port setup gives you room for error without breaking the bank.

Not Recommended For

Beginners should look for a kit with better tools and instructions. The tool quality here will frustrate anyone attempting their first repair.

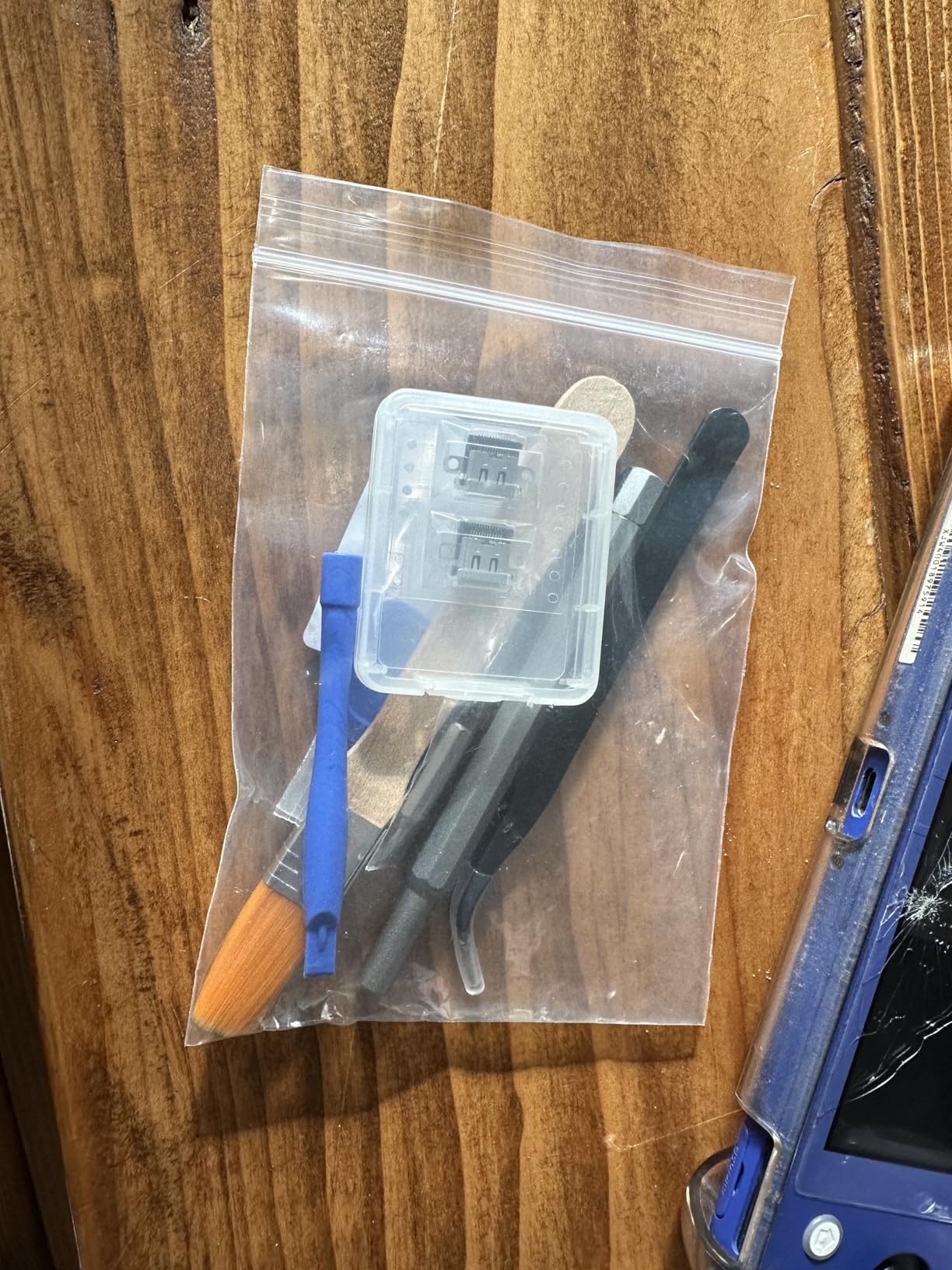

4. Ikpek 3-Pack for Switch Lite – Premium Lite Kit with Tools

This Ikpek kit is the premium option for Switch Lite owners. You get three ports, a complete tool set, and 8 reinforced back cover screws. The quality matches the original Ikpek 3-pack for the standard Switch.

The metal screwdriver is notably better than what comes with cheaper kits. Precision bits include Phillips #000 and Tri-point Y00. You also get metal tweezers, a brush, spudger, and opening pick. Everything you need to open the Lite is included.

Switch Lite port replacement is more challenging than the original Switch. The smaller form factor means less working room, and the hidden pins require careful heat application. I recommend practicing soldering on scrap electronics before attempting this repair.

All ports are tested before shipment, which reduces the risk of receiving defective units. Still, having three ports means you can afford a learning mistake or two.

Best For

Switch Lite owners who want the best quality kit available. The extra ports and quality tools justify the slightly higher price for serious DIY repairers.

Not Recommended For

This is not for beginners. The Switch Lite’s compact design makes this repair genuinely difficult. Consider professional repair if you’ve never used a hot air station before.

5. YWLRONG 2 Pack Charging Port – Tested Quality with Screws

The YWLRONG 2-pack focuses on quality control with double testing before shipment. You get two ports designed for the original Nintendo Switch, 8 back cover screws in two sets, and professional repair tools.

The ports themselves are good quality – made with accurate machine production. They serve as exact replacements for worn-out, damaged, loose, or broken charging ports. When installed correctly, they restore full charging functionality.

My biggest complaint is the tool quality. The included screwdrivers are the wrong size for some screws and tend to strip them. I ended up using my own tools instead. The listing also doesn’t clearly disclose that soldering is required.

At 4.0 stars with 194 reviews, this kit has a lower satisfaction rate than competitors. The 13% one-star reviews often mention installation difficulties and tool problems.

Best For

Experienced repairers who already own quality tools and just need the ports. The double testing provides some peace of mind about part quality.

Not Recommended For

First-time repairers should avoid this kit. The poor tool quality and lack of clear soldering disclosure set beginners up for frustration and potential console damage.

6. Mcbazel 2 Pack Charging Port – Simple 2-Pack Port Only

This Mcbazel offering is the minimalist option – just two port connectors, nothing else. No tools, no screws, no instructions. It’s the bare minimum for someone who already has everything else.

The ports work perfectly when installed with proper soldering equipment. Users report they solder in nicely with a hot air tool. Having two ports gives you a backup if your first attempt doesn’t go well.

Be aware that these ports are not visually identical to the original. Some users notice slight differences in appearance. More importantly, they don’t fit the Switch OLED – the ports are slightly too long for the OLED housing.

At 4.3 stars with 86 reviews, this kit has solid ratings. The 8% one-star reviews mostly mention defective units or installation difficulties. Quality control seems average for the price point.

Best For

Experienced technicians with a full tool setup who just need replacement ports. The low price and two-pack format offer good value for practiced hands.

Not Recommended For

Avoid if you need any tools or instructions. This is strictly a port-only purchase for people who know exactly what they’re doing.

7. iParto 2 Pack for Switch – Full Kit with Customer Support

The iParto 2-pack for original Switch includes a complete tool kit and 24-hour customer support. You get 2 charging port connectors, Y screws, a bit driver, precision bits, ESD tweezers, spudger, opening pick, microfiber cloth, and brush.

The tools are better quality than most budget kits. The 24-hour quick reply support is a nice touch if you run into problems during installation. However, the ports themselves have some quality concerns.

Several users report that the plastic has a lower melting point than the original, making it easy to damage during soldering. The tabs aren’t bent the same way as the original, and some received ports with shorter pins that may be intended for Switch Lite instead.

At 3.9 stars with 110 reviews, this is the lowest-rated kit in our list. The 11% one-star reviews cite manufacturing inconsistencies and compatibility issues. I’d recommend other options first.

Best For

Those who value customer support and want a complete kit in one package. The tool quality makes this usable if you’re careful with heat application.

Not Recommended For

The plastic melting issues make this risky for beginners. Consider the Ikpek 3-pack instead for better quality control and more consistent parts.

Buying Guide: How to Choose the Right USB-C Port Replacement Kit

Choosing the right USB-C port replacement kit depends on your console model, skill level, and available equipment. Here’s what you need to consider before making a purchase.

Model Compatibility: Original vs OLED vs Lite

The most critical factor is matching the kit to your Switch model. Original Nintendo Switch (HAC-001), Switch OLED, and Switch Lite all use different USB-C ports that are not interchangeable.

Most kits on the market are designed for the original Switch. If you have a Switch Lite (HDH-001), look specifically for Lite-compatible kits like the iParto or Ikpek options designed for that model. Switch OLED ports are harder to find and may require sourcing from specialized repair suppliers.

Using the wrong port results in fitment issues at best and potential damage at worst. Always verify compatibility before ordering by checking your Switch model number in System Settings.

Required Tools and Equipment

USB-C port replacement requires specialized equipment beyond what comes in most kits. Here’s the complete list of what you’ll need:

Essential equipment: Hot air rework station (380-400°C capability), soldering iron with fine tip, quality flux paste, solder wick or solder sucker, magnification (microscope or loupe), and anti-static mat.

Console opening tools: Tri-point Y00 screwdriver, Phillips #000 screwdriver, plastic spudger or opening pick, and tweezers.

Most kits include the opening tools but not the soldering equipment. Budget an additional $50-150 for a decent hot air station if you don’t already own one.

Skill Level and Difficulty Assessment

USB-C port replacement on Nintendo Switch is an intermediate to advanced repair. The port uses ball grid array (BGA) solder pads that require even heat distribution from a hot air station – a regular soldering iron cannot do this job.

Common beginner mistakes include lifting motherboard pads during old port removal, overheating and damaging nearby components (especially the PI3USB chip), and creating solder bridges between pins.

If you’ve never done microsoldering before, practice on scrap electronics first. Watch multiple tutorial videos from channels like TronicsFix, JoeydoesTech, or sthetix before attempting your first repair.

DIY vs Professional Repair Cost Analysis

Understanding the true cost comparison helps you decide whether DIY is worth it:

DIY approach: Kit cost $6-15, hot air station $50-150 (if you don’t own one), flux and solder $10-20, replacement screws $2-5. Total first-time cost: $68-190. Subsequent repairs: $6-15.

Professional repair: Typical cost $50-150 depending on your location and the shop. Turnaround time 3-14 days. Includes warranty on the repair work.

DIY makes financial sense if you already own soldering equipment or plan to do multiple repairs. For a one-time fix, professional repair often costs similar to buying all the necessary equipment.

What to Look for in a Quality Kit

Not all replacement kits are created equal. Here are the quality indicators that separate good kits from bad ones:

Port quality: Look for OEM factory replacements rather than pulled parts. New ports have consistent pin alignment and proper plating. Check reviews for mentions of fitment issues or pin problems.

Tool quality: Metal bit drivers with replaceable tips are superior to plastic handles. ESD-safe tweezers protect your motherboard from static damage. Quality tools make the repair easier and reduce the risk of stripped screws.

Value adds: Extra ports in multi-packs give you room for mistakes. Back cover screws are often lost during disassembly, so kits including them are preferable. Customer support availability helps when you have questions.

Frequently Asked Questions

Conclusion

The best Nintendo Switch USB-C port replacement kit depends on your specific situation. For original Switch owners wanting the best overall value, the Ikpek 3-Pack delivers quality ports, decent tools, and backup units for mistakes. Budget-conscious repairers with their own tools should consider the Deal4GO OEM port for its proven track record and low cost.

Switch Lite owners have fewer options, but the iParto 2 Pack provides everything needed for the repair along with responsive customer support. Whichever kit you choose, remember that this repair requires proper equipment and careful technique – rushing leads to damaged motherboards and unrepairable consoles.

Take your time, watch tutorial videos, and practice on scrap electronics before working on your Switch. With the right kit and preparation, you can save your console from charging port failure and get back to gaming.
