A heavy-duty bench vise for metalwork is a bench-mounted clamping tool built from cast or ductile iron with hardened serrated jaws, a swivel base and a flat anvil, engineered to hold steel, iron and pipe under sustained load without letting the work slip or deform. The best heavy duty bench vises for metalwork are the ones rated well above the work you actually bring to them, because metal punishes anything rated just barely high enough.
That distinction is what separates a woodworking vise from a metalworking one. Wood jaws can be soft, shallow and light. Metalwork demands a rigid casting, a deep throat so you can reach the bolt you are trying to turn, replaceable hardened jaw plates, and enough mass that the vise does not skate across the bench when you put a cheater bar on the handle. Our team read through the published specifications and thousands of owner reviews for eight vises, then ranked them on body material, jaw geometry, throat depth, rotation and warranty terms. Last updated September 2026.
The buyer intent behind this query is unusually specific. In the r/metalworking recommendations threads that rank alongside editorial roundups, the same request appears repeatedly: multipurpose quality over price, removable jaws, a swivel base, and a preference for USA-made construction where practical. One regular describes wanting a vise that does everything without being told to compromise on the spindle. This list answers that request directly, and we have kept the picks weighted toward ductile and austempered iron rather than the light gray castings that flood general tool pages.
If you are still working out which size you need, or you want a broader look at general-purpose vises for home shops, our bench vise roundup covers the lighter end of the market before this list picks up. For metalwork, the eight below are the ones worth your bench space.
Top 3 Bench Vises for Metalwork in September 2026
Forward DT08125A 5 Inch…
- 60000 PSI ductile iron body
- 5500 lb clamp force
- Three interchangeable jaw sets
- 360 degree swivel base and head
Wilton 11106 6 Inch General…
- 6 inch jaw width
- Replaceable hardened serrated jaws
- 120 degree swivel with double lockdowns
- Lifetime warranty
Forward 30608 8 Inch Bench…
- 8 inch jaw and 8 inch opening
- 8800 lb clamping force
- Steel U-channel slide bar
- Built-in pipe jaws to 2 3/4 inch
The Forward DT08125A takes the top slot because it combines the highest owner rating in the group with the largest review count, and it does so in 60,000 PSI ductile iron with three jaw sets. The Wilton 11106 is the value anchor for anyone who wants the lifetime warranty more than raw material strength. The Forward 30608 is the size jump for flat bar, long bar and structural work.
The 8 Picks at a Glance in September 2026
All eight vises below are rated for metal work, and every one lists a jaw width, an opening, a throat and a swivel base. Compare the body material column first: gray cast iron at 30,000 PSI belongs to home-shop duty, ductile iron at 60,000 PSI is the metalwork standard, and the 130,000 PSI austempered casting is the top of this group.
| Product | Specs | Action |
|---|---|---|
| Forward DT08125A 5 Inch Bench Vise |
|
Check Latest Price |
| Wilton 11106 6 Inch General Purpose |
|
Check Latest Price |
| Forward 30608 8 Inch Bench Vise |
|
Check Latest Price |
 Yost 760-DI Multi-Jaw Rotating Vise |
|
Check Latest Price |
 Yost ADI-6 Austempered Ductile Iron Vise |
|
Check Latest Price |
 Wilton 746 Mechanics Bench Vise |
|
Check Latest Price |
 Yost 460 Combination Pipe and Bench Vise |
|
Check Latest Price |
 Wilton 550P Multi-Purpose Bench Vise |
|
Check Latest Price |
Read that table with one caution: throat depth matters more than jaw width for most metal tasks. A 6 inch vise with a 4-1/8 inch throat will reach hardware that a 6 inch vise with a 3 inch throat cannot, and the Yost 760-DI at 4.31 inch is the deepest in the group.
1. Forward DT08125A 5 Inch Heavy Duty Bench Vise
Forward DT08125A 5 Inch Heavy Duty Bench Vise with 360°Swivel Base and Head
5 in jaw
5 in opening
2.6 in throat
60,000 PSI ductile iron
33 lbs
5500 lb clamp force
Pros
- Ductile iron body rated at 60000 PSI
- Three interchangeable jaw sets including pipe and V-jaws
- 360 degree rotating head and swivel base
- Highest owner rating in the group

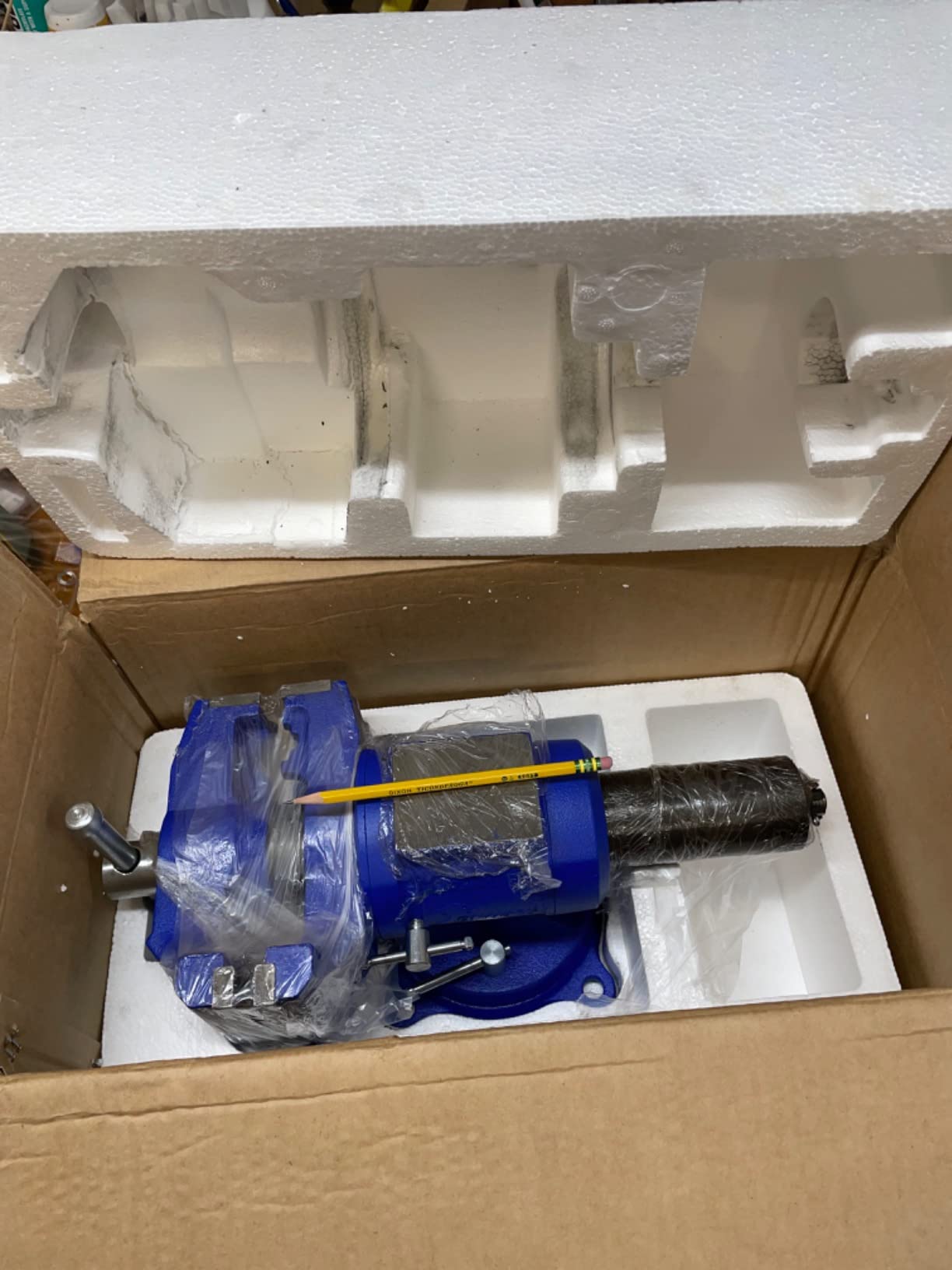

- Arrives in a rigid foam clamshell
Cons
- Swivel needs the lockdown bolts backed out before it will turn
- Light for its jaw size when compared to heavier castings
- Coarse screw pitch means slow jaw travel
This is the vise I would put on a bench first, and the reason is not the marketing number. It is the combination of a 60,000 PSI ductile iron body, three genuinely interchangeable jaw sets, and the highest owner rating across the eight vises I compared, with well over 1,900 reviews behind it. In a category where listings routinely inflate their clamp force, the owner record is the most useful signal available.
The feature that separates it from cheaper 5 inch castings is the jaw package. The microgroove top jaws grip flat work without tearing it, the built-in pipe jaws take round stock from a fraction of an inch up to 2-1/2 inch, and the V-jaws hold round bar for drilling. Having all three in one body means you are not hunting for a second clamp when a job turns from plate to tube.
At 33 pounds it is heavier than the light budget castings but noticeably lighter than the 64 and 75 pound professional models. That is a fair trade if your bench top is a home shop bench that you also use for other things. The clamp force is listed at 5,500 pounds, which is honest for a 5 inch frame and low for the 8 inch models further down.
The 2.6 inch throat is the one number that gives me pause on long jobs. It is enough for most layout, drilling and light forming, but if you regularly work on assemblies where the bolt sits deeper than 2-1/2 inches you will find yourself clamping near the jaw tips, where the work can pivot. That is a geometry limit, not a quality problem, and it is the main reason I place this vise first and the deeper-throated models just behind it in specific categories.

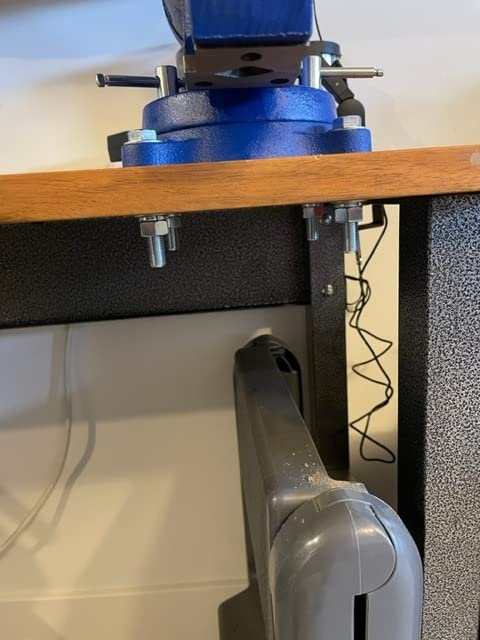

Owners report two consistent quirks. The swivel base will not move until you back the pinch bolts out substantially, and the lead screw is coarse, so the jaws travel a long way per turn of the handle. Neither is a failure. Both are the kind of detail you stop noticing after the first week.
When the 5 inch jaw size is enough
For flat bar, plate, small angle iron, fasteners, and general repair work, 5 inches of jaw width is genuinely sufficient. The 5 inch opening matches the jaw width, which is unusual and useful, because you can clamp a full 5 inch face without the work hanging over the edge.
If your work is mostly forming, bending and fitting, this is the vise to start with. You get ductile iron, a full rotation in two axes, an anvil for light tapping and grinding, and three jaw sets in a body that will not need replacing in five years.
When you should step up instead
Long bar, structural tube, pipe over 2-1/2 inch, and any job where you need a deep throat are reasons to look at the 8 inch Forward or the Yost 760-DI instead. Those castings give you both the width and the depth.
Heavy forging is also outside this vise’s envelope. Ductile iron at 60,000 PSI is a strong general-purpose material, but it deforms before it breaks, and repeated impact work will spread the jaws. For blacksmithing you want a forged steel or an austempered casting.

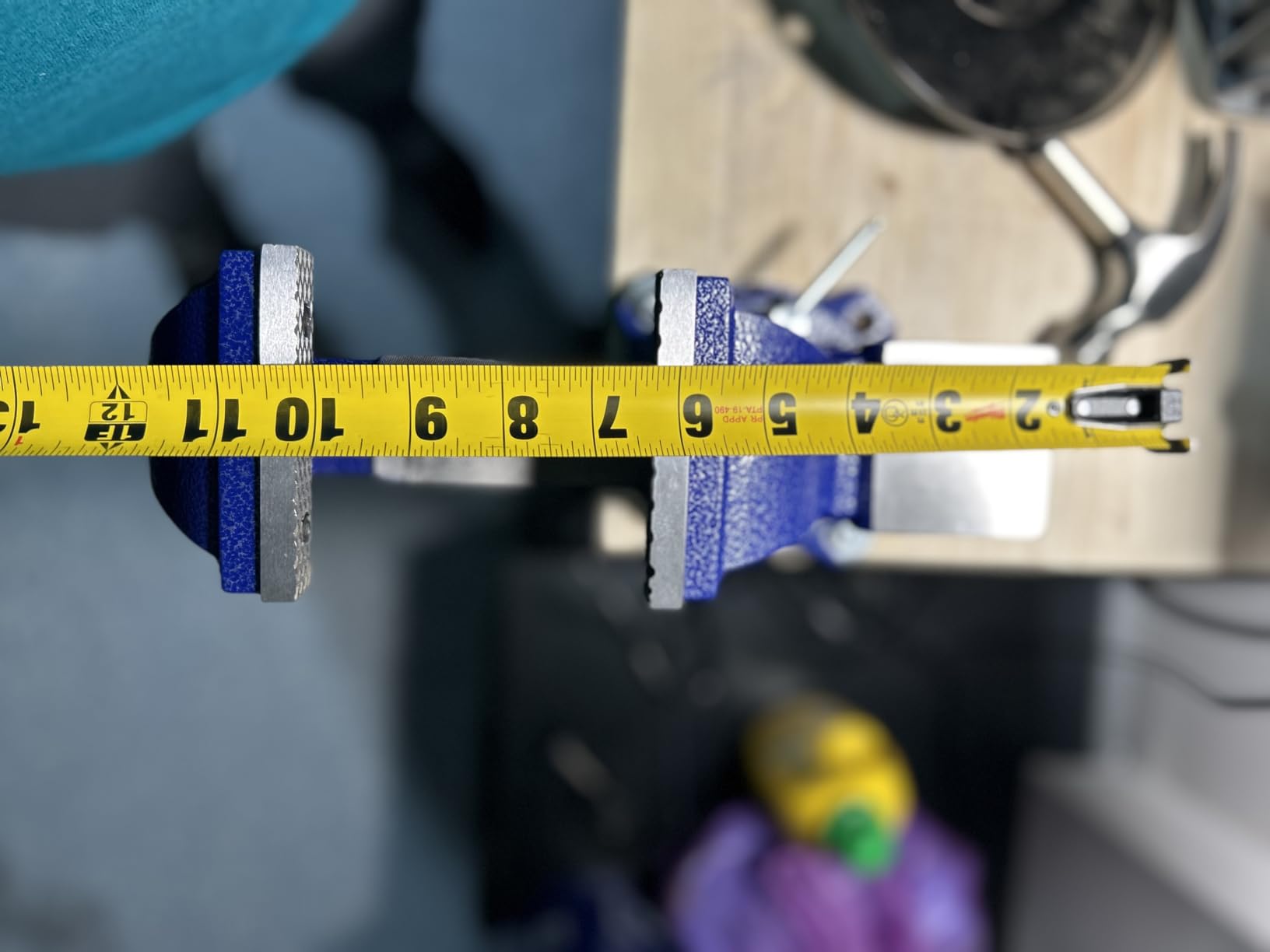

2. Wilton 11106 6 Inch General Purpose Bench Vise
Wilton General Purpose Bench Vise, 6″ Jaw Width, 5″ Max Jaw Opening, 3″ Throat (11106)
6 in jaw
5 in opening
3 in throat
30,000 PSI gray cast iron
38 lbs
Lifetime warranty
Pros
- Lifetime warranty against manufacturing defects
- Replaceable hardened serrated jaw inserts
- 120 degree swivel base with double lockdowns
- Large anvil surface
- Long-running model with a deep owner record
Cons
- Gray cast iron is the lightest-duty material in this group
- Swivel stops at 120 degrees rather than a full turn
- Not intended for forging or high-impact work
This is the default bench vise in a huge share of home metal shops, and after reading several thousand owner reviews I understand why. The jaws are replaceable hardened steel inserts, the swivel locks in two places, and the warranty against manufacturing defects is for life. That combination means the part most likely to wear out is replaceable, and the part most likely to break is covered.
Where it falls short of the picks above and below is material. Thirty thousand PSI gray cast iron is a lighter-duty grade than the 60,000 PSI ductile iron used in the two Forward vises and the Yost 760-DI. It handles drilling, tapping, filing, light forming and general repair without complaint. It is not the grade you want to be swinging a hammer at.
The 120 degree swivel is worth thinking about properly. It covers the positions you actually use, swinging the jaws toward you and to either side, but it does not give you the full 360 degree repositioning that a fabricator working on both sides of a part relies on. If you routinely clamp a piece, rotate the vise, and clamp it again, that limitation shows up quickly.

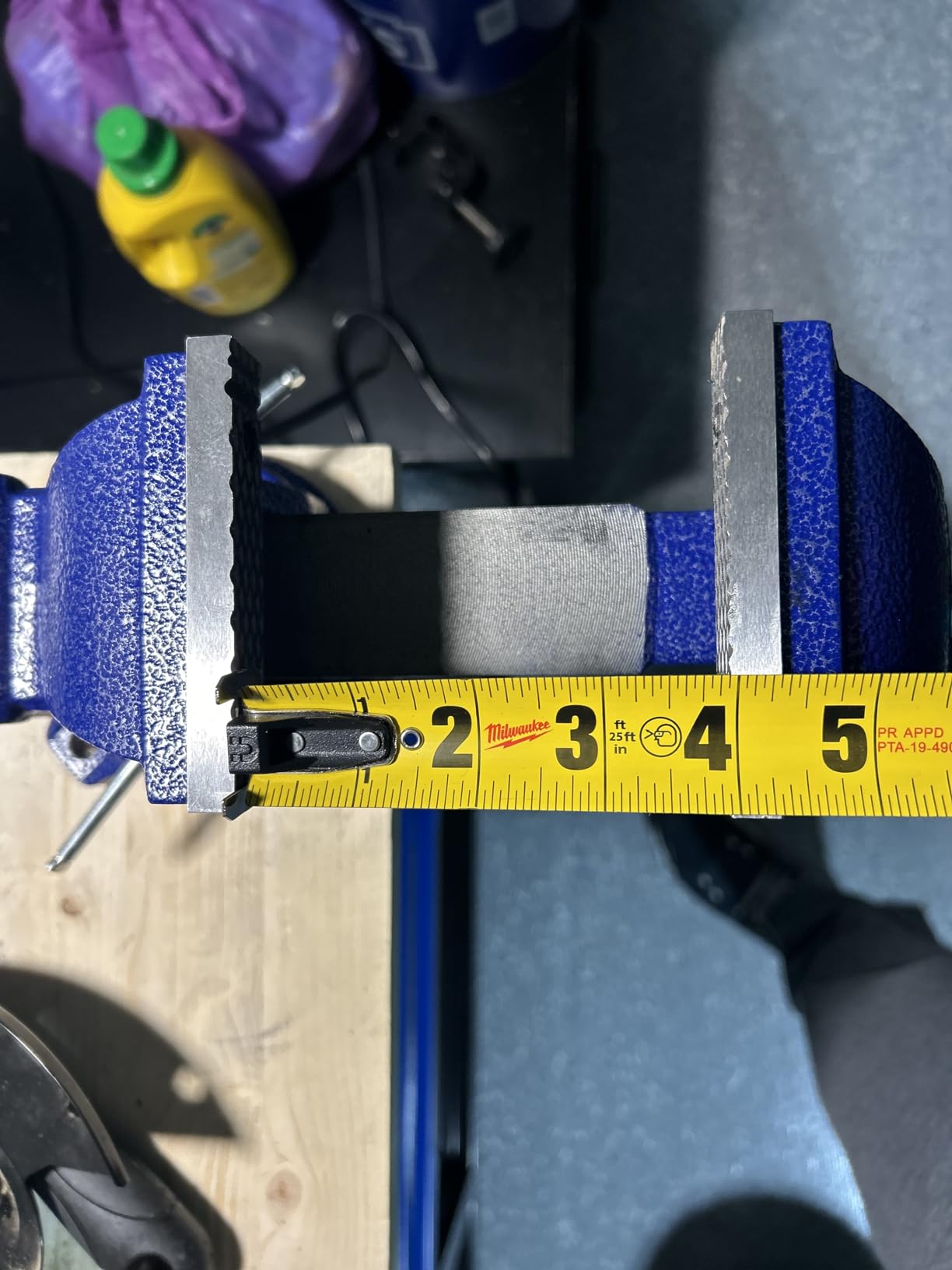

The 3 inch throat is the better number here, roughly half an inch deeper than the 5 inch Forward. For hardware work where a nut sits back from the jaw face, that extra depth is the difference between reaching the part and gripping near the tips.
One warning about the jaws: machine-serrated inserts will mark softer aluminium and mild steel work. If you do a mix of metal and wood in the same shop, add jaw pads or keep a separate wood vise on the bench. We cover the wider comparison in our general bench vise guide.
Why the warranty matters more than the psi figure
A lifetime warranty is only as good as the parts it covers and the willingness to supply them years later. Wilton has been publishing exploded parts diagrams for this model, which means a worn jaw insert or a broken handle can be replaced instead of discarded.
That changes the economics of a lighter-duty body. If the casting is sound, the replaceable wear parts are where a vise actually fails, and a model with orderable parts will outlive one where nothing is available.
Where this model will feel light
Under a cheater bar on a seized fastener, the body flexes more than a ductile iron casting will. On impact work, on hot metal, and on thick structural stock, the jaw plates take the abuse rather than the casting, and the misalignment eventually shows up as a vise that no longer closes square.
If your work is fabricating rather than repairing, the Forward 30608 or the Yost ADI-6 is a more honest tool. This model is at its best as a dependable general-purpose clamp in a mixed shop.

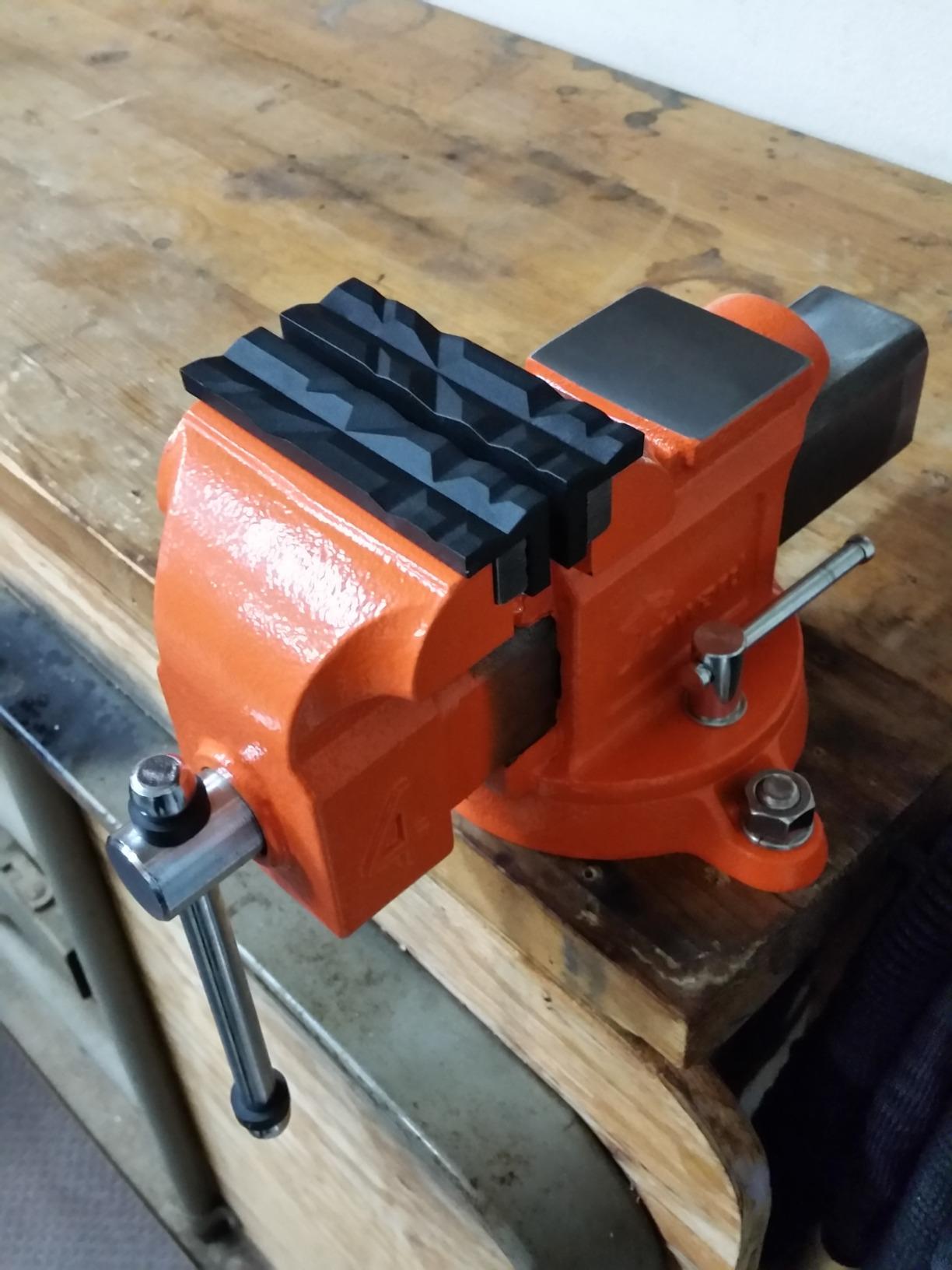

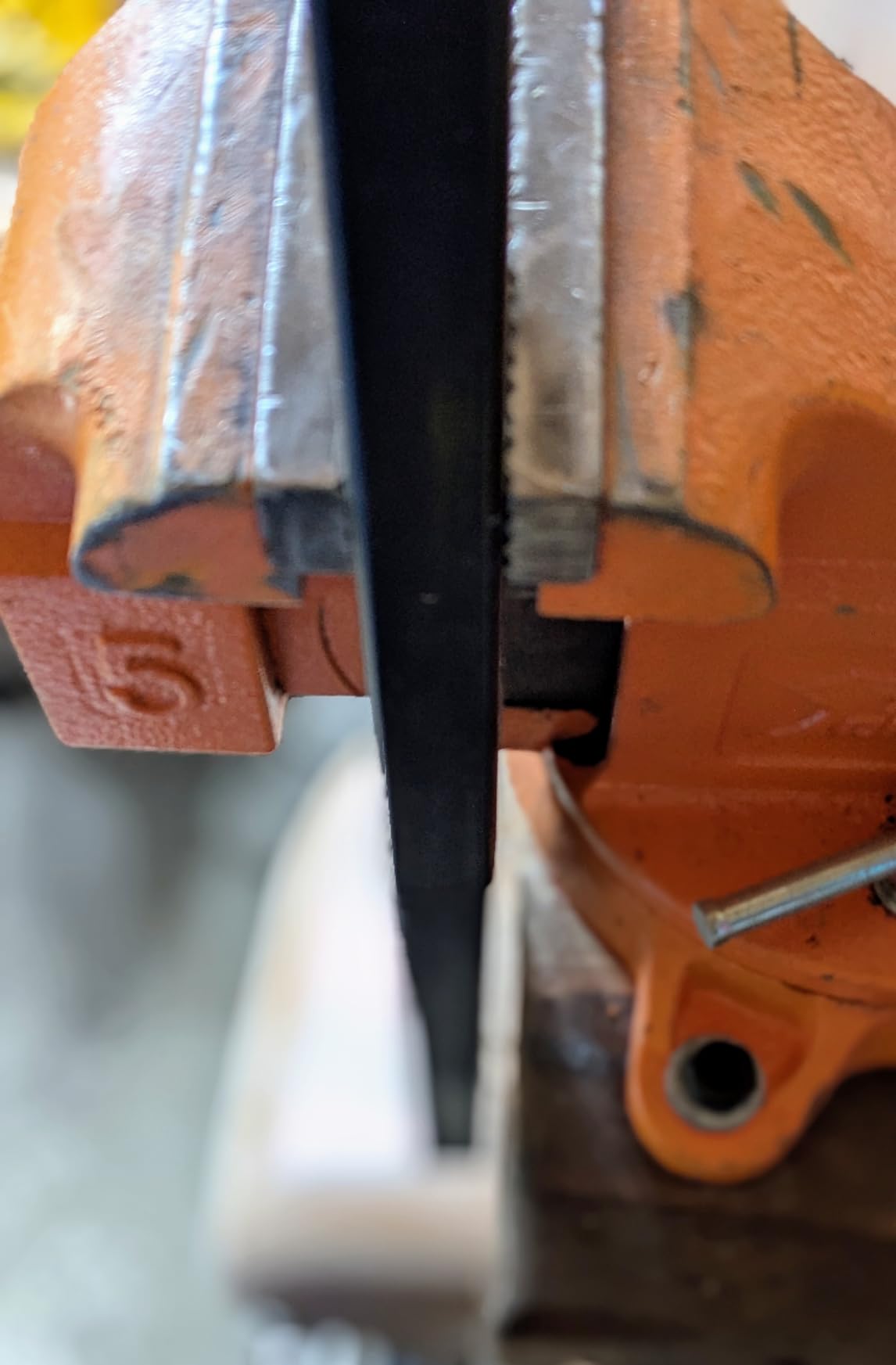

3. Forward 30608 8 Inch Heavy Duty Bench Vise
Forward 30608 8 Inch Bench Vise Heavy Duty with Anvil and 360° Swivel Base
8 in jaw
8 in opening
3.5 in throat
60,000 PSI ductile iron
8800 lb clamp force
Pros
- 8 inch jaw width and 8 inch opening
- Steel U-channel bar resists screw wear
- 8800 lb clamping force
- Replaceable machinist top jaws and built-in pipe jaws
- Swivel locks firmly in any orientation
Cons
- Swivel requires backing the retaining bolts out far
- Factory serration is aggressive and marks soft work
- Fixed jaw sits close to the base for vertical work
- Coarse screw trades leverage for slow travel
When a job stops being a repair and becomes fabrication, jaw width becomes the deciding number. Eight inches of jaw will take a length of flat bar that a 6 inch vise can only hold by cantilevering half of it into the air, and cantilevered work is exactly the work that twists and ruins a part. This Forward 30608 is the size step that most home metal shops are actually missing.
Construction is the 60,000 PSI ductile iron body with a sturdy steel U-channel bar carrying the slide. That bar is the part that wears in a cheap vise, and owners single out the screw as tight with minimal lash even after heavy service. Clamp force is listed at 8,800 pounds, roughly 60 percent above the 5 inch Forward, which is what you would expect from a body this much larger.
Reviewers describe the ductile iron behaviour in a way that matters for understanding the material: it dents rather than cracking when it takes a blow. On a casting that has to survive years of hammering and bending in a working shop, absorbing an impact permanently is a better outcome than a fracture across the slide bar.
The pipe capacity runs from 1 inch to 2-3/4 inch on built-in grooved jaws, and the top machinist jaws are replaceable. That combination covers the two most common metalwork clamping tasks, plate and tube, without a separate pipe clamp on the bench.
The asymmetric mounting hole pattern is a small detail that pays off. Detailed reviewers point out that it lets you mount the vise forward or back depending on whether you are working with long material running away from the bench. Details like that are usually what separates a shop-grade tool from a general-purpose one.
Where 8 inch jaws change your work
Flat bar, square tube, angle iron, structural plate and rebar all become practical. The opening matches the jaw width at 8 inches, so a full-width grip is possible on wide plate, and the 3-1/2 inch throat reaches hardware that a 6 inch vise would only catch at the jaw tips.
Buyers consistently place this model at the top of the build-quality tier for its class, often comparing its screw precision favorably against a Wilton mechanics vise at roughly a third of the cost.
When a deeper throat beats a wider jaw
If your work is pipe, tube fittings and hardware buried inside an assembly, width alone will not save you. The Yost 760-DI reaches 4.31 inch of throat and takes pipe to 4.33 inch, which is a different job from clamping wide flat bar.
The other cost of this size is bench strength. An 8 inch ductile iron vise on a light bench will move under hammering, and that movement is what splits wood bench tops. Mount it over a leg and check the top thickness before you bolt it down.
4. Yost 760-DI Multi-Jaw Rotating Vise
Yost Vises 760-DI Multi-Jaw Rotating Vise 6 Inch Jaw Width | 2 in 1 Multipurpose Bench and Pipe Vise | Secure Grip with Swivel Base | Made with a Combination of Ductile Iron & Hardened Steel
6 in jaw
5.90 in opening
4.31 in throat
75.8 lb ductile iron
Pipe to 4.33 in
Pros
- Dual-axis rotation with head locking every 30 degrees
- Three sets of replaceable hardened steel jaws
- Heaviest casting in the group at 75.8 lb
- Deepest throat here at 4.31 inch
- Pipe capacity up to 4.33 inch
Cons
- Cannot rotate the work once the jaws are clamped
- Minor play at the head while the jaws are open
- Arrives very oily and the screw is not factory greased
Rotation is the headline feature here, and it is genuinely two-axis. The body turns a full 360 degrees on an interlocking V-grooved swivel base with two lockdowns, and the head separately turns 360 degrees with locking at every 30 degrees. That is 12 indexed positions on the head, which means setup is repeatable rather than estimated.
The 75.8 pound casting is the heaviest in this group and it changes the feel of the vise. Owners with decades of shop experience describe it as the best-in-class rotating vise at this level, and the weight is a large part of why: a vise that does not move when you tighten against a bound bolt is worth more than one that slides.
The jaw package is unusually complete. You get serrated bench jaws, pipe jaws and V-jaws, all replaceable hardened steel, with pipe capacity from 0.63 inch to 4.33 inch. That upper figure is the largest here by a wide margin, and pipe capacity is the axis almost no competitor in this roundup addresses properly.
The 4.31 inch throat is also the deepest in the group. For a fabricator working on anything with a fitting, a nut or a bolt head set back inside the assembly, throat depth determines whether you can get a wrench on it at all. This vise answers that better than the wider 8 inch model.
The screw and slide are well machined, and there is a stop that prevents the jaw from falling out of the body. That detail is small until the day it saves you from having a jaw plate land on the floor mid-task.
Why two-axis rotation earns its cost
On a single-axis vise, every reposition means loosening the base, swinging it, and finding the angle again. On this one, you unlock the head, rotate to the next 30 degree detent, and lock. For assembly work where you approach the same piece from several angles, that is the difference between a fast setup and a frustrating one.
It is also the reason this vise suits pipe and tube better than any other pick here, since fitting a tube means getting the jaws square to the work from more than one direction.
When the weight works against you
At 75.8 pounds, this is a bench vise that needs a real bench. Mount it over a leg so the load routes into the floor rather than across the top, and check that your bench top is thick enough not to dish under sustained load.
Owners also note that you cannot rotate a workpiece while the jaws are clamped, which is a design decision rather than a defect. If your process depends on turning the work in the jaws, use soft jaw pads and a V-jaw setup instead.

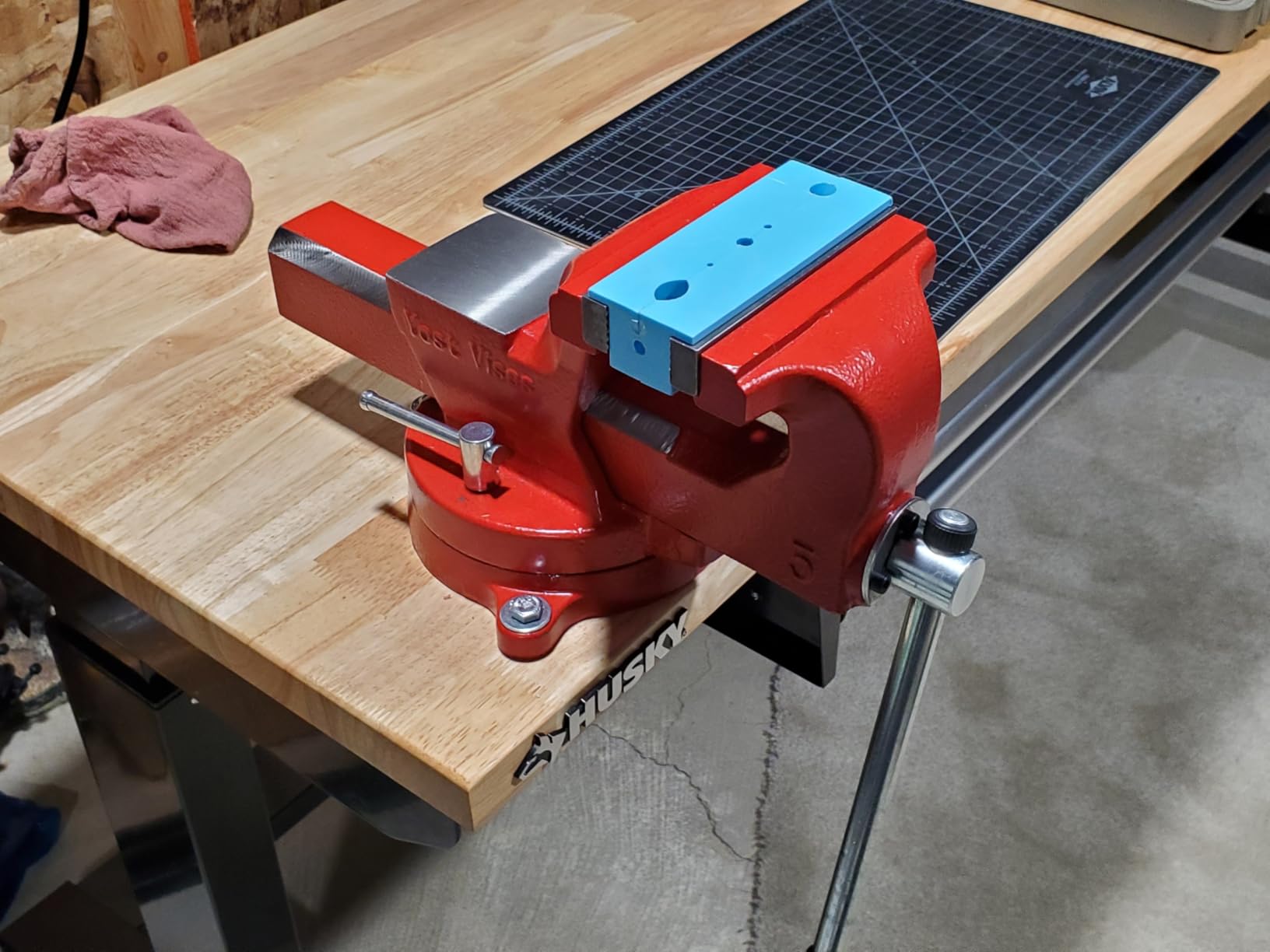

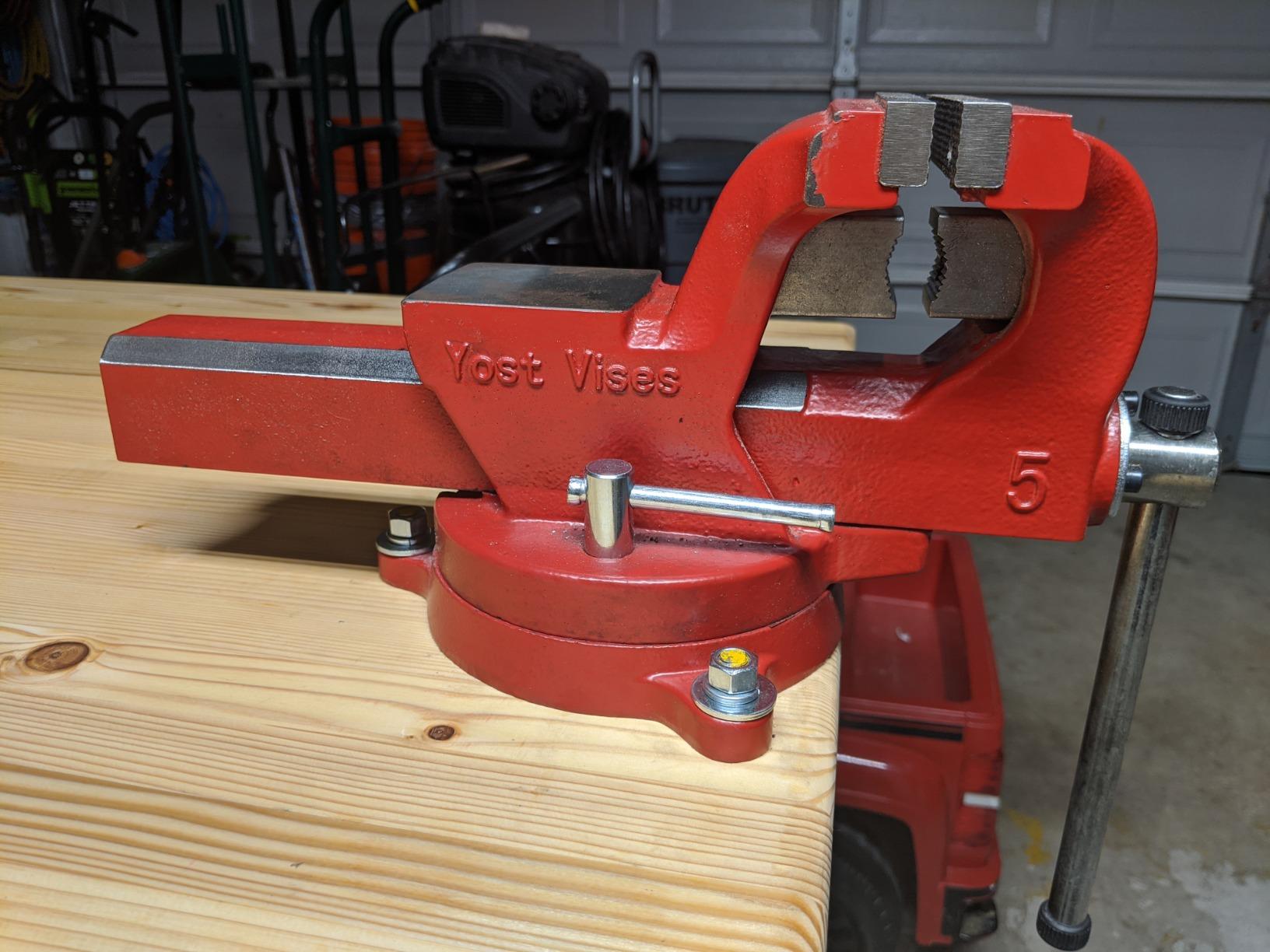

5. Yost ADI-6 Austempered Ductile Iron Bench Vise
Yost Vises ADI-6 Heavy Duty Vise | 130,000 PSI Tensile Strength Austempered Ductile Iron Bench Vise | 6 Inch Jaw Width with a 360 Degrees Interlocking Swivel Base and 2 Lockdowns | Red
6 in jaw
7.875 in opening
3.7 in throat
130,000 PSI austempered iron
42 lbs
Pros
- 130000 PSI austempered ductile iron body
- Geared interlocking 360 degree swivel base
- Zinc plated handle and replaceable hardened jaws
- Limited lifetime warranty on castings
- Large anvil surface
Cons
- Lowest owner rating in this group at 4.6
- Geared base uses three mounting holes not four
- Pipe capacity stops at 3.5 inch
- Sits near the top of the value range for 6 inch
This is the material upgrade in the roundup. One hundred thirty thousand PSI austempered ductile iron is roughly double the tensile figure quoted for the 60,000 PSI ductile castings and more than four times the 30,000 PSI gray iron used in the general-purpose models. Buyers name that body, and the geared swivel base, as the two reasons to step up to this model.
The swivel is interlocking and geared rather than a plain rotating plate, so it locks positively at any angle and stays there. Two lockdowns hold it in position. That matters in an impact context: a plain friction swivel can creep while you are striking metal, and creeping is how a part gets deformed.
The jaw opening is 7.875 inches on a 6 inch jaw. That is a genuinely large opening, and it is unusual, because most 6 inch vises open 5 to 6 inches. The extra opening lets you clamp a wide plate or a formed part without clamping it so far in that the wrench cannot swing.
Jaw capacity runs from 0.75 inch to 3.5 inch for pipe, and both the machinist jaws and the pipe jaws are replaceable hardened steel with a zinc plating that resists corrosion. The handle and lockdown hardware are plated to match. The anvil is large, and the castings carry a limited lifetime warranty.
This is also the model where the mounting detail matters. The ADI base uses three mounting holes rather than the four you find on most vises, so measure your bench and use the template that comes in the box rather than assuming a standard four-bolt pattern.
What the higher tensile figure buys you in practice
Body strength shows up in the tasks that shock a vise. Forming, flattening, bending and repeated impact work are where a 30,000 PSI gray casting starts to distort and a 130,000 PSI austempered body keeps its geometry. If your shop does any striking or shaping, this is the material tier you want.
It also resists the other classic failure, a cracked or bent slide. Members in the tool communities anchor top-tier force claims to forged steel in the region of 90,000 psi, which is a useful calibration point: this casting is quoted above that mark, which is why it earns a place on a metalwork-only list.
When the owner rating gives us pause
This model carries the lowest average rating in the group at 4.6, with a smaller review pool than the other Yost and Wilton models, and a visible share of one-star reviews. That is worth being straight about rather than burying.
The criticism that shows up most often is about value, not function: for a 6 inch jaw, the cost sits near the top of the range, so you are paying for material rather than size. If your work is light, that money buys you nothing you will use.

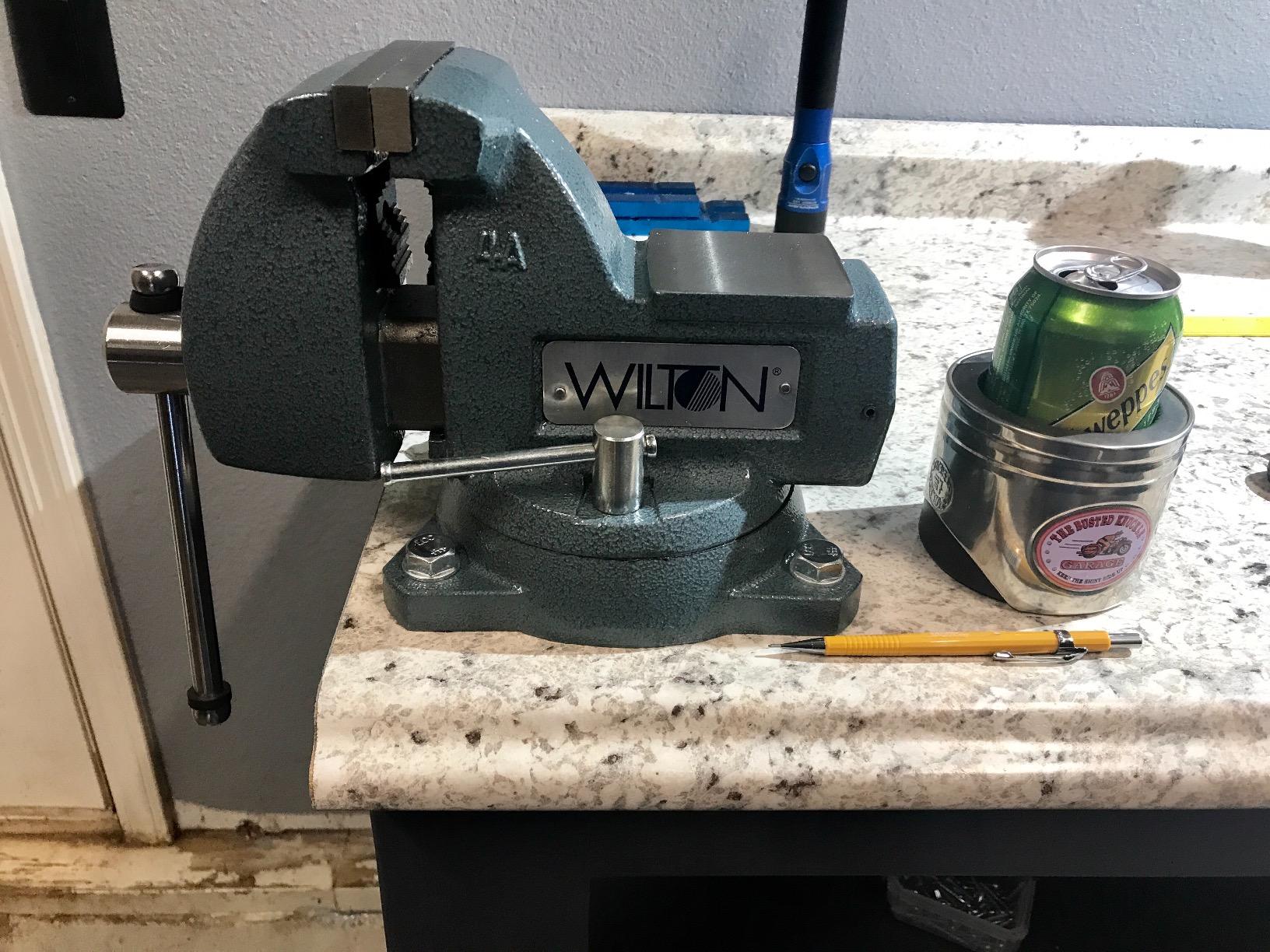

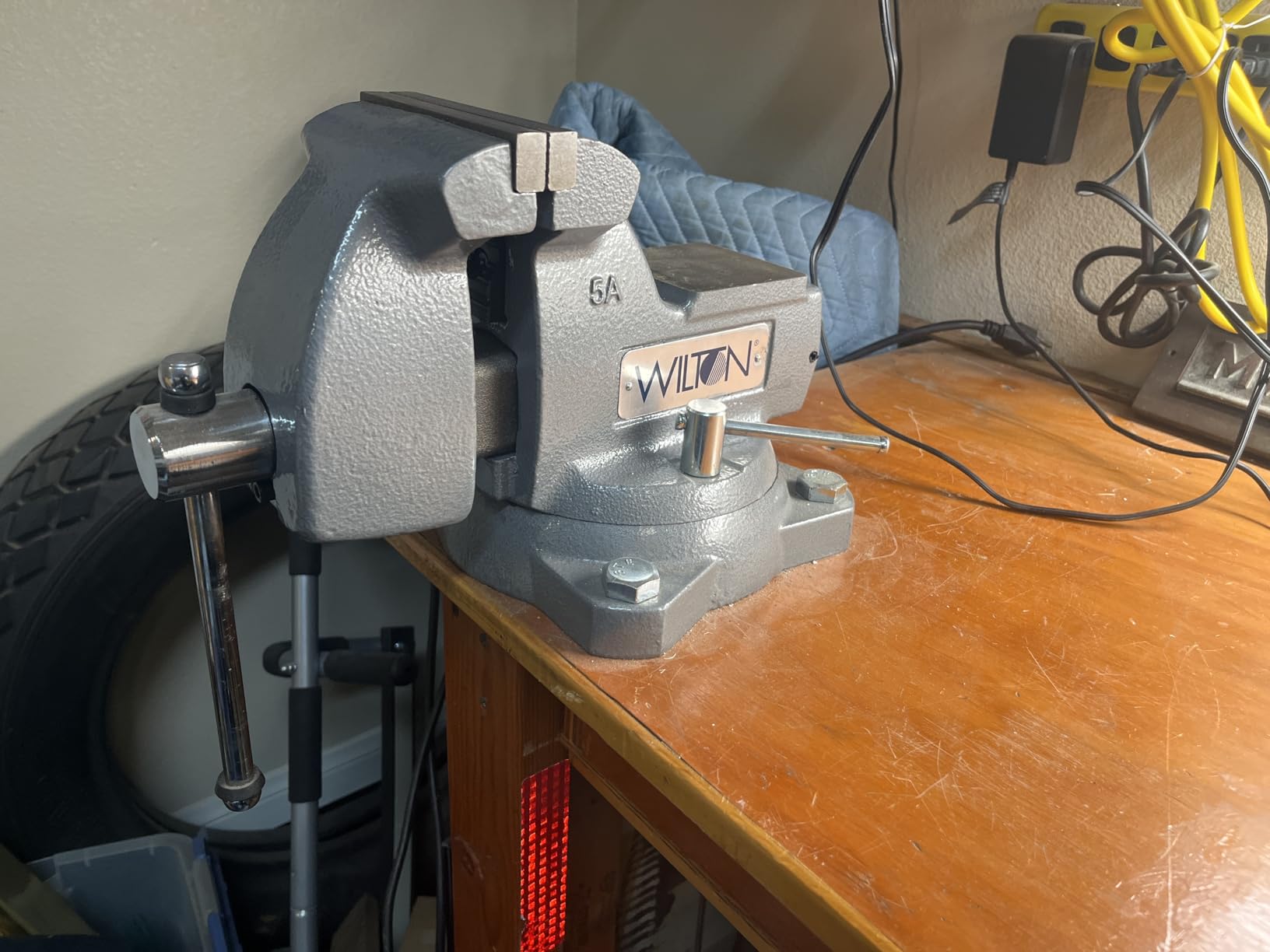

6. Wilton 746 Mechanics Bench Vise
Wilton Mechanics Bench Vise, 6″ Jaw Width, 5-3/4″ Jaw Opening, 4-1/8″ Throat (Model 746)
6 in jaw
5-3/4 in opening
4-1/8 in throat
64 lb casting
Enclosed spindle and nut
Pros
- 64 lb casting that stays put under serious load
- Fully enclosed spindle and nut sheds swarf and keeps lubricant in
- Powder coat finish resists scratches
- Replaceable hardened top and pipe jaws
- Lifetime warranty and orderable parts
Cons
- Highest cost in this roundup
- Needs a substantial bench to sit on properly
- Jaw inserts held with Phillips head screws
- Some arrive needing cleaning and alignment
This is the one on the list that feels like a bench cornerstone rather than a purchase. Sixty-four pounds of casting, a fully enclosed spindle and nut, a powder coat finish, and a lifetime warranty. Owners with long tool histories describe it as a bench fixture they expect to still own in a decade, and that claim is backed by a replacement parts program rather than just a warranty certificate.
The enclosed spindle is the feature to understand. An enclosed spindle keeps swarf, grinding grit and dirt out of the thread and keeps lubricant in. In a metal shop where the vise lives next to the grinder, that is the difference between a screw that turns smoothly for years and one that binds.
The 4-1/8 inch throat is joint-deepest in the group behind the Yost 760-DI, on a 6 inch jaw. For a machinist or fabricator who regularly works on fittings and hardware set back inside an assembly, that geometry is the reason to choose this model over a lighter 6 inch vise.
The swivel base is ductile iron and rotates a full 360 degrees with double lockdowns, so the positioning range is complete rather than partial. Replaceable hardened steel top and pipe jaws cover both plate and tube work, and the anvil is large enough for striking and forming.
One clarification belongs here, because machinists mix these categories constantly. A machinist bench vise like this is not a machine-tool vise. Members on the r/Machinists forums reach for a Kurt or Dake vise on the mill for precision work, and treat a bench vise as a secondary tool for holding, filing and hand work. A bench vise will not hold a workpiece to the tolerances that a machine vise does, no matter how heavy it is.
How to tell whether your bench can take it
Sixty-four pounds concentrated at one corner is a real structural load. If your bench top is thin particle board or a light steel frame, this vise will find the weak point, and the result is a cracked top or a vise that moves while you hammer.
Mount over a bench leg so the load runs into the floor rather than across the top panel. That single change resolves the bench bounce complaint that comes up repeatedly in metalworking forums, where the usual fix for a failing wood top is cutting the old welds out, removing the tube frame, reinforcing with metal bands and re-mounting over a leg.
What to check the day it arrives
Some units in this class arrive needing degreasing and a small alignment adjustment before they close square. Jaw inserts on this model are held with Phillips head screws rather than hex bolts, so keep a Phillips driver handy and check that the jaws sit parallel with a straightedge before you clamp work in it.
The casting carries no stamped model number, which owners note can complicate warranty claims. Photograph the vise and the receipt on the day it arrives, and that solves the problem entirely.

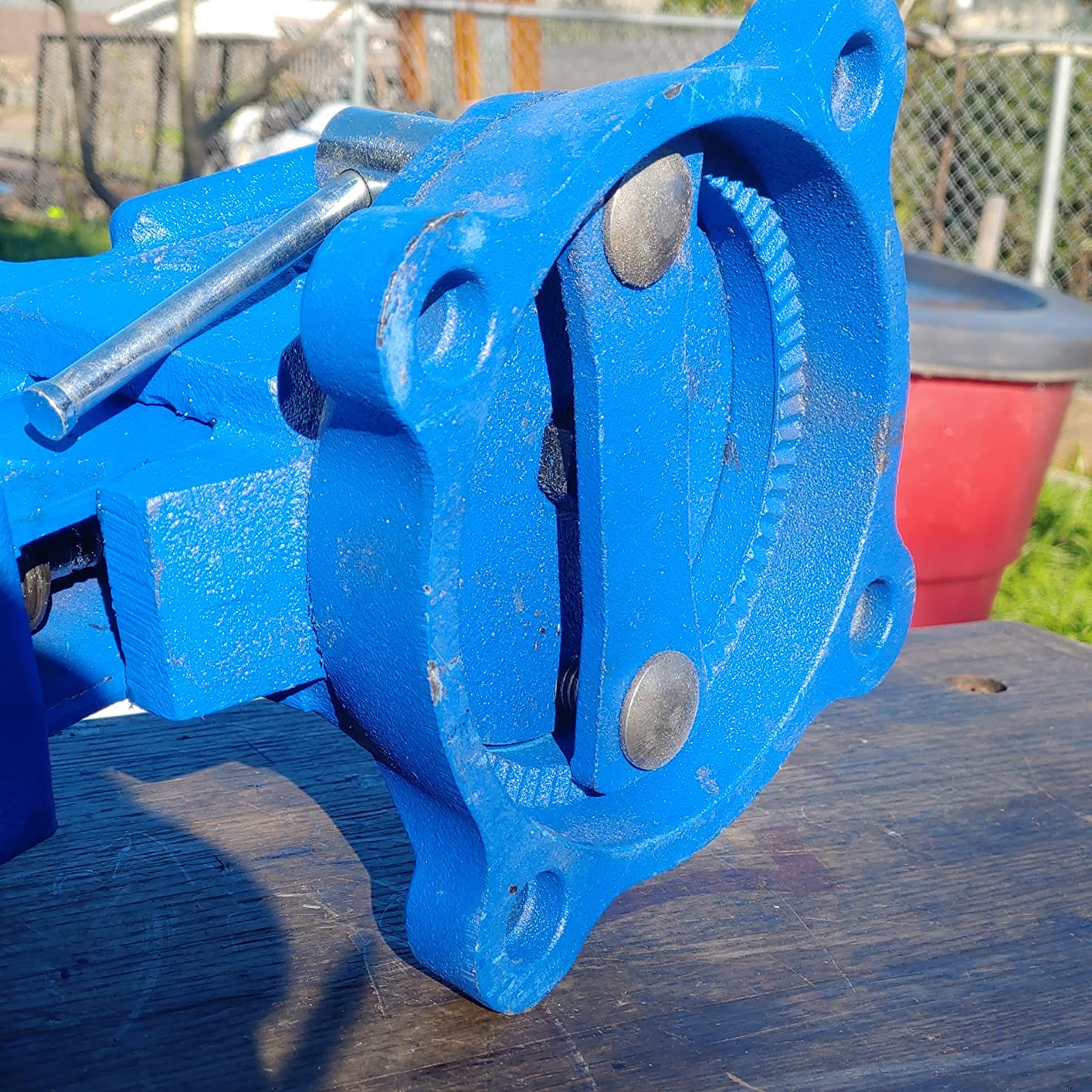

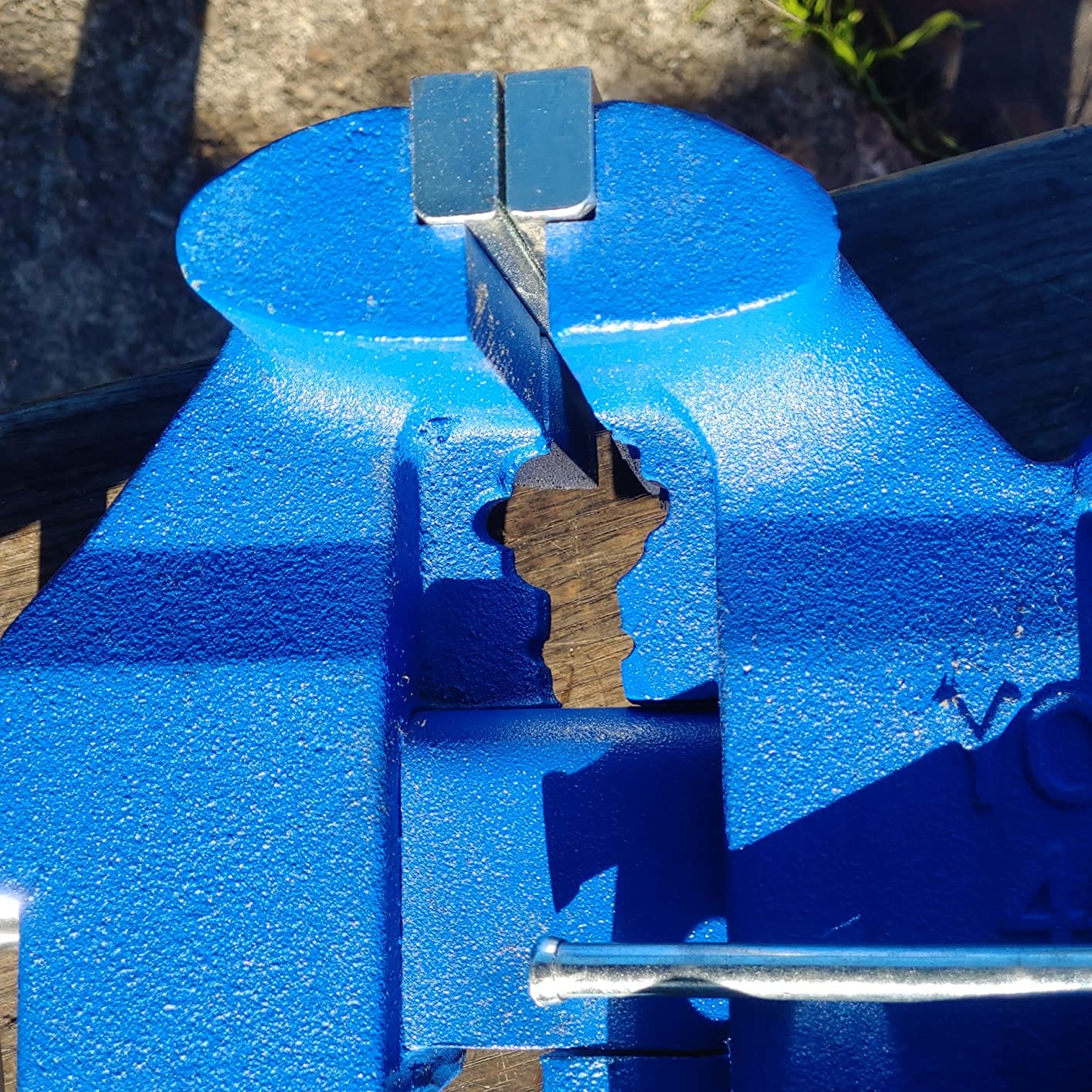

7. Yost 460 Combination Pipe and Bench Vise
Yost Vises 460 Combination Vise | 6 Inch Jaw Width Heavy-Duty Utility Pipe and Bench Vise |Secure Grip with Swivel Base| Made with Cast Iron and Steel U Channel Bar | Blue
6 in jaw
6 in opening
4.375 in throat
16 lb cast iron with steel bar
Pipe to 3 in
Pros
- Combination pipe and bench jaws in one body
- Deep 4.375 inch throat for the jaw size
- Only 16 lb so it suits lighter benches
- Swivel rotates smoothly and locks firmly
- Handle grommets stop it sliding
Cons
- 30000 PSI gray iron rules out forging and impact work
- Permanent pipe jaw is not replaceable
- Mounting bolts are not included
- One-year warranty against lifetime on the Wilton models
The Yost 460 is the most-reasoned pick in the set and the one most people on a tight budget should actually buy. A 6 inch jaw, a 6 inch opening, a 4.375 inch throat and combined pipe and bench jaws, in a body that weighs 16 pounds. That throat depth is deeper than three of the heavier vises on this list.
It is also the only model here under 20 pounds, and that changes who can own it. A 16 pound vise bolts onto a bench that will not hold a 75 pound one, and for a renter, a student, or anyone sharing a small workspace, that is often the deciding factor rather than a compromise.
Owners consistently frame it as the value pick. Jaws seat, align and grip evenly, the combination body takes pipe from 0.125 inch to 3 inch, and reviewers put the clamping capability at roughly 120 ft-lb class work, which covers a lot of everyday fitting and repair jobs. The rubber grommets on the handle ends dampen noise and stop the handle sliding sideways under load.
The steel U-channel bar is the detail that keeps a low-cost vise working. Gray iron sliding on itself wears quickly, and the steel bar gives the screw a hard surface to run against for the life of the tool.
Be clear-eyed about the limits. Thirty thousand PSI gray cast iron is the same light-duty grade as the Wilton 11106, which means no blacksmithing and no sustained impact work. And a permanent pipe jaw cannot be replaced if it wears down, unlike the top jaws on the Wilton models.
Why a permanent pipe jaw is a real limitation
On pipe work, the jaw serration takes the abuse, not the casting. A replaceable pipe jaw is a cheap part you swap once; a permanent one means the vise is eventually finished for pipe work even if the rest of it is fine.
If you do serious pipe and tube work, the Yost 760-DI takes pipe up to 4.33 inch with replaceable sets, and the Wilton 550P converts to a pipe clamp in a quarter turn. The 460 remains a strong bench vise that happens to have a pipe jaw.
What you need to know before mounting
Mounting bolts, washers and nuts are not included, and a few owners report that the hole pattern does not match the printed template. Measure the vise and mark your own holes before you drill the bench top.
The warranty is one year limited against lifetime on the Wilton models, so factor replacement parts into the long-term cost if you plan to keep this vise for years rather than seasons.

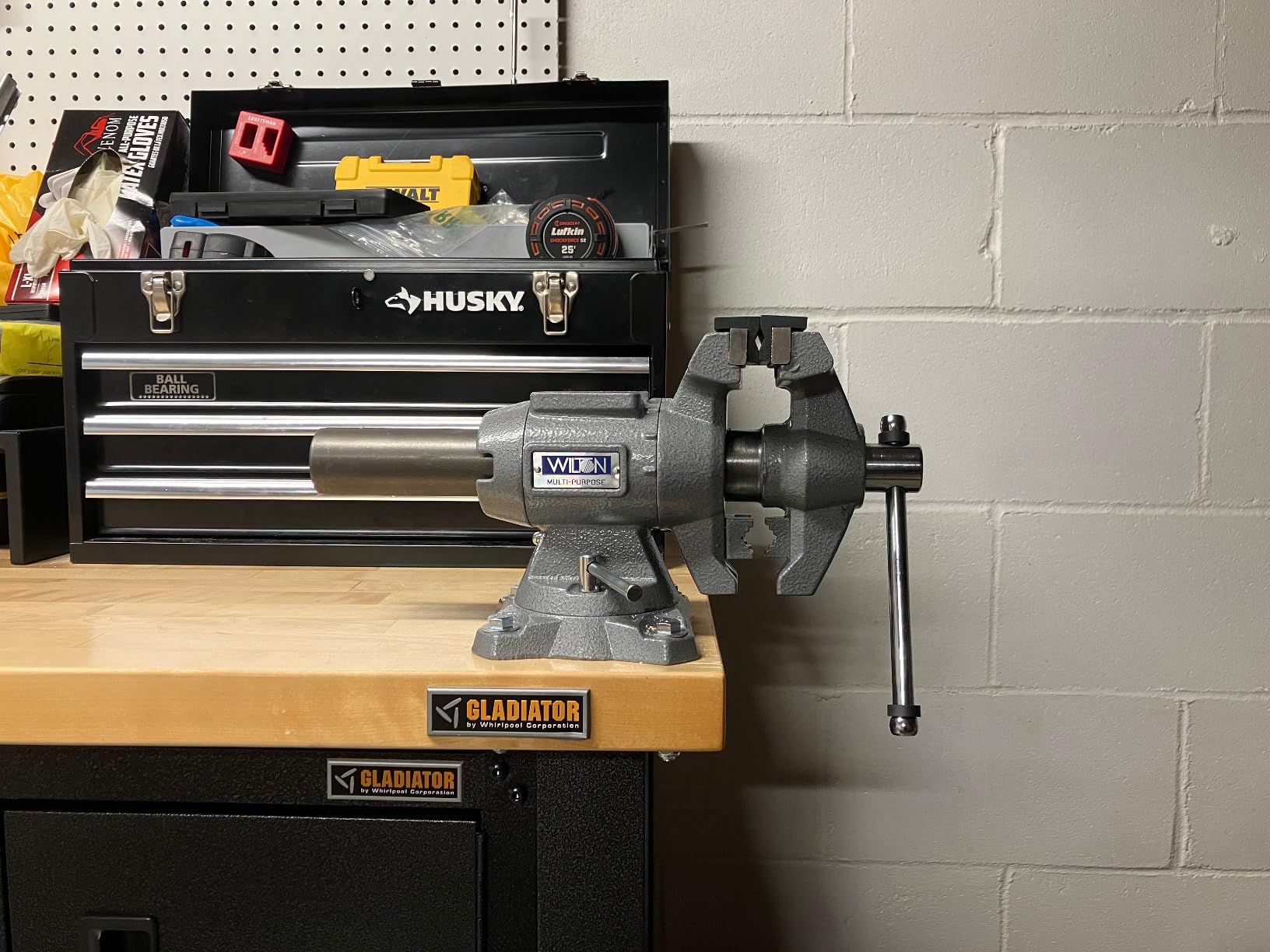

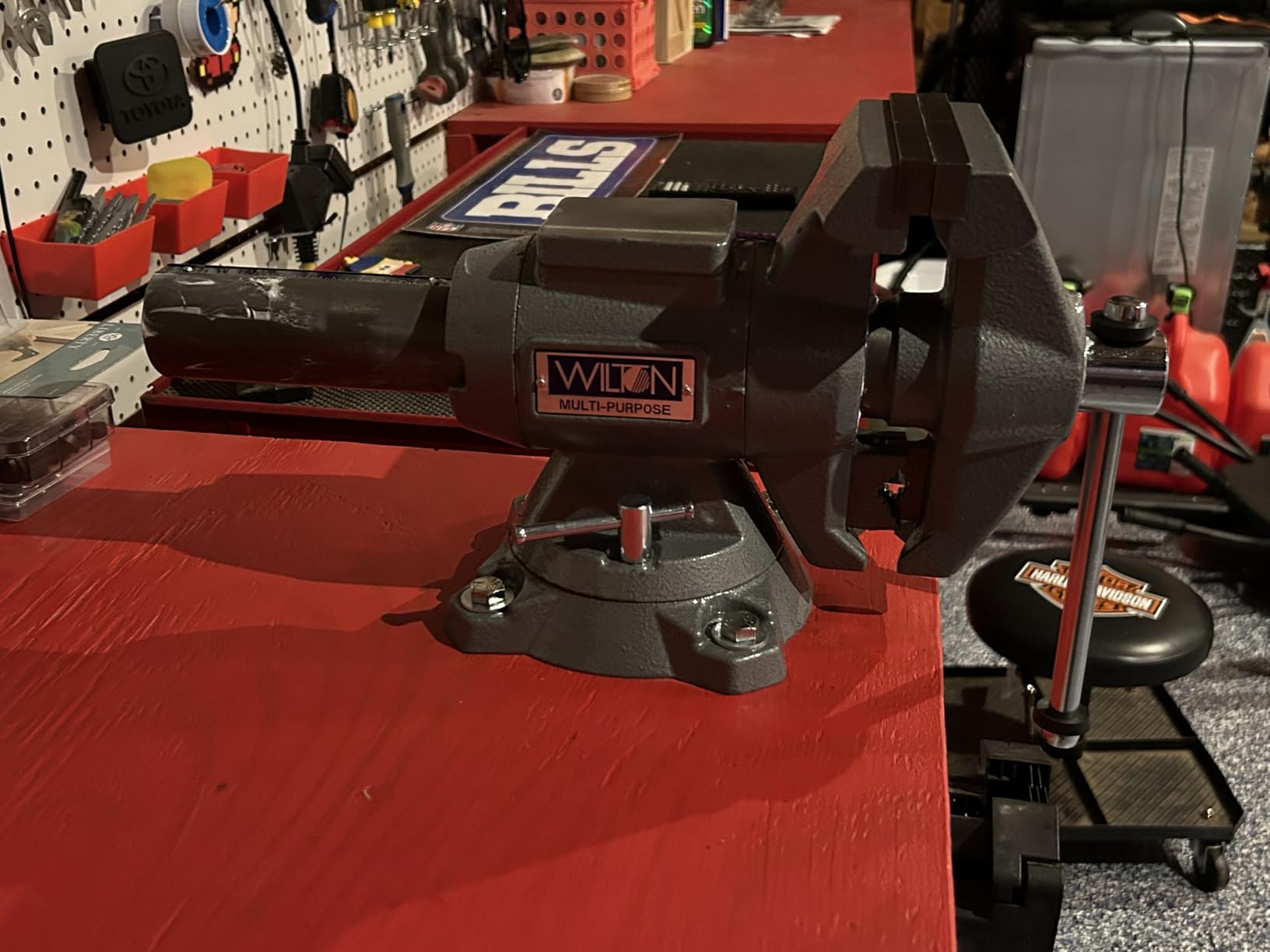

8. Wilton 550P Multi-Purpose Bench Vise
Wilton Multi-Purpose Bench Vise, 5-1/2″ Jaw Width, 5″ Max Jaw Opening, 2-3/4″ Throat (Model 550P)
5-1/2 in jaw
5 in opening
2-3/4 in throat
40 lb
Head indexed every 30 degrees
Pros
- Head locks at 30 degree increments for repeatable setup
- Converts from bench vise to pipe clamp in a quarter turn
- Very smooth screw and crank action
- Replaceable hardened jaws plus V-jaws for round bar
- Lifetime warranty with orderable parts
Cons
- Finish chipping at the base-to-body joint on some units
- No bearings between base and body so the surfaces can rust together
- Swivelling needs about three full turns of the T-handles
- Packaging is thin for a 40 lb casting
The 550P solves a specific problem: how to get pipe capability out of a bench vise without bolting a second clamp to the bench. Switching from bench vise to pipe clamp takes a quarter turn of the set screw, and the head indexes at 30 degree increments so you can set the same angle twice and get the same result.
The screw action is the standout. Owners describe it as smooth enough that some can open and close the jaws with one finger, and several long-term users report this is the third Wilton vise on their bench, with an earlier one lasting 12 years. That is the durability signal you cannot manufacture, and it is why this model appears on a metalwork list despite the narrower 2-3/4 inch throat.
Jaw capability is broad for a 5-1/2 inch frame. You get replaceable hardened steel serrated jaws, replaceable steel pipe jaws, and V-jaws that hold round bar vertically for drilling. The built-in anvil is large, and it is positioned for forming and shaping rather than light tapping only.
At 40 pounds it is substantial for its size, which is exactly the right weight for compact shops that want a firm clamp but not the 75 pound commitment of the rotating Yost. It bolts to a mid-weight bench without overloading it.
The 5-1/2 inch jaw is the practical limit. The throat of 2-3/4 inches is the shallowest of the eight, and if your work involves reaching hardware set back inside a fitting, this is not the vise for that job. It is a very good bench-and-pipe clamp for flat work, forming and general repair.
The rust trap nobody warns you about
There are no bearings between the base and the body on this model. In a humid shop, or anywhere the vise sees standing damp, those two cast surfaces can rust together and seize the swivel permanently. A light film of grease or a spray lubricant on the joint once a season prevents it entirely.
Some owners also report the finish chipping at the base-to-body joint when the vise is disassembled for mounting, and packaging that is not robust enough for the transit handling a 40 pound casting attracts. Inspect the vise on arrival before you commit to a mounting pattern.
When 5-1/2 inches is the right answer
If your bench is shared, your work is a mix of flat bar, forming and light pipe work, and you want one tool instead of two, this is the pick. The indexed head and the quarter-turn pipe conversion cover most of what a small shop does.
Once you start running heavier bar and plate, or deeper fittings, move up a size. The 6 inch models in this roundup cost little more and give you a full inch of jaw plus significantly more throat.
How to Choose a Heavy-Duty Bench Vise
The eight picks above cover the range from a 16 pound cast iron bench vise to a 75 pound rotating casting, and the differences between them matter less than three numbers: body material, throat depth and the geometry of the jaw opening. Here is how to read those, plus the mounting and inspection decisions that decide whether a vise lasts five years or twenty-five.
What body material actually means
Material is the first filter, and it is the one most shoppers skip. Thirty thousand PSI gray cast iron is adequate for drilling, tapping, filing, light forming and repair work. Sixty thousand PSI ductile iron is the metalwork standard: it deforms rather than cracking under impact, and that is a better outcome than a fracture across the slide bar. One hundred thirty thousand PSI austempered ductile iron is a genuinely different tier, and it is the grade to own if you form, flatten or strike metal.
Forged steel sits above all of these. Tool communities anchor the top of the range at roughly 90,000 psi for a dropped forged steel body, which is a useful calibration when a listing quotes a clamp figure with no material named at all. If a seller will not state the material and the tensile figure, treat the clamp force number as unverified.
Jaw width, jaw opening and throat depth are three different things
Jaw width is the length of the clamping surface, and it determines what you can hold flat without cantilevering. Jaw opening is the maximum distance between the jaws when fully open, and it determines the cross-section you can load. Throat depth is the distance from the top of the jaw down to the screw, and it determines how deeply you can hold a workpiece and still get a tool on the fastener.
Most buyers over-weight width. In practice, throat depth is what decides whether a job is easy or impossible. Compare the 5 inch Forward at 2.6 inch of throat with the Wilton 746 at 4-1/8 inch on the same 6 inch jaw class, and the second one reaches hardware the first cannot touch.
A good size for most real metalwork is 6 inches of jaw. Five and a half inches is a parts and occasional fabrication size, 8 inches is the shop-grade threshold, and 12 inch vises exist for structural and post work. Tie size to bench mass: the heavier the vise, the heavier the bench it needs.
Swivel base, quick release and anvil
A swivel base that rotates 360 degrees lets you bring the work to you instead of walking around the bench. The 120 degree range on the Wilton 11106 covers common positions, while a full rotation with two lockdowns, as on the Yost 760-DI and the Wilton 746, covers everything. An indexed head, as on the Yost 760-DI and the Wilton 550P, makes setup repeatable.
Quick release is a separate mechanism from rotation. It opens the jaws fast without turning the handle screw, which matters when you are repositioning repeatedly. Not every vise in this roundup has it, and it is worth checking before you buy if you expect a lot of setup changes.
The anvil is the flat striking surface on the rear of the body. It is genuinely useful for light tapping, flattening and bending, and it is where a lot of “heavy-duty” claims quietly stop: an anvil on a light casting will dent before it does anything useful to your work.
Jaw inserts, pipe jaws and V-jaws
Removable jaw plates are the wear item on any vise, and a vise with replaceable hardened steel plates will outlast one without. Pipe jaws are a separate insert, and their capacity, measured as maximum pipe diameter, varies enormously: 2-3/4 inch on the 5 inch Forward, 3 inch on the Yost 460, 3.5 inch on the Yost ADI-6, and 4.33 inch on the Yost 760-DI.
V-jaws hold round bar so it can be drilled or cut without rolling. If you work with rebar, round bar or tube, a V-jaw is not optional. Just as important: machine-serrated jaws mark soft metal and wood, so add jaw pads or keep a separate wood vise if your shop does both. That tradeoff is covered in more detail in our general bench vise roundup.
Mounting and bench load
Almost no vise includes mounting bolts, because bench thickness varies. Use four bolts through the benchtop secured to nuts underneath, in the 5/16 to 3/8 inch range, and position the vise over a bench leg so the load runs into the floor rather than across the top panel. On the Yost ADI-6, the base uses three mounting holes instead of four, so mark your own pattern from the vise rather than from a template.
Wood bench tops crack under the concentrated load of a heavy vise. This is the most common complaint in metalworking forums, and the fix is the same as it is for bench bounce: reinforce the top or mount over a leg. A 75 pound casting on a thin top will find the weak point in the first month of hammering.
How we judged these eight, and what we did not do
We did not bench-test these vises, so this roundup does not claim break-test numbers. Instead, every specification here comes from manufacturer data, and every strength claim comes from the owner reviews attached to each listing, which is the same source the buying public can see. Where owners report a specific failure, such as a stiff swivel or an aggressive jaw serration, we report it rather than filtering it out.
Clamp force deserves a caution. Manufacturers quote it inconsistently, and a cheater bar on the handle multiplies the published handle rating several times over, so two vises with the same number are not necessarily equivalent. Treat clamp force as one input, alongside material, throat depth and mass.
What to inspect in the first ten minutes
Five checks separate a good vise from a bad one before you ever bolt it down. Run the handle through its full travel and confirm the screw turns smoothly with no binding. Close the jaws on a sheet of paper and check that the jaw faces contact evenly along their whole length. Check the jaw alignment with a straightedge, since a vise that closes unevenly will not hold work square. Turn the swivel and confirm the lock holds under hand pressure. And inspect the casting, the anvil and the jaw screws for cracks or stripped threads.
Worth adding a sixth: photograph everything on the day it arrives. It solves warranty claims, and one of the models here carries no stamped model number on the casting.
Care, maintenance and the welding spatter problem
Keep a light film of oil on the screw, and clean swarf out of the threads after grinding sessions. If a model has no bearings between the swivel base and the body, as the Wilton 550P does, grease that joint in a humid shop or the two castings can rust together and seize.
If you weld at the same bench, the screw is the weak point. Experienced metalworkers specifically warn against welding work with a vise that has an exposed screw, because spatter locks the mechanism and turns a long job into a repair job. Either shield the vise, work on a different bench, or pick a model with an enclosed spindle such as the Wilton 746.
Frequently Asked Questions
What is the best brand of bench vise for mechanics?
Wilton and Yost dominate this category, and the difference comes down to construction. Wilton pairs lifetime warranty coverage with fully enclosed spindles that keep swarf out, as on the 746. Yost offers the wider material range, including the 130,000 PSI austempered casting in the ADI-6. For automotive work, the Wilton 746 is our pick for its mass, enclosed spindle and deep 4-1/8 inch throat.
What is the strongest bench vise available?
Strength is a combination of body material, casting mass and spindle construction rather than a single figure. Forged steel anchors the top of the range at roughly 90,000 psi in community testing, while the Yost ADI-6 in this roundup quotes 130,000 PSI austempered ductile iron in a 42 pound body. Marketing clamp-force numbers are not directly comparable across brands, and a cheater bar multiplies the handle rating several times over.
What is the best bench vise for the money?
The Forward DT08125A is the strongest value in the 5 inch class, pairing a 60,000 PSI ductile iron body with three interchangeable jaw sets including pipe and V-jaws. For a 6 inch frame, the Wilton 11106 adds replaceable serrated jaws and a lifetime warranty. The Forward 30608 delivers 8 inch jaws and an 8,800 pound clamp figure below the professional tier, which is where most metalworkers land.
What is a good size for a bench vise?
Six inches of jaw width is the practical minimum for real metalwork, five and a half inches suits parts work and light fabrication, and 8 inches is the shop-grade threshold for flat bar and structural stock. Check throat depth as well as width, because it decides whether you can reach a buried fastener. Match size to bench mass, since a 75 pound casting needs a substantially heavier bench than a 16 pound one.
Do I need a swivel base vise?
A swivel base lets you rotate the clamping head instead of walking around the bench, which matters most when you work on both sides of a piece. A 120 degree swivel covers common positions, while a full 360 degree rotation with two lockdowns covers everything. If your work is mostly flat plate facing you, rotation adds convenience rather than capability, and throat depth matters more.
What is the difference between a machinist vise and a woodworking vise?
A machinist vise is built from cast or ductile iron with hardened serrated jaws, a deep throat and a hardened anvil, and it is designed to hold metal under load. A woodworking vise is face-mounted with a smooth or lightly textured jaw that takes wood jaw liners, and it adds a dog and bench stop for joinery work. A third category, the machine-tool vise, is used on mills and lathes for precision work a bench vise cannot do.
Which Bench Vise Should You Buy?
Start with the Forward DT08125A. Across this group of eight, it pairs the highest owner rating with the largest review count, and it does it in 60,000 PSI ductile iron with three jaw sets and full two-axis rotation, which is more capability per pound of bench than anything else here. For flat bar, plate, forming work and general fabrication, it is the best heavy duty bench vise for metalwork you can buy without a professional bench behind it.
Then pick by geometry. Reach for the Yost 760-DI when pipe and fittings lead your workload, because its 4.31 inch throat and 4.33 inch pipe capacity are unmatched in this group. Reach for the Forward 30608 when you are clamping long bar and wide plate and need 8 inches of jaw. Reach for the Yost ADI-6 when you hammer and form, and for the Wilton 746 when you want enclosed-smooth spindle construction, a lifetime warranty and a bench that stays put.
Whatever you choose, measure the bench before you order, mount over a leg, and inspect the vise in the first ten minutes. A well-mounted vise with a deep throat will still be working long after the model you nearly bought has been replaced.
