Most people arrive at a CNC router the same way I did. You already own a handheld router and a router table, you are comfortable reading a cut list, and then a video convinces you that a machine could do all ten cribbage boards identically before breakfast. That hope is real, but so is the price tag, the learning curve and the pile of MDF dust. This guide covers the best CNC routers for hobby woodworking you can realistically set up in a garage or basement, using published specifications and owner reports rather than guesses.
A CNC router is a computer-controlled machine that walks a spinning bit along a programmed path. You draw or model the part, CAM software turns it into G-code, and the controller moves three stepper axes to follow the toolpath at a set feed rate and spindle speed. For a hobby woodworker that means repeatable parts, complex lettering and joinery you could not freehand, and a single design scaled up to a full sheet of material.
What it does not mean is replacing your handheld router. A CNC machine cannot follow a wavy edge, hold a dado on a long board, or cut a stopped groove in a solid oak tabletop the way a router table can. Treat the machine as an addition for sheet goods, signs, inlays and repeated parts, not a swap. If you want a broader view of the machines on the market, our CNC machine roundup covers the non-woodworking entry points too.
Quick Picks: The Top 3 CNC Routers for Hobby Woodworking for October 2026
The best CNC router for hobbyists is the Genmitsu 3018-PRO, because it has the largest owner history of any machine here and gives you a working understanding of G-code for a fraction of the cost of a mid-size bed. If safety hardware matters more to you than saving money, step up to the 3018-PROVer V2, which adds hard limit switches, an emergency stop and a Z-probe. If you want the first machine to grow with you, the FoxAlien Masuter Pro pairs a 15.75 inch square bed with a documented upgrade path.
10 CNC Routers for Hobby Woodworking Compared Side by Side in October 2026
Every machine below runs open-source GRBL firmware, so your CAM options are the same across the board: VCarve, Fusion 360, Carbide Create, gSender or Candle. The real differences are bed size, motor power, drive system and what safety hardware arrives in the box.
| Product | Specs | Action |
|---|---|---|
| Genmitsu 3018-PRO |
|
Check Latest Price |
| Genmitsu 3018-PROVer V2 |
|
Check Latest Price |
| FoxAlien Masuter Pro |
|
Check Latest Price |
 TWO TREES TTC3018 Pro |
|
Check Latest Price |
 Genmitsu PROVerXL 4030 |
|
Check Latest Price |
 Genmitsu 4040-PRO |
|
Check Latest Price |
 LUNYEE 3018 Pro Max |
|
Check Latest Price |
 FoxAlien Masuter 3S |
|
Check Latest Price |
 Genmitsu 4040-PRO MAX |
|
Check Latest Price |
 FoxAlien XE-PRO |
|
Check Latest Price |
1. Genmitsu 3018-PRO – The Most Proven Starter CNC Router
Genmitsu CNC 3018-PRO Router Kit, 3-Axis CNC Machine, Mini Milling Machine
300 x 180 x 45mm bed
120W spindle at 20000 rpm
GRBL control
Offline controller
15.3 pounds
Pros
- 1697 ratings
- the largest owner history in the roundup
- Cuts wood
- MDF
- acrylic
- PVC and PCB
- Offline controller runs G-code without a laptop
- 15.3 pounds and a compact desktop footprint
- Free design tools such as Easel and Fusion 360
Cons
- No limit switches or emergency stop in the box
- No way to set Z depth except the paper method
- V-bits only
- so end mills cost extra
The 3018-PRO is the machine I recommend first, and the reason is boring rather than glamorous: nobody argues about what it does because 1697 ratings and 4.1 stars exist for it. Assembly takes about an hour with a setup video running beside you, and once the gantry is squared the stepper motors hold calibration well enough for detailed cuts in MDF and soft wood.
Its working area is 300 by 180 by 45 mm, which sounds tiny because it is. Think jewelry, game tokens, small signs, PCB isolation milling and sample mockups rather than cabinet parts. The included offline controller means you can run a job from a flash drive without parking your laptop in the sawdust, which is a small quality-of-life win most hobbyists notice on day one.
The honest weakness is safety hardware. There are no limit switches and no emergency stop in the box, so if a job is mistyped the axes will drive straight into the frame. Owners also note that coupling and set screws loosen under spindle load and are awkward to re-tighten once the machine is assembled, and there is no Z-depth setting method beyond the paper trick or an add-on probe. Buy an end mill set before your first cut, because the kit includes V-bits only.
Is the 3018-PRO worth it for cutting real wood?
For small parts in softwood, plywood and MDF, yes. The 120W motor and 20000 rpm ceiling are enough for engraving, shallow pockets and through-cuts in material under a quarter inch thick. For thick hardwood, treat this machine as a learning tool and plan on a 300W spindle upgrade later.
Who should skip it and buy something else
Skip it if you already know you want cabinet doors or full sheet goods, because the bed is the part you cannot upgrade on a 3018. Also skip it if you have small children or pets around a working shop; the missing limit switches and e-stop are not a theoretical gap. In that case the 3018-PROVer V2 gives you the same platform with the safety gear fitted.
2. Genmitsu 3018-PROVer V2 – Best Value With Limit Switches and a Probe
SainSmart Genmitsu 3018-PROVer V2 CNC Router Machine for Beginners
300 x 180 x 45mm bed
Z-probe, limit switches and e-stop
GRBL 1.1
Offline controller
Pros
- Hard limit switches
- emergency stop and a Z-probe fitted as standard
- Pre-assembled gantry and one-piece aluminum spoilboard
- Sub-millimeter accuracy once calibrated
- Offline controller for headless carving
- Fast replacement parts when something fails
Cons
- Printed manual has errors and low-resolution photos
- Still roughly an hour of assembly despite the pre-assembly claim
- V-bit bundle with no end mill
This is the version of the 3018 I wish more people bought first. The gantry frame and a one-piece aluminum spoilboard arrive pre-assembled, and the machine includes hard limit switches, an emergency stop and a Z-probe. Those three items are the difference between a machine that can crash itself into the frame and one that stops, and they are the reason this is my best value pick.
Owners consistently describe the fit and finish as well machined, and the calibration accuracy as sub-millimeter after setup, which is plenty for PCB isolation milling and small wood projects. The offline controller works well for long carves where you would rather not breathe MDF dust onto a keyboard, and support is frequently praised for turning around replacement parts quickly.
The documentation is the weak point. The printed manual contains errors and low-resolution photos, and the instructions skip several wire-holder and cable-routing steps, so you will want an assembly video open alongside it. Expect about an hour of assembly even with the pre-built gantry, plan on buying your own end mills, and be aware that a few buyers report receiving damaged or used beds. The 300 by 180 mm workspace is the same limiting factor as the plain 3018.
What does the Z-probe actually save you?
It saves the most tedious part of setting up. Without it you set tool length by sliding a piece of paper under the bit and nudging the Z axis until it just barely drags. With it you touch off from the spoilboard in seconds, which matters most when you are swapping between a V-bit and a 1/4 inch end mill five times in an afternoon.
Who should look past this machine
Move up if your project list includes anything wider than about 11 inches, or anything thicker than the spindle can push a 1/4 inch bit through. Plenty of owners do exactly that and move to a 3020 or 4040 body later, which is a reasonable path, but buying the larger bed first is cheaper than buying two machines.
3. FoxAlien Masuter Pro – The Rigid 16-Inch Bed With a Real Upgrade Path
FoxAlien Masuter Pro 3-Axis CNC Router Machine, Beginner Hobby Engraving Machine All-Metal Structure for Wood Acrylic MDF Nylon Routing Milling Carving
400 x 400 x 60mm bed
All-aluminum frame
Linear rail Z-axis
Pre-wired 10-15 minute setup
13 kg
Pros
- Rigid all-metal frame with square linear rails on the Z-axis
- Sets up in 10-15 minutes from pre-assembled and pre-wired modules
- 15.75 inch square bed is a real jump from the 3018 class
- Documented path to NEMA 23 steppers and a 300W spindle
- Support replies within a day
Cons
- 60W motor forces slow feeds and shallow passes
- NEMA 17 steppers can lose steps under resistance and tool changes
- No dust shoe or dust collection included
The Masuter Pro is the machine I would buy if the 3018 bed felt too small from the start. The 400 by 400 by 60 mm working area is roughly 15.75 inches square, which comfortably holds a sign blank, a set of shelf brackets or a drawer side panel, and the all-aluminum frame with a square linear rail on the Z-axis gives very little play compared with the belt-driven machines it competes with.
Setup is among the quickest in this roundup. Main parts arrive pre-assembled with the harness pre-wired to the controller, and owners report a 10 to 15 minute build. Travel speeds are higher than heavier belt-driven machines of the same class, and the optional Y-axis extension kit is available if you need more length later.
The included motor is the problem. The 60W spindle is underpowered for wood, which means very slow feeds and shallow passes, and the NEMA 17 stepper motors can lose steps when they meet resistance or during a tool change. Neither issue is fatal because the documented fix is cheap: swap in NEMA 23 steppers and a 300W spindle, both of which turn this into a machine that competes with far more expensive units. Also note there is no dust shoe or extraction included, and the unsupported spoilboard can sag over time.
Is upgrading a small machine cheaper than buying a bigger one?
On the Masuter Pro, often yes, because the frame and rails are already sized for the load. Motor and spindle upgrades are incremental costs against a frame you already own. The trap is the spoilboard: if the bed sags, every upgrade you make is cutting against a surface that moves, so budget for a supported top or a spoilboard rebuild alongside the motor work.
Who should skip it
Skip it if you want a machine that works well on the day it arrives. The honest version of this pick is that you will be ordering parts within the first month. It is also the wrong choice if noise matters, because stepper noise and spindle whine are both part of the experience at the faster travel speeds this frame allows.

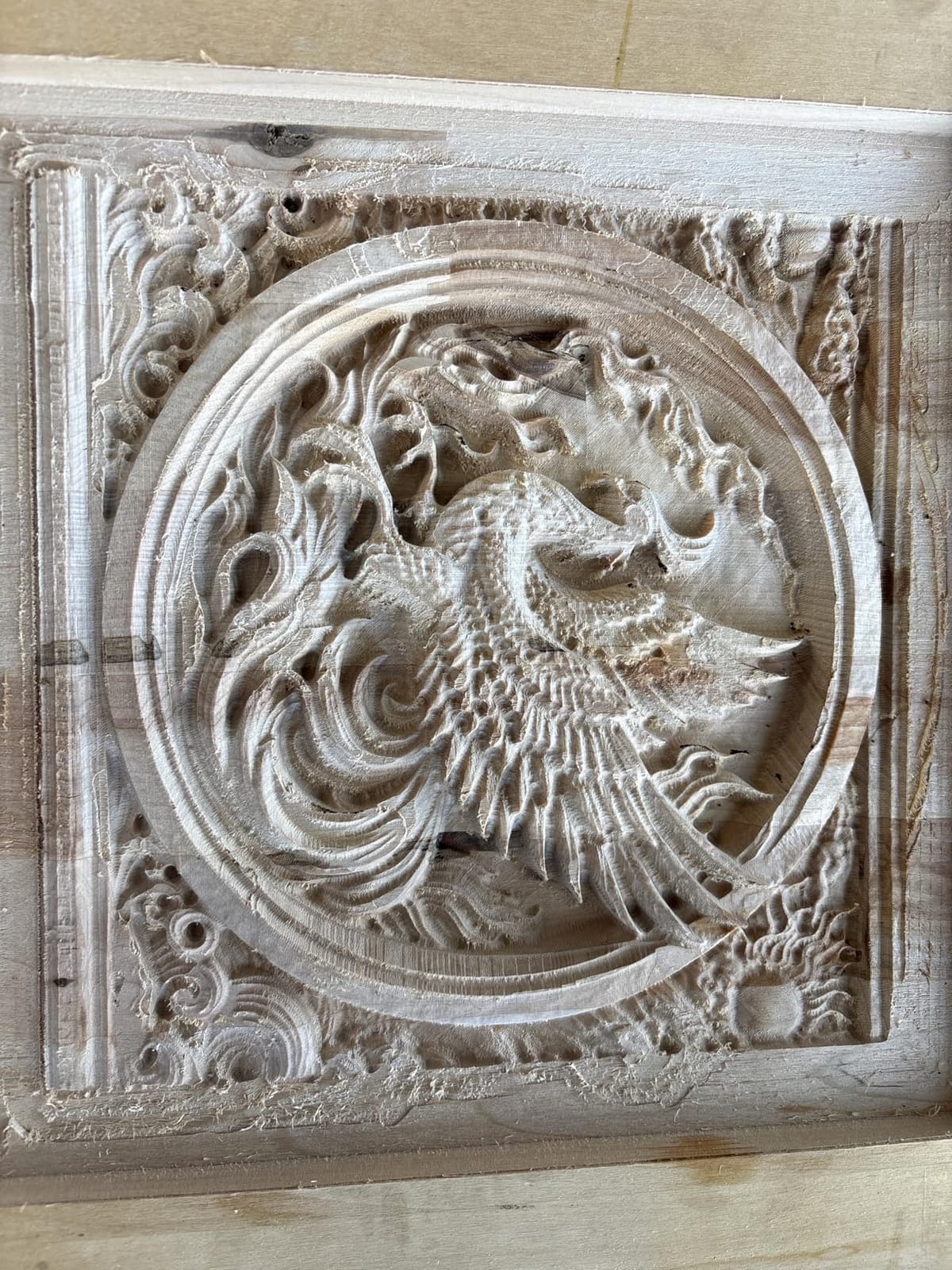

4. TWO TREES TTC3018 Pro – The Lightest Machine With a Metal Z-Axis
TTC3018 Pro CNC Router Machine,Desktop CNC Engraving Machine
300 x 180 x 40mm bed
Metal Z-axis with T8 lead screws
0.1mm accuracy
15 pounds
775 motor
Pros
- Metal Z-axis with T8 lead screws beats typical plastic Z-axes
- 0.1mm positioning accuracy for logo engraving and nameplates
- All-in-one kit with 10 cutters
- ER11 collet and 775 motor
- 15 pounds and a compact 420 x 355 x 280mm footprint
Cons
- 775 motor has no power beyond simple shallow cuts
- No limit switches
- emergency stop
- Bluetooth or WiFi
- Bundled USB cable caused mid-job freezes for some owners
The TTC3018 Pro earns its place with one specific engineering choice: a metal Z-axis driven by T8 backlash-eliminating lead screws, where most machines in this price band use a plastic Z carriage on a round rod. That single change is why owners report accuracy that surprises them on a first build, and why the machine holds up for logo engraving into hardwood and small business nameplates.
It is also a generous box in the entry class. You get 10 cutters, an ER11 collet covering 0.5 to 7 mm, the 775 motor running 7000 to 9000 rpm and a full disassembly kit of precision components, so there is little else to buy before your first job. At 15 pounds with a 420 by 355 by 280 mm footprint it moves between a dorm desk and a garage bench without drama.
The 775 motor has no power for anything beyond simple, shallow cuts, and there are no limit switches, an emergency stop, Bluetooth or wireless function, so treat it as a supervised machine. Some owners reflash the firmware to enable SD card operation for long jobs, which reviewers find worthwhile, while others report the bundled USB cable freezing mid-job until replaced, and some have hit Z settings that reset unless set alongside X and Y.
Why do lead screws matter on the Z axis?
Because the Z axis is the axis that decides whether two identical parts come out the same thickness. A round rod and plastic carriage can slip under spindle load, so the second part cuts deeper than the first. A lead screw holds position, which is exactly what you want when you are cutting ten identical game boards and expect all ten to be the same.
Who should choose a different machine
Choose something else if anyone else uses the shop unsupervised, or if you plan to cut stock thicker than about a quarter inch. The 300 by 180 mm bed is also the same constraint as the other 3018-class machines here, so if a sign or a shelf is your goal rather than a nameplate, the extra cost of a 400 mm bed buys you a usable project.
5. Genmitsu PROVerXL 4030 – The Best Package for Thicker Wood
Genmitsu PROVerXL 4030 CNC Router Machine for Wood & Metal
400 x 300 x 110mm bed
300W spindle
NEMA 23 steppers
C-beam frame
240V at 4.8A
31 kg
Pros
- C-beam frame and dual Y-axis screw drive resist flex on deep cuts
- NEMA 23 motors provide far more torque than NEMA 17300W motor handles wood
- MDF
- plastics
- vinyl and aluminum
- Limit switches
- e-stop
- speed control and probe all included
- Upgrade kits expand the bed to 600mm or 1000mm
Cons
- 31 kg and a large bench footprint
- High power draw at 240 volts and 4.8 amps
- Optical and screw drives need regular lubrication
The PROVerXL 4030 is the step up that changes what a hobby woodworker can make. Where the smaller machines hover around a quarter inch of usable depth, the C-beam frame, the dual Y-axis screw drive and the optical Z drive hold position under load, and the 300W spindle has the power to take a real pass through thicker stock. Owners moving up from 3018-class machines describe it as a genuine capability jump rather than a bigger version of the same thing.
It is also a well-equipped package out of the box. XYZ limit switches, emergency stop switches, speed control and a Z-probe are all fitted, and the pre-assembled XYZ module and pre-wired harness mean you are not starting from a bag of extrusion. A three-month Carveco Maker subscription is included, and the spindle comes with an adapter for a drop-in DeWalt DWP611 upgrade if you want a plunge base for dados and edge work.
The trade-offs are physical. At 31 kg this is a serious object for a home bench, and the power draw is high at 240 volts and 4.8 amps, so plan your circuit before the machine arrives. The optical and screw drives need regular lubrication to stay quiet and accurate, and a few owners found the spoilboard needed added support to prevent sagging.
Does a 300W spindle cut hardwood properly?
It cuts hardwood properly for cabinet-scale work, and 300W is the point where a hobby machine gains enough power to hold a feed rate through thicker stock. What it still will not do is match a 1.5kW VFD spindle on long cutting jobs, so if you plan to be in thicker hardwood daily, budget for that upgrade rather than planning around slow feeds.
Who should skip it
Skip it if your shop is a shared corner of a garage with no 240V outlet available, or if you need to move the machine between rooms. It is a two-person lift, and the footprint plus weight is the single biggest reason people regret buying mid-size machines first.
6. Genmitsu 4040-PRO – A Lead-Screw Drive on All Three Axes
Genmitsu 4040-PRO CNC Router Machine for Metal Acrylic Cutting Milling
435 x 400 x 80mm bed
Lead screws on all three axes
32-bit controller with Toshiba drivers
20.84 kg
Pros
- Lead-screw drive on every axis gives rigid
- repeatable motion
- Reinforced hybrid spoilboard with a center aluminum support bar
- 435 x 400 x 80mm area is a real step up for signs and reliefs
- Toshiba drivers and a 32-bit board keep the machine quiet
- Pre-assembled modules square up in about 15 minutes
Cons
- Included spindle tops out at 9000 rpm
- 1/4 inch shank bits will not fit the included spindle
- Warped spoilboards and pinched wiring reported on some machines
Everything in this roundup except the XE-PRO uses lead screws or belts. The 4040-PRO runs lead screws on all three axes, driven by dual 16 mm HSS steel tubes, and that is the reason it produces the mirror-smooth surfacing finishes and precise carvings that owners report. There is no belt to stretch and no periodic tension adjustment, which also makes it a quiet machine under normal cutting load.
The 435 by 400 by 80 mm work area is a near-square usable bed, and the reinforced hybrid spoilboard has a center aluminum support bar that genuinely reduces sagging, which keeps cut depth consistent across the surface. The 32-bit controller with silent Toshiba drivers is a real step above the older control boards in the 3018 class, and assembly takes about 15 minutes from pre-assembled modules.
Where owners split is the included motor. It reaches 9000 rpm, below the 12000 and up that many bits want for a clean cut, and its collet will not take 1/4 inch shank bits at all, so a meaningful portion of the bit library is unavailable until you fit an upgrade. Most owners add a 1.5kW VFD spindle or a 65 mm trim router and report the machine transforms, but that upgrade can cost close to the price of a new unit. Quality control also shows: a number of machines arrive with warped spoilboards and wiring routed where assembly can pinch it.
Is a lead screw better than a belt for woodwork?
For repeatability, yes. A lead screw holds commanded position under load, so pass depth stays consistent across a large job and you are not compensating for belt stretch between the start and the end of a cut. Belts are faster to move and cheaper to replace, but on wood where you are pushing a wide bit sideways, holding position matters more than speed.
Who should skip it
Skip it if you are not prepared to replace the spindle. Buying the 4040-PRO and using only the included motor means fighting the machine on every job, and the 9000 rpm ceiling will frustrate anyone cutting thicker than the quarter inch the collet allows. If you will spend the upgrade either way, compare the total against buying the 4030 with a 300W spindle already fitted.
7. LUNYEE 3018 Pro Max – Six Limit Switches and an Emergency Stop
LUNYEE 3018 PRO MAX CNC Machine 500W All-Metal CNC Router Machine 3 Axis Limit Switches & Emergency-Stop with GRBL Offline Control for Cutting Wood Acrylic MDF Plastic, Working Area: 300 x 180 x 80mm
300 x 180 x 80mm bed
500W spindle
6 limit switches and e-stop
All-metal frame
13 kg
48V
Pros
- 500W motor is a real jump from the usual 775
- 80mm Z stroke is the longest in the 3018 class
- All-metal reinforced frame with no plastic structural parts
- Six limit switches plus an emergency stop
- Manual handwheels on all three axes
Cons
- 300 x 180mm bed stays small for panels and blanks
- 12mm optical axis upgrade kit is sold separately
- 48V draw limits lighter-duty circuits and extension leads
Most 3018-class machines include no limit switches and no emergency stop at all. The 3018 Pro Max includes six limit switches and an emergency stop button, and for a shop with other people in it, that alone justifies the step up from the cheapest 3018 variants. It also fits manual handwheels on all three axes, which makes manual positioning and tool changes far less fiddly than poking a jog command through software.
The 500W motor is the other headline. It runs 0 to 12000 rpm with a maximum movement speed of 5000 mm per minute, which makes it a strong choice for denser wood, acrylic and plastic. The 80 mm Z stroke is the longest among standard 3018 models, and the frame is reinforced aluminum with no plastic structural parts, plus 12 mm optical axis on all three axes.
Two things work against it. The bed remains 300 by 180 mm, so bigger projects are still out of reach, and the 12 mm optical axis upgrade kit is a separate purchase. The 48V power draw also limits use on lighter-duty circuits and extension leads, which matters in a garage where the nearest outlet is in the next room.
Do limit switches and an emergency stop matter for a hobby machine?
They matter most when the program is wrong, and wrong programs are normal when you are learning. A hard limit stops an axis before it drives into the frame, and an emergency stop is the difference between a ruined bit and a ruined machine. Neither one makes the tool better at cutting, but both are cheaper to add before you own the machine than after.
Who should skip it
Skip it if your projects need a workpiece larger than about 11 by 7 inches, and be cautious if you already own a 3018 variant with a decent Z axis, because the 500W motor is the main thing you would be adding. It is also worth noting the two-in-one spindle and laser switching adds setup complexity, and spindle speed is not under direct software control on every workflow.
8. FoxAlien Masuter 3S – Closed-Loop Steppers From Day One
FoxAlien Masuter 3S CNC Router Machine with NEMA 23 Closed-Loop Stepper Motor, 400W Spindle 3 Axis Engraving Milling Machine for Wood Acrylic Aluminum Carving Cutting
400 x 400 x 95mm bed
NEMA 23 closed-loop motors at 2.2 Nm
400W spindle
T12 lead screws
26.5 kg
Pros
- Closed-loop NEMA 23 motors eliminate step loss
- Cuts about 30 minutes after delivery
- 400W spindle replaces the weak motor on earlier models
- T12 lead screws and dual HG-15 rails hold 0.05mm
- Support praised for fast replies and goodwill replacements
Cons
- 26.5 kg and arrives as one very large box
- Comes with 1/8 inch V-carve bits only
- Gantry hardware needs re-tightening after early projects
The 3S is the machine for anyone who reads that open-loop steppers lose steps under load and decides they do not want to find out. It comes with NEMA23-76 closed-loop stepper motors producing 2.2 Nm of torque and 10000 mm per minute rapid speed, mounted on reinforced 2360 mm extrusions with dual HG-15 linear rails on the Z-axis and T12 lead screw drive. The published engraving precision is 0.05 mm.
Owners report the machine is square and calibrated from the factory, so it can be cutting about 30 minutes after the box is opened. The 400W spindle is a substantial upgrade over the motor on earlier FoxAlien models, and communication with CNCjs, gSender and Candle is described as rock solid on long carves with no dropped connections.
It arrives as a single very large box weighing 26.5 kg, so plan the move into the shop. It also includes only 1/8 inch V-carve bits, so budget for an end mill set, and expect to re-tighten gantry hardware after the first few projects as vibration works the joints loose. One reviewer reports repeated breakdowns and a controller fault, which is an isolated report but worth knowing.
What do closed-loop stepper motors actually fix?
They detect when a motor fails to follow a command and correct it, instead of quietly dropping the position. On wood that means a full-width pass with a large bit will not leave a step-shaped groove, and a heavy 400W spindle will not stall the axes. The 2.2 Nm torque figure here is the concrete difference from the lighter NEMA 17 class.
Who should skip it
Skip it if you are still deciding whether CNC is for you, because this is a serious machine for a trial run. It is also the wrong fit for a small shop with a narrow doorway or a bench you cannot dedicate, and for anyone who wants a large format bed, since 400 by 400 mm does not reach a full sheet.
9. Genmitsu 4040-PRO MAX – The Most Powerful Router in the Lineup
SainSmart Genmitsu 4040-PRO MAX CNC Router with 710W Trimmer
410 x 405 x 77mm bed
710W digital trimmer router
Linear guideways on X and Z
T-track spoilboard
24 kg
Pros
- 710W digital display router cuts deeper than the included motor on the base 4040-PRO
- Measured at roughly 0.01mm accuracy after calibration
- Integrated T-track and center support bar fight spoilboard sag
- 100mm pass height handles taller material
- Support replaced a defective fan and router
Cons
- X-axis limit switches and connectors fail intermittently
- gSender defaults to grblHAL and halts jobs mid-cut
- Small manual images lead to reversed cables at assembly
This machine pairs strong hardware with the lowest rating in the roundup, and understanding why is the most useful thing in this section. The 710W digital display compact trimmer router is far more powerful than the included motor on the base 4040-PRO, and because it is a trim router rather than a bare spindle, you get plunge capability, variable speed and a familiar tool. Owners measure roughly 0.01 mm accuracy with minimal backlash after calibration, and the advanced X and Z linear guideways hold position well.
The spoilboard is thoughtfully done: a reinforced MDF top with an integrated central aluminum support bar and a built-in T-track, so you have somewhere to put clamps without bolting plywood to plywood. The 100 mm pass height is over 40 percent higher than the 4040-PRO, and reduced vibration is claimed for high-power operation.
So why 3.9 stars? Integration, not hardware. Several owners hit X-axis limit switch and connector failures that leave the machine in a tripped state and break homing, and gSender defaults to grblHAL, which halts a job mid-cut unless you switch it to grbl. Assembly also produces complaints: a reversed rear profile cable orientation out of the box, and manual images too small to follow, leading to reversed base plates and swapped X and Y cables. There is little safety margin on full cut-through jobs, and no side chip guards. Support, to their credit, is frequently described as responsive and willing to send free parts.
Is a trim router better than a spindle on a CNC machine?
For plunge cuts and for anyone who already owns quality routers, yes. A trim router gives you depth adjustment you can set by hand, a variable speed dial and a plunge action, and it is a tool you can also take to the router table when the job needs it. A spindle is better for sustained work at fixed speed, but a 710W router is a lot of cutting energy for a hobby machine.
Who should skip it
Skip it if you are not prepared to troubleshoot. Limit switches and controller firmware problems are ordinary owner reports here, not exotic failures, and a machine that trips mid-job while you are learning is a poor first purchase. If you want the plunge capability and do not mind the extra setup, buy the 4030 with its known-good 300W spindle instead.

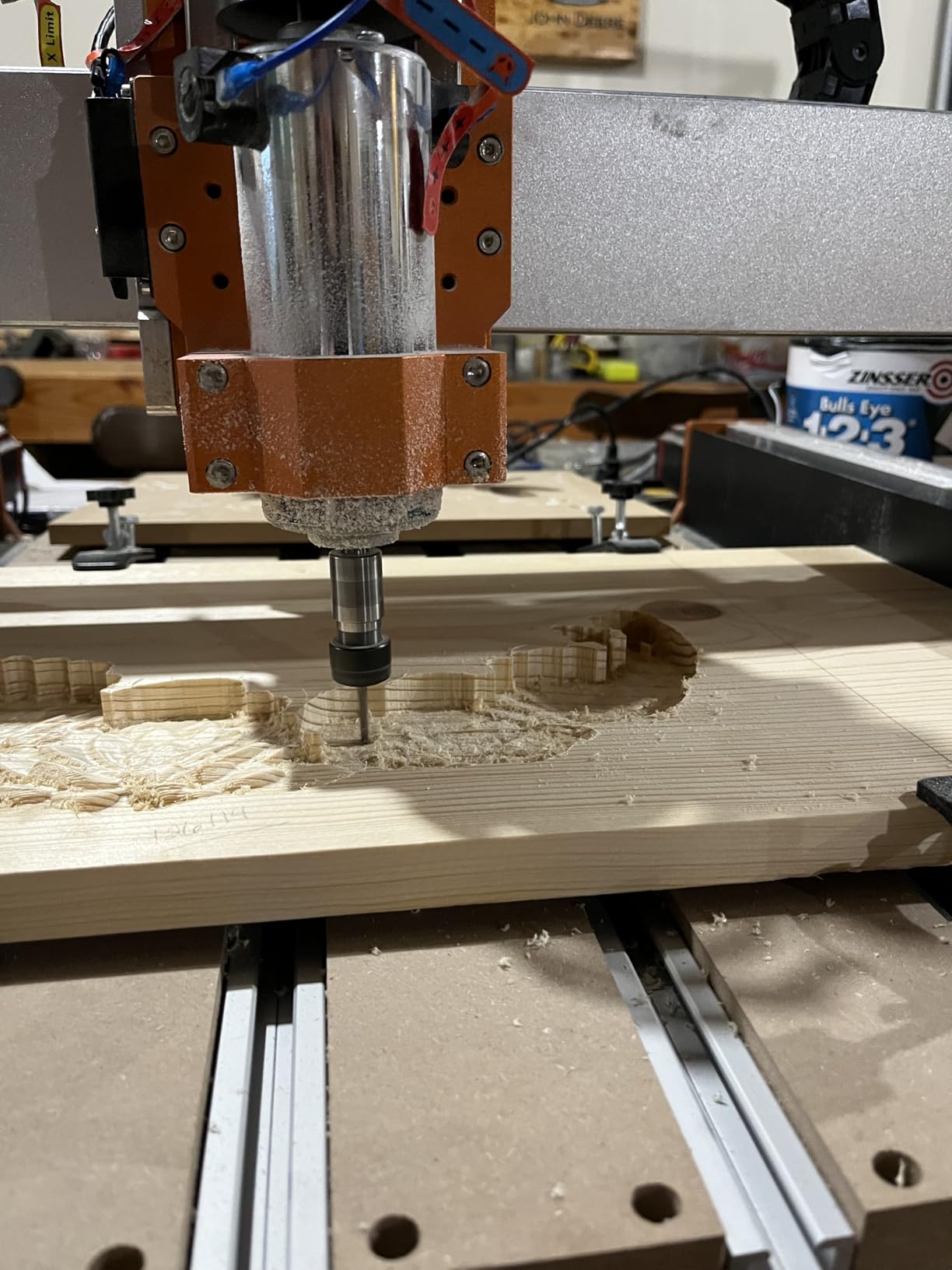

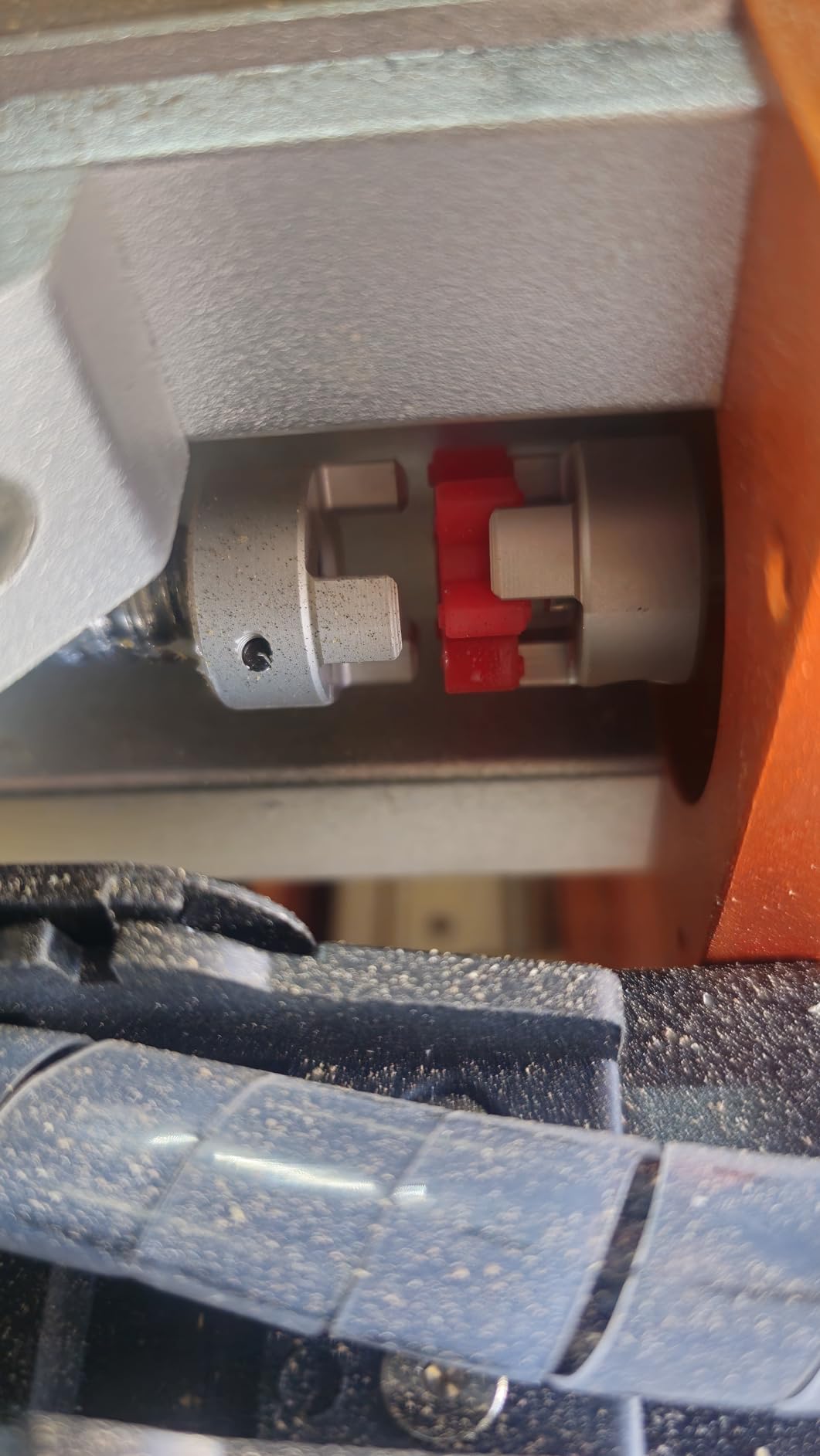

10. FoxAlien XE-PRO – Ball Screws and the Heaviest Frame
FoxAlien CNC Router Machine XE-PRO with Ball Screws, 400W Spindle 3-Axis Engraving Milling Machine for Wood Aluminum Cutting Upgradable to Linear Rails
400 x 400mm bed
1204 ball screws on X, Y and Z
Four closed-loop NEMA 23 motors
38.46 kg
Pros
- Ball screws on all three axes give noticeably lower backlash
- Closed-loop motors run faster and quieter than open-loop machines
- 38 kg build stays rigid through deep or fast cuts
- Arrives square and calibrated
- 52mm
- 65mm and 69mm spindle clamps included
Cons
- No design or control software included
- Bundled Candle software crashes at job start on some units
- Heaviest machine here at 38.46 kg and several hours of assembly
The XE-PRO is the only machine here driven by 1204 ball screws on all three axes, and reviewers consistently single that out as the feature that separates it from cheaper 4040-class machines. Ball screws convert rotation to linear motion through rolling bearings rather than a sliding nut, so backlash is lower and surface finish on a surfacing pass is noticeably better. It pairs those screws with four NEMA 23 closed-loop steppers at up to 5000 mm per minute and dual linear rails on the Z-axis.
At 38.46 kg it is the heaviest machine in this roundup, and owners read that as a feature: it feels rigid and holds accuracy during deep or fast cuts. It arrives square and calibrated, includes 52 mm, 65 mm and 69 mm spindle clamps, and includes an offline controller so a tethered PC is optional. There is a clear upgrade path through an XY linear rail kit and an 8040 extension kit.
The catch is software and setup time. No design or control software is included, so you are buying gSender and VCarve Desktop before your first job. The bundled Candle controller reportedly crashes when starting jobs on some units. At 38.46 kg it is physically demanding to move, and assembly runs closer to several hours than the advertised 25 to 30 minutes once linear rails are involved. With 89 ratings it is also the least-reviewed machine here, so judge it on fewer data points.
Do ball screws make a visible difference on wood projects?
They show up most clearly on a surfacing pass and on thin inlays, where a hair of backlash shows as a visible ridge on the edge. If your projects are rough cutouts and engraved signs, the difference is smaller than the difference a stronger motor makes. The value of ball screws is highest if you plan to do precision joinery and detailed flat work rather than only through-cuts.
Who should skip it
Skip it if you want a turnkey package, because the missing software is a real and immediate cost and the Candle experience is not reliable. It is also the wrong pick for a first CNC, since it is the heaviest machine here and the least documented by owners, and it will not reach a full sheet of material at 400 by 400 mm.
How to Choose a CNC Router for Woodworking?
Bed size decides what you can make, motor power decides whether you can finish it, and everything else is a preference. Work through these seven criteria in order and the machine that fits your project list will be obvious.
1. Work area, measured between the rails
Published bed dimensions are the distance between the rails, not the machine’s footprint, and usable area is always a little smaller once you account for the gantry and hold-downs. Measure your largest expected project before you fall for a number. A 300 by 180 mm bed holds a nameplate; a 400 by 400 mm bed holds a sign blank or a drawer side; a 400 by 300 mm bed holds a cabinet part laid out flat.
2. Spindle power, and why a trim router is not enough on a big bed
A 120W or 775 motor on a small machine is fine for engraving and thin stock. On a 400 mm bed pushing a 1/4 inch two-flute end mill through MDF, you want 300W or more, and for sustained hardwood work a 1.5kW VFD spindle is where the hobby tier tops out. The single most common regret in forums is buying a bigger bed and keeping the small motor.
3. Drive system: belt, lead screw or ball screw
Belts are fast, cheap and stretch. Lead screws hold position with no periodic tension adjustment and keep runs quiet. Ball screws cut backlash further and finish a surfacing pass better, at the cost of price and more sensitivity to debris. For a wood shop that cuts sheet goods and does repeat work, lead screws are the sweet spot; ball screws pay off when you are doing precision inlays.
4. Frame rigidity and stepper size
Tool deflection and frame flex are blamed far more often than spindle power in owner reports, so mass helps. A 38 kg frame moves less than a 13 kg one under the same side load. On the motor side, NEMA 17 steppers are the entry level and NEMA 23 is where the machine stops losing steps under a real cut, with closed-loop variants eliminating the problem rather than managing it.
5. Controller, firmware and the software you will actually use
Every machine here runs GRBL, usually over a 32-bit board, which means your CAM options are the same across the board: Vectric VCarve, Fusion 360, Carbide Create, gSender or Candle. What differs is whether software is included and how large the file limit is, and a few machines ship with a controller that defaults to the wrong firmware profile, so check the owner’s notes before your first long job. If you already own a good bench, plan where the machine lives and what you clamp to; our workbench roundup covers that side of the shop.
6. Dust extraction and safety hardware
None of these machines includes a proper dust shoe, and MDF dust plus a shop full of offcuts is a genuine fire and health concern rather than a tidiness issue. Budget for a shoe sized to your collet, a hose that reaches your collector, and hearing protection. On the machine side, limit switches and an emergency stop are cheap insurance; two machines in this roundup include them and the rest do not.
7. Support, parts and the upgrade path
Parts availability decides whether a broken stepper is a weekend annoyance or a two-month outage. FoxAlien and Genmitsu both have a strong record on spare parts and responsive support in owner reports, which is why those two names fill eight of the ten slots here. Before buying anything, confirm that the spindle mount, controllers and stepper models for your machine are easy to source, and check whether a bed extension kit exists if you may outgrow the frame.
Which Size CNC Router Do You Actually Need?
The right size is the smallest machine that fits your largest project with room to spare. Most hobbyists overbuy here, so measure first: a 300 by 180 mm bed handles engraving, small panels, game pieces and electronics work; a 400 by 400 mm bed handles signs, shelf brackets, drawer sides and small batch parts; a 400 by 300 mm bed with 110 mm of Z height handles cabinet components and thicker stock.
Two of the three sizes come with a real constraint people forget. The 3018 class tops out around 40 to 45 mm of Z travel, so a tall sign board or a stack of plywood will not fit without raising the gantry, and the 400 mm class tops out around 60 to 95 mm, which is enough for cabinet parts but not for a full-height door. If you intend to cut cabinet doors, look at pass height before bed length.
On space and power: a 3018-class machine weighs about 13 to 15 pounds and can live on a desk, while the 4030 and 4040 bodies weigh 20 to 38 kg and need a dedicated bench with clear overhead height. The 4030 draws 240 volts at 4.8 amps and the LUNYEE runs on 48 volts, so check your circuit before the machine arrives, not after.
The Honest Downsides of Hobby CNC Routers
The downsides are real and they are mostly not about the machine. A hobby CNC router is a repeatable cutting tool, not a replacement for a handheld router, and it charges you in setup time, software, dust and floor space before it charges you in money.
The learning curve is the real cost. You are learning CAM, feeds and speeds, workholding and tool compensation at the same time. Owners commonly report a day of assembly, several days of first cuts and a lot of troubleshooting before the tenth part is as good as the first.
Tool deflection and bit breakage. A wide end mill cutting MDF at an aggressive feed will deflect, scorch the edge and snap. Compression spiral bits, sensible chip loads and a supported spoilboard fix most of it, but only after you learn what a sensible chip load is.
Fixturing is the hard part. Sheet goods shift, and a spoilboard with no support sags. Clamps or screws, a squaring routine and a waste board mounted flat are not optional accessories.
Software costs creep in. Free tools exist, but file size limits and toolpath features push many hobbyists into a paid CAM licence, and some machines include no control software at all.
Dust, noise and safety. MDF dust is a respiratory hazard and a combustible dust risk, spindles are loud enough to end a night session early, and machines with no limit switches or e-stop can be driven into the frame by a mistyped job.
It does not do hand-guided work. No stopped grooves, no following a wavy live edge, no sense-making profiles on a long board. If that is most of your woodworking, a router table is the better machine and the CNC is the accessory.
What You Need Besides the Machine?
Plan roughly the cost of the machine again for the supporting kit, because most owners spend it in the first month anyway. A good clamp and hold-down set is the first purchase, since screw-down hold-downs that fit T-track change how you approach sheet goods more than any software feature.
Waste board and squaring. Mount a sheet of cheap MDF or MDF-faced board on the spoilboard, check it with a machinist square or a straightedge and a feeler gauge, and shim until it is flat. Photograph the squaring measurement so you can recheck it after a spindle change.
End mills, not just V-bits. Almost every machine here includes V-carve bits and little else. You want at minimum a 1/4 inch two-flute upcut for cutting and a compression spiral for MDF so the top edge does not blow out, plus a downcut for clean edges on hardwood. Reviewers who switched to compression spirals report the single biggest improvement in edge quality.
Dust shoe and extraction. Buy a shoe sized to your collet diameter, and size your collector to the spindle. A shop vac is a workable starting point for MDF, but a dedicated collector with enough CFM to hold a 2.5 inch hose is what keeps the machine finishable and the airway clear. A small compressor for a blow-off gun is worth the space too; compressed air in the flutes extends tool life noticeably.
CAM software. Carbide Create, VCarve and Fusion 360 cover most hobby woodworking, and gSender or Candle handle the machine side. Test your toolpath in the air with the spindle off before you commit material.
Two finishing notes worth budgeting for: a dust collection upgrade is easier to plan than to retrofit, and if you plan to run the machine at night, check the noise in your own space first. A shop compressor is a good investment for cleanup, but it will not quiet a spindle.
Frequently Asked Questions
What is the best CNC router for hobbyists?
The Genmitsu 3018-PRO is the best CNC router for hobbyists because it has the largest owner history of any machine in its class and teaches you G-code fundamentals cheaply. The Genmitsu 3018-PROVer V2 is the better choice if you want hard limit switches, an emergency stop and a Z-probe included.
What is the best CNC wood machine for hobbyists?
For wood specifically, the Genmitsu PROVerXL 4030 leads because its C-beam frame, NEMA 23 steppers and 300W spindle cut thicker stock than the entry machines while still fitting a home bench. For square blanks and signs on a smaller footprint, the FoxAlien Masuter Pro is harder to beat.
What are the downsides of using a CNC router?
The main downsides are the learning curve in CAM and workholding, tool deflection and bit breakage in MDF, fixturing problems with sheet goods, occasional software costs, dust and noise in the shop, and the fact that a CNC cannot follow a hand-guided edge or cut a stopped groove the way a router table can.
What size CNC router do I need for cabinet doors?
You need a work area at least as large as your largest door, plus pass height for the door thickness, and a spindle that can cut full thickness without stalling. Most hobby woodworkers land on a 400 by 300 mm to 435 by 400 mm bed with at least 80 mm of Z travel, such as the Genmitsu 4030 or 4040 class.
Can a CNC router replace a handheld router?
No. A CNC router repeats digital toolpaths for sheet goods, parts, signs and inlays, but it cannot follow a wavy edge, hold a stopped groove or profile a long board by eye. Most woodworkers keep both, using the router table for edge work and the CNC for repeatable parts.
Our Verdict on the Best CNC Routers for Hobby Woodworking in 2026
The Genmitsu 3018-PRO is our pick among the best CNC routers for hobby woodworking, because 1697 ratings have already documented what it does well and where it falls short, and a machine with that much history behind it is the least risky place to start. If the missing limit switches and emergency stop bother you, spend a little more on the 3018-PROVer V2 rather than adding them later.
For a first real woodworking project, the FoxAlien Masuter Pro is the better buy, with a 15.75 inch square bed and a documented upgrade path to NEMA 23 steppers and a 300W spindle. For thicker hardwood and cabinet parts, the Genmitsu PROVerXL 4030 is the one I would own, and the FoxAlien Masuter 3S is the pick if you want closed-loop motors and factory calibration. Check your circuit and your dust collection before any of them arrive.
