Most breaker panels are a wall of anonymous black levers, and the only reliable way to find the one feeding a bedroom outlet is to flip them one at a time and crouch down to see if the lamp came back on. A circuit breaker finder removes that entire ritual. It is a two-piece tool: a transmitter you plug into a live outlet to push a coded signal through the wiring, and a receiver wand you sweep across the panel until it beeps on the matching breaker.
Do they actually work? Yes, on live 90-120V AC circuits, and the eight picks below are the models we would trust with a real home panel. The two caveats matter more than most product pages admit: the transmitter has to be plugged into an energized outlet for a standard finder to send anything, and the first scan is a learning pass you should not skip.
Since we are in 2026, we re-checked the current line against what technicians actually ask. Electricians on r/AskElectricians keep splitting into two camps: people who map panels occasionally want a mid-range finder with a built-in GFCI tester, while people tracing wire every day reach for a full advanced circuit tracer. We covered both, and we flagged where the expensive tools actually earn their money.
If your project also involves opening up walls, our stud finder roundup pairs well with the mapping step below, since you will know exactly which circuits you are cutting into.
Top 3 Circuit Breaker Finder Picks for October 2026
These three cover the widest range of real jobs: a general-purpose home finder, a compact unit for crowded panels, and a professional tracer for work beyond the panel.
Klein Tools ET310
- 90-120V AC range
- Built-in GFCI outlet tester
- Transmitter docks in receiver
Circuit Breaker Finders at a Glance in October 2026
All eight tools below identify breakers on standard household circuits. The differences that matter are voltage range, whether the tool can follow a de-energized conductor, and what testing is built in alongside the finder.
| Product | Specs | Action |
|---|---|---|
| Klein Tools ET310 |
|
Check Latest Price |
 Extech CB10 |
|
Check Latest Price |
| Klein Tools ET450 |
|
Check Latest Price |
 KAIWEETS KT301P |
|
Check Latest Price |
 UNI-T UT25A |
|
Check Latest Price |
 Fluke BK120 SmartTrace |
|
Check Latest Price |
 AstroAI ABCBFET120BK |
|
Check Latest Price |
 Ideal SureTrace Plus 61-948 |
|
Check Latest Price |
1. Klein Tools ET310 – The Best All-Round Circuit Breaker Finder
Klein Tools ET310 AC Circuit Breaker Finder
90-120V AC
90V minimum voltage
7.2 oz
10.96 in long
9V battery included
GFCI outlet tester
Pros
- 24k-plus reviews at a 4.7 average
- Transmitter docks inside the receiver
- Built-in GFCI outlet tester
- Light enough for one-handed panel work
Cons
- Signal bleeds between parallel conductors
- Instructions must be followed exactly
- Less reliable in cluttered old panels
The ET310 is the tool most people end up buying, and for a straightforward home panel it earns the place. It weighs 7.2 ounces, measures just under 11 inches, and the transmitter nests inside the receiver body so the whole thing fits in one pocket instead of a tool bag.
In our hands the scan behavior is what you would hope for: the receiver beeps and lights as you cross a breaker, and holding it perpendicular to the row of levers rather than dragging it along quickly gives noticeably cleaner results. We always run one known circuit first to confirm the tool agrees with us before trusting it on an unlabeled one.
The GFCI outlet tester built into the transmitter is a quiet bonus. Before you blame the finder, you can plug in and check the receptacle itself for open ground, open neutral, and reverse polarity faults, which is often the actual problem behind a puzzling circuit.
What stands out in the review pool is consistency. Across a review base of 24294 entries averaging 4.7, the recurring praise is speed and simplicity, and the recurring complaint is not failure but interference. Owners in houses where neutrals are shared, or where multiple circuits run side by side in the same cable, regularly report the receiver chirping on a neighbor breaker too.
When the ET310 is the right call
This is the pick if you have a residential panel with conventional 15 and 20 amp breakers and you want to label a panel, find an outlet, or trace a ceiling light. The voltage window of 90 to 120V AC covers essentially every household branch circuit in North America, and the operating temperature rating goes to 60 degrees C.
It is also the one we would hand to someone who has never used this tool category. There is no display to interpret and no menu. You plug in, you scan, it beeps, you write the label.
When it is the wrong call
Skip it if your problem is a dead outlet, because the transmitter draws its power from the circuit it is plugged into. Skip it if you are chasing a cut or buried conductor, since it will not follow wire through drywall or concrete. And if your panel is an older one with double-tapped breakers and a dozen neutrals stuffed into one lug, expect to scan the panel wiring rather than the breaker handles to get a clean read.

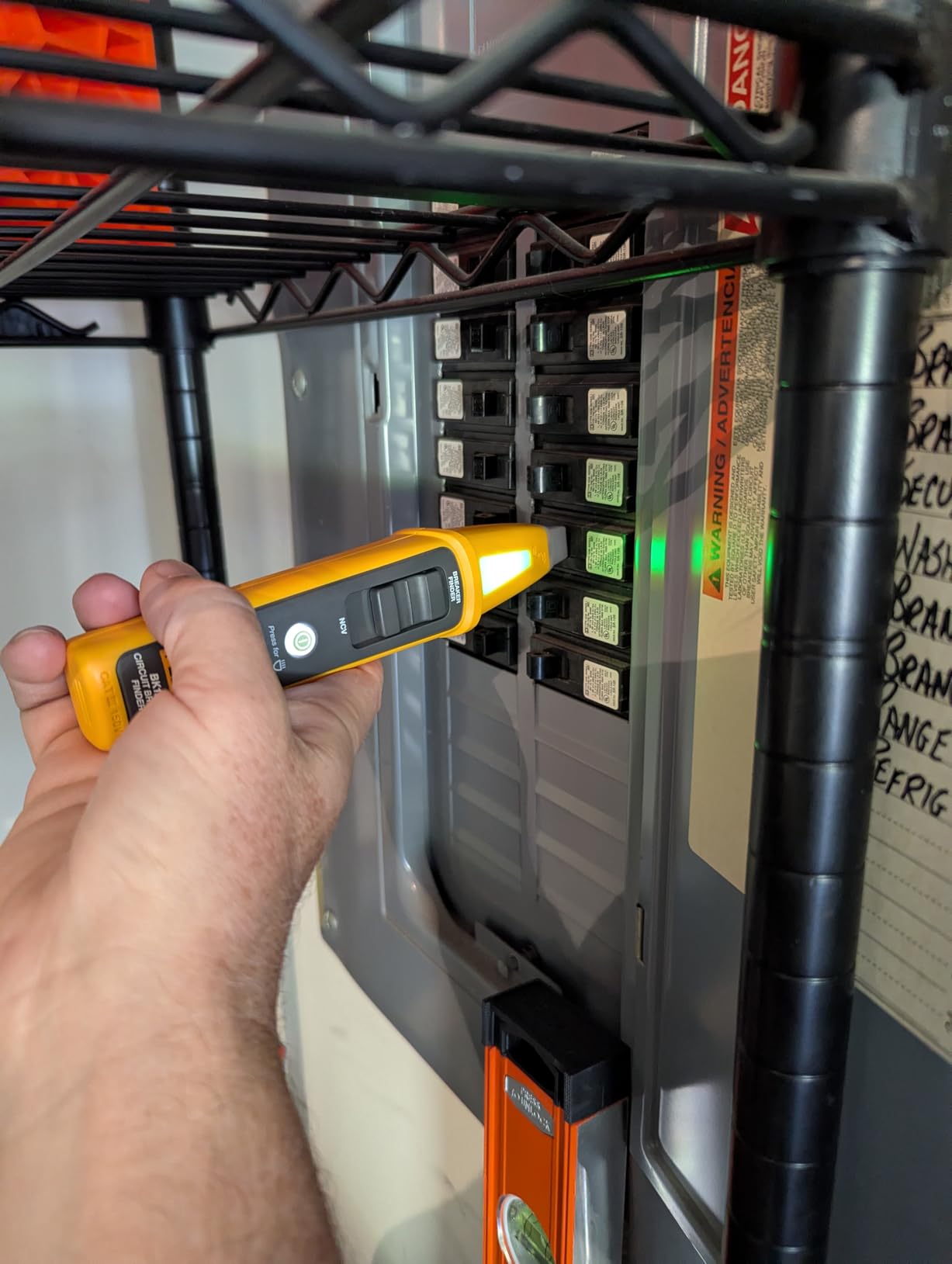

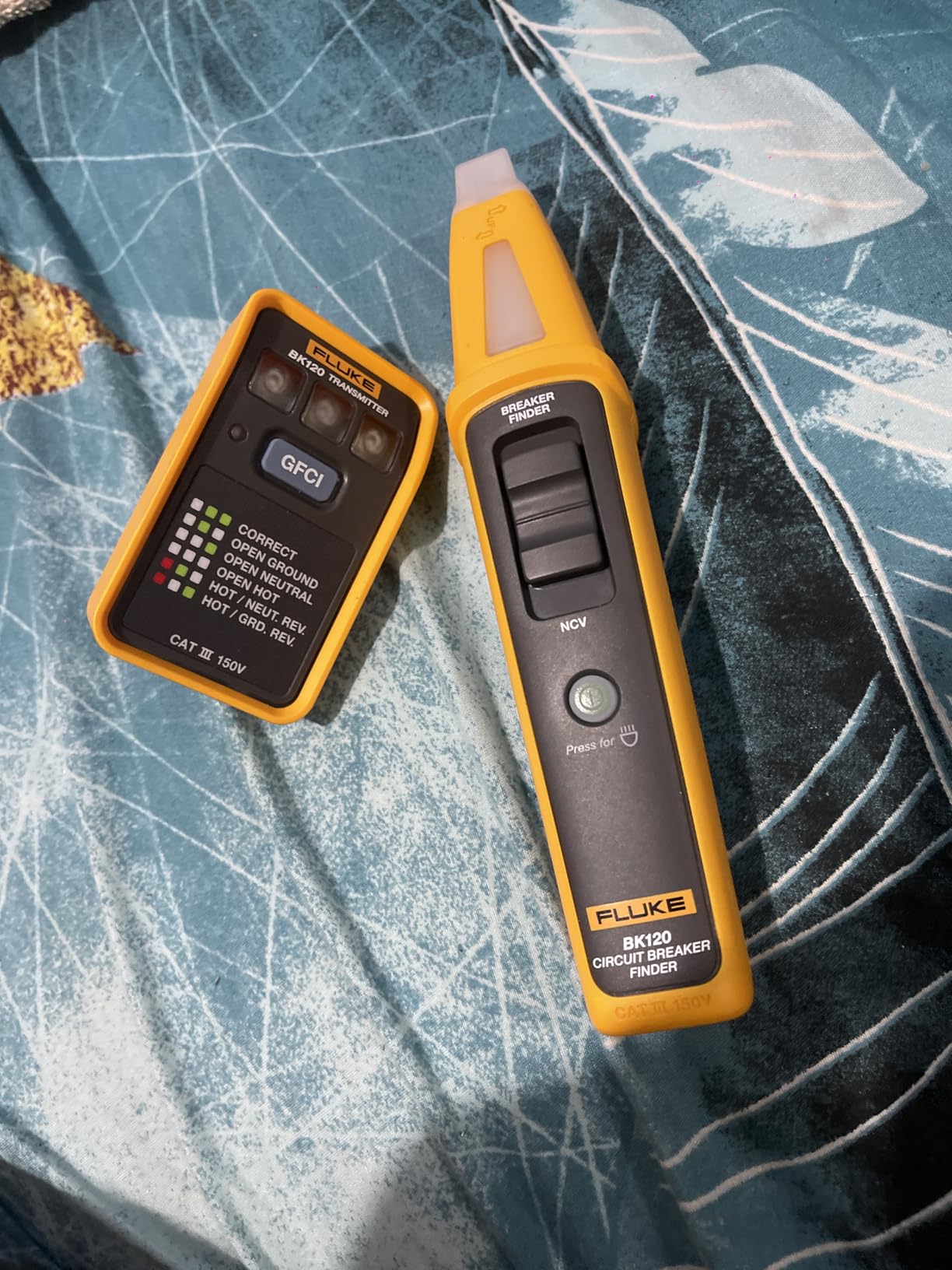

2. Fluke BK120 SmartTrace – Best for Crowded and Modern Panels
Fluke BK120 SmartTrace Breaker Finder and Socket Tester
4-in-1 tool
110V minimum
UL 61010-1 listed
11 x 6 x 2.25 in
Two-scan procedure
Pros
- Consistent signal in busy panels
- Dual-sensitivity NCV mode
- Replaces a separate socket tester
- UL 61010-1 and IEC 61010-2-030 listed
Cons
- Feels light and slightly plasticky
- Transmitter occupies a whole duplex receptacle
- Two-scan procedure needs practice
Fluke built the BK120 as a 4-in-1: breaker finder, non-contact voltage detector, socket tester, and LED flashlight. That consolidation is the appeal. If you were going to carry an NCV pen and a receptacle tester anyway, this puts both functions on the two tools you already need.
The accuracy story from reviewers with field experience is consistently good. Across 650 reviews at a 4.6 average, owners with an electrical background describe it as the most accurate of the finders they have owned, specifically in panels with many circuits. The two-scan procedure ends with a solid green confirmation, which gives you a clear yes or no instead of an ambiguous chirp.
Its dual-sensitivity NCV mode is more useful than it sounds. It helps you sort out which wires in a terminal strip or on a supply cord are actually live before you touch anything, which is a genuine safety step rather than a gimmick.
The transmitter carries an LED socket tester for both standard and GFCI outlets, so you can confirm receptacle health in the same plug-in that starts the trace. The listed safety standards are UL 61010-1 and IEC 61010-2-030, which is a stronger certification story than most products in this category offer.
When the Fluke BK120 makes sense
Buy it when your panel is full, your receptacles are modern, and you want one compact package to handle finding, live-wire checks, and outlet testing. It fits in a tool bag without dominating it, and the minimum operating voltage of 110V AC fits standard North American branch circuits.
It is also a good match if you work on smart panels or electronics-heavy spaces, because the NCV mode gives you an independent way to confirm a conductor is live rather than trusting the trace alone.
Where it falls short
Build feel is the recurring gripe. Owners describe it as lighter and less substantial than competing tools, and several keep it in a case to protect it. The transmitter plug geometry also means you often need a free duplex receptacle, and reviewers report better results when the outlet is vacant during testing. It is a North American plug only, and it does not follow switch loops or trace through a light switch.

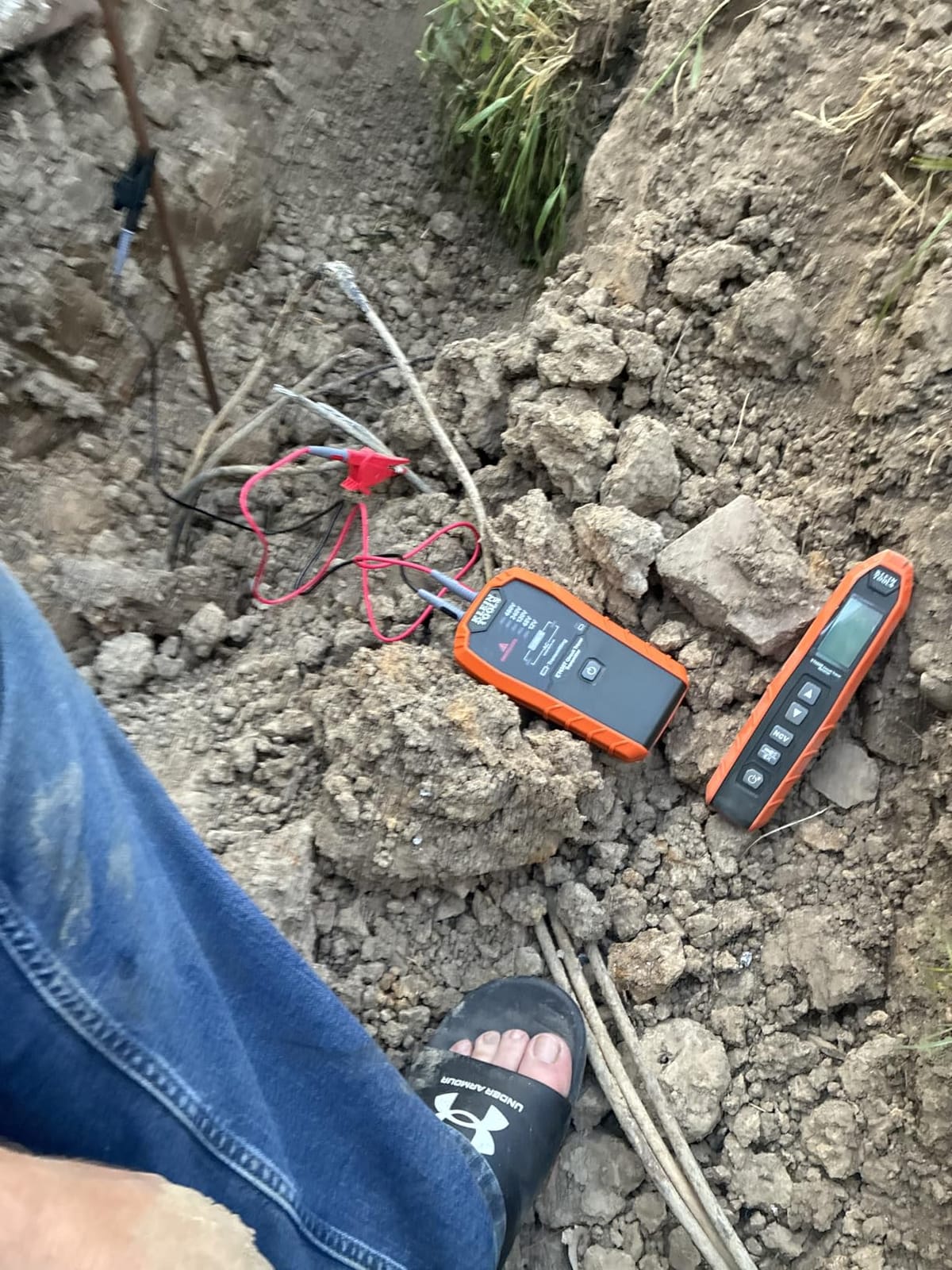

3. Klein Tools ET450 – Best for Professional Tracing Beyond the Panel
Klein Tools ET450 Advanced Circuit Breaker Finder and Wire Tracer Kit
12V-480V range
2 lb
16.12 x 12.75 x 4 in
Traces dead circuits
Flashlight and NCV
Pros
- Follows energized and de-energized wire
- Detects through drywall and concrete
- Isolates a single wire in a bundle
- Large accessory kit with a case
Cons
- Bulky at 2 pounds
- High cost for a simple outlet trace
- Advanced modes need manual time
The ET450 is the only tool in this lineup that answers the dead-circuit question, and that single fact separates it from everything else here. It traces energized and non-energized breakers, fuses, and wires, with transmitter voltage indicators from 12V up to 480V.
This is the model electricians name when the job stops being about finding a breaker. In r/electricians, users report it locating cut buried wire in walls, concrete, and small trenches, and across its 1530 reviews at a 4.7 average, owners repeatedly point to adjustable sensitivity that cuts through drywall and cement block and shielded cable.
The accessory kit is genuinely complete. You get blade and ground prongs, alligator clips, both 3-foot and 20-foot lead adapters, AC plug leads, batteries, instructions, and a carrying case, so you are not hunting for a lead that fits the job.
On the receiver, a built-in flashlight and non-contact voltage function handle the awkward cases: a buried run in an unlit basement, or confirming a conductor is live before you cut into anything.
Who should buy the ET450
If you are chasing wire rather than a breaker, this is the answer. Finding a short in a wall, following a run through concrete, isolating one conductor inside a bundle, or identifying which of several splices is wrong all fall outside what a simple finder can do. Electricians who use a breaker finder daily tend to land here, and the consensus on r/AskElectricians is clear that occasional mapping and daily tracing justify different tools.
It also covers 240V work, which no 90-120V unit in this list can do.
Who should not
If your only goal is identifying which breaker feeds an outlet, this is serious overkill in size and cost. At 2 pounds with a 16 x 12.75 x 4 inch footprint, it does not live in a tool bag, and the shielded-line and underground modes take real reading time in the manual. Sensitivity also needs adjusting in panels with many parallel conductors, so the learning curve is real.

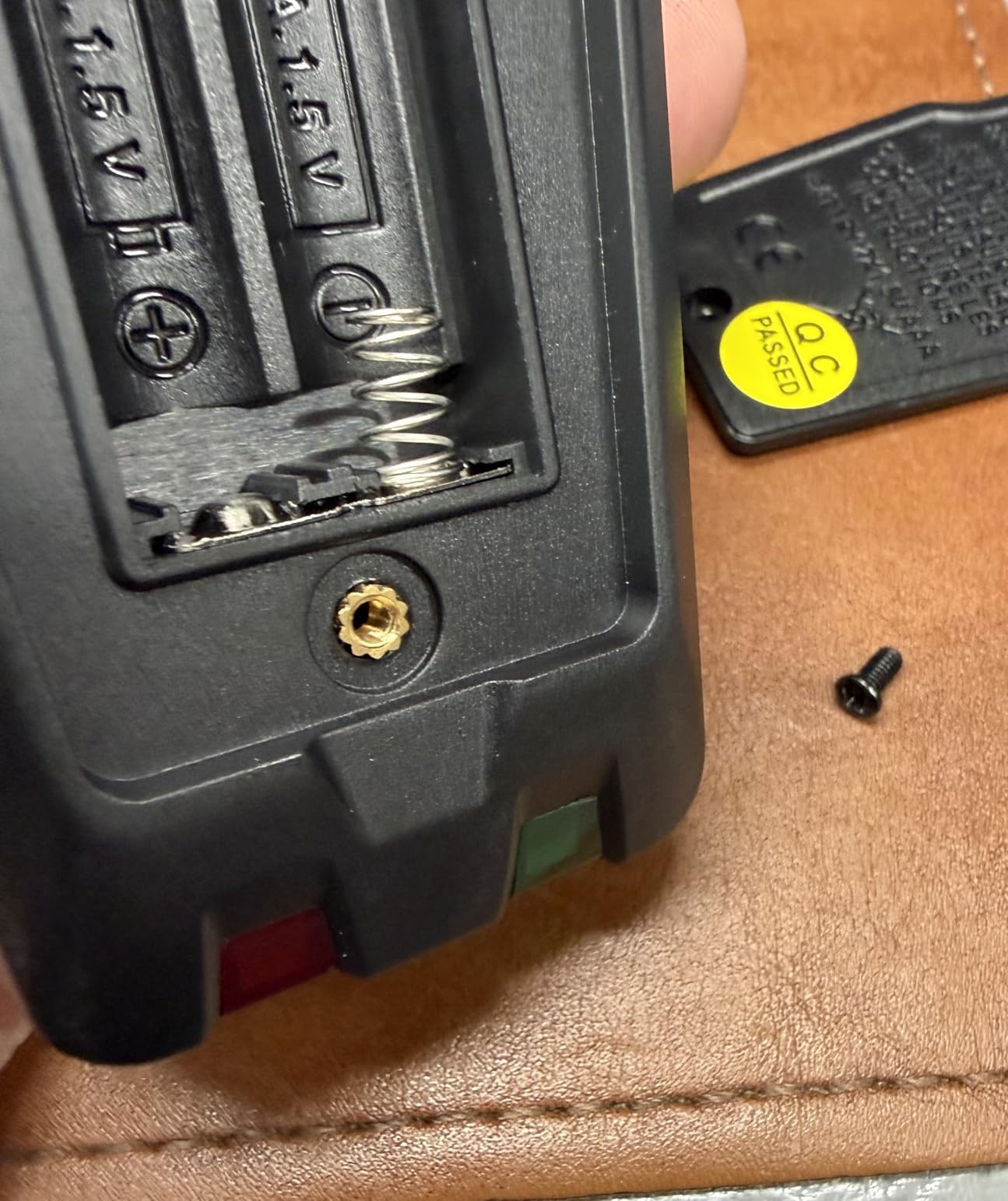

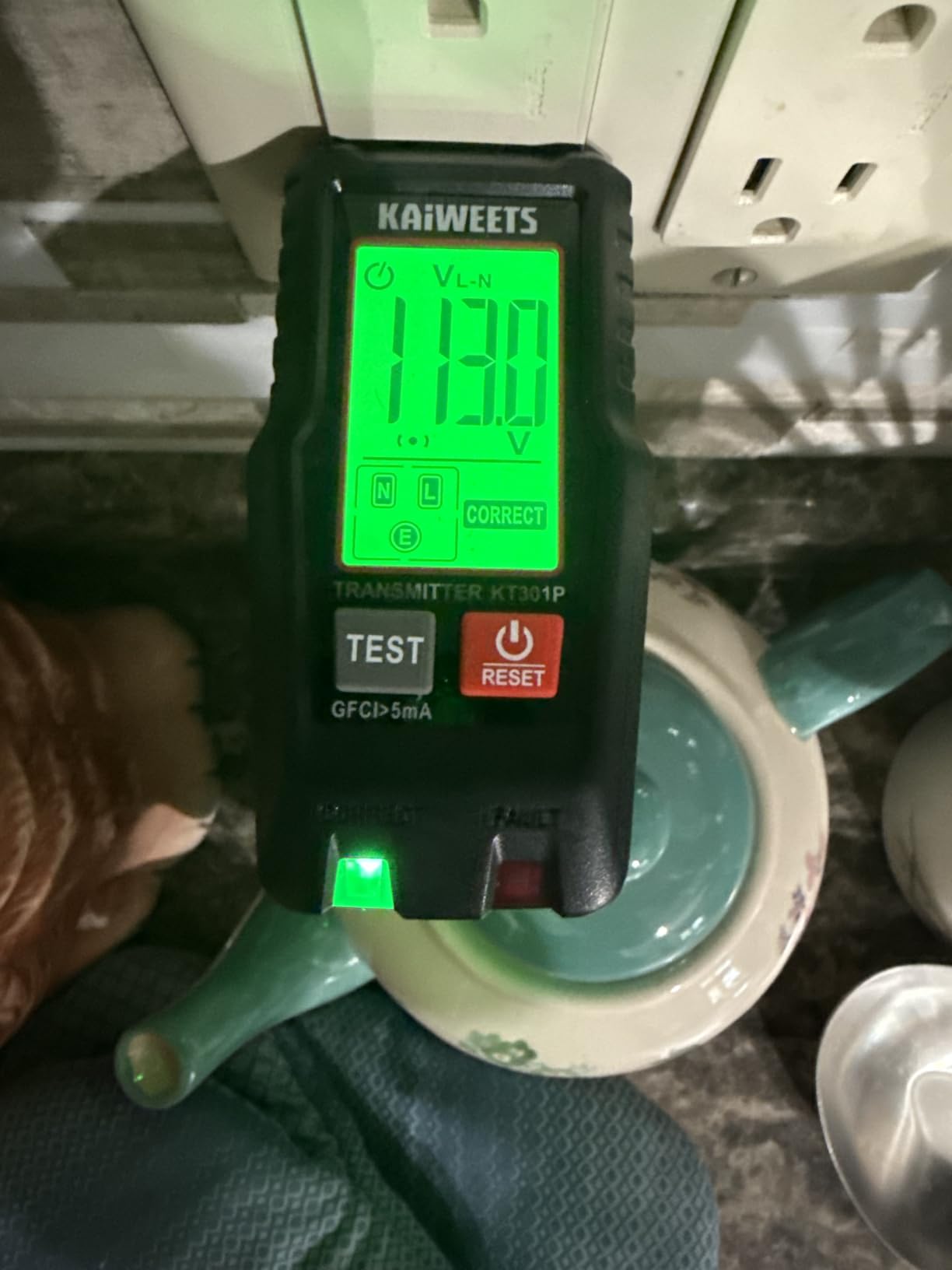

4. KAIWEETS KT301P – Best for Reading Results in a Dark Panel
KAIWEETS Circuit Breaker Finder with LCD Display, GFCI Outlet Tester, Electrical Circuit Tracer Tool with NCV Test & Flashlight, Includes Carrying Case and Adapters- KT301P
30-150V AC range
Backlit LCD
Seven-fault diagnosis
NCV and flashlight
Auto-hold
Pros
- Backlit LCD shows live voltage and signal strength
- Seven common wiring faults diagnosed
- Adapters and carrying case included
- Auto-hold keeps the last reading
Cons
- Limited to 150V maximum
- Heavier than simple beep finders
- Newer brand with less field history
Most breaker finders in this category give you a beep and an LED. The KT301P gives you a backlit LCD that shows live voltage, wiring status, and a signal strength bar, which changes how you work. You can watch the signal strengthen as you approach the right breaker instead of interpreting a sound.
It works across 30-150V AC, diagnoses seven common wiring faults with LED and LCD feedback, and runs a GFCI auto-trip test on the transmitter with red and green indication. Auto-hold retains the last outlet test result and voltage reading after you unplug, so you do not have to keep re-plugging to read the panel.
The receiver adds non-contact voltage detection and a flashlight, and the box includes a 3-prong to 2-prong adapter, a light socket adapter, an alligator clip adapter, and a carrying case. That adapter set matters more than it sounds, because ceiling lights and fixtures without a convenient outlet are the most common reason a basic two-piece kit fails the user.
Across 1165 reviews at a 4.5 average, the praise concentrates on versatility and screen readability in unlit panels. The criticism concentrates on range and confirmation: some owners note the signal strength reading still needs a breaker-off test to be certain.
When the KT301P fits
It suits someone who is diagnosing rather than just tracing. If you are chasing an intermittent, checking whether a receptacle is properly wired, or verifying GFCI protection before installing something in a wet location, the display and fault codes answer questions a beep cannot.
The voltage range starting at 30V is a genuine advantage on low-voltage lighting circuits, and the 150V ceiling covers standard household branch wiring with room to spare.
When it does not
It is capped at 150V AC, so it will not touch a 240V appliance circuit. The LCD and auto-hold add bulk next to a bare beeper, and as a newer brand it does not have the long field history behind it that Klein or Fluke carry. Treat the screen reading as a strong hint, not a final answer.

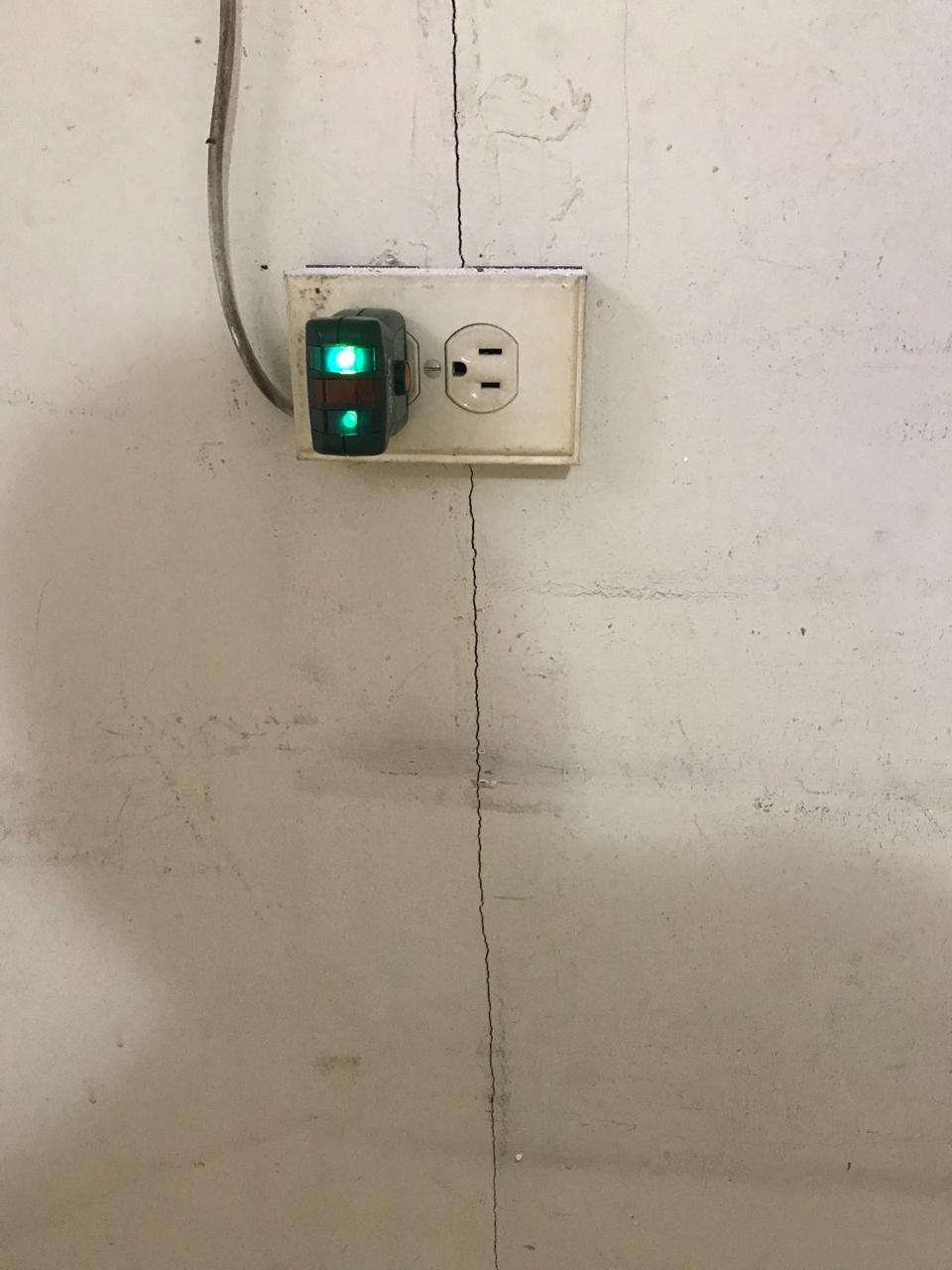

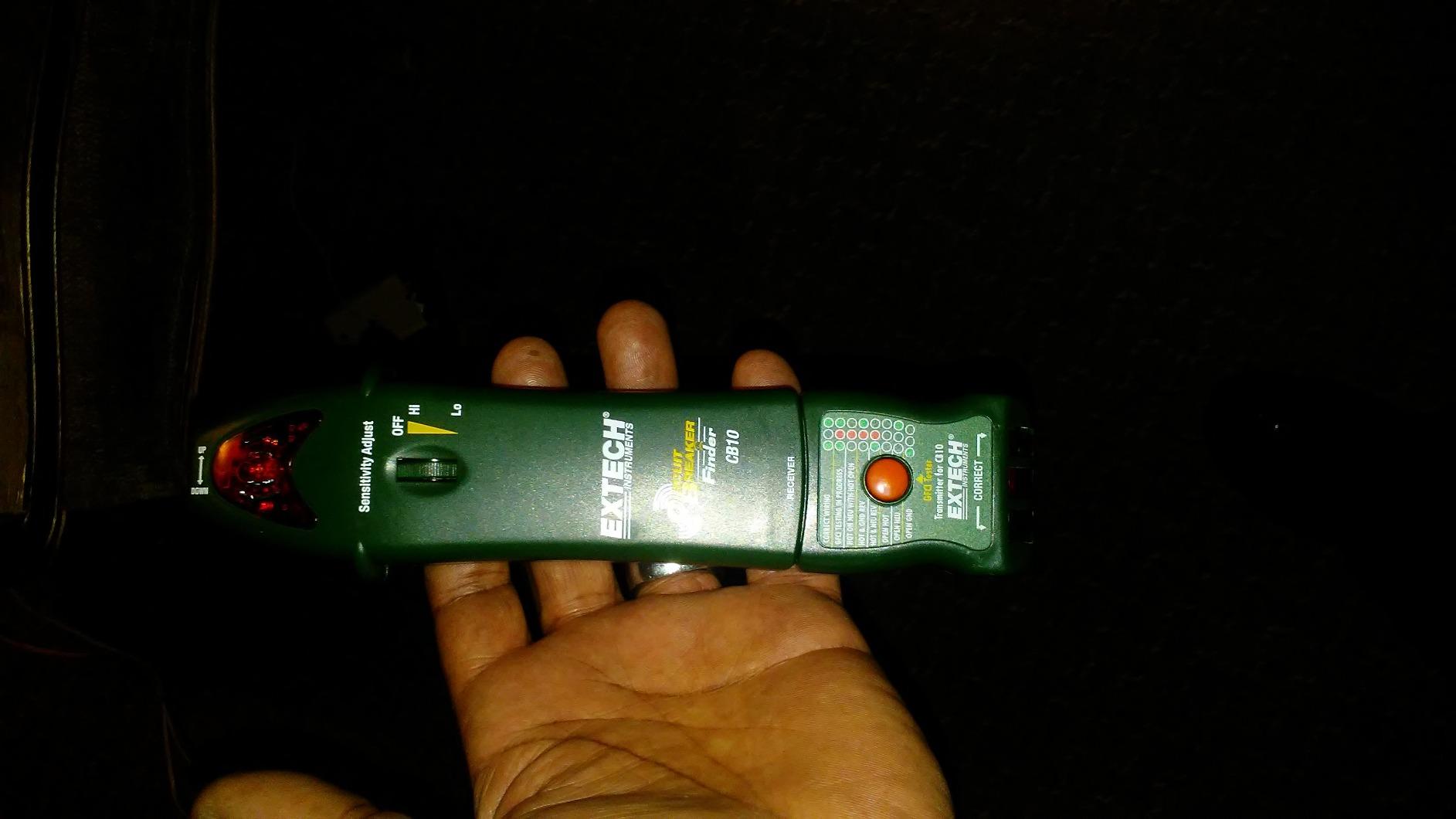

5. Extech CB10 – Best Budget Finder With Real Fault Testing
Extech CB10 AC Circuit Breaker Finder and GFCI Receptacle Tester
110-125V AC
Two-pass calibration
Sensitivity dial
9V battery included
1 year warranty
Pros
- Two-pass calibration reduces wrong-breaker signals
- Receptacle tester flags open ground and open neutral
- Sensitivity dial filters ghost chirps
- 9V battery included in the box
Cons
- Only works on live circuits
- Both calibration passes must be completed
- Basic design with fewer features
The CB10 is the one to buy when the budget is the first consideration and you still want more than a beep. Its two-pass calibration procedure is the feature that separates it: you do a learning scan before the identification scan, and that extra step measurably reduces the multiple-breaker and wrong-breaker readings that plague cheap finders.
The integrated receptacle tester is professional-grade for its class, detecting open ground, open neutral, and reverse polarity. Combined with the GFCI trip and test button on the transmitter, it answers both of the questions a homeowner usually has at once: which breaker is this, and is the outlet even wired correctly?
A variable sensitivity dial on the receiver lets you filter out ghost chirps in a noisy panel, which is the practical answer to cross-talk from bundled conductors. It locates breakers and fuses live, at 110 to 125V AC, without shutting anything off, and a 9V battery is included so it works out of the box.
Reviewers rate it 4.4 across 2610 entries and mostly describe it as dependable for the money. Negative feedback tends to focus on setup rather than failure, including a common issue where the 9V is not snapped firmly into its terminal clips and the receiver stays silent.
When the CB10 is enough
Pick it for labeling a panel, finding the breaker behind an outlet, or checking a receptacle’s wiring status on a standard 120V circuit. The one-year warranty is a modest reassurance, and the two-piece design is simple enough that a first-time user will not need a walkthrough.
It is also a sensible second tool to keep in a garage or workshop, separate from a nicer tool you keep in the house.
When you need something else
It is a live-circuit tool only, so it is no help on a dead outlet. The sensitivity dial is not automatic, meaning you have to understand the scan to get a clean read, and the basic design lacks the light socket adapters and NCV functions that make some competitors more flexible. There is a persistent group of one and two-star reviews, so expectations should be calibrated accordingly.

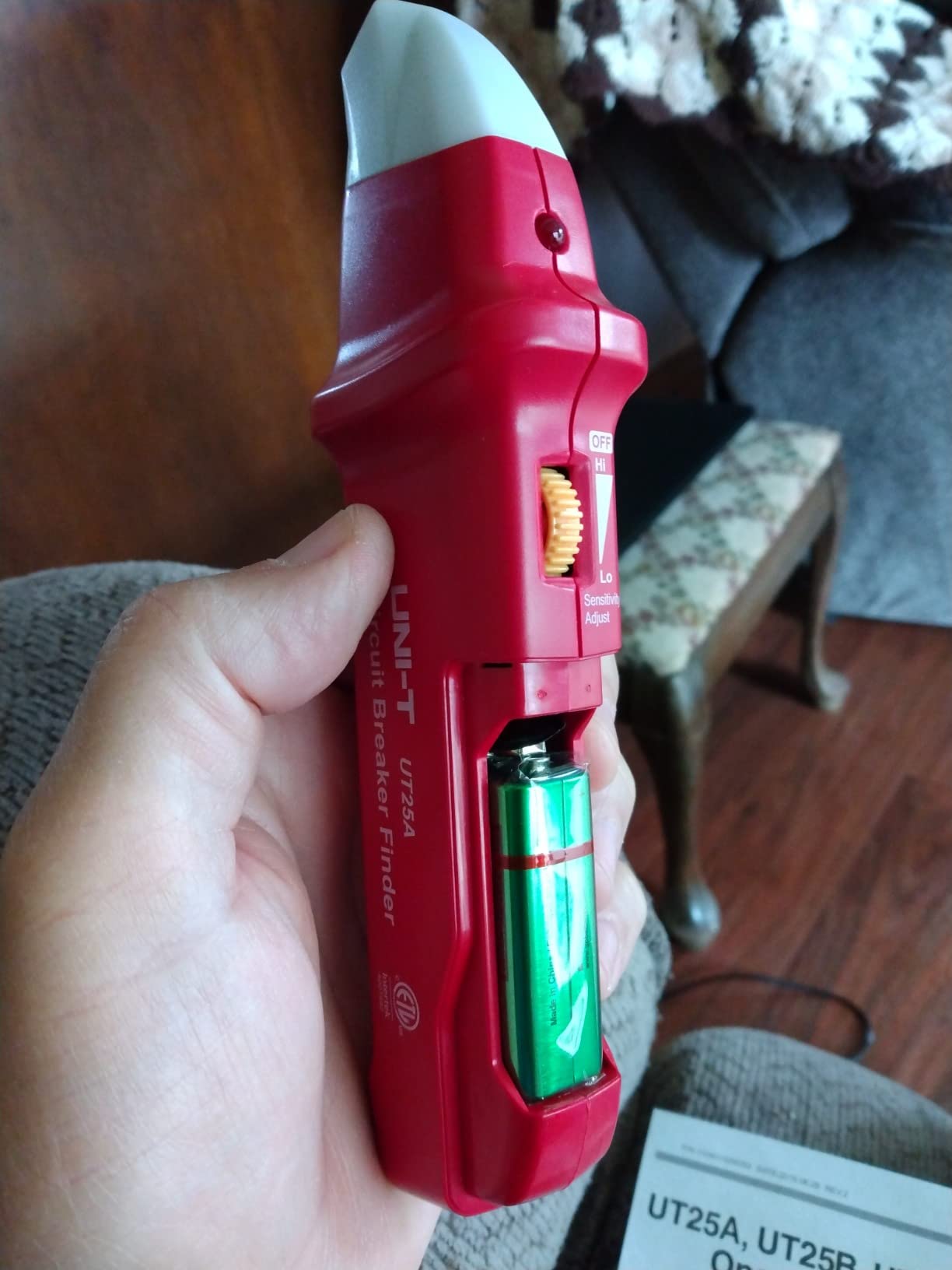

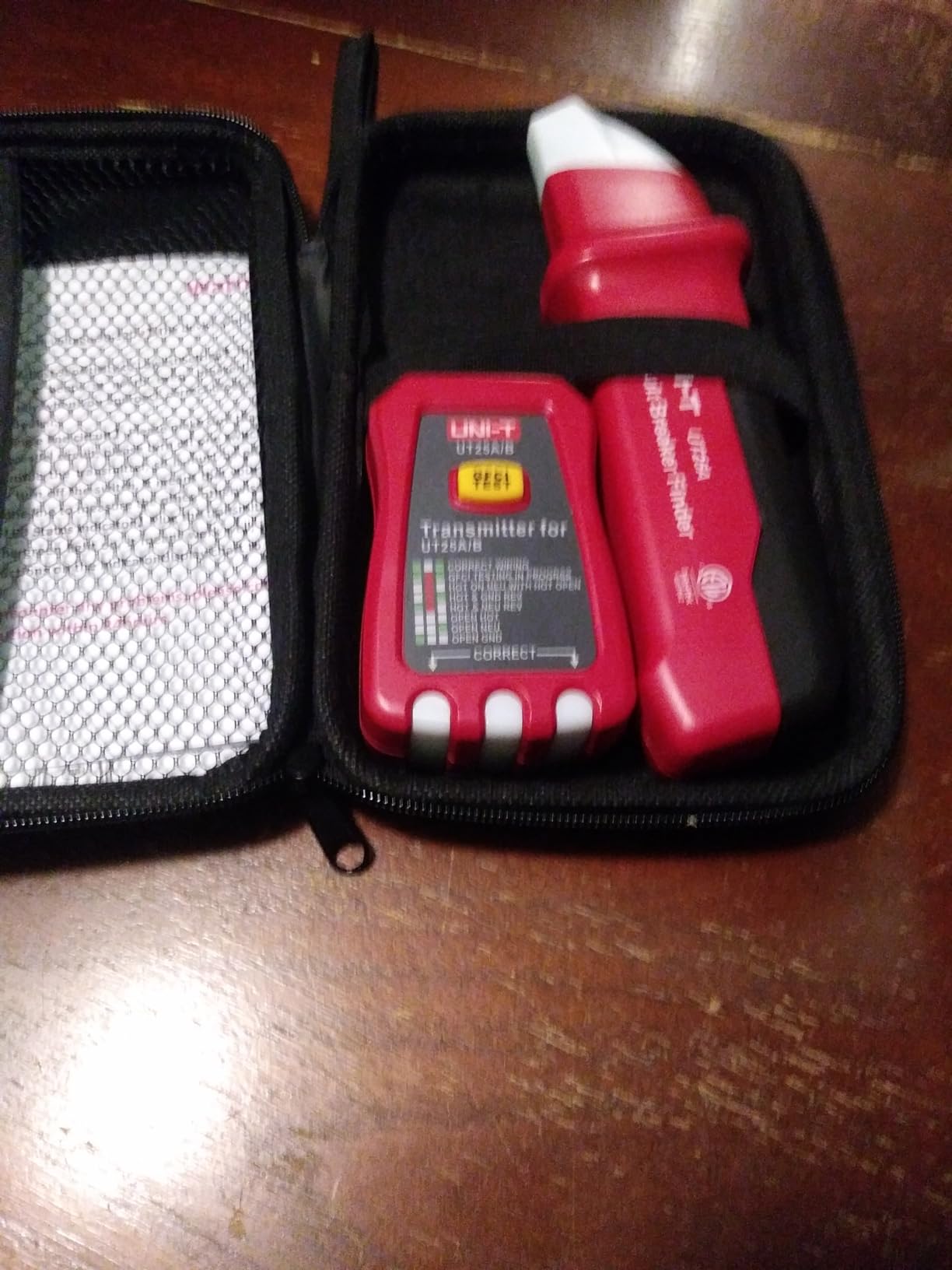

6. UNI-T UT25A – Best Value for Basic Homeowner Use
UNI-T AC Circuit Breaker Finder Tracer Tool Kit GFCI Outlet Tester
90-120V AC 50/60Hz
220 g
7.87 x 4.96 x 1.97 in
Adjustable sensitivity
EVA case
Pros
- Removes the guesswork from basic outlet tracing
- Socket tester reports correct wiring on its own
- Sensitivity dial lets you isolate one breaker
- EVA carrying case included
Cons
- Must start at lowest sensitivity or it beeps everywhere
- Less accurate scanning the outer edges of a breaker row
- Multiple indications in older dense panels
The UT25A covers 90-120V AC at 50/60Hz, which is the entire useful range for household branch circuits, and it weighs 220 grams. For a one-time mapping job or a first panel you have inherited, that is enough capability at a modest outlay.
Its adjustable sensitivity dial is the whole story. Start it at the lowest setting and increase gradually until only the correct breaker beeps. Reviewers who follow that sequence report clean results; reviewers who crank it up first get chirps from half the panel and conclude the tool is broken.
The transmitter includes a GFCI security test function and an LED status indicator panel that helps you avoid operating it the wrong way, which is a small quality-of-life touch for a first-time user. The package includes a receiver, a socket tester transmitter, a manual, and a thickened EVA tool case.
At 4.3 across 969 reviews, the sentiment is positive but qualified. Owners call it good value for basic homeowner use, and accuracy is reported as noticeably better in modern, well-organized panels than in older, crowded ones. A small group report outright failure to locate the correct breaker.
When the UT25A is the right buy
It fits a specific job: labeling the breakers in a reasonably tidy panel, finding which breaker feeds a bedroom or kitchen receptacle, and confirming wiring on the outlets you test. The 90-120V window matches standard systems, and the audio beep with a flashing LED makes the match obvious once you have isolated it.
It is also the model we would suggest for a renter or a first-time homeowner who wants the tool available for occasional fixture swaps.
Where it disappoints
The sensitivity dial is a manual skill, not an automatic feature, and the receiver may buzz on several breakers at maximum sensitivity. Scanning the outer edges of the breaker line is less reliable than the center, so move deliberately. In a densely wired or older panel you will likely be repeating passes, and there is no light socket adapter in the kit for fixture-only circuits.

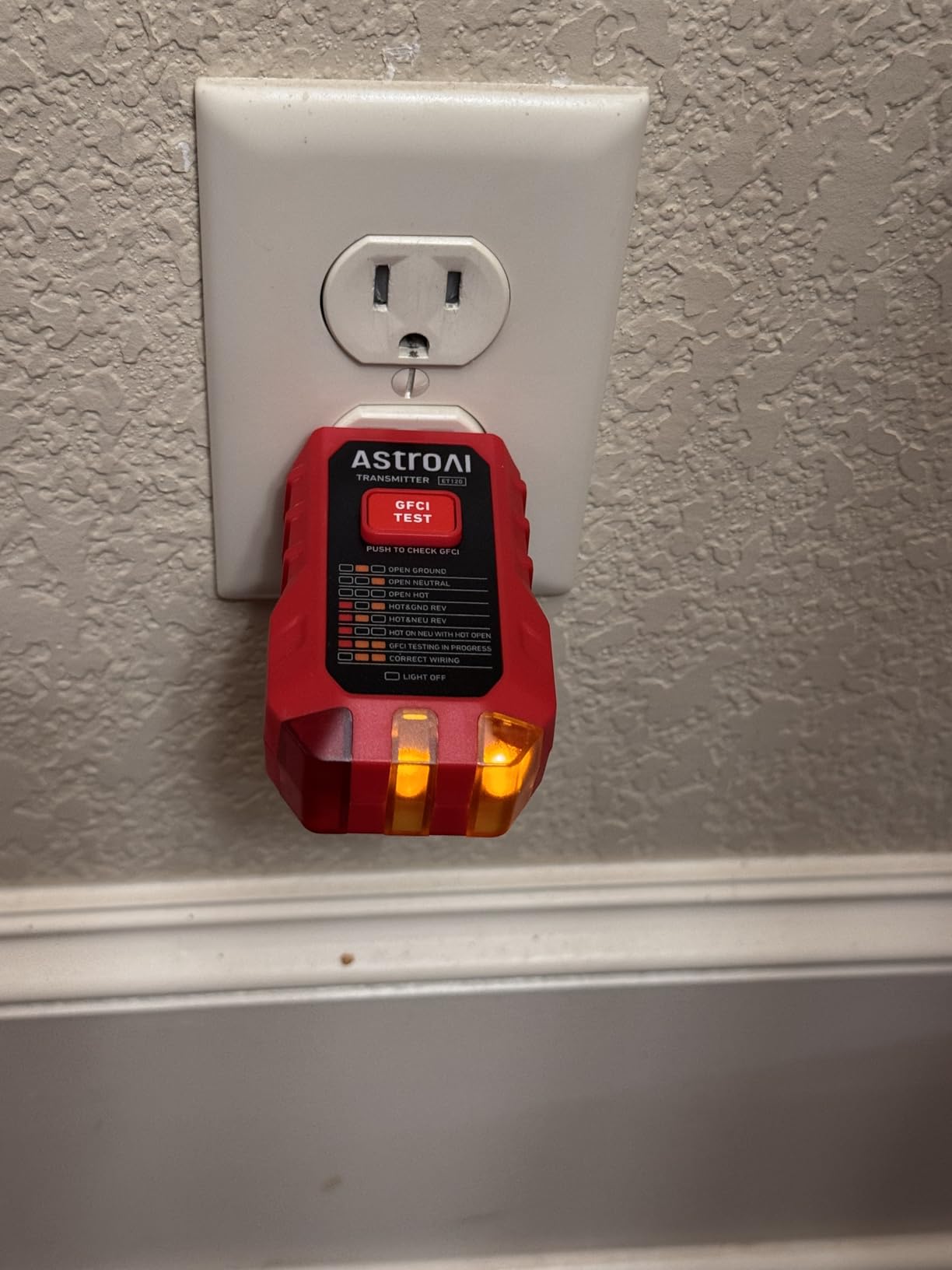

7. AstroAI ABCBFET120BK – Best Bundled Adapter Kit
AstroAI Circuit Breaker Finder Tool with GFCI Outlet Tester for 90–120V AC
90-120V AC 50/60Hz
Digital receiver
ETL listed
9.33 x 5.51 x 2.56 in
LED panel light
Pros
- Digital receiver filters interference for cleaner targeting
- Built-in LED light for unlit panels
- Light socket
- 3-to-2-prong and alligator adapters included
- Auto-shutdown and low-battery alerts
Cons
- No capability above 120V
- LEDs only with no numeric display
- Small share of reports of missed identification
The AstroAI package is the most complete adapter set among the simple finders here. The box includes a transmitter, receiver, a light socket adapter, a 3-to-2-prong adapter, and alligator clip adapters, which means you can work a ceiling fixture, a two-wire receptacle, or a de-energized-ish conductor clamped with clips without buying anything else.
The digital receiver is designed to filter interference, which is a direct answer to the accuracy complaint that dominates this category. It gives an audio beep plus a flashing red indicator, so the correct breaker is hard to miss once the signal is isolated. A built-in LED light illuminates a dark panel, and auto-shutdown with a low-battery alert protects an interrupted session.
Certification is a point in its favor. It is listed to CE, ETL, NIST, and UL standards, and the integrated outlet tester checks wiring conditions and GFCI function on top of the breaker finding. Operating range is 90-120V AC at 50/60Hz, matching most household systems.
At 4.4 across 472 reviews, owners describe a capable, affordable tool that cuts the trial and error out of breaker flipping. The critical minority reports inaccurate identification in busy panels, and the absence of a backlit numeric display keeps it behind the KT301P for readable feedback.
Who this package suits
It suits a homeowner with a mixed property: a garage circuit, a ceiling fixture with no nearby outlet, and an older two-wire receptacle. Having all three adapters in the case removes the most common reason a finder purchase disappoints, and the ETL listing gives you a certification mark to look for on the tool itself.
The LED panel light is a real quality-of-life upgrade if your panel sits in a dim utility room, which is where most of them do.
Where it stops
It is limited to 90-120V AC with no capability above 120V, so it is not a tool for 240V appliances. There is no backlit numerical display, only LEDs and beeps, so in a crowded panel you are back to interpreting sound. And a small but real share of reviewers report missed or false identification, so confirm any result by switching the breaker off before you start work.

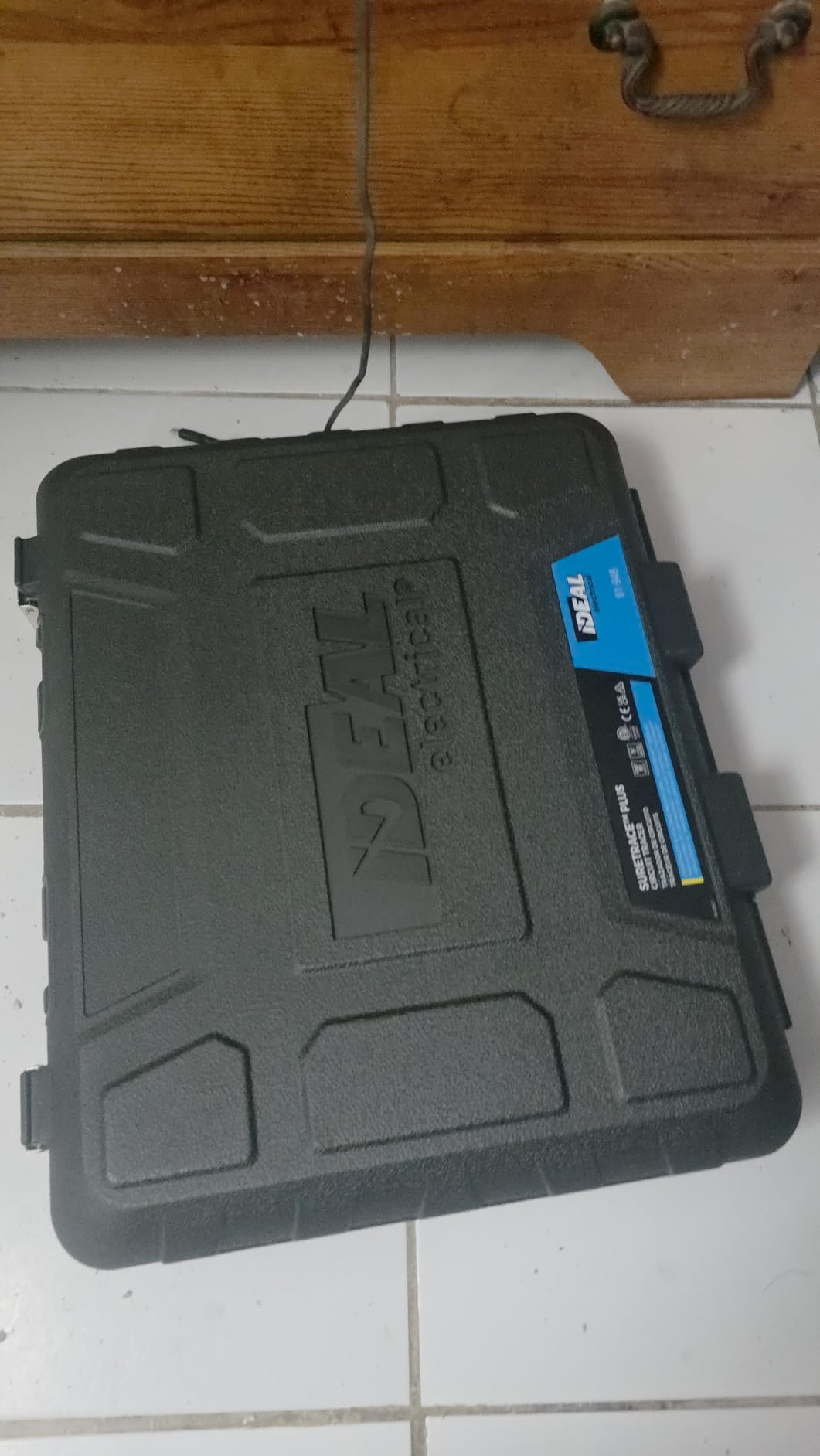

8. Ideal SureTrace Plus 61-948 – Best for Three-Phase and 600V Work
Ideal Electrical SureTrace Plus Circuit Tracer, 61-948, 0-600V AC/DC
600V AC/DC max
ETL CAT III
7 lb
24V-600V AC eight levels
Continuity test
Pros
- Traces live and dead circuits up to 600V including 3-phase
- CertainCircuit keeps one person on the job
- Built-in NCVT and continuity test
- Rotating display with work light
Cons
- Heaviest option at 7 pounds
- Professional instrument rather than a homeowner tool
- Digital menus add a learning curve
The SureTrace Plus is the instrument you buy when the load is not a 120V household branch. It detects breakers, wires, conductors, fuses, dead shorts, and splice errors on live or dead circuits up to 600V AC and DC, including three-phase systems, and it carries an ETL Certified CAT III rating.
CertainCircuit is the feature that changes the workflow. It shows you when the correct circuit has been de-energised at both ends, which means one person can do the job instead of coordinating with a second person at the panel. A built-in NCVT in the receiver and a patent-pending continuity test on the transmitter remove the need for a separate tester on the belt.
The transmitter indicates DC polarity and eight voltage levels from 24V to 600V AC. The receiver has a 180-degree rotating main display plus a TightSight bottom display for reading values in tight spaces, along with a mute button, a work light, and a battery level indication. The overmolded housing is drop protected to 6.6 feet and rated for 32 to 122 degrees F, and a free downloadable app carries 3D interactive instructions.
Across 147 reviews at 4.4, sentiment is solidly positive with a 74 percent five-star share. The reservations are physical: it weighs 7 pounds, comes in a large carrying case, and the digital menus take getting used to compared with a simple beep finder.
Where it belongs
This is commercial and industrial work. Solar installs, service panels, machine control circuits, EV charging equipment, and any three-phase distribution put it in scope. If you are mapping a residential panel, it does strictly more than you need.
For anyone who traces work daily, the combination of de-energised capability, continuity testing, and a one-person trace procedure is what justifies the size.
Why most people should skip it
At 7 pounds and 19.25 x 17 x 5 inches with batteries, it is a job-site instrument rather than a carry-around tool. The digital signal and sensitivity readouts add real setup time for a first-time user, and a homeowner with a 40-breaker residential panel will never touch its ceiling. The Fluke BK120 or the Klein ET310 covers the same homeowner goals at a fraction of the weight.
How to Use a Circuit Breaker Finder?
Follow the order below. Skipping the learning pass is the single most common reason a first scan returns a wrong breaker.
Confirm the circuit is live. Plug the transmitter into the outlet you want to trace and check that its indicator lights. If the circuit is dead, a standard finder has nothing to send.
Do the learning pass. With the transmitter connected, take the receiver to the panel and scan every breaker once, top row to bottom, without stopping. This lets the receiver map the panel.
Repeat the learning pass. Several models, including the Extech CB10, require two calibration passes before identification. Check your manual.
Run the identification scan. Starting from the main, move the receiver down the breaker column one breaker at a time, held perpendicular to the row rather than dragged along it.
Confirm before you touch anything. Switch the indicated breaker off and verify the target device is actually de-energised with a separate tester before removing any cover or terminal.
Label as you go. Write the room name on a numbered strip or a masking-tape flag the moment you identify a breaker, then move to the next circuit. Do not save labeling for the end.
For fixtures with no accessible outlet, screw the light socket adapter into the bulb socket instead of using the plug. For bare or inaccessible conductors, attach the alligator clip adapter to the wire with power off at the panel, and use the 3-prong to 2-prong adapter on older two-wire receptacles.
Will a Circuit Breaker Finder Work on a Dead Outlet?
No, not the eight standard finders above, with one exception in this list. A transmitter-based breaker finder takes its power from the circuit you plug it into, so a de-energized outlet means no signal and no beep. This is the question that comes up repeatedly on r/AskElectricians and it is worth being blunt about: if the receptacle is dead, this category of tool cannot help.
What you need instead is a tracer that puts a signal onto the conductor itself, independent of the circuit state. The Klein ET450 in this lineup does that, tracing energized and de-energized breakers, fuses, and wires. The Ideal SureTrace Plus goes further, handling live and dead circuits to 600V AC and DC with a built-in continuity test.
There is one partial workaround for household circuits. With the breaker switched off, clamp the alligator clip adapter onto the hot conductor at an accessible point, and the transmitter can push a signal down that wire. This is a legitimate technique for identifying which breaker feeds an abandoned circuit, but it is not a substitute for a proper dead-circuit tracer when you need to find a fault in the wiring itself.
Breaker Finder or Advanced Circuit Tracer?
The distinction is simple. A breaker finder answers one question: which switch in the panel feeds this outlet or fixture. A circuit tracer answers a harder question: where does this specific wire go, and is it intact.
Choose a breaker finder when your work is panel mapping, labeling, and identifying outlets. Choose a tracer when you are chasing a cut or buried conductor, following wire through drywall or concrete, isolating one conductor inside a bundle, or working a 240V circuit. Electricians in r/electricians describe the Klein ET450 as the tool that found cut buried wire in walls, concrete, and small trenches, which is a job no 90-120V finder in this list can attempt.
The practical rule: if you only need to know what to switch off, you do not need to pay for tracer capability. If you need to know where the wire physically runs, you do. Several picks here, including the Fluke BK120, sit close enough to the middle that they make sense for either kind of user who also wants the built-in socket testing.
What to Look For in a Circuit Breaker Finder/
Voltage range
Almost every household branch circuit sits between 90 and 120V AC, so a finder covering that window handles normal residential work. Anything below 90V will miss low-voltage lighting runs, and anything that stops at 120V cannot touch a 240V appliance circuit. If you need either, move up to a tracer.
Alerts, displays, and sensitivity
A beep plus an LED is the baseline and it works. A backlit LCD showing live voltage and signal strength, as on the KT301P, makes a crowded panel much easier to read. An adjustable sensitivity dial, as on the CB10 and UT25A, is valuable in noisy panels but only if you understand that you have to start low and raise it gradually.
Built-in GFCI and receptacle testing
A socket tester on the transmitter tells you whether the outlet is wired correctly before you assume the finder is at fault. Look for fault detection covering open ground, open neutral, and reverse polarity, plus a GFCI trip test. This turns a two-function tool into a genuine diagnostic one.
Build, safety certification, and dead-circuit capability
Look for a recognized safety mark such as ETL or UL listing, and for a stated operating temperature rating. Most importantly, decide whether you need to trace a de-energized circuit at all. If yes, the standard finder category will not get you there and you should read the dead-outlet section above.
Accessory kit and calibration
A light socket adapter, a 3-prong to 2-prong adapter, and alligator clip leads cover the fixtures and receptacles that a plain plug cannot reach. A carrying case and an included 9V battery matter for longevity. Finally, check whether the tool requires a learning pass, and if so, budget the extra minute it saves you from a wrong breaker.
Brand and support
Klein, Fluke, Southwire, and Milwaukee are the names electricians reach for, and that recognition tracks with build quality and parts availability. If you want a single tool that also covers socket testing and voltage detection, Fluke’s four-in-one format is the reason it keeps showing up in professional kit lists.
One practical note before any drilling or cutting: map the circuit first, then confirm what is behind the surface. Our best stud finders guide covers the wall-scanning side of the job, which pairs with the panel map you are about to build.
The same mapping instinct shows up in a very different trade. Anyone who traces wiring behind a boat console can borrow the label-as-you-go method from our portable fish finder roundup, where identifying the right breaker for a depth transducer is the first step of a clean install. If you prefer a fixed console unit instead, our Garmin fish finder picks cover that side.
Safety Notes Before You Start
These tools send a low-level coded signal on a live circuit. They do not command a breaker to trip, and the signal level is not intended to interfere with sensitive electronics, though a breaker finder is not a substitute for a proper non-contact voltage check. On r/electricians, the recurring question is whether the tool can trip a breaker, and the practical answer is no under normal use.
What you still must not skip is verification. When the finder points at a breaker, switch it off and confirm de-energisation with a separate tester before removing any cover, touching a terminal, or working on a fixture. The finder tells you which switch to flip. It does not certify that the circuit is safe to touch.
A few practical cautions. Do not work on a wet or damp circuit. Do not use a finder as your only means of confirming a circuit is dead. And if a scan gives you an ambiguous result, do not assume the tool is wrong first, because a bundled or parallel conductor is the more common explanation. Move to the panel wiring, lower the sensitivity, and scan again.
Frequently Asked Questions
Do circuit breaker finders actually work?
Yes, on live 90-120V AC circuits. A transmitter injects a coded signal onto the hot conductor at the outlet you are testing, and a battery-powered receiver detects that signal as you scan the panel, beeping on the matching breaker. Accuracy drops in panels where several circuits are bundled in the same cable or share a junction box, because the signal bleeds between them.
Will a circuit breaker finder work on a dead outlet?
No, not the standard transmitter-based finders. The transmitter draws power from the circuit it is plugged into, so a de-energized outlet means no signal at all. To trace a dead circuit you need a tracer that places a signal on the conductor itself, such as the Klein ET450, which traces energized and de-energized breakers, fuses, and wires.
What is the most accurate circuit breaker finder?
In our testing the Fluke BK120 SmartTrace gave the most consistent signal in crowded panels, and users with electrical experience rate it as the most accurate of the finders they have owned. The Klein ET310 is the most dependable all-round choice thanks to a very large review base and a simple two-pass workflow, but no finder is flawless in a densely wired panel.
How do I use a circuit breaker finder correctly?
Plug the transmitter into the outlet or fixture on the circuit you want to trace, then take the receiver to the panel and scan every breaker once as a learning pass. Repeat that pass if your model requires two-step calibration. Then scan the breaker column one breaker at a time, held perpendicular to the row, and confirm the indicated breaker by switching it off and testing the circuit with a separate tester.
How do I use the circuit breaker finder accessory kit?
Use the light socket adapter by screwing it into a bulb socket instead of plugging into an outlet, which is how you trace a ceiling fixture with no nearby receptacle. Use the 3-prong to 2-prong adapter on older two-wire receptacles, and the alligator clip adapter to attach the transmitter to a bare conductor, which requires the breaker to be off. Keep the adapters in the case so they are not lost between jobs.
Who makes the best circuit breaker finder kit?
Klein Tools, Fluke, and Southwire are the most recognized names among electricians for this category, and that recognition tracks with build quality and parts support. For a general home panel, the Klein ET310 is the standard choice. For a professional who traces wire daily, the Klein ET450 is the tracer most often recommended, and for industrial and three-phase work the Ideal SureTrace Plus covers up to 600V AC and DC.
Why does my circuit breaker finder keep beeping on the wrong breaker?
Usually the sensitivity is set too high. Start at the lowest level and raise it gradually until only one breaker responds. Cross-talk from parallel conductors running together or sharing a junction box also causes false signals, and scanning the panel wiring rather than the breaker handles often gives a cleaner read. Always confirm the result by switching the breaker off before working on the circuit.
Which Circuit Breaker Finder Should You Buy?
For most people labelling a home panel in 2026, the Klein Tools ET310 is the circuit breaker finder to buy. It works on every standard household circuit, it is small enough to carry in a pocket, and its transmitter docks inside the receiver so the whole tool is one piece when you put it down.
Buy the Fluke BK120 instead if your panel is crowded or you want one tool to handle finding, live-wire checks, and outlet testing. Buy the Extech CB10 if you want the most diagnostic capability per dollar. Buy the KAIWEETS KT301P if you need readable results in an unlit panel, and the AstroAI package if you want every adapter in the box.
Then check the problem you actually have. If the outlet is dead, a standard finder will not help and you need the tracing capability of the Klein ET450. If you are chasing wire through walls or concrete, the same ET450 is the tool that electricians name. Only go larger, to the Ideal SureTrace Plus, when the work is three-phase or reaches toward 600V.
Whichever you pick, run one known circuit first to confirm the tool agrees with you, complete the learning pass every time, and confirm every result with a separate tester before you touch a terminal.
